Description

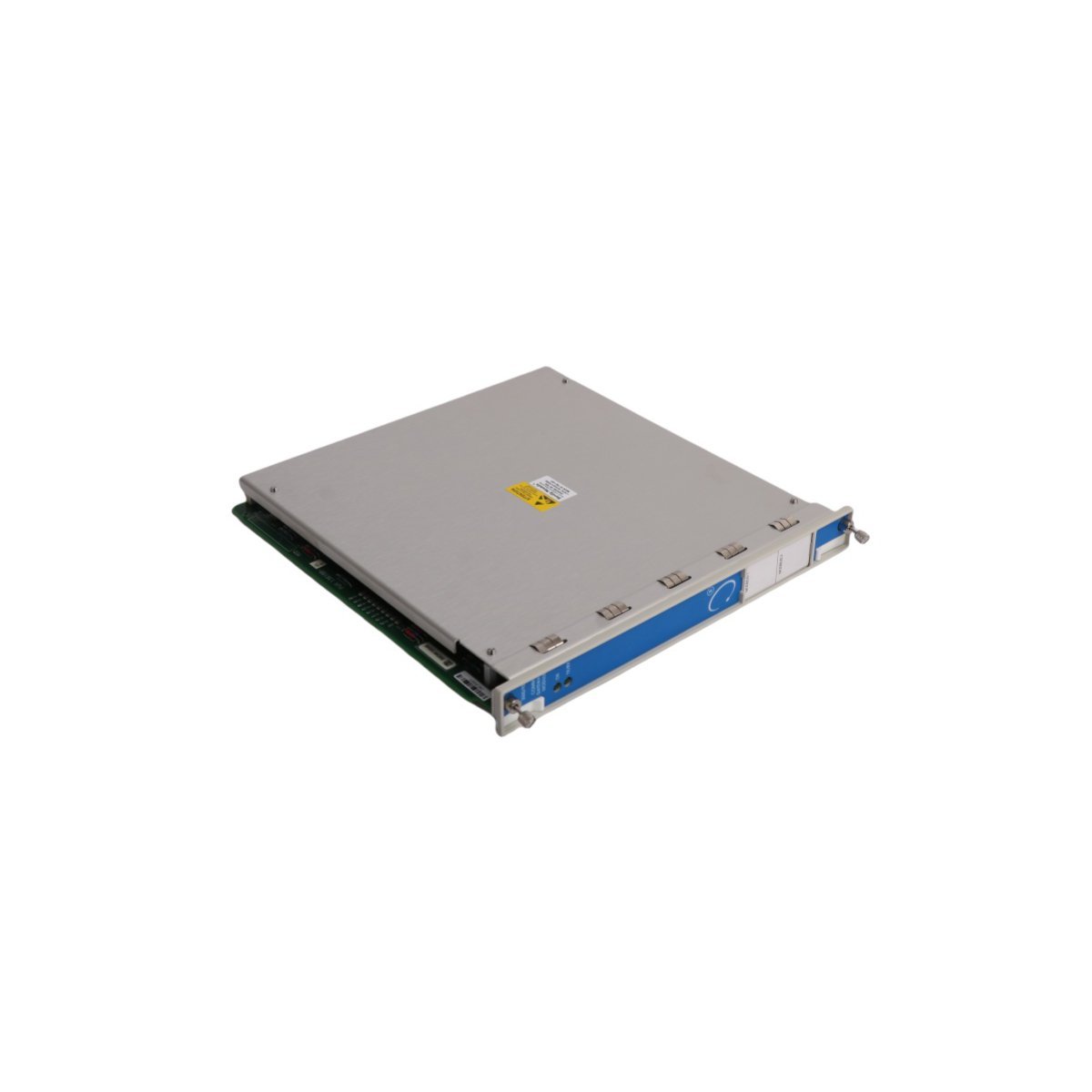

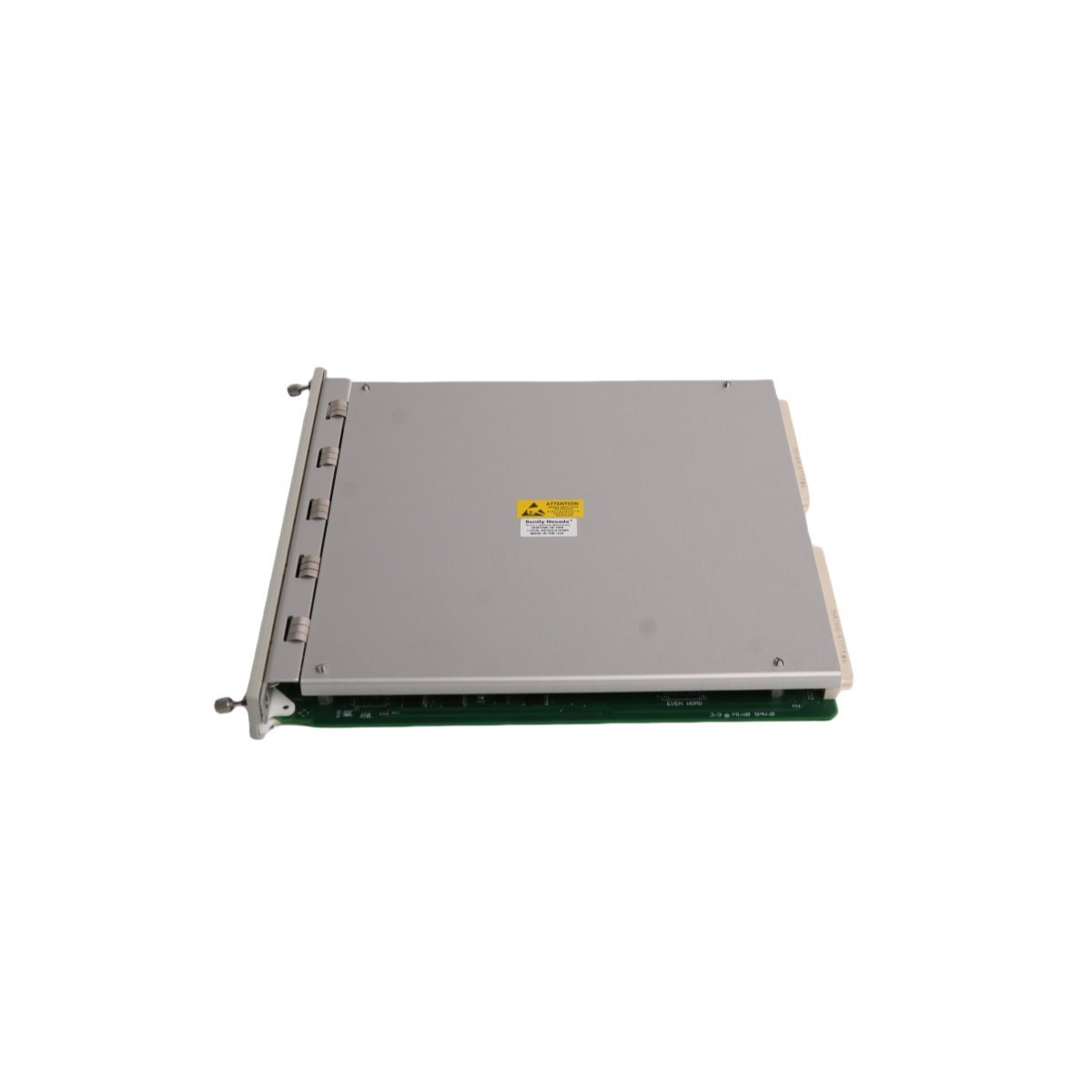

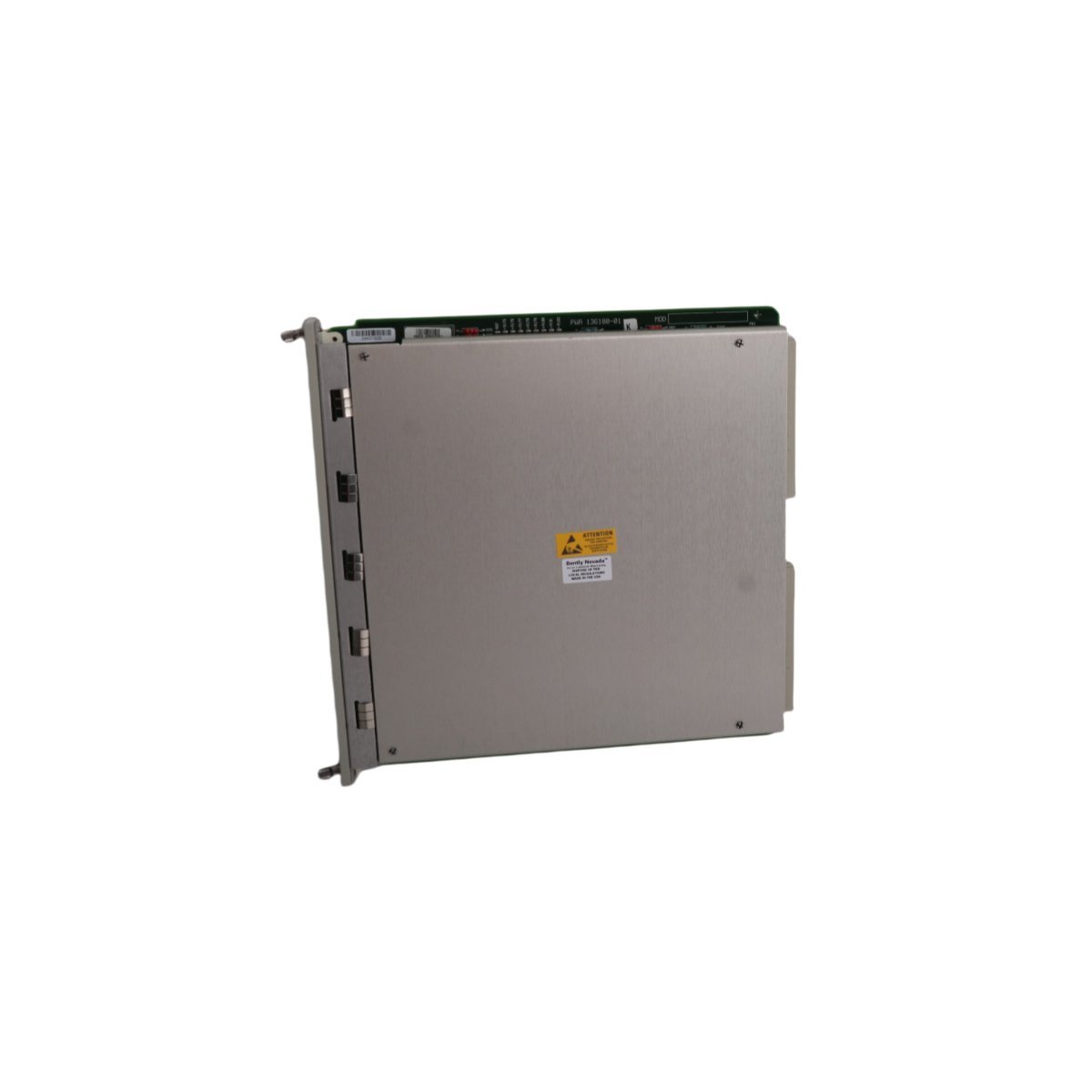

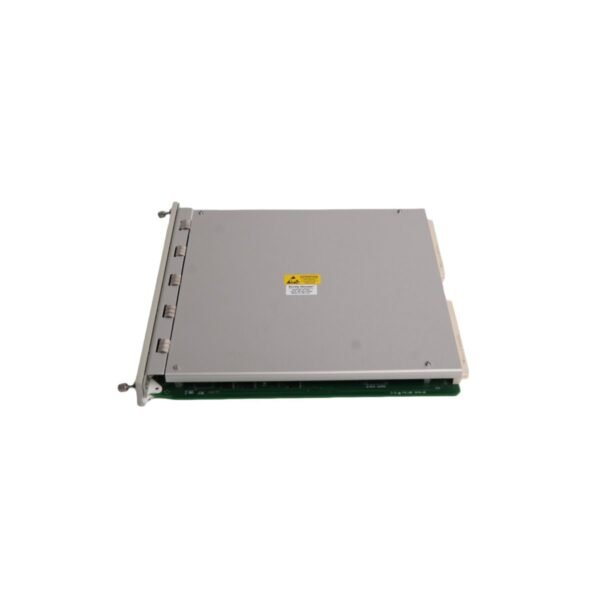

The Bently Nevada 3500/92 module facilitates digital communication between the 3500 rack and external control systems. This gateway translates internal backplane data into standard industrial protocols. It serves as a centralized hub for machinery condition information. Engineers typically use this module to transmit static and dynamic data to plant historians. It supports integration with Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC).

Protocol Support and Data Management

This communication gateway supports various industry-standard protocols including Modbus RTU and Modbus TCP/IP. The module efficiently manages high-density data packets from vibration and position monitors. Users can access current values, alarm statuses, and system events through these digital links. The dual-port design allows for redundant communication paths to ensure data availability. Furthermore, the 3500/92 handles the mapping of internal rack registers to external memory addresses.

Robust Hardware Architecture

Bently Nevada builds the 3500/92 to withstand demanding industrial environments. The module operates reliably within a wide temperature range in heavy-duty processing plants. It utilizes high-speed processing components to maintain low latency during data updates. The unit occupies a full-height slot in the 3500 machinery protection rack. It interfaces directly with the system backplane for seamless internal power and signal access.

Technical Specifications
