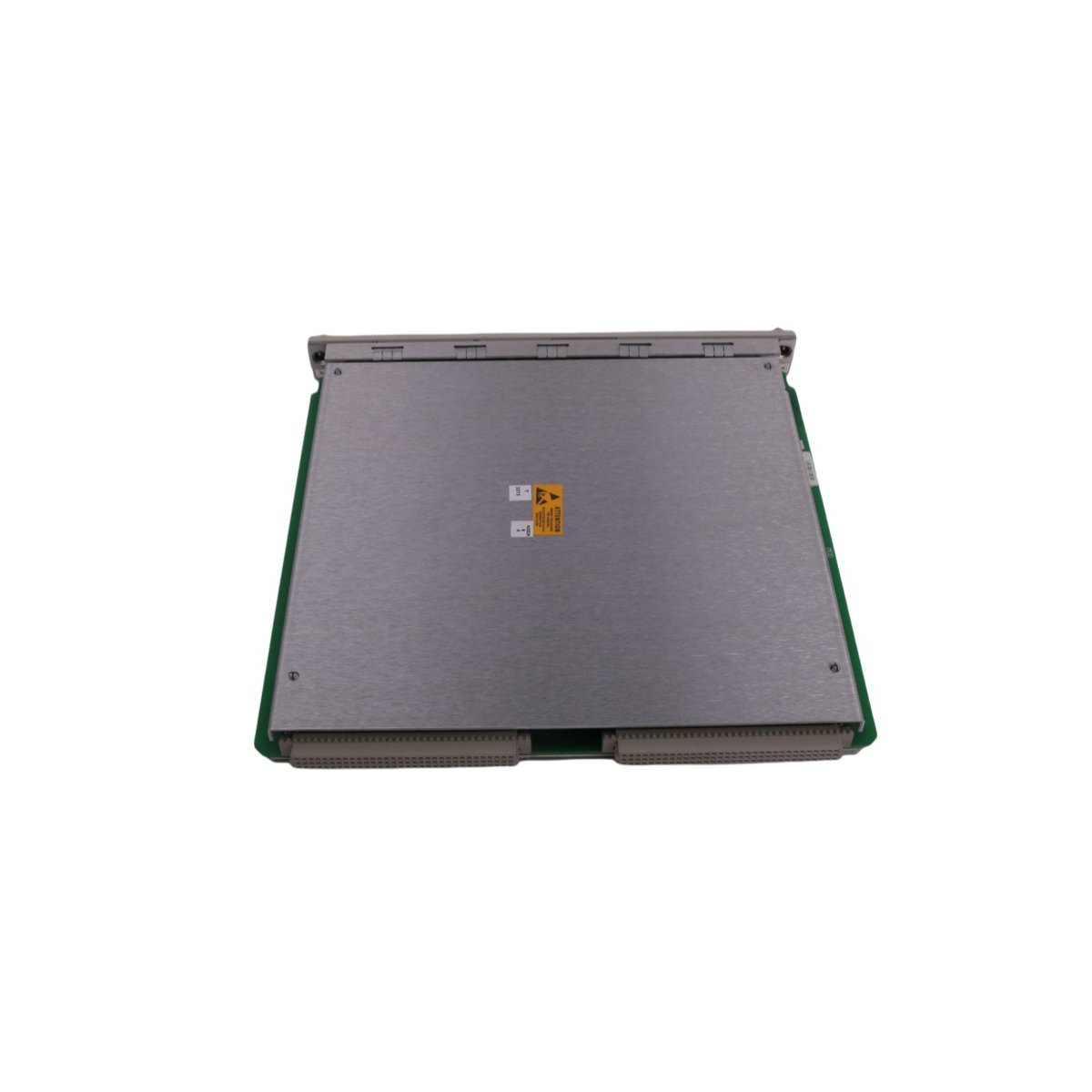

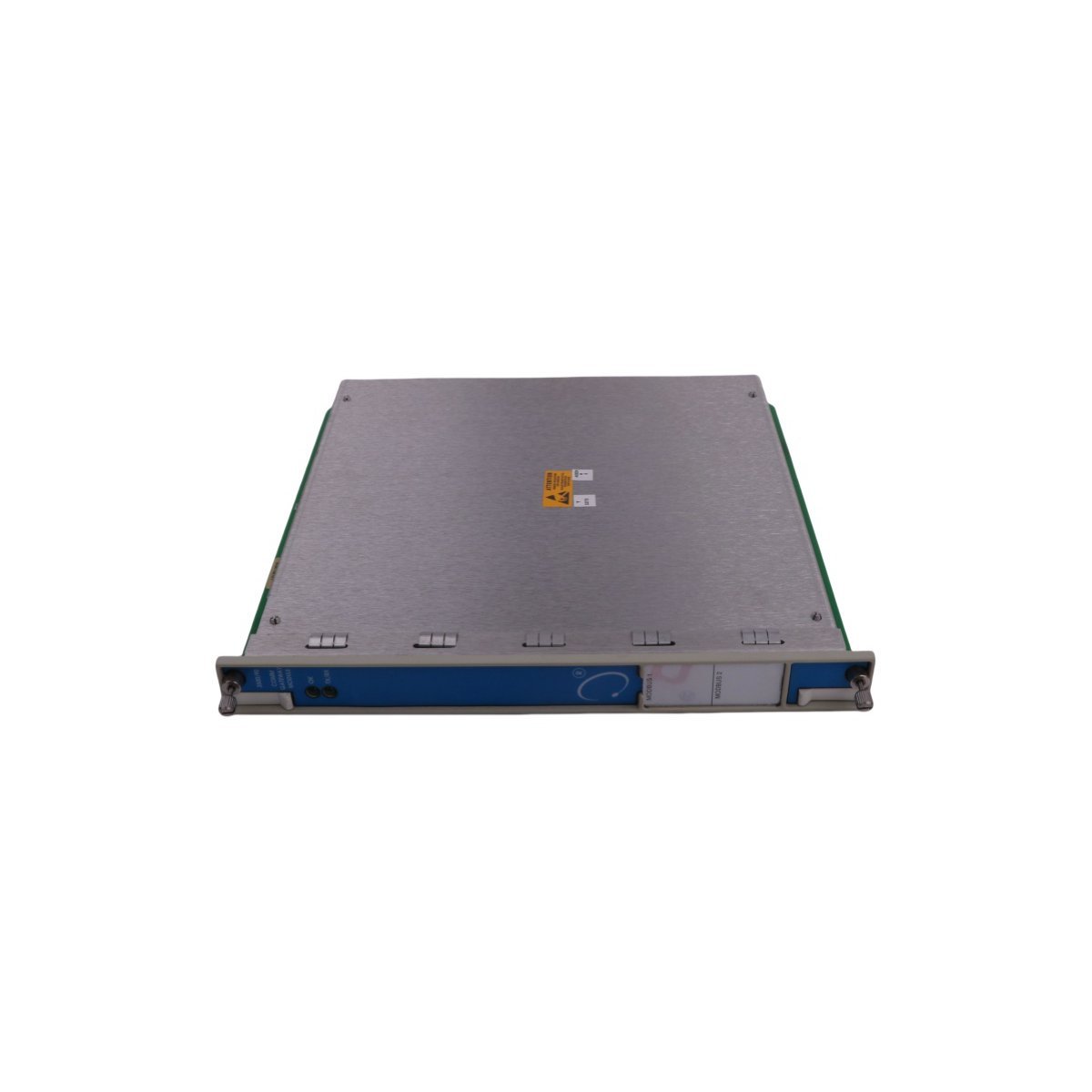

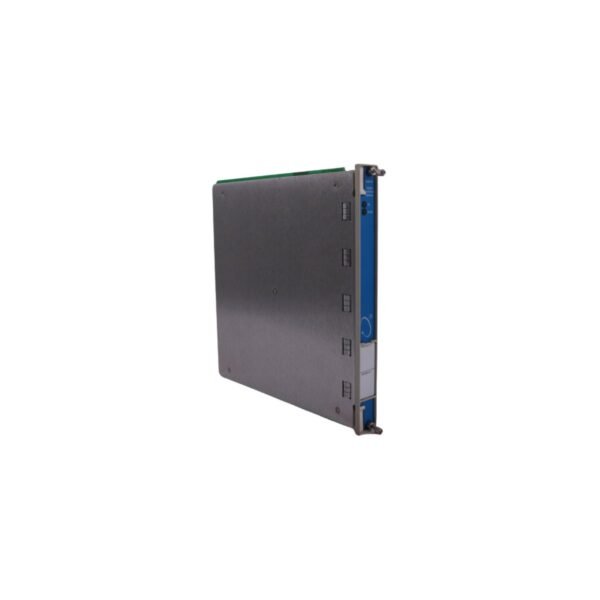

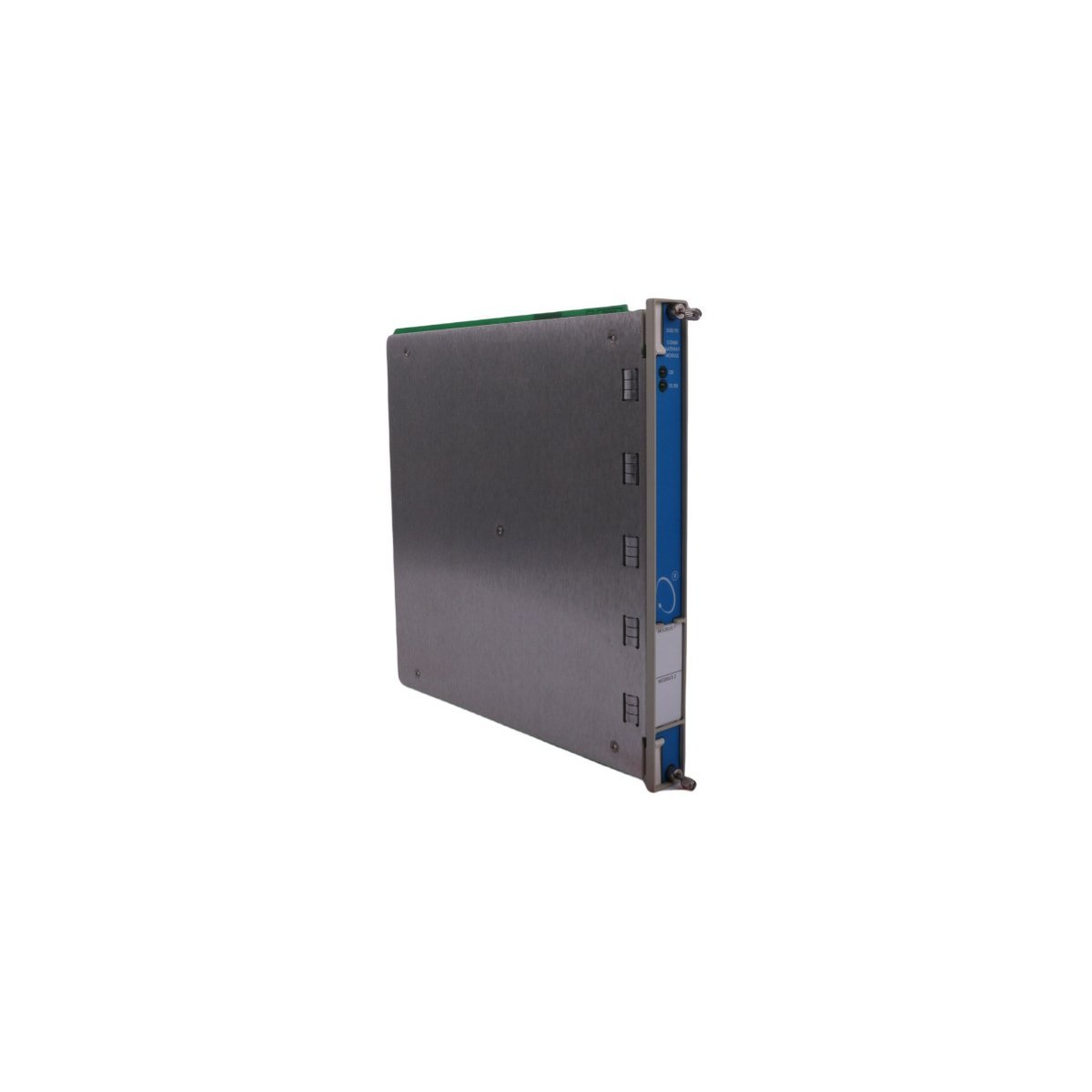

Bently Nevada 3500/90 Communication Gateway Module

The Bently Nevada 3500/90 is a high-capacity interface module designed to facilitate digital communication between the 3500 Machinery Protection System and external control architectures. This module acts as a bridge, translating internal rack data into industry-standard protocols such as Modbus. By centralizing the flow of information, the 3500/90 allows plant operators to export static and dynamic machinery data to Distributed Control Systems (DCS), Human Machine Interfaces (HMI), or Programmable Logic Controllers (PLC). This integration is essential for comprehensive asset management and real-time visualization of turbine and compressor health across the enterprise.

Enhanced Data Integration and System Reliability

This communication gateway is engineered for maximum uptime in demanding industrial environments, such as power generation facilities and petrochemical plants. Specifically, it supports high-speed data transfer to ensure that critical vibration levels, axial positions, and temperature readings are reported without latency. Furthermore, the module provides a secure digital interface that isolates the core protection functions of the 3500 rack from external network interference. In addition, the 3500/90 features built-in diagnostics that monitor the health of the communication link itself. Consequently, operators receive immediate notification of any data dropouts, maintaining the integrity of the predictive maintenance workflow.

Technical Specification Matrix

Operational Efficiency and Predictive Maintenance

Integration of the 3500/90 module significantly optimizes maintenance strategies by providing direct access to the 3500 system’s internal registers. As a result, maintenance teams can view detailed machine states and alarm histories without needing to be physically present at the rack. Moreover, the module’s hot-swappable design ensures that it can be replaced or upgraded without interrupting the continuous monitoring of the machinery. Therefore, it supports the “always-on” requirement of mission-critical infrastructure. Ultimately, the 3500/90 serves as a foundational component for IIoT initiatives, enabling the transition from reactive repairs to data-driven proactive maintenance.

FAQ

Does the 3500/90 affect the protective tripping functions of the rack?

The 3500/90 is strictly a communication interface and does not interfere with the hardware logic of the monitor modules or relays. Specifically, the rack will continue to protect your machinery and execute emergency shutdowns even if the gateway module is removed or loses network connectivity. Accordingly, this separation of duties ensures maximum safety.

Which Modbus variants are supported by this gateway?

The module is highly versatile, supporting both Modbus RTU via serial connections and Modbus TCP/IP via the Ethernet port. In addition, it can be configured as a Modbus slave, allowing multiple external masters to poll data from the 3500 rack simultaneously. Consequently, it fits seamlessly into both legacy serial networks and modern fiber-optic infrastructures.

Is it possible to configure the module while the system is live?

Configuration is handled through the 3500 Rack Configuration Software. Furthermore, most settings can be adjusted and downloaded to the module while the machine is running. However, it is recommended to verify communication mapping in a test environment to avoid data mismatch in the DCS.

Can I use the 3500/90 for high-speed waveform data?

While the 3500/90 is excellent for static data like overall vibration levels and temperatures, it is not intended for the transfer of high-resolution diagnostic waveforms. Specifically, for deep vibration analysis and waveform capture, Bently Nevada’s 3500/22M (TDI) or System 1 software interfaces are more appropriate.
