Description

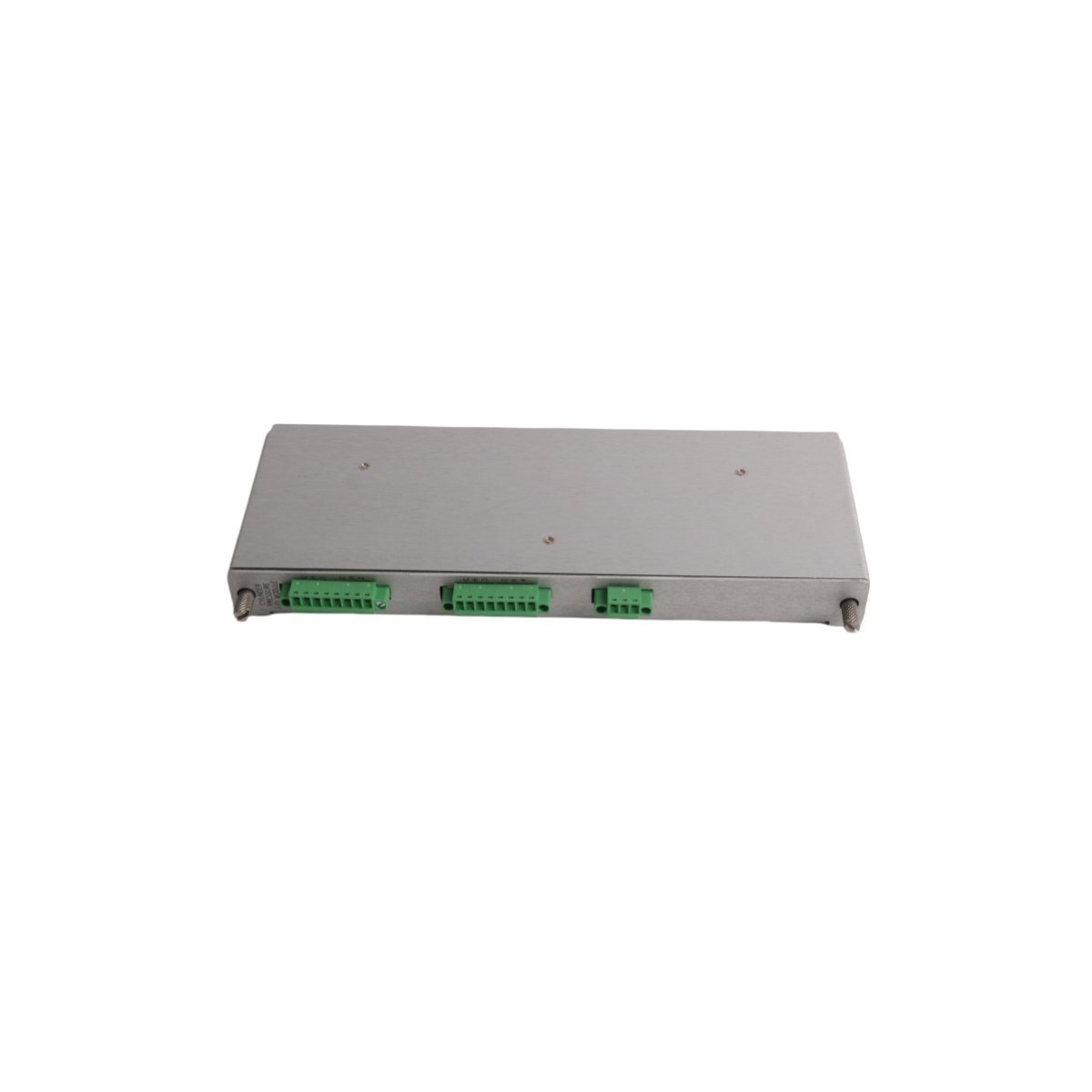

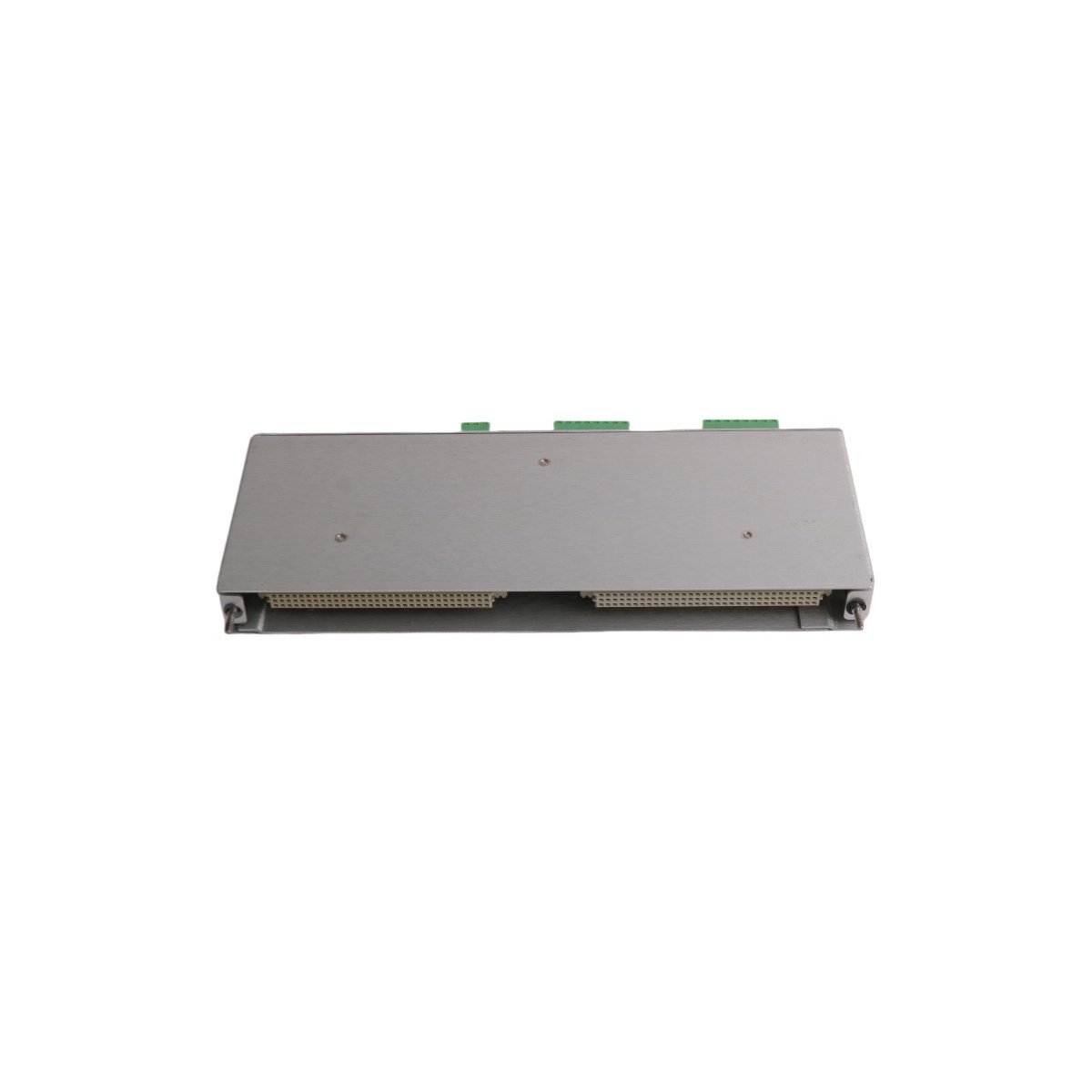

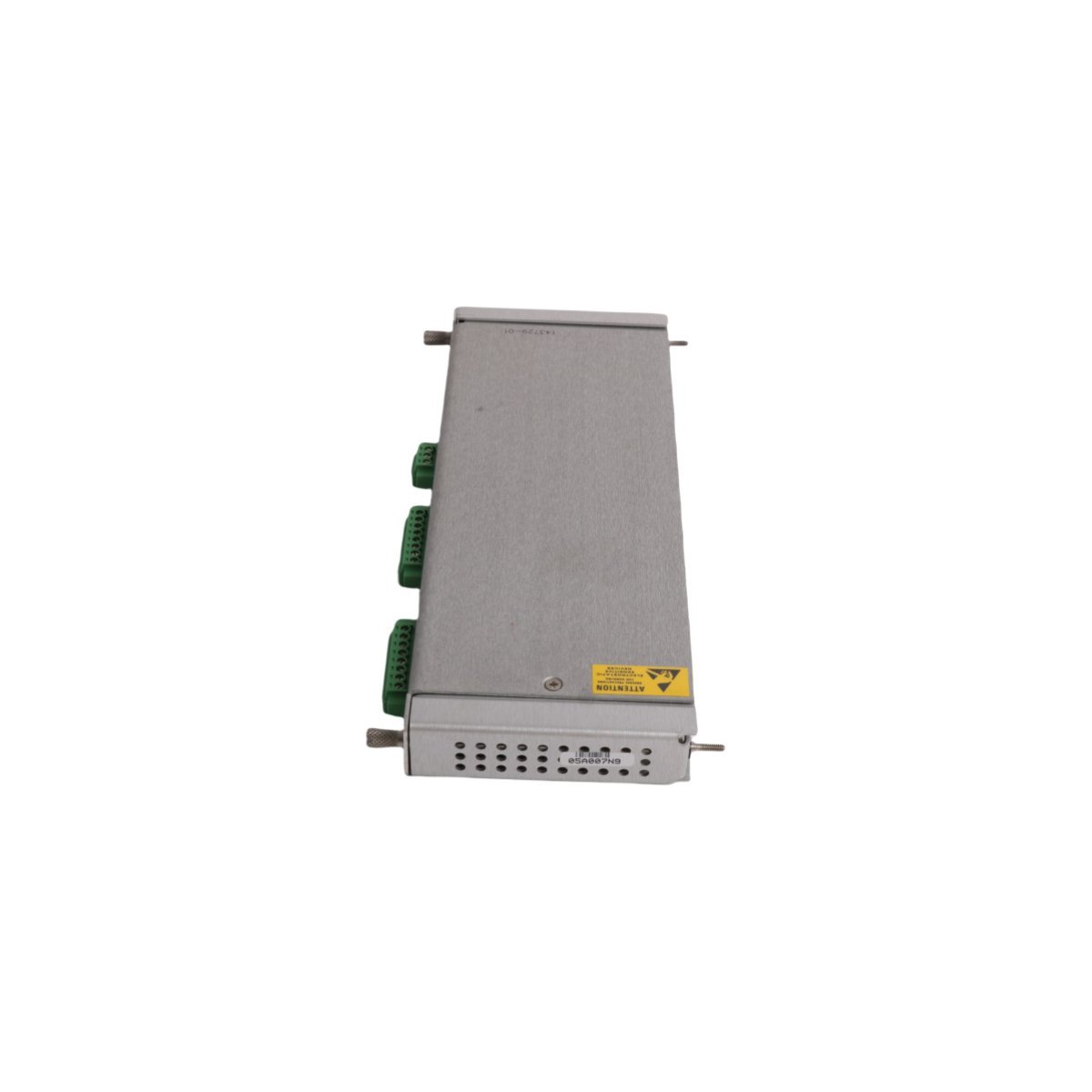

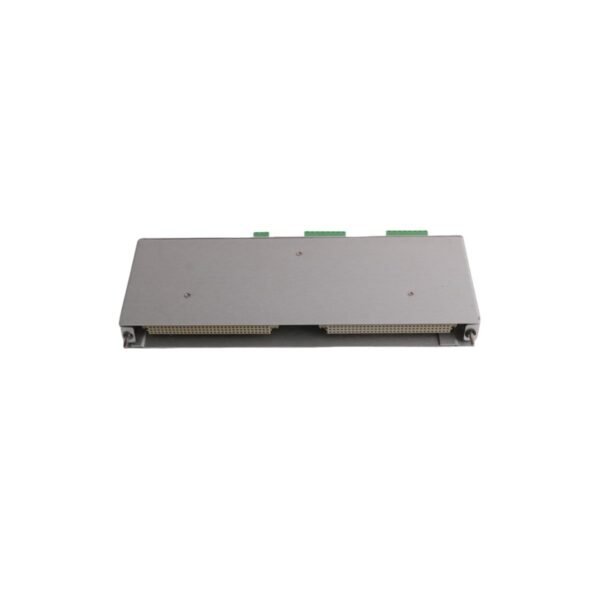

Bently Nevada 3500/77M-04-00 143737-01 Cylinder Pressure I/O Module

The Bently Nevada 3500/77M-04-00, incorporating the 143737-01 I/O module, is a specialized component of the 3500 series machinery protection system designed specifically for reciprocating compressor monitoring. This module facilitates the interface between cylinder pressure transducers and the 3500/77M Recip Cylinder Pressure Monitor. By providing high-fidelity pressure data across the stroke of the piston, the system enables the calculation of critical performance metrics such as indicated horsepower, rod load, and adiabatic efficiency.

Advanced Diagnostics for Reciprocating Machinery

The 143737-01 module is engineered to handle the high-speed data acquisition required for precise cylinder pressure curve analysis. Specifically, it supports external termination configurations, which simplify field wiring and allow for more flexible cabinet installations. Furthermore, the module provides the signal conditioning necessary to convert raw transducer inputs into a digital format suitable for the monitor’s 32-bit digital signal processing. As a result, maintenance teams can identify valve leaks, piston ring wear, and other mechanical degradation before they lead to catastrophic compressor failure.

Technical Specification Matrix

Field Reliability and External Termination Benefits

The use of the 143737-01 with external terminations is a strategic choice for large-scale industrial plants. Moreover, external termination blocks allow for the isolation of field wiring from the 3500 rack, which protects the core monitoring hardware during routine maintenance or wiring troubleshooting. In addition, the module is designed to meet stringent API 670 standards for machinery protection, ensuring it operates reliably in the high-vibration and electromagnetically noisy environments of oil refineries and gas processing plants. Therefore, this I/O module is a cornerstone for any comprehensive reciprocating compressor asset management strategy.

FAQ

What is the primary function of the 3500/77M system?

The 3500/77M system provides continuous monitoring of cylinder pressure to protect reciprocating compressors from overload and to optimize thermodynamic performance. Specifically, it calculates rod loads in real-time to prevent mechanical failure of the connecting rods and crossheads.

Can the 143737-01 module be swapped while the rack is powered?

Yes, Bently Nevada 3500 modules are designed for “hot swap” capability. Furthermore, this allows for the replacement of I/O modules without interrupting the operation of other monitoring channels within the same rack, provided standard safety procedures are followed.

Why are external terminations used instead of internal ones?

External terminations are preferred in complex installations because they reduce wiring density at the back of the 3500 rack. Accordingly, this makes it easier to manage large numbers of cables and improves the overall serviceability of the monitoring system.

Is this module compatible with non-pressure inputs?

No, this specific I/O module is optimized for cylinder pressure transducers. Ultimately, for vibration or temperature inputs, other specialized I/O modules from the 3500 series must be utilized.
