Description

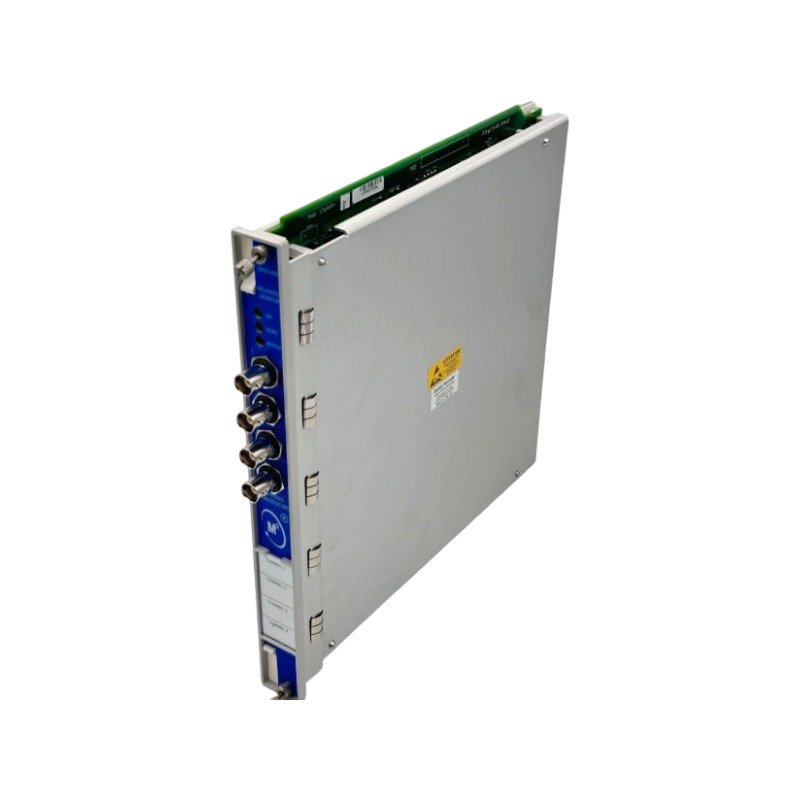

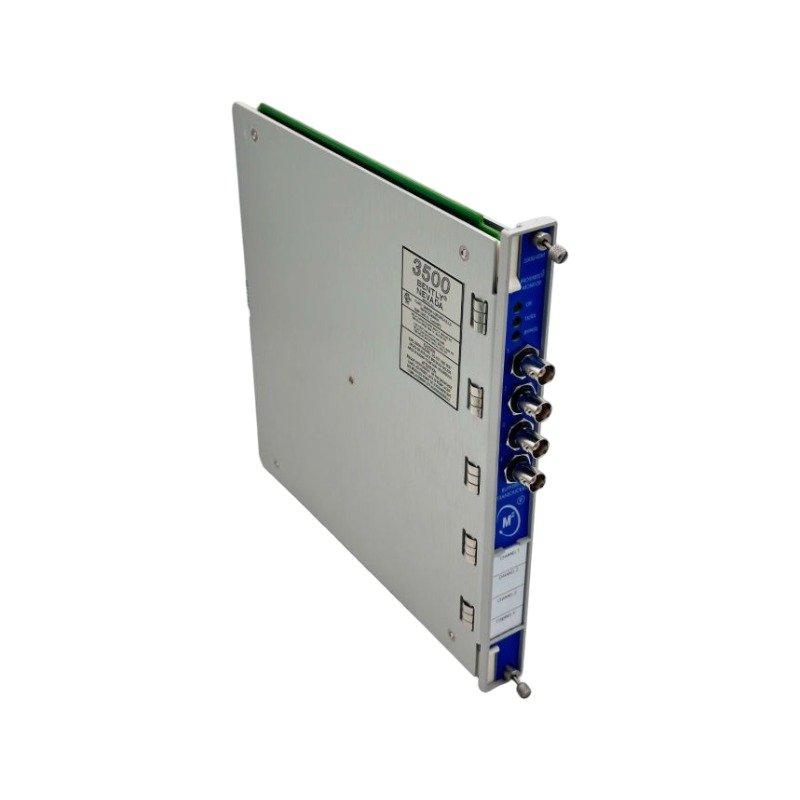

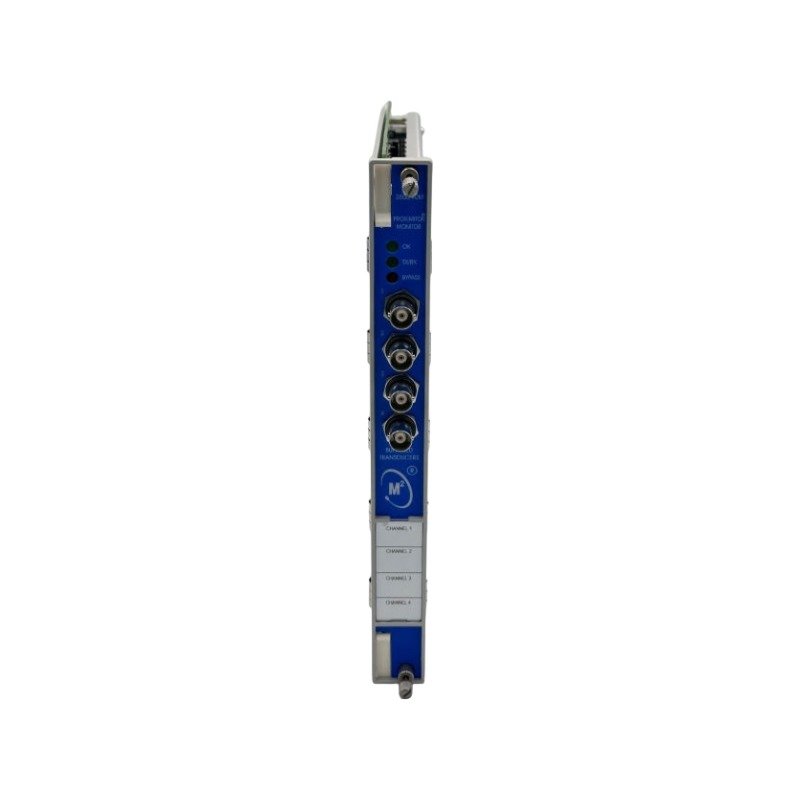

The Bently Nevada 3500/70M, also cataloged as the 3500/70M Velocity Monitor, operates as a dedicated hardware component for monitoring compressor crankcase and crosshead vibration within 3500 Machinery Protection System platforms. This 4-channel device processes inputs from seismic transducers to provide precise vibration diagnostics for reciprocating compressor solutions.

Hardware Specifications

Mechanical Monitoring & Rotor Dynamics Validation

The 3500/70M monitor facilitates high-accuracy vibration analysis by conditioning seismic signals through user-defined software functions. First, the module accepts raw data from field-mounted seismic transducers. Subsequently, it applies specific algorithms to derive measurement values, including Impulse Acceleration, Acceleration 2, Recip Velocity, or Low Frequency Recip Velocity. Engineers must calibrate the input parameters within the 3500 Rack Configuration Software to ensure signal linearity and protection accuracy. Furthermore, the monitor maintains a rapid update rate of less than 100 milliseconds, which allows for immediate alarm setpoint evaluation. Ultimately, this high-speed data processing detects abnormal compressor dynamics before mechanical failure occurs.

Frequently Asked Questions

Q: What primary inputs does the 3500/70M monitor accept for vibration analysis?

A: The module is designed to accept inputs specifically from seismic transducers to measure compressor crankcase and crosshead vibration.

Q: How are the different measurement functions (e.g., Impulse Acceleration vs. Recip Velocity) configured?

A: Technicians utilize the 3500 Rack Configuration Software to assign these specific functions to each of the four individual channels, tailoring the module to the application’s unique monitoring requirements.

Field Installation Guidelines

Installation involves sliding the 3500/70M module into the designated rack slot and securing the front-panel screws to ensure the backplane connector achieves a solid electrical interface. Once the module is seated, verify the field wiring from the seismic transducers to the rack termination point. Technicians must ensure that the transducer loop resistance does not exceed the 600 Ohm maximum load limit to maintain signal fidelity. After connecting the inputs, perform a system verification using the 3500 software to ensure all channels are correctly scaled and that the voltage compliance stays within the +12 Vdc threshold during active operation.
