Description

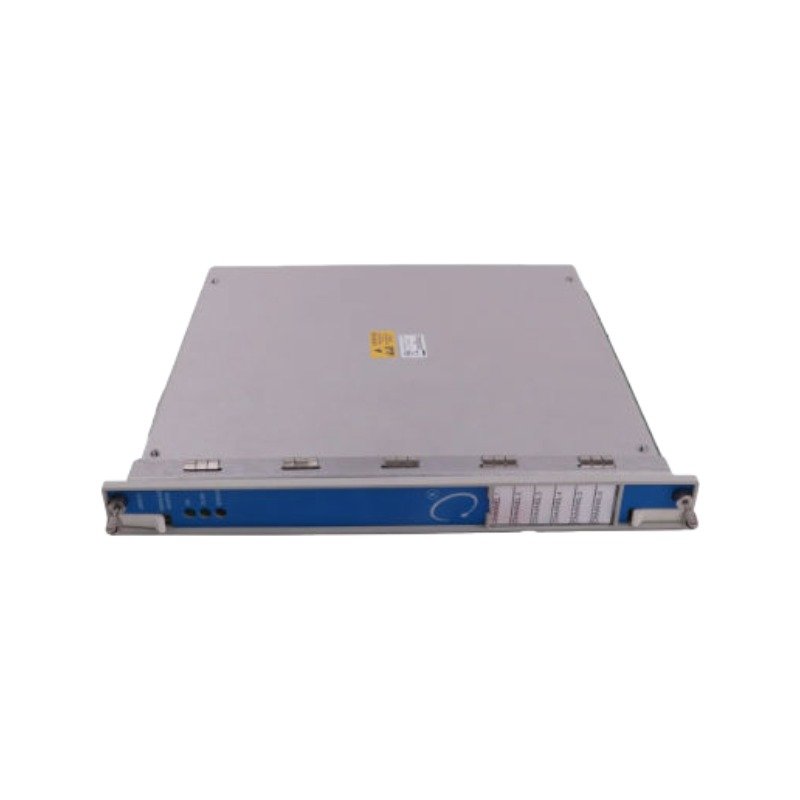

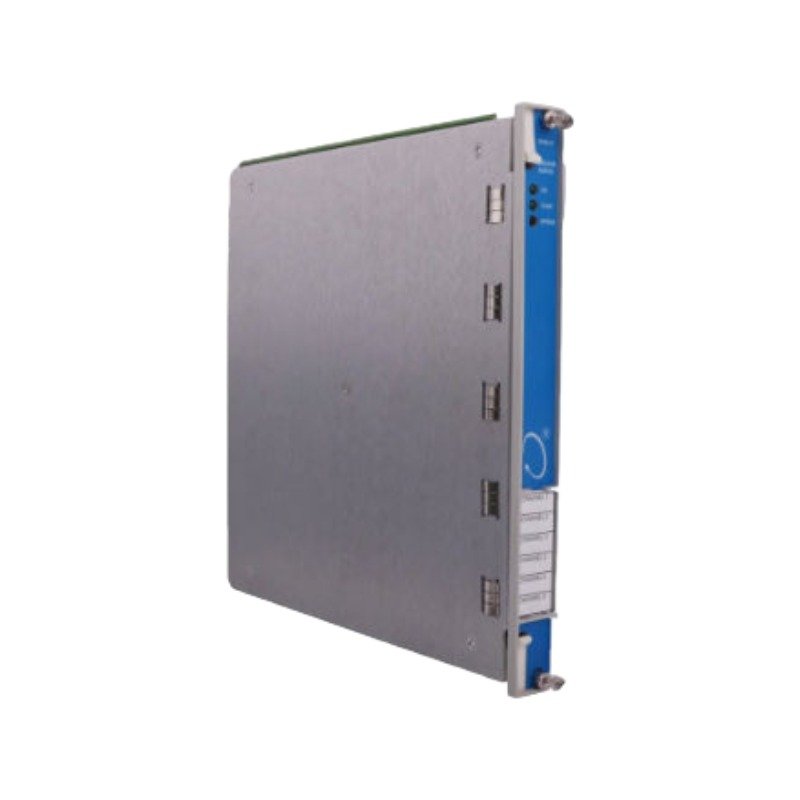

The Bently Nevada 3500/65 145988-02, also cataloged as the 3500/65 16-channel Temperature Monitor, operates as a dedicated hardware component for processing temperature signals within 3500 Machinery Protection System platforms. This module digitizes inputs from thermocouples and resistance temperature detectors to provide continuous thermal monitoring.

Hardware Specifications

Mechanical Monitoring & Rotor Dynamics Validation

The 3500/65 145988-02 module facilitates high-density thermal data acquisition for critical assets. First, the unit performs continuous signal conditioning for field-side thermocouple and RTD inputs. Subsequently, the module transmits processed values to the rack backplane for alarm setpoint evaluation. Engineers should configure proper eddy-current probe scaling if the temperature data correlates with vibration inputs for cross-channel logic. Furthermore, the system validates gap voltage targets (-10 VDC nominal) during the startup sequence to ensure transducer health. Ultimately, the high input impedance maintains signal integrity and minimizes cross-talk suppression issues across long cabling runs.

Frequently Asked Questions

Q: Can technicians perform hot-swapping while the rack remains active?

A: Yes, the module supports hot-swap functionality, which allows for insertion or removal without disturbing adjacent monitor operations.

Q: How should operators handle thermocouple input wiring?

A: Operators must ensure all signal lines utilize high-quality shielding, as this prevents common-mode noise from affecting the input impedance measurements.

Field Installation Guidelines

Installation requires the operator to align the module with the 3500 rack guides before applying firm pressure to seat the rear connector. Once the connector engages, tighten the two front-panel thumb screws to ensure mechanical stability. Consequently, technicians must verify the grounding path by checking the connection between the module chassis and the rack assembly. Before finalizing the installation, engineers should confirm that the software configuration matches the physical sensor wiring, as this step prevents loop errors during system initialization.
