Description

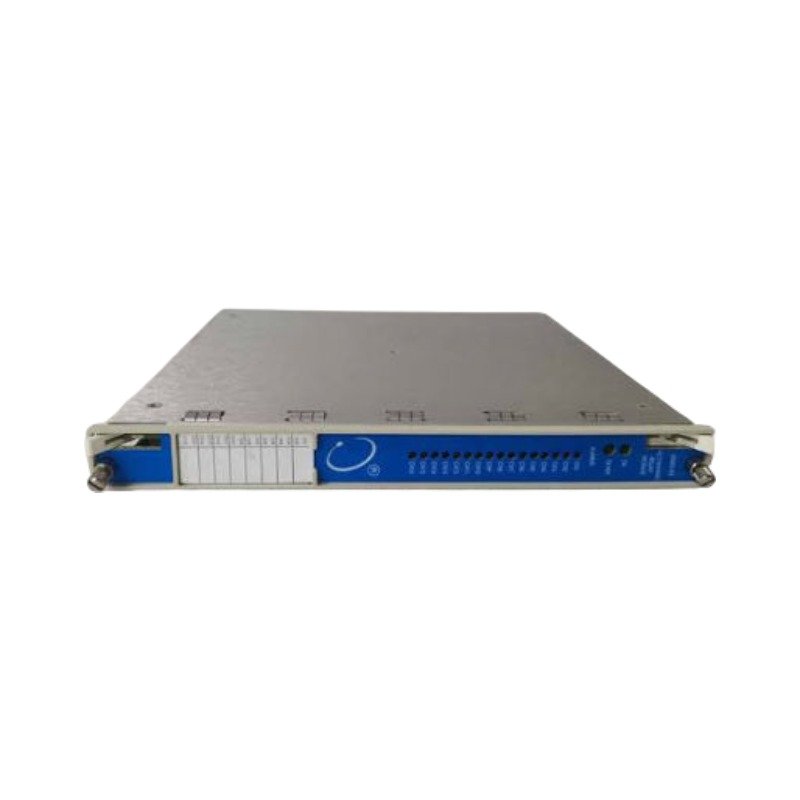

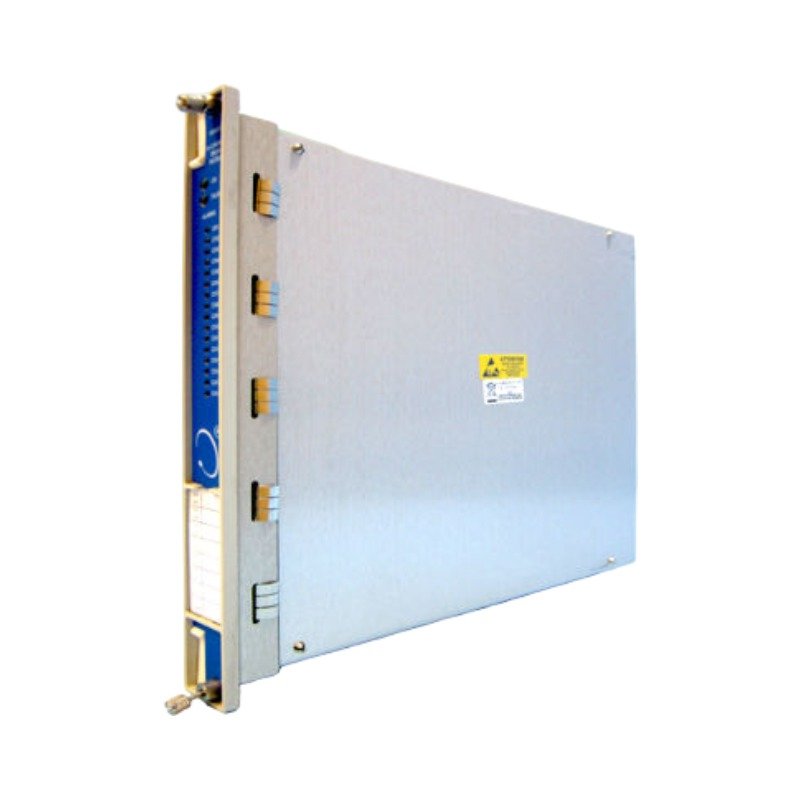

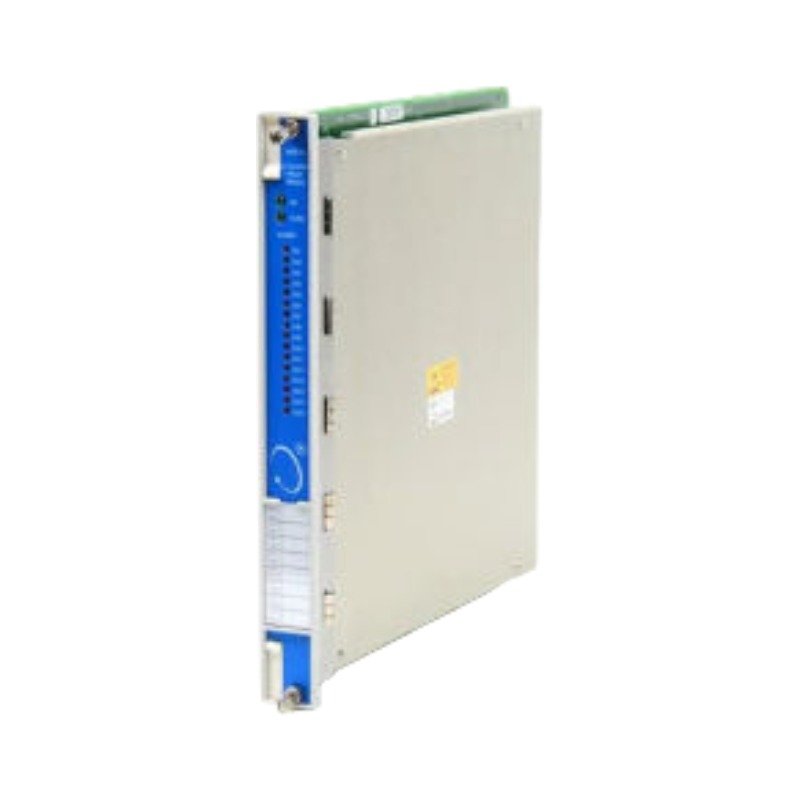

Configured for multi-point emergency shutdown execution within Bently Nevada 3500 Machinery Protection System platforms, the Bently Nevada 149986-02 (3500/33 16-Channel Relay Control Module) provides direct physical/electrical execution. This full-height front processor installs into any slot to the right of the Transient Data Interface card, where it intercepts digitized alarm and danger signals from the backplane bus. By driving sixteen independent outputs concurrently, the hardware trips physical safety loops based on real-time machinery asset status.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The controller utilizes internal hardware matrix logic to compute discrete voting structures across continuous eddy-current probe scaling architectures. To execute accurate protective shutdowns, each independent relay path parses incoming raw data blocks to verify steady-state rotor dynamics without backplane interference. Field configurations integrate individual loop validation profiles with onboard cross-talk suppression filters, ensuring that high-frequency noise spikes do not disrupt the target gap voltage validation (-10 VDC targets) settings across paired transducer channels.

Frequently Asked Questions

Q: How do technicians change individual relay operational modes from Normally De-energized to Normally Energized?

A: Hardware mode selection relies on physical switches located directly on the card assembly. The sixteen output lines divide into four discrete groups, allowing engineers to toggle between Normally De-energized (ND) and Normally Energized (NE) behaviors via specialized onboard DIP switch matrices.

Q: What are the electrical voltage restrictions when deploying this module inside certified Zone 2 or Class 1 Division 2 environments?

A: Under functional safety (SIL) and North American Division 2 guidelines, contact circuit ratings undergo a physical de-rating step down to 30 Vrms or 30 VDC. Exceeding this 30 V threshold within hazardous environments violates factory certificates due to strict electrical spacing limits.

Field Installation Guidelines

• Arc Suppression Protection: Always connect external 250 Vrms surge suppressors or clamp diodes parallel to inductive actuator loads to prevent terminal arc pitting.
• Conduit Routing Separation: Run low-voltage proximity probe signal conductors in a completely separate grounded steel tray away from high-power relay contact wires.
• Chassis Grounding Rule: Tie all instrument cable shielding assemblies directly to the designated rack backplane termination bar to prevent ground currents from shifting sensor common points.
