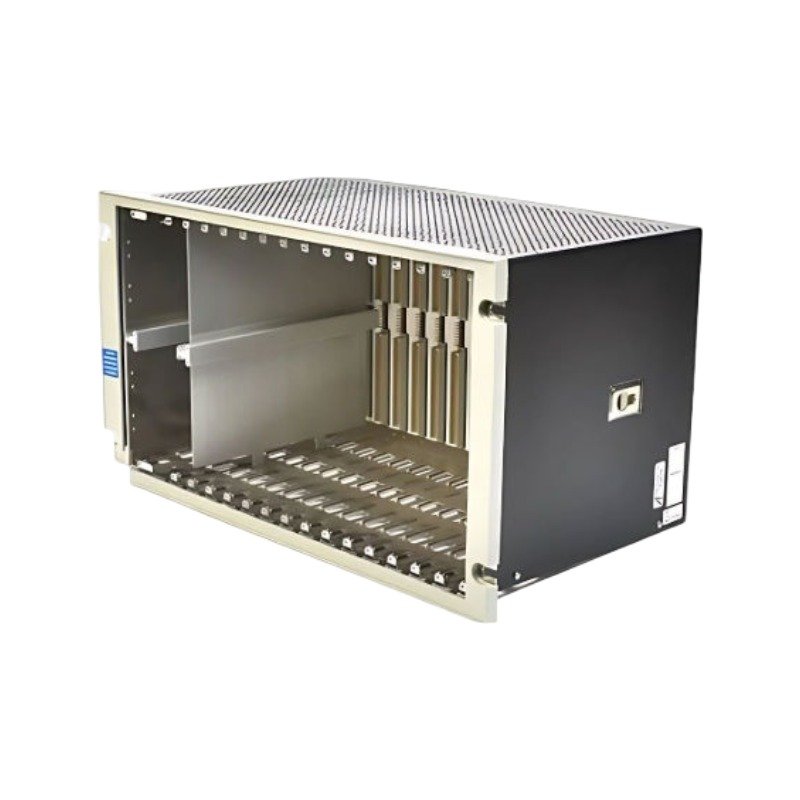

The Bently Nevada 3500/05-01-03-05-00-01, also cataloged as the 3500/05 14-Slot Bulkhead Mount Chassis, operates as a dedicated hardware component for high-speed backplane data communication and distributive DC power allocation within the 3500 Machinery Protection System. This specific full-size unit incorporates specialized manufacturing specifications that enable installation directly onto flat surfaces, walls, or industrial machine bulkheads across global regions demanding combined North American and European hazardous area compliance markings. It establishes the multi-channel electronic motherboard framework required to execute real-time machine safety voting logic across critical industrial turbomachinery platforms.

Suffix Breakdown & Model Matrix

This exact hardware configuration conforms to the following structural factory option selections:

• 01 (Rack Size Option): Designates a 19-inch EIA Full-Size Rack layout containing 14 operational instrumentation slots alongside two dedicated leftmost power supply slots.
• 03 (Mounting Option): Configures the physical structure for a Bulkhead Mount setup, utilizing an integrated rear backing panel assembly that allows surface mounting onto walls or solid backplates where a standard instrument cutout or 19-inch rail set is unavailable.
• 05 (Agency Approval Option): Selects the Multi-Approvals configuration, combining North American (CSA/NRTL/C Class I Division 2) and European/International (ATEX/IECEx Zone 2) hazardous area protection standards.
• 00 (Reserved Option): Factory default reserved parameter containing no special field modifications or custom additions.
• 01 (European Compliance Option): Specifies full CE compliance integration, adding localized protective components and specific post-production regional marking kits.

Hardware Specifications

Rotor Dynamics and Eddy-Current Probe Scaling

The multi-layer backplane circuitry embedded within this specific chassis layout enforces strict physical trace shielding boundaries to maximize cross-talk suppression. These internal ground planes prevent high-frequency oscillator signals from bleeding between adjacent radial vibration monitor cards. By containing electromagnetic interference, the backplane maintains a precise loop environment to validate gap voltage validation (-10 VDC targets) across 3300 XL proximity sensor circuits, preserving raw waveform data fidelity for advanced rotor dynamics diagnostic software.

Frequently Asked Questions

Q: How does the bulkhead mounting option alter field access to the input/output modules?

A: The bulkhead mounting configuration shifts the chassis geometry so that the internal motherboard, primary monitoring modules, and rear-facing I/O cards remain fully accessible from the front and sides of the surface installation area, preventing the need for deep rear enclosure space.

Q: Does the bulkhead configuration support dual redundant power supplies under Zone 2 guidelines?

A: Yes. The chassis houses identical parallel tracking traces for two 3500/15 units. When operating under Zone 2 conditions, the primary power distribution paths handle redundant voltage transfers automatically, provided all wiring glands comply with local explosion-proof sealing mandates.

Field Installation Guidelines

• Shielding and Grounding Standards: Secure a heavy-gauge copper grounding strap from the primary rack earth stud directly to the plant instrumentation master ground. Terminate all incoming eddy-current probe shield drain wires at the rear terminal block ground screws to avoid noise injection into the backplane.
• Bulkhead Surface Anchor Requirements: Ensure the chosen structural wall or panel backplate can support the combined static load of the chassis and all matching signal cabling. Secure the backing assembly with heavy-duty structural fasteners through all pre-punched anchoring points to minimize industrial vibration coupling.
• Power Trace Isolation: Route primary AC or high-voltage DC supply line conduit separately from the low-voltage sensor input wiring trays. This separate routing method minimizes external induced magnetic fields from corrupting low-level vibration signals.
