Description

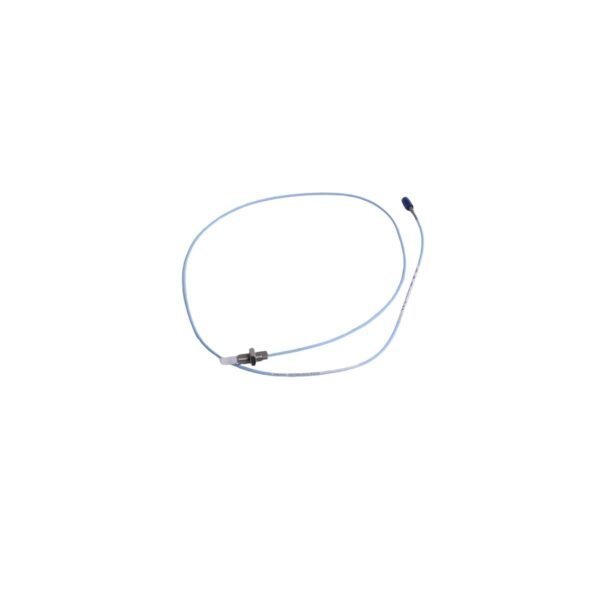

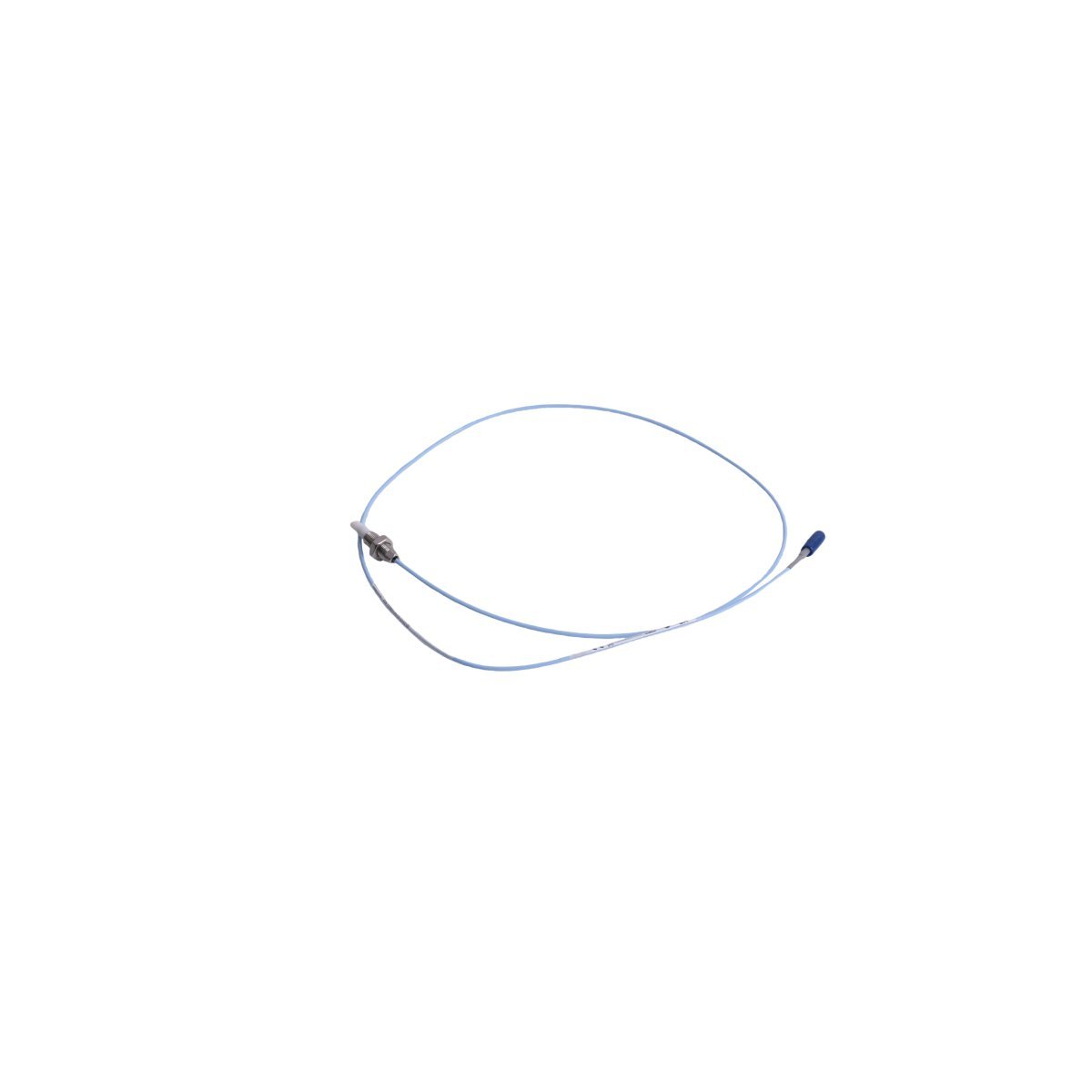

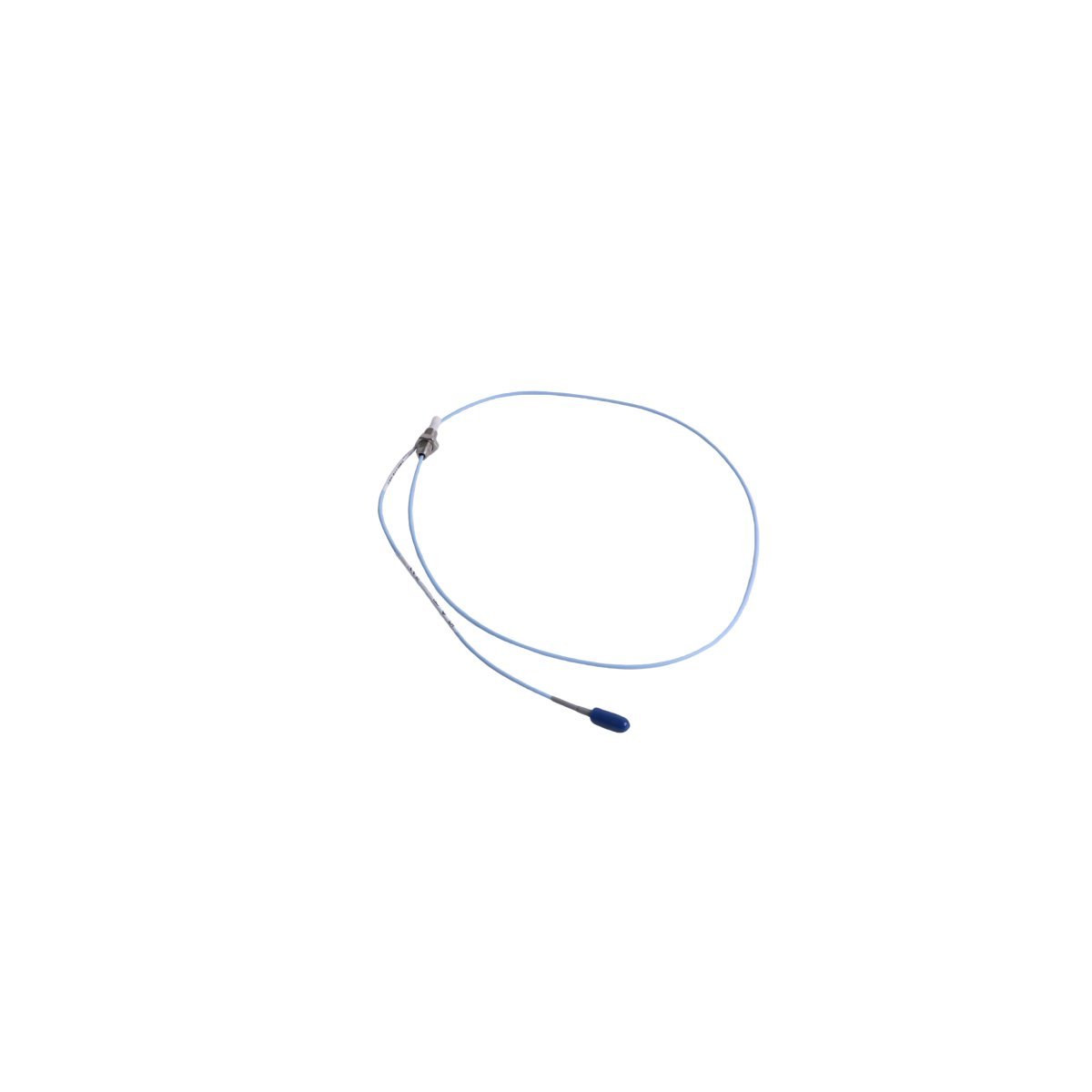

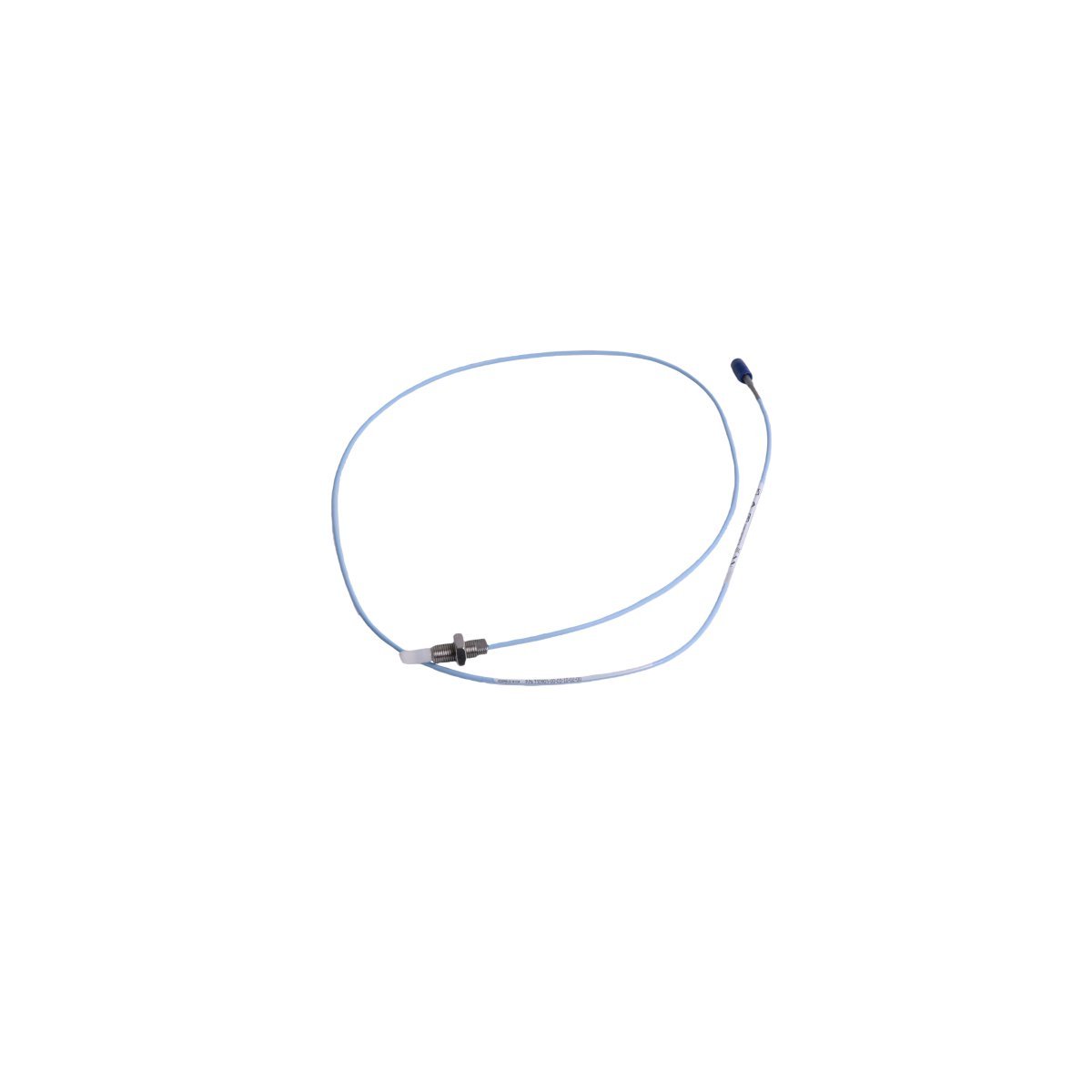

The Bently Nevada 330905-00-03-10-02-00 is a high-resolution proximity transducer. It belongs to the 3300 NSv (Narrow Side View) family. Engineers specifically designed this sensor for applications with limited lateral clearance. The eddy current technology measures the distance between the probe tip and a target shaft. Consequently, it provides accurate data for radial vibration and axial position monitoring. This capability helps operators identify mechanical issues like shaft imbalance or bearing degradation early.

Hardware and Mechanical Configuration

This probe features a smooth, non-threaded 3/8-inch diameter barrel for precise slip-fit mounting. The specific configuration includes a 0.3-inch case length without an unthreaded section. Furthermore, the assembly incorporates a 1.0-meter integrated cable protected by high-durability insulation. The miniature coaxial ClickLoc connector ensures a secure, low-loss electrical connection. High-quality polyphenylene sulfide (PPS) materials protect the sensing tip from corrosive industrial fluids.

System Precision and Reliability

The 3300 NSv system delivers reliable diagnostic data for complex machinery health monitoring. Its linear range provides a predictable voltage-to-distance ratio for simplified gapping. Because the probe follows strict industrial standards, it meets global safety requirements. Fast installation is possible through standard mounting clamps and junction box hardware. Utilizing this sensor improves plant safety and reduces expensive unplanned maintenance cycles.

Industrial Asset Application

Maintenance teams deploy this NSv probe where standard sensors cannot fit. It excels in small centrifugal compressors and compact pump housings. Moreover, the probe tracks high-speed shafts with small targets or narrow mounting gaps. The 330905-00-03-10-02-00 integrates seamlessly with Bently Nevada 3500 protection racks. This ensures automated machinery shutdown during dangerous vibration events. It effectively protects critical assets in the oil, gas, and power industries.

Technical Performance Data

Core Operational Advantages

• Narrow side view technology allows for installation in extremely tight clearances.
• Non-contact sensing eliminates physical friction and sensor wear during measurement.
• Gold-plated connectors maintain superior conductivity in humid or acidic environments.
• Exceptional thermal stability prevents measurement drift during intense machine startups.
• Shielded coaxial design significantly reduces interference from nearby high-voltage motors.
