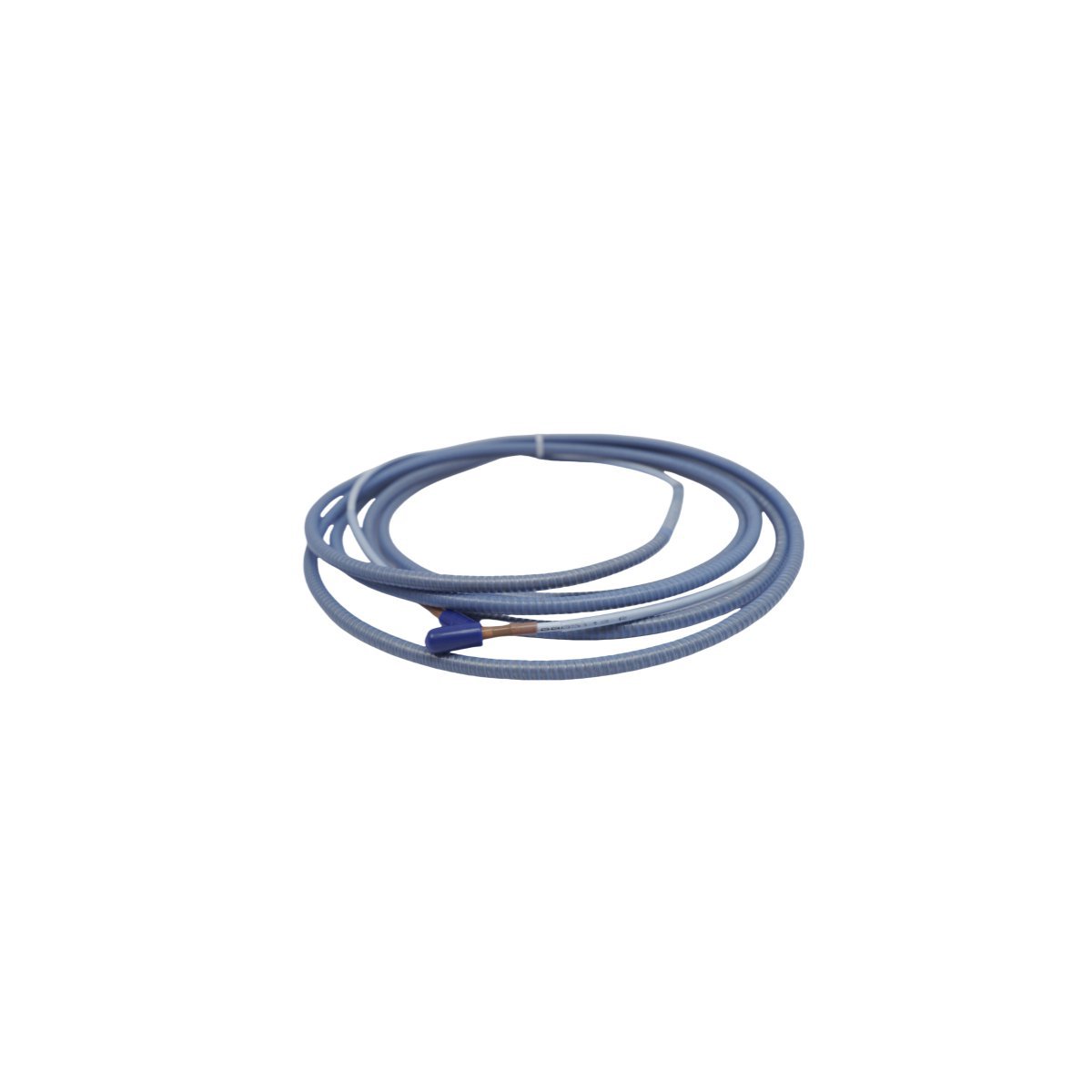

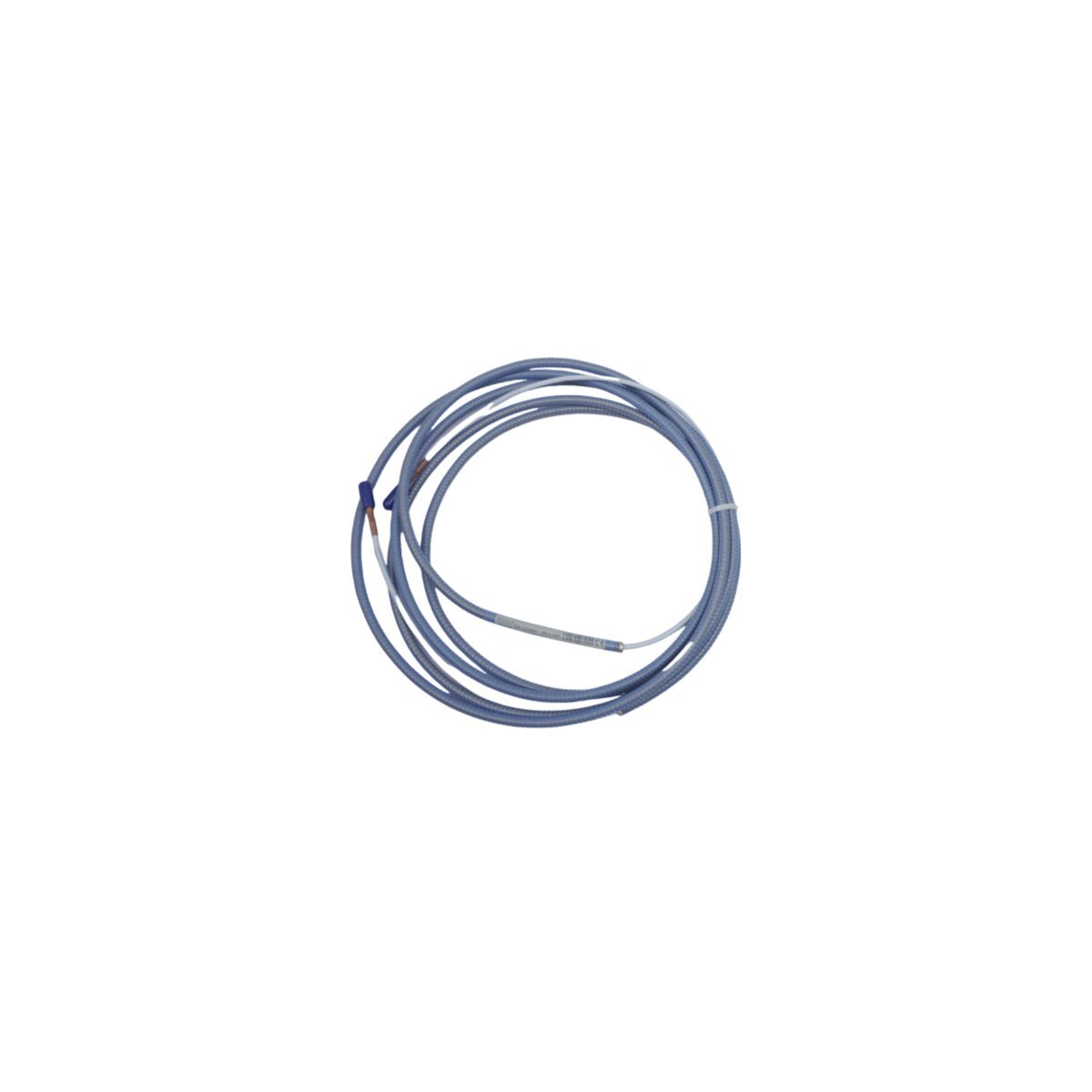

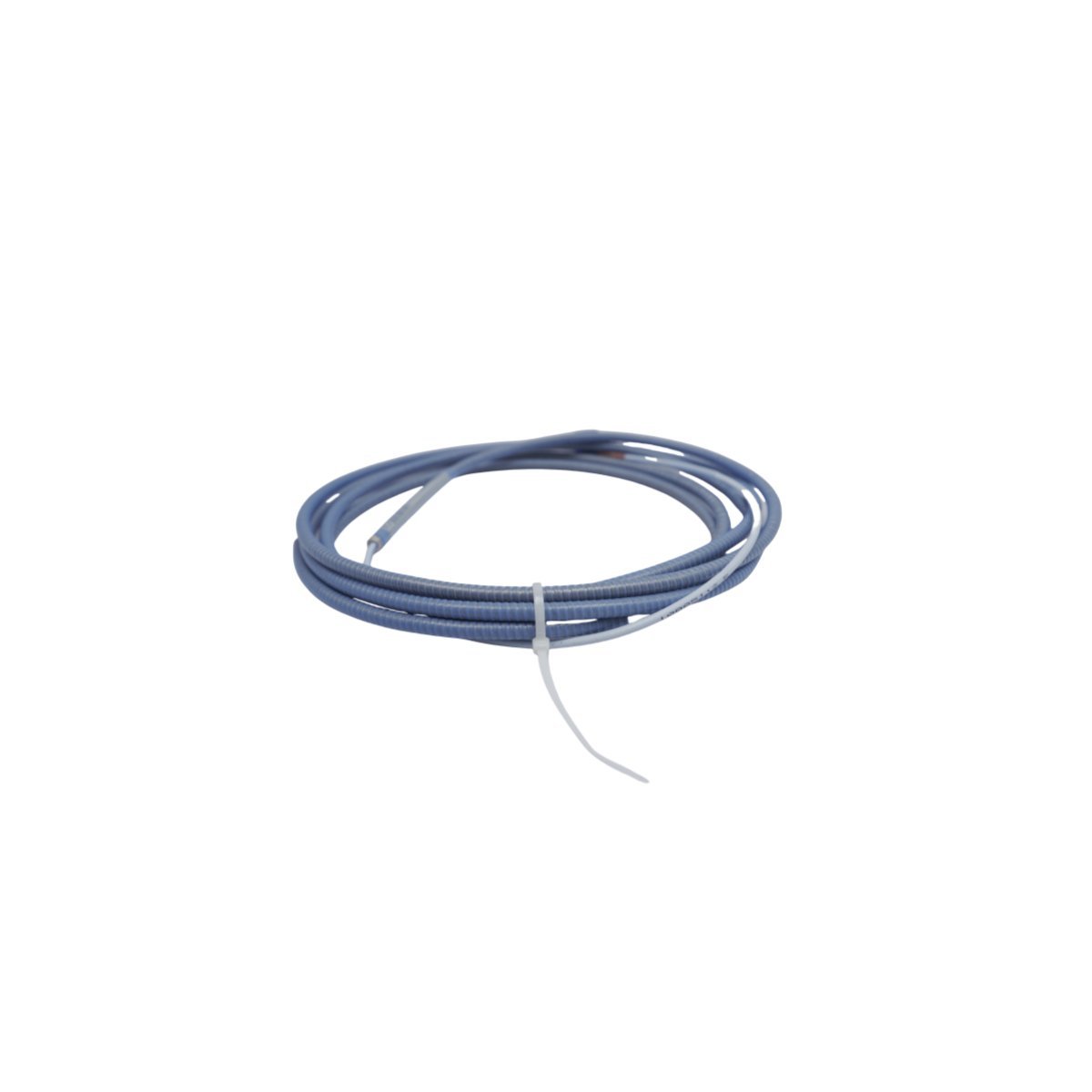

Bently Nevada 330877-040-37-00 3300 XL 50mm Proximity Extension Cable

The Bently Nevada 330877-040-37-00 is a high-precision extension cable designed specifically for the 3300 XL 50mm Proximity Transducer System. This specialized component facilitates the transmission of eddy current signals from large-scale proximity probes to the Proximitor sensor. Because the 50mm system is engineered for measuring vibration and position on large machinery with wide linear ranges, this cable maintains the strict electrical impedance required for such demanding scales. It plays a foundational role in preventing machinery damage by ensuring that data regarding shaft displacement and vibration reaches monitoring systems without interference.

Durable Engineering for Harsh Environments

Rugged construction defines the 330877-040-37-00, as it must often operate in the presence of extreme thermal fluctuations and industrial contaminants. The cable features advanced shielding that protects sensitive signals from electromagnetic interference (EMI), which is common in high-voltage power generation areas. Furthermore, the outer jacket material resists degradation from moisture and chemical exposure. This resilience makes the cable a preferred choice for monitoring large turbines, heavy-duty compressors, and cooling tower pumps where environmental stability is never guaranteed.

Seamless System Integration and Calibration

This extension cable integrates perfectly with the broader Bently Nevada 3300 series ecosystem, supporting a comprehensive approach to machinery health. Its calibrated electrical length ensures that the proximity system maintains its linear range and scale factor accuracy. By delivering clean, real-time data to the 3500 monitoring rack, the 330877-040-37-00 supports early fault detection for issues like rotor imbalance or bearing degradation. Consequently, operators can transition from reactive repairs to a more efficient predictive maintenance schedule.

Technical Specifications

The 330877-040-37-00 is built to withstand rigorous physical and electrical demands. Key technical parameters include:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 330877-040-37-00
• System Compatibility: 3300 XL 50mm Proximity System
• Cable Length: 4.0 meters (Option 040)
• Armor Option: 37 (Stainless steel fluid-tight armor)
• Approval Option: 00 (Standard approvals)
• Operating Temperature: -51°C to +177°C (-60°F to +350°F)
• Mechanical Shock: Designed for high-vibration environments
• Physical Weight: 0.38 kg
• Standard Compliance: API 670 compliant for machinery protection

Optimizing Asset Lifecycle and Performance

Utilizing the 3300 XL 50mm system with the correct 330877-040-37-00 cable significantly improves asset availability. The stainless steel armor option provides superior mechanical protection against crushing or abrasion during installation and operation. Because this cable maintains signal consistency over long service periods, it reduces the frequency of system recalibrations. This reliability ensures that industrial plants can maintain high production rates while safeguarding their most expensive rotating assets against catastrophic failure.
