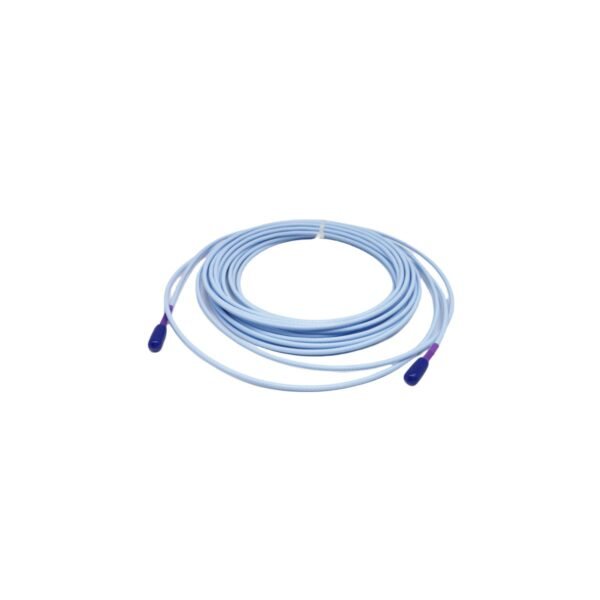

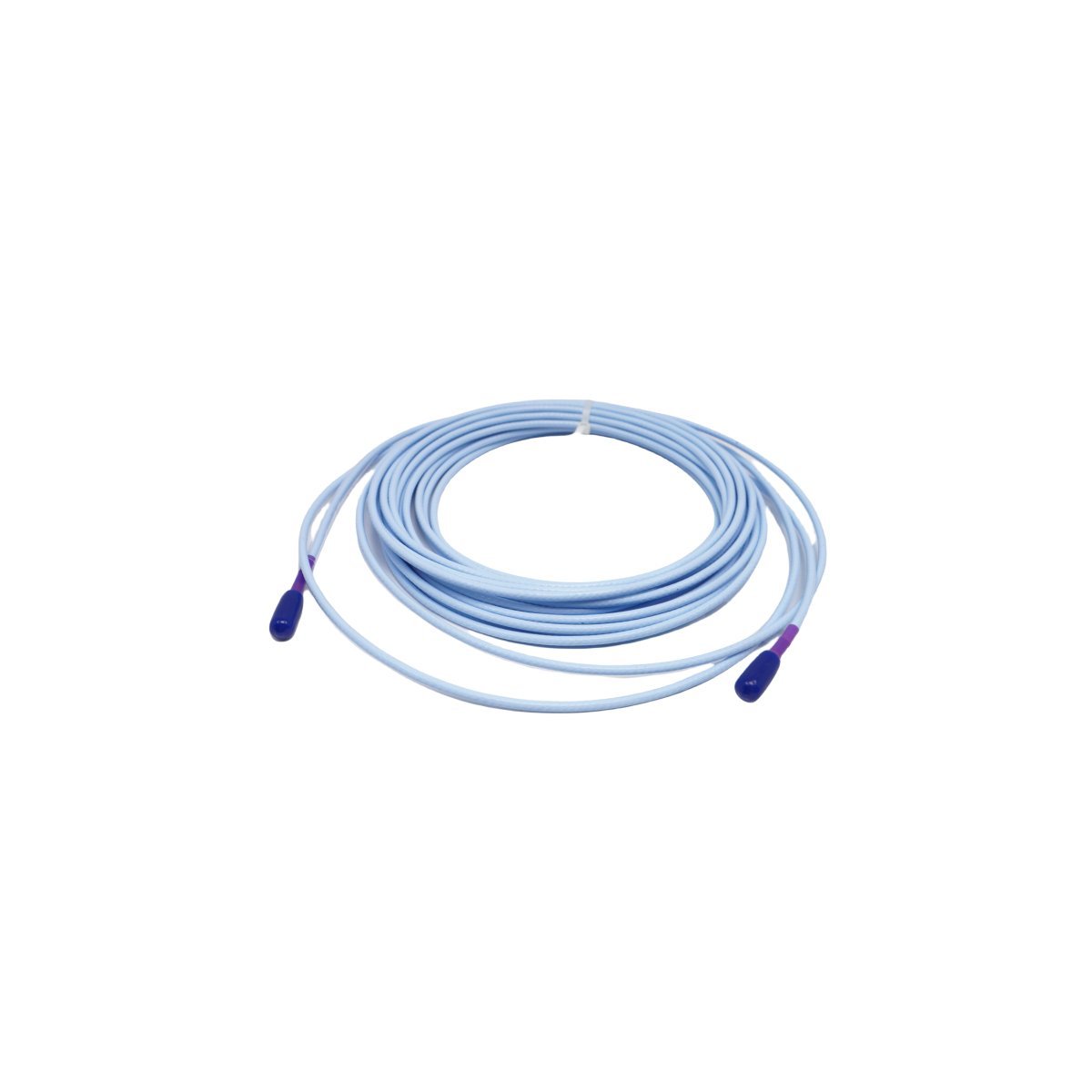

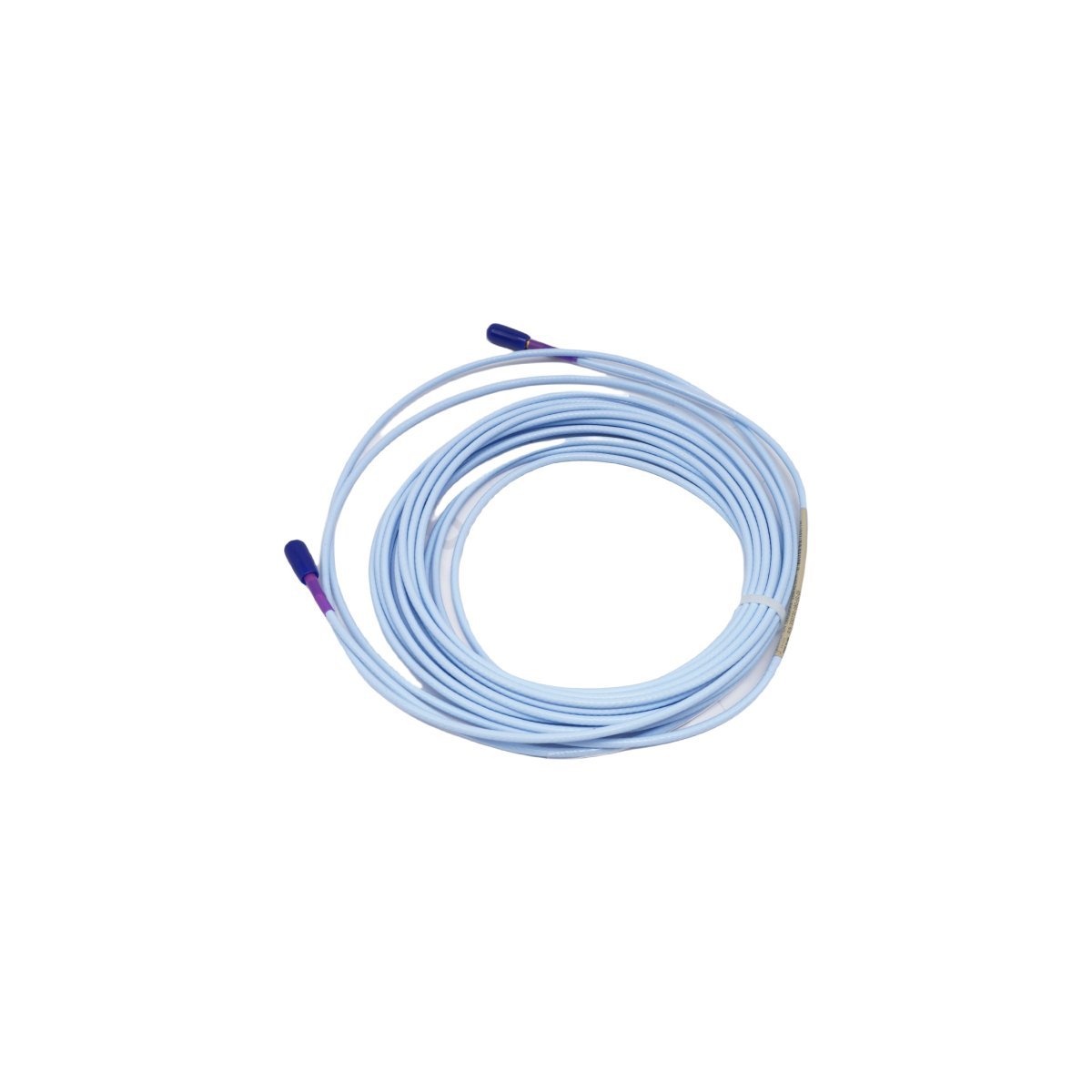

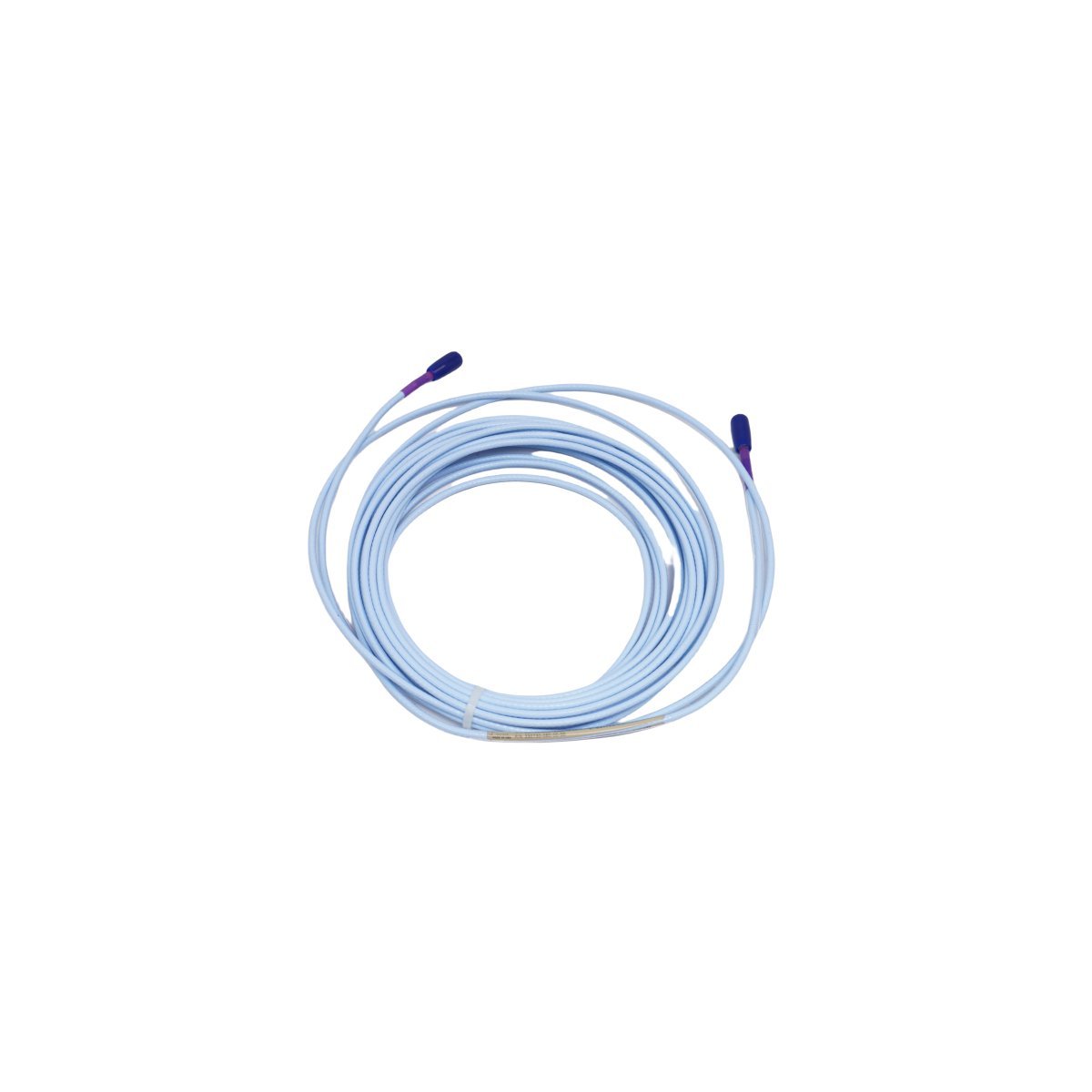

Bently Nevada 330730-080-00-00 3300 XL NSv Extension Cable

The Bently Nevada 330730-080-00-00 is a specialized extension cable designed for the 3300 XL NSv (Narrow System vent) proximity transducer system. This high-precision component is engineered for applications where space constraints or small target surfaces—such as small diameter shafts or gear teeth—preclude the use of standard proximity probes. The cable facilitates the critical electrical connection between the NSv probe and the Proximitor sensor, ensuring that eddy current signals are transmitted with the highest fidelity to the machinery protection system.

Precision Signal Transmission and Environmental Durability

Constructed to meet the rigorous demands of industrial vibration monitoring, the 330730 series employs advanced shielding to protect against electromagnetic interference. Specifically, the cable is designed to maintain a consistent capacitance and impedance, which is vital for the linear output of the NSv system. Furthermore, the high-grade fluoro-polymer insulation provides excellent resistance to corrosive industrial chemicals, moisture, and extreme temperature cycling. Consequently, this ensures that the vibration data reaching the monitoring rack remains accurate and stable, even when routed through harsh plant environments near high-speed rotating equipment.

Technical Specification Matrix

Application in Machinery Protection and Diagnostics

This extension cable is an essential part of the 3500 Monitoring System’s diagnostic chain, particularly for assets like centrifugal compressors and small aeroderivative turbines. As a result, it enables early fault detection by capturing subtle changes in shaft displacement and radial vibration. Moreover, the 8.0-meter length provides significant flexibility for routing cables from the machine housing to local junction boxes. Therefore, by utilizing the 330730-080-00-00, maintenance engineers can effectively implement proactive health monitoring strategies. Ultimately, the integrity of this cable directly impacts the reliability of automated machinery trips and safety protocols.

FAQ

What makes the NSv extension cable different from standard 3300 XL cables?

The 330730 extension cable is electrically tuned specifically for the NSv (Narrow System vent) probes, which have different electrical characteristics than standard 8mm or 11mm probes. Specifically, using a standard 8mm extension cable with an NSv probe will cause calibration errors. Accordingly, always verify that your cable model matches the “NSv” designation of your probe and Proximitor.

Is the ClickLoc connector compatible with older connectors?

The gold-plated ClickLoc connectors are designed for a secure, finger-tight connection that resists loosening under vibration. In addition, they are compatible with standard miniature coaxial connectors found on previous generations of Bently Nevada probes. Consequently, you can integrate this cable into existing systems without needing specialized adapters.

Can this cable be used in hazardous locations?

Yes, when used as part of a complete Bently Nevada transducer system, this cable is certified for use in hazardous areas under various global standards, including ATEX and North American Class I, Div 1. Therefore, it is suitable for safety-critical installations in refineries and offshore platforms.

How should the cable be protected during installation?

While the cable jacket is chemically resistant, it is recommended to install the cable within rigid or flexible conduit if there is a risk of mechanical crushing or abrasion. Moreover, ensure that the minimum bend radius is maintained to prevent internal coaxial damage. Ultimately, proper installation ensures the longest possible service life for the transducer system.
