Description

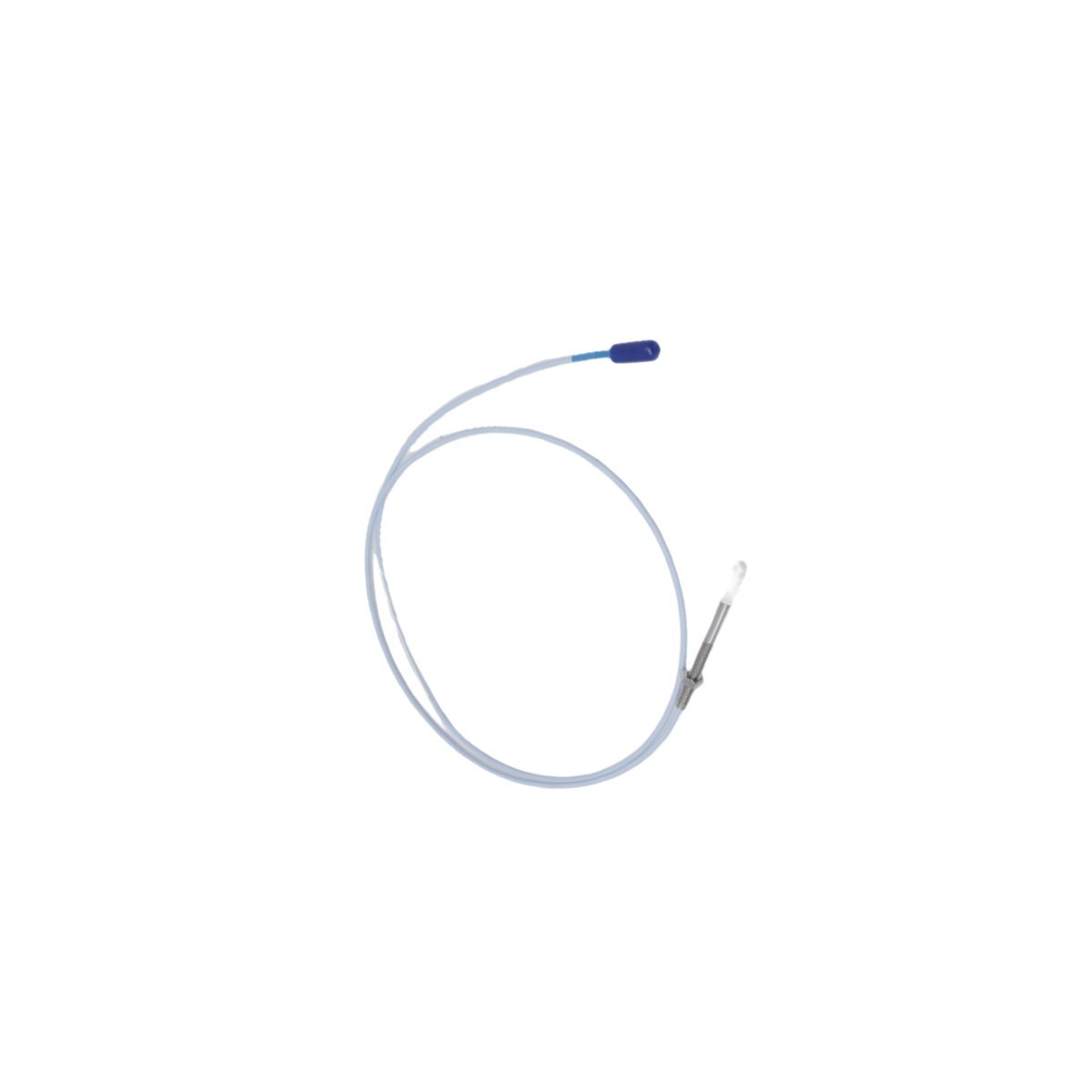

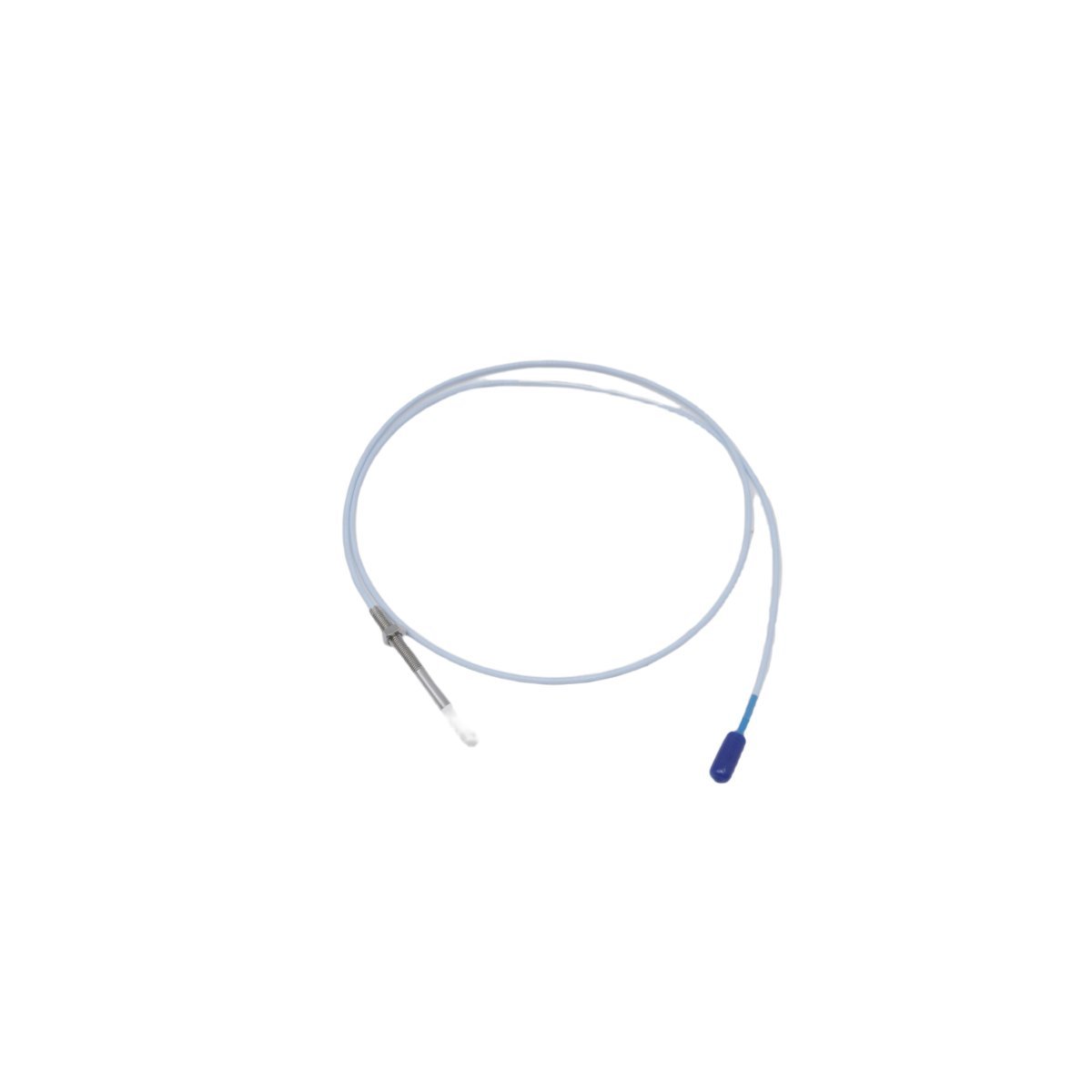

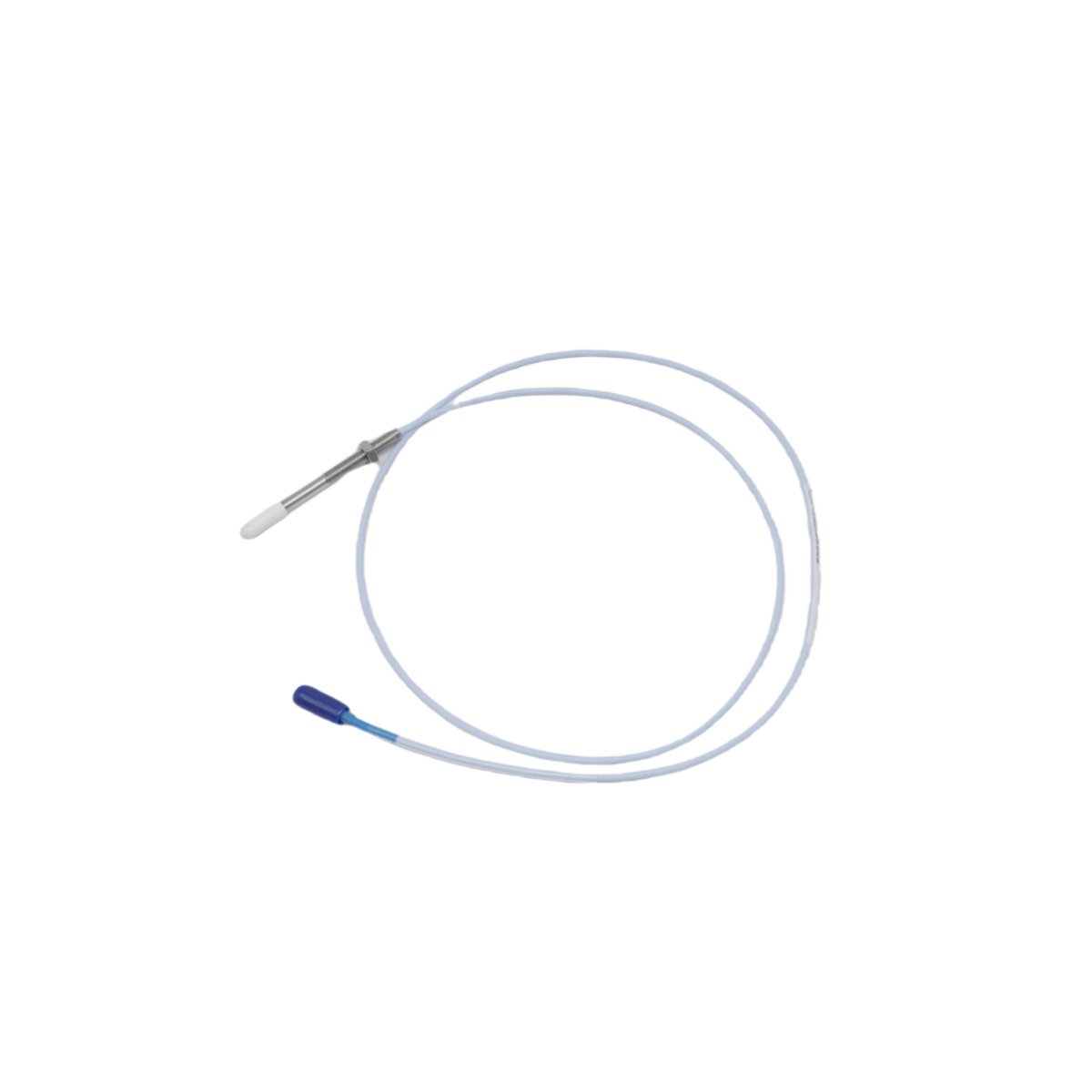

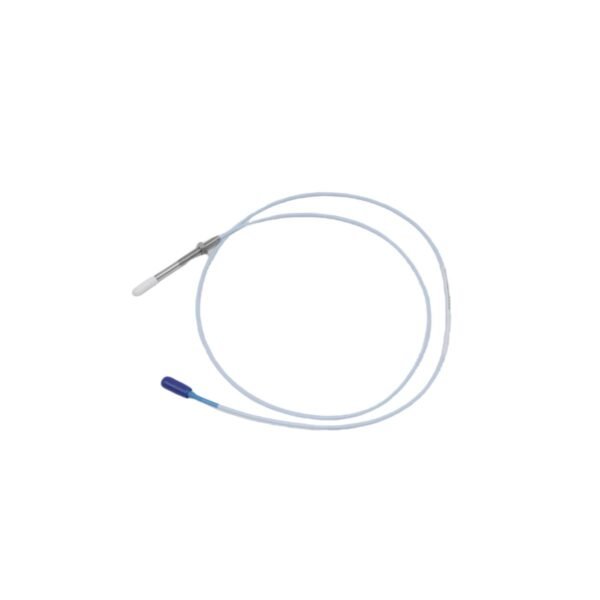

Bently Nevada 330171-08-24-10-02-00 3300 XL NSv Proximity Probe

The Bently Nevada 330171-08-24-10-02-00 is a specialized 3300 XL NSv (Near Surface version) proximity probe designed for high-precision displacement measurements in space-constrained industrial applications. This sensor is specifically engineered for use where small shaft diameters or tight mounting clearances prevent the use of standard 8 mm probes. By utilizing eddy current technology, the probe monitors radial vibration and axial position without physical contact, ensuring the integrity of critical high-speed rotating assets.

Advanced Sensing for Compact Mechanical Interfaces

The NSv system is optimized to provide a linear response even in environments with restricted side-view clearances. Specifically, the 330171-08-24-10-02-00 features a 1.0-meter integral cable and 3/8-24 UNF threads, allowing for stable installation in small centrifugal compressors and gearboxes. Furthermore, the probe tip is designed to minimize the “side-view” effect, which can cause false readings if the sensor is installed too close to surrounding metal. As a result, maintenance engineers can achieve laboratory-grade data accuracy in the most confined industrial machinery housings.

Technical Specification Matrix

Environmental Resilience and Protection

Constructed with high-grade materials, this proximity probe is built to survive the aggressive environments found in petrochemical and power generation facilities. Moreover, the PPS (polyphenylene sulfide) tip and FEP-insulated cable offer exceptional resistance to caustic chemicals and synthetic lubricating oils. In addition, the gold-plated ClickLoc connectors provide a secure, vibration-resistant electrical path that prevents signal degradation over years of service. Therefore, the 330171-08-24-10-02-00 remains the preferred choice for reliability engineers implementing predictive maintenance in challenging process conditions.

FAQ

What makes the NSv probe different from a standard 3300 XL probe?

The NSv series is specifically tuned for targets with a smaller diameter or where the probe must be installed in a very narrow hole. Specifically, it provides a 0.75 mm (30 mil) linear range that is highly stable even with minimal clearance to surrounding stationary metal.

Is this probe compatible with a standard 3300 XL Proximitor?

No, the 330171-08-24-10-02-00 must be used with a 3300 XL NSv Proximitor sensor. Furthermore, using it with a standard 8 mm Proximitor will result in incorrect calibration and unreliable vibration data.

How does the 1.0-meter cable length affect the system configuration?

This 1.0-meter probe is typically paired with a 4.0-meter or 8.0-meter extension cable. Accordingly, you must ensure the total system length (probe plus extension) matches the electrical length for which your Proximitor sensor is calibrated.

What are the benefits of the “02” approval option?

The 02 option provides multi-agency certifications, allowing the probe to be installed in various global jurisdictions under hazardous area classifications. Ultimately, this ensures compliance with safety standards for Class I, Div 1 and Zone 0 environments.
