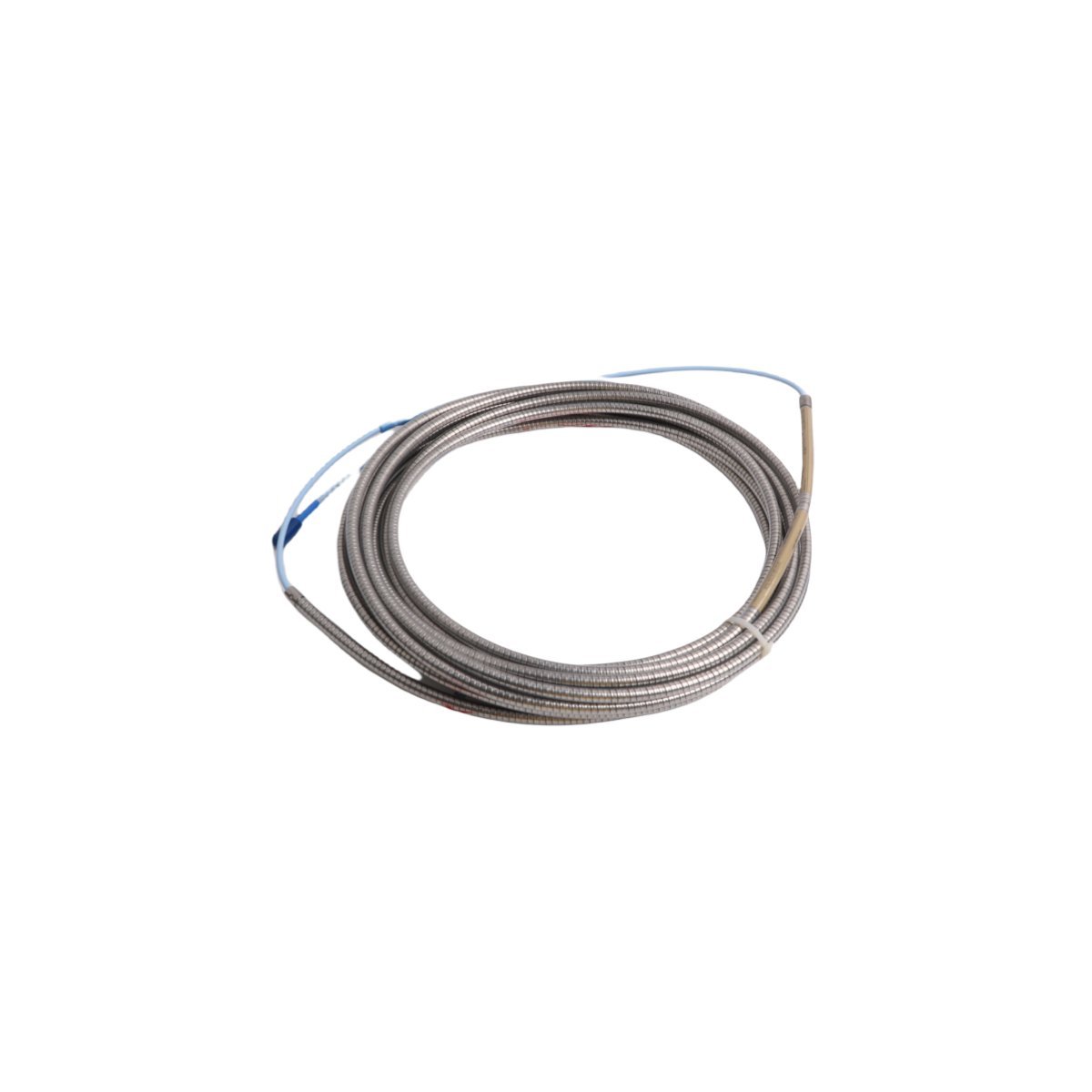

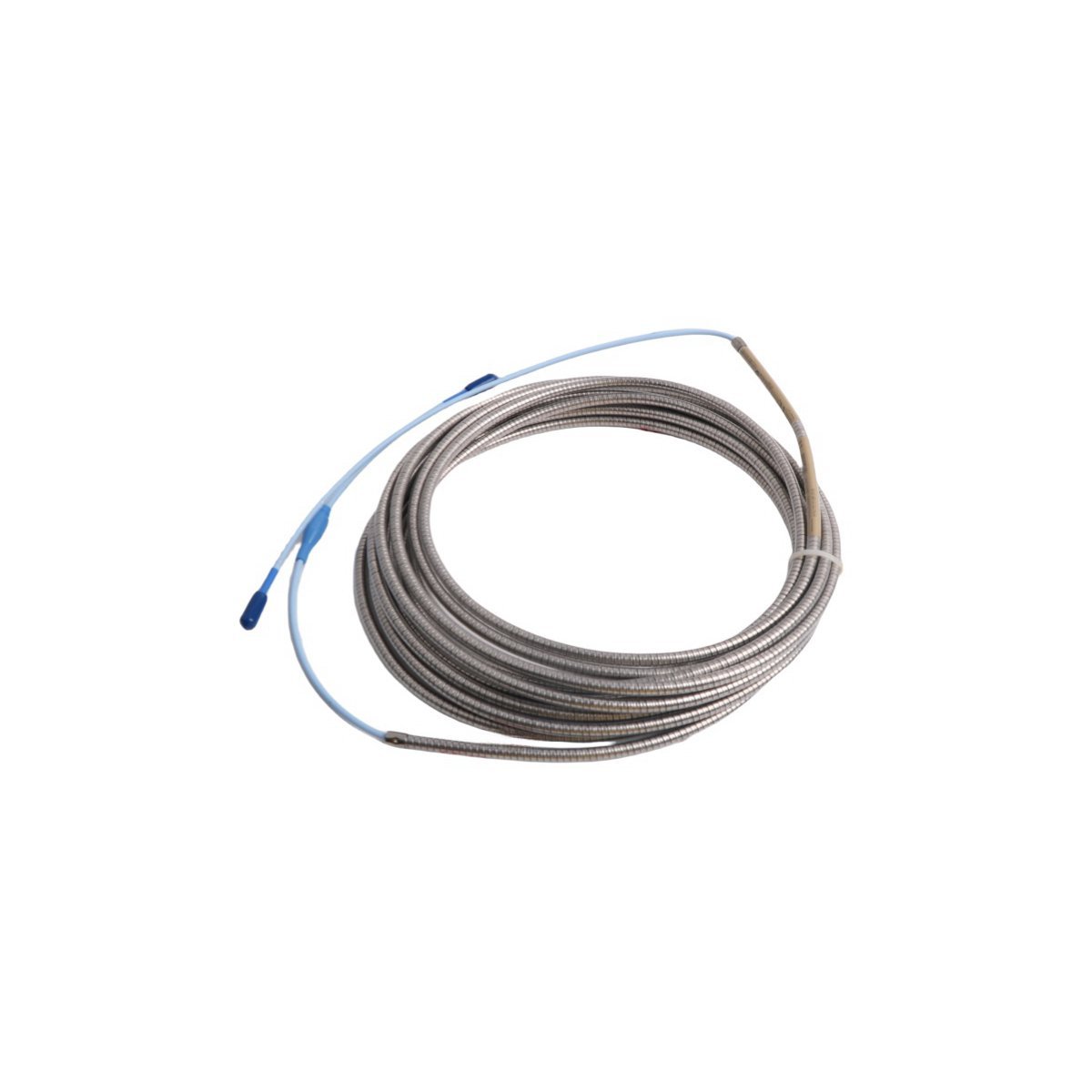

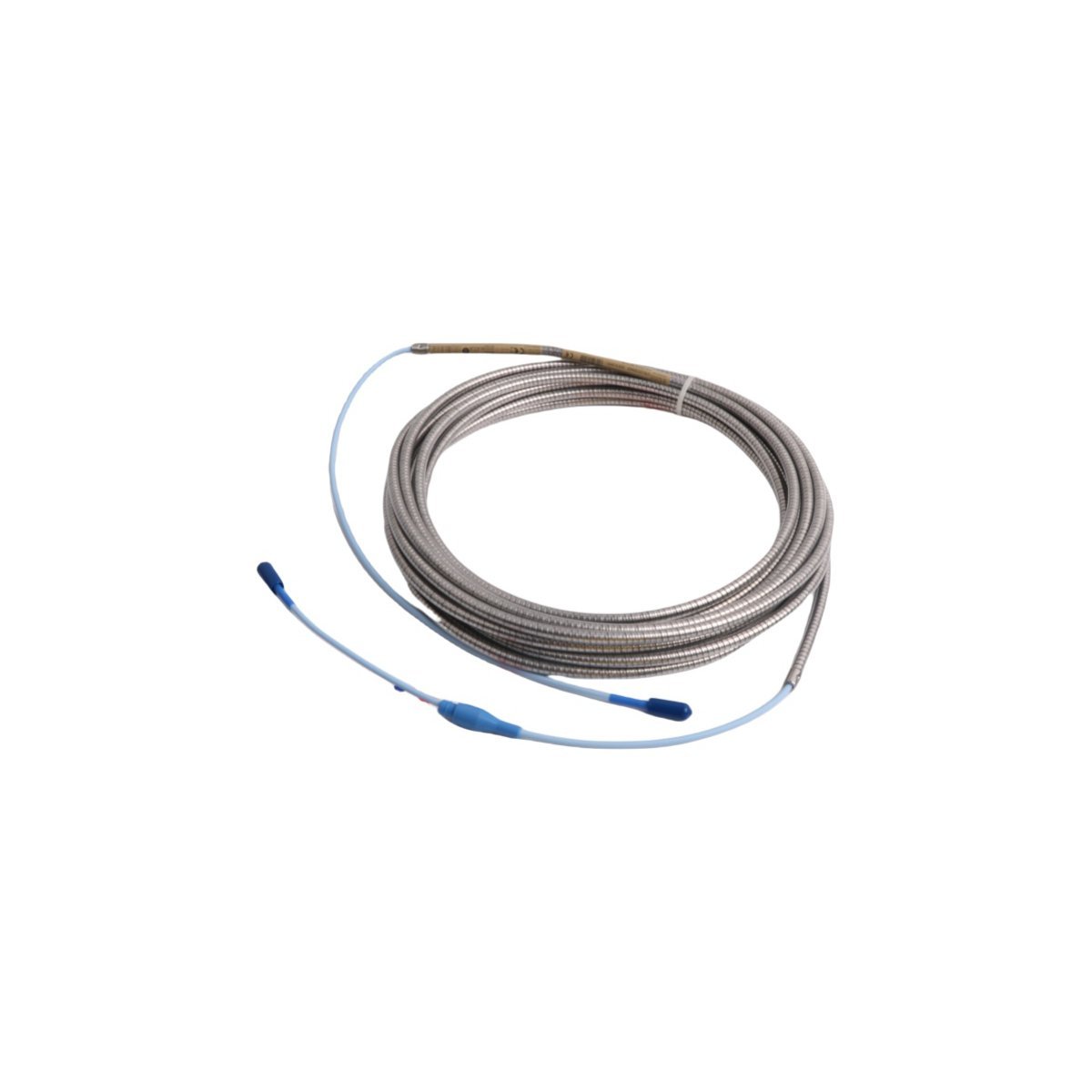

Bently Nevada 330130-085-03-05 3300 XL Standard Extension Cable

The Bently Nevada 330130-085-03-05 is a high-performance coaxial extension cable designed specifically for the 3300 XL 8mm Proximity Transducer System. This critical component serves as the bridge between a proximity probe and the Proximitor sensor, facilitating the transmission of sensitive eddy current signals. Because industrial environments often require the remote mounting of electronics away from high-heat machine surfaces, this cable provides the necessary reach while maintaining the rigorous electrical impedance standards required for accurate vibration monitoring. As a result, it is an indispensable part of Turbine Supervisory Instrumentation (TSI) for monitoring shaft radial vibration and axial position.

Professional Grade Construction and Signal Integrity

This extension cable is engineered using advanced fluoropolymer-insulated coaxial wire, ensuring exceptional resistance to oil, water, and industrial solvents. Furthermore, the 330130-085-03-05 includes a specialized stainless steel armor coating (Option -03), which provides superior mechanical protection against abrasion and crushing in high-traffic industrial zones. In addition, the integrated ClickLoc connectors are designed to resist loosening even under extreme machine-induced vibration. By doing so, the cable ensures a consistent electrical connection, which is vital for preventing signal noise and ensuring the long-term reliability of the machinery protection system.

Key Technical Specifications

Strategic Integration and Operational Benefits

Utilizing the 330130-085-03-05 armored extension cable significantly enhances the robustness of a plant’s predictive maintenance program. Specifically, the armor plating prevents physical cable damage that could lead to false alarms or instrument failure. Consequently, maintenance teams can deploy these sensors in the most demanding areas of a turbine deck or compressor train. Moreover, because the cable is manufactured to exact electrical specifications, it maintains the total system length calibration. Therefore, choosing genuine Bently Nevada components ensures that your 3500 series monitoring system receives precise data, ultimately extending the service life of critical rotating assets.

FAQ

What is the benefit of the “-03” armor option on this cable?

The stainless steel armor provides a physical barrier against mechanical damage and crushing. Furthermore, this version is fluid-tight, meaning it prevents oil or moisture from wicking into the cable. Accordingly, this is the preferred choice for installations where the cable is exposed to harsh external conditions or high-traffic maintenance areas.

How does the 8.5-meter length affect the 3300 XL system calibration?

The 3300 XL system is typically calibrated for a total electrical length of either 5.0 or 9.0 meters. Specifically, an 8.5-meter extension cable is designed to be paired with a 0.5-meter probe to achieve the 9-meter total length. As a result, using an incorrect probe length with this cable will cause a significant shift in the gap voltage and vibration sensitivity.

Can the 330130-085-03-05 be used in high-temperature environments?

Yes, the cable is rated for continuous operation at temperatures up to 177 °C. In addition, the fluoropolymer insulation is specifically chosen for its thermal stability. Consequently, it can be safely routed near hot turbine casings without the risk of the insulation melting or signal degradation.

Why are ClickLoc connectors used instead of standard BNC connectors?

ClickLoc connectors are designed to lock into place with a physical “click,” providing a vibration-proof seal. Moreover, the gold-plated surfaces prevent oxidation over time. Therefore, this specialized connector ensures that the proximity system maintains its precision over years of service in high-vibration environments.
