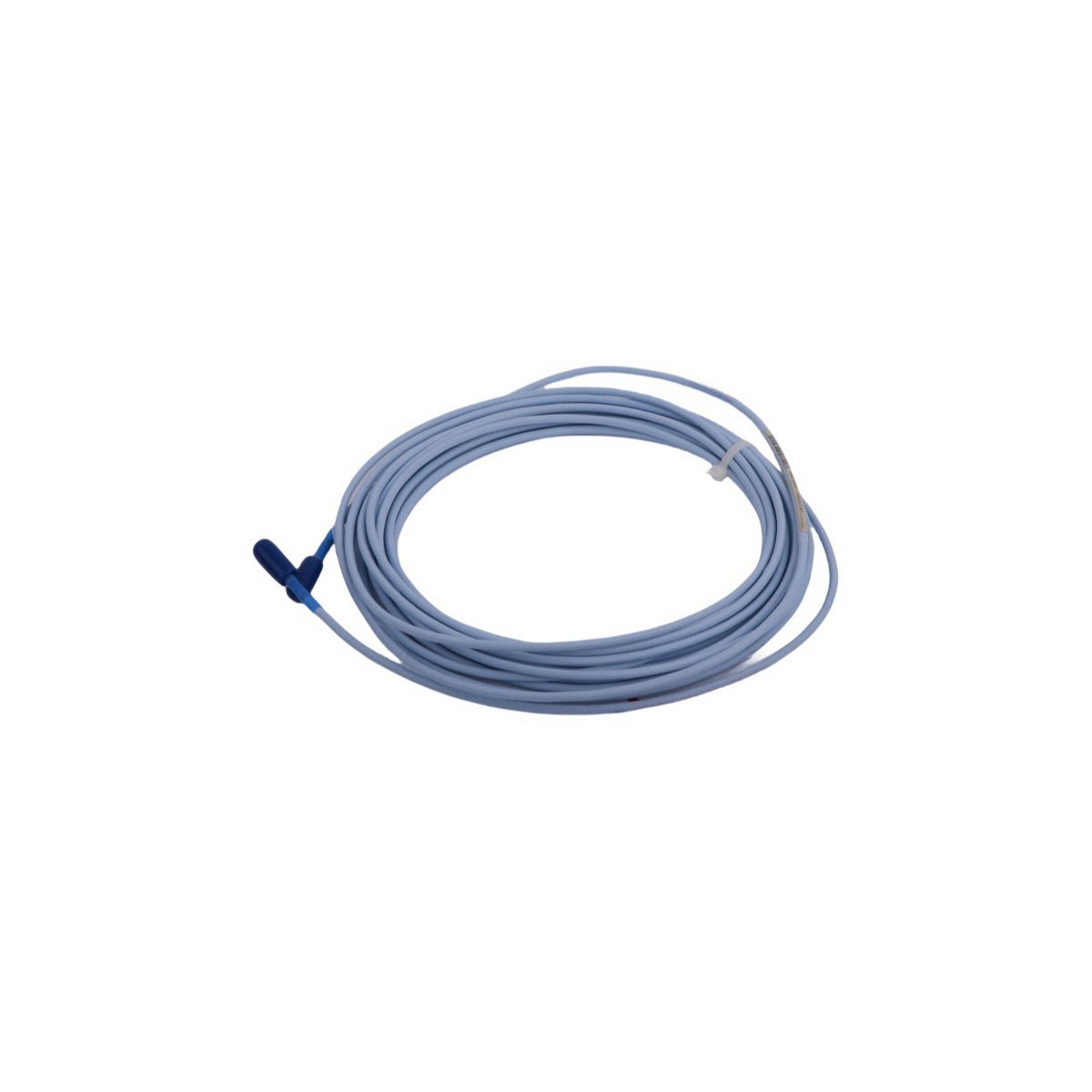

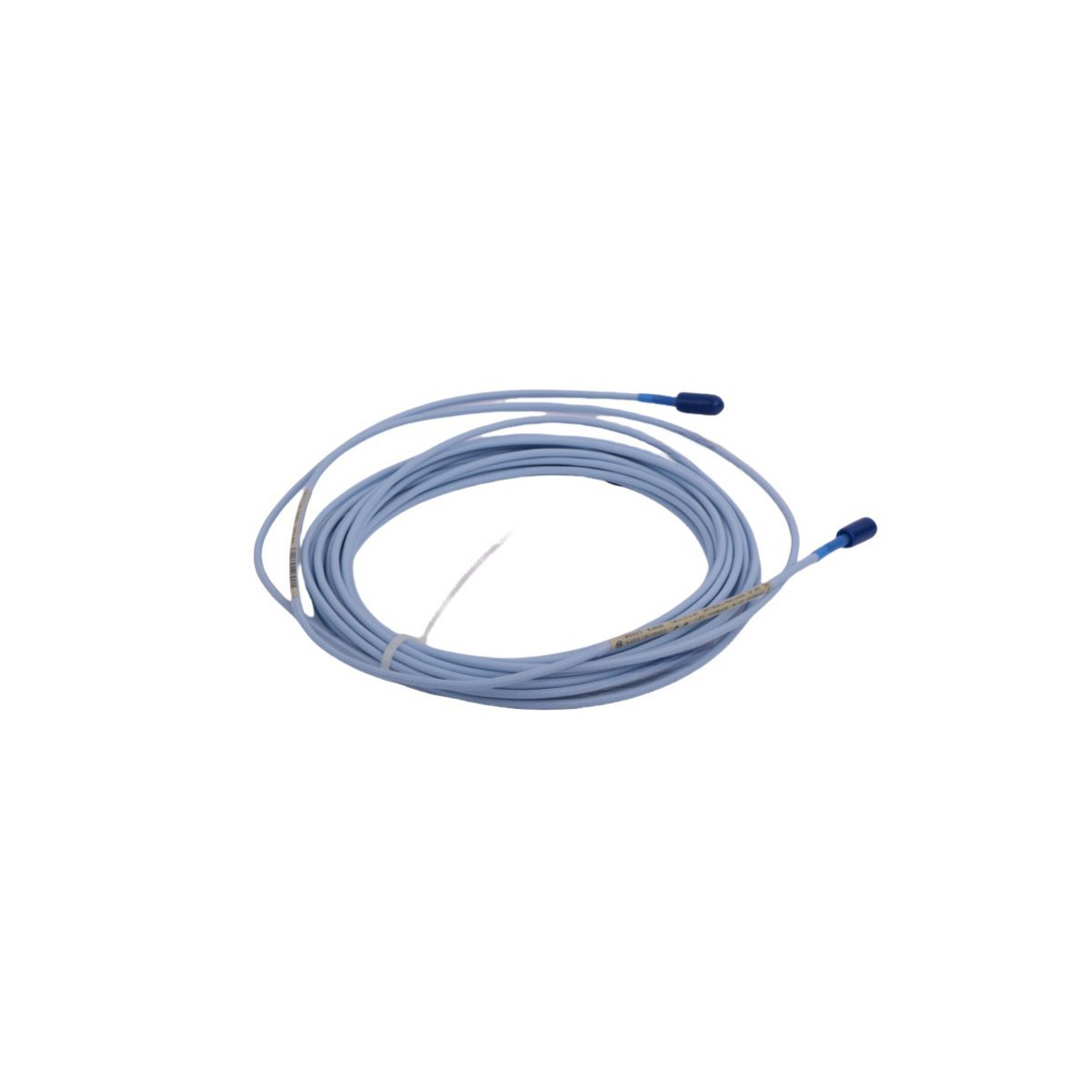

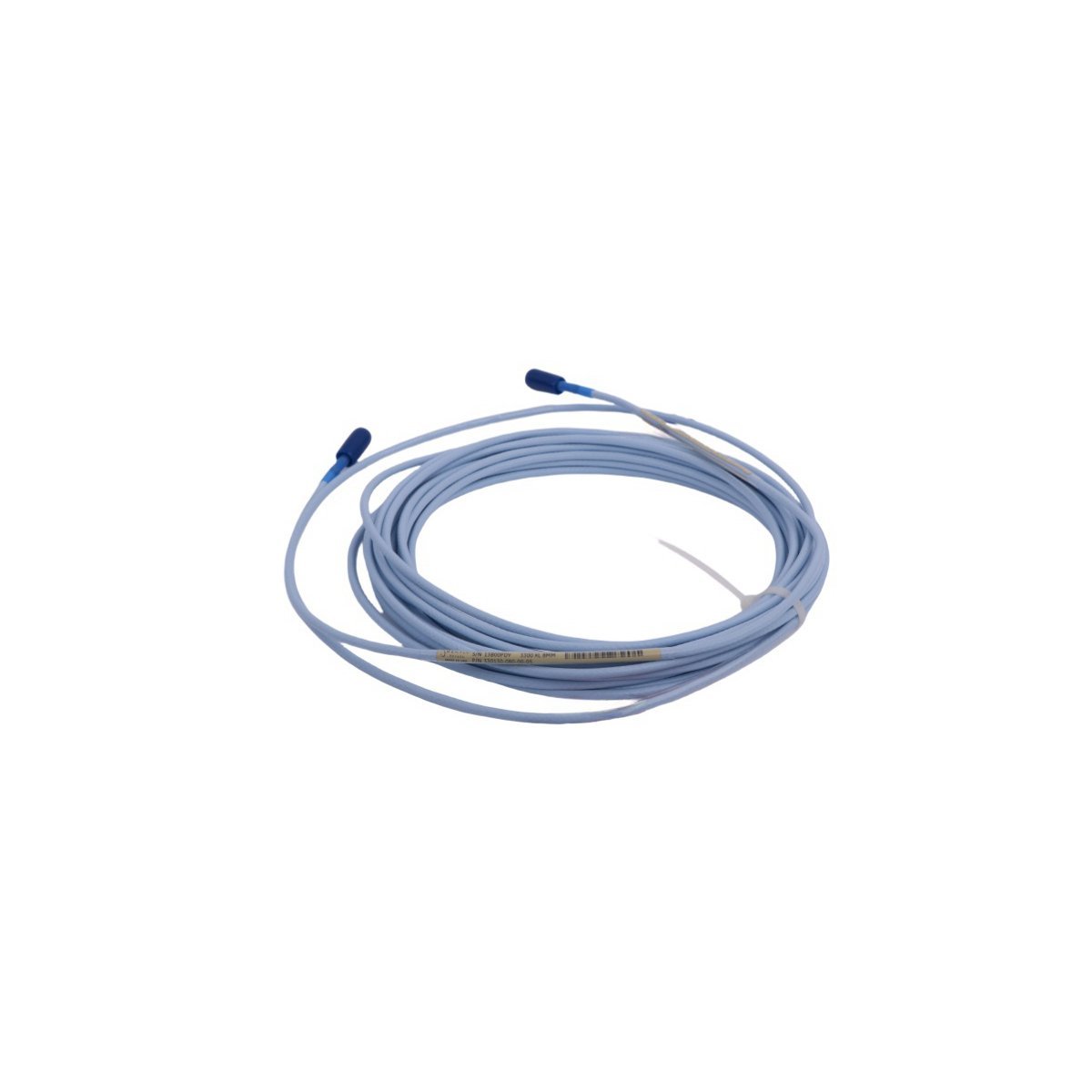

Bently Nevada 330130-080-00-05 3300 XL Standard Extension Cable

The Bently Nevada 330130-080-00-05 is a specialized high-frequency coaxial extension cable designed for the 3300 XL 8mm Proximity Transducer System. This component serves as the critical link between the proximity probe and the Proximitor sensor, ensuring that eddy current signals are transmitted with minimal attenuation. Because precision machinery protection requires absolute signal consistency, this cable is manufactured with tight electrical tolerances to maintain the system’s linear range. Consequently, it is an essential part of vibration monitoring loops for critical rotating assets, including industrial gas turbines, steam turbines, and large-scale centrifugal compressors.

Core Technical Characteristics and Durability

Engineered for the rigors of industrial environments, the 330130-080-00-05 features advanced fluoropolymer insulation that provides excellent dielectric properties and chemical resistance. Furthermore, the cable is designed to operate reliably in high-moisture and hydrocarbon-rich atmospheres without signal degradation. In addition, the patented ClickLoc connectors facilitate a secure, vibration-resistant coupling that prevents accidental disconnection. By doing so, the system maintains a stable electrical impedance, which is vital for the accurate measurement of shaft displacement and radial vibration.

Detailed System Specifications

Application and Industrial Value

The 330130-080-00-05 extension cable is primarily utilized in Turbine Supervisory Instrumentation (TSI) and condition-based maintenance programs. Specifically, it allows the Proximitor sensor to be mounted in a remote junction box, shielding the sensitive electronics from the heat and vibration of the machine train. As a result, operators can achieve early detection of mechanical faults such as bearing wear, shaft imbalance, and rotor rub. Therefore, incorporating this genuine Bently Nevada cable into your automation architecture helps maximize asset uptime and supports the safe operation of high-value industrial equipment.

FAQ

What is the significance of the 8.0-meter length for this extension cable?

The 3300 XL system is calibrated for a specific total electrical length, typically 9 meters. Accordingly, this 8.0-meter cable must be paired with a 1.0-meter probe to complete the required 9-meter circuit. Consequently, using an incorrect length combination will shift the calibration curve and result in inaccurate displacement readings.

How do ClickLoc connectors improve system reliability?

ClickLoc connectors feature a mechanical locking mechanism that requires a specific pull-strength to separate. Furthermore, this design prevents the connectors from loosening due to machine-induced vibrations. In addition, the gold-plated contacts ensure a low-resistance connection for clean signal transmission over the life of the sensor.

Can this cable be used in high-temperature zones near steam lines?

Yes, the cable is rated for temperatures up to +177 °C. However, in areas where mechanical abrasion or extreme slag is present, you might consider the armored version of the cable instead. Nevertheless, the standard 330130-080-00-05 provides sufficient thermal protection for most standard turbine deck applications.

Is it possible to field-repair a damaged 330130 extension cable?

Bently Nevada generally recommends against field-splicing these cables because it alters the electrical impedance. Instead, the best practice is to replace the entire cable to ensure the monitoring system continues to meet API 670 safety standards. Therefore, maintaining a spare 330130-080-00-05 in stock is highly recommended for critical assets.
