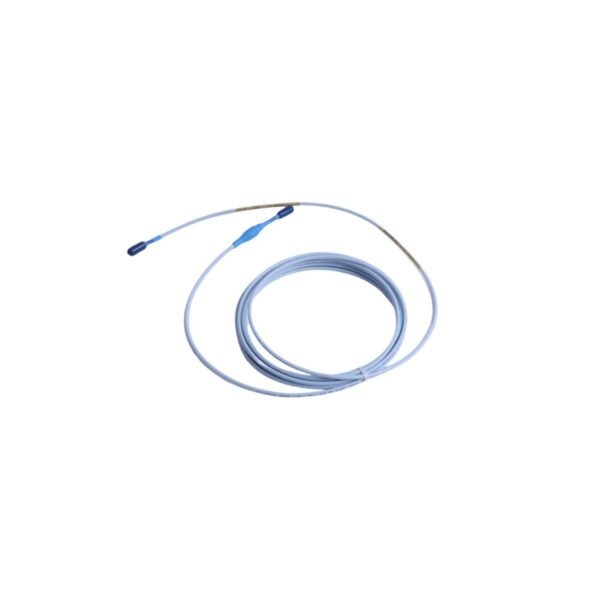

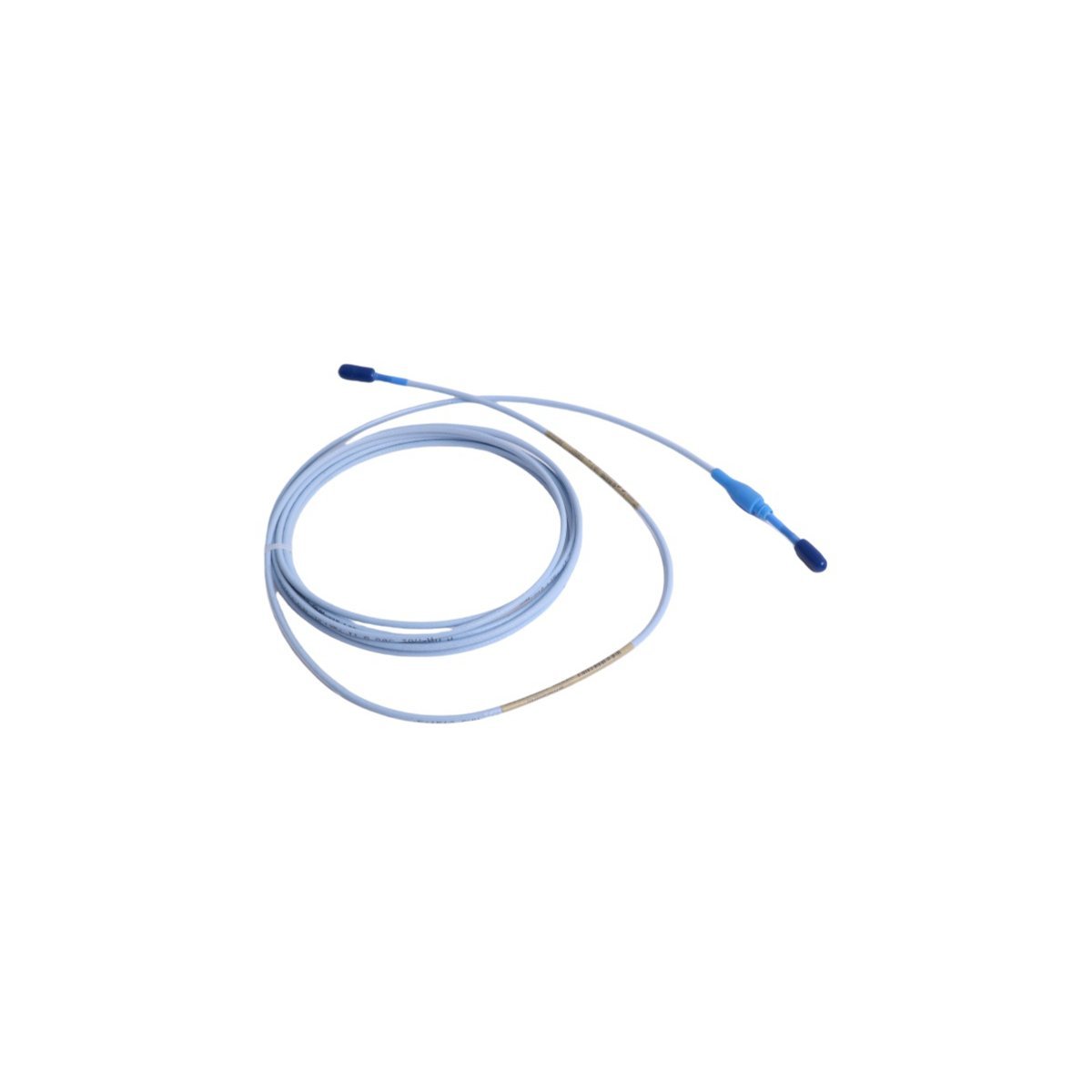

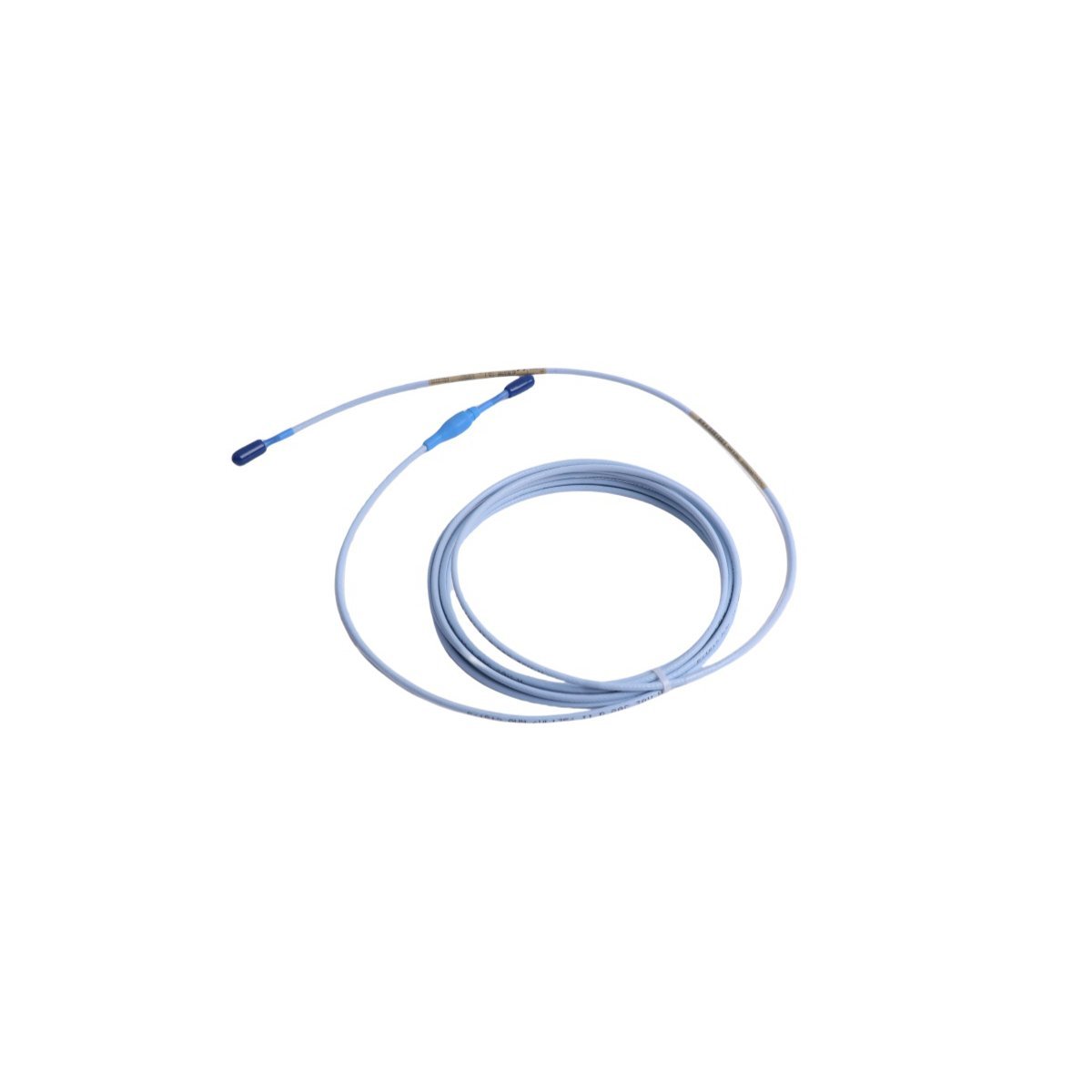

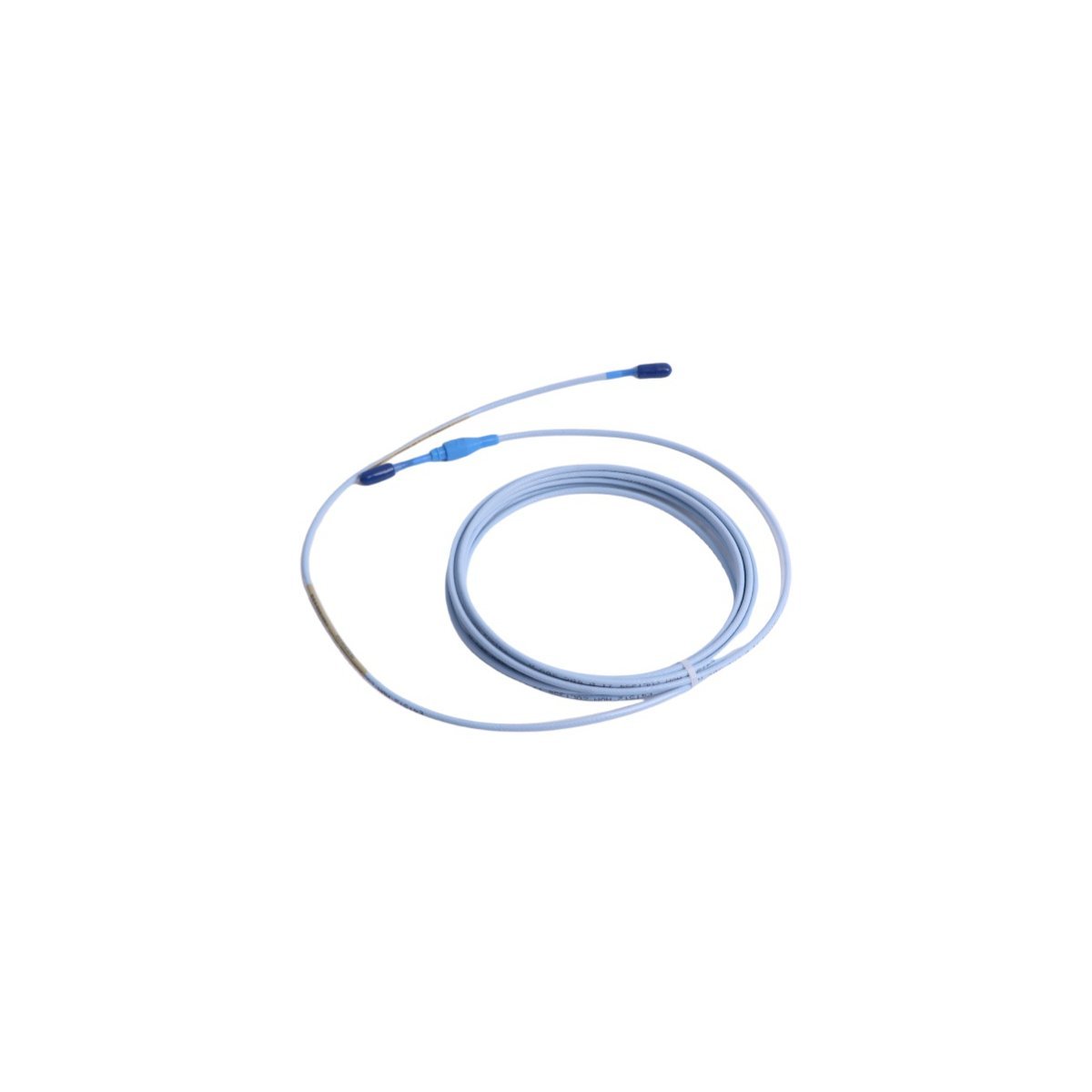

Bently Nevada 330130-045-02-05 | 3300 XL 8 mm Armored Extension Cable

The Bently Nevada 330130-045-02-05 serves as a high-precision bridge within the 3300 XL 8 mm Proximity Transducer System. This specialized extension cable facilitates the transmission of eddy current signals from the proximity probe to the Proximitor sensor with minimal signal loss. By maintaining strict electrical impedance, the cable ensures that critical data regarding shaft vibration and axial position remains accurate. Industrial facilities rely on this component to monitor high-speed rotating machinery, including steam turbines and centrifugal compressors, where precision is non-negotiable.

Advanced Mechanical Protection and Shielding

Engineered for the most volatile industrial settings, this specific configuration features a stainless steel fluid-tight armor (Option 02). This protective layering prevents physical damage from crushing, kinking, or abrasion while maintaining high flexibility for complex routing. Furthermore, the cable utilizes a high-grade fluoropolymer jacket that resists degradation from corrosive machine oils, moisture, and chemical exposure.

Transitioning to the connection points, the 330130-045-02-05 incorporates patented gold-plated ClickLoc connectors. These connectors provide a vibration-proof seal that prevents oxidation and ensures a constant, low-resistance electrical path. This level of hardware integrity is essential for preventing signal drift and avoiding the false trips that often plague lower-quality monitoring components.

Technical Parameters and Specifications

The 330130-045-02-05 complies with API 670 standards for machinery protection systems. The specific technical details are outlined below:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model/Part Number: 330130-045-02-05
• System Series: 3300 XL 8 mm Proximity Transducer
• Cable Length: 4.5 meters (Option 045)
• Armor Type: Stainless steel fluid-tight armor (Option 02)
• Agency Approvals: Multiple hazardous area approvals (Option 05)
• Temperature Range: -51 °C to +177 °C (-60 °F to +350 °F)
• Compliance: API 670 and CE standards
• Total Weight: 0.25 kg

Strategic Asset Management and Installation

Integrating this armored extension cable into a Bently Nevada 3500 Machinery Protection System allows operators to implement comprehensive predictive maintenance. Because the 4.5-meter length is electrically matched to the Proximitor’s calibration, it preserves the system’s linear range and scale factor. Consequently, maintenance teams can identify early warning signs of rotor imbalance or bearing wear with high confidence. Furthermore, the inclusion of hazardous area certifications (Option 05) makes this cable suitable for global deployment in explosive or regulated environments.

Through its robust design and verified electrical performance, the 330130-045-02-05 helps minimize unplanned downtime and extends the operational life of mission-critical industrial assets.
