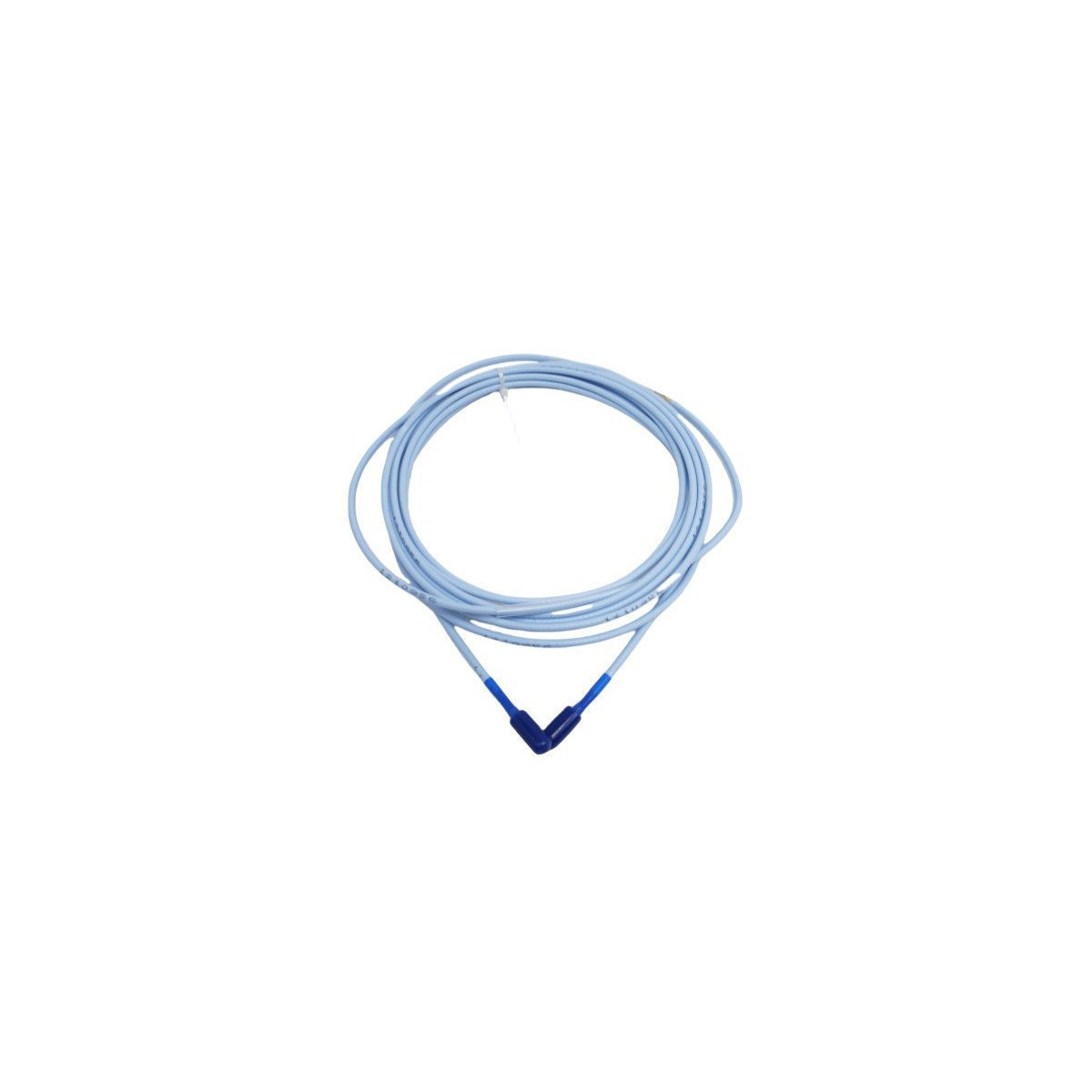

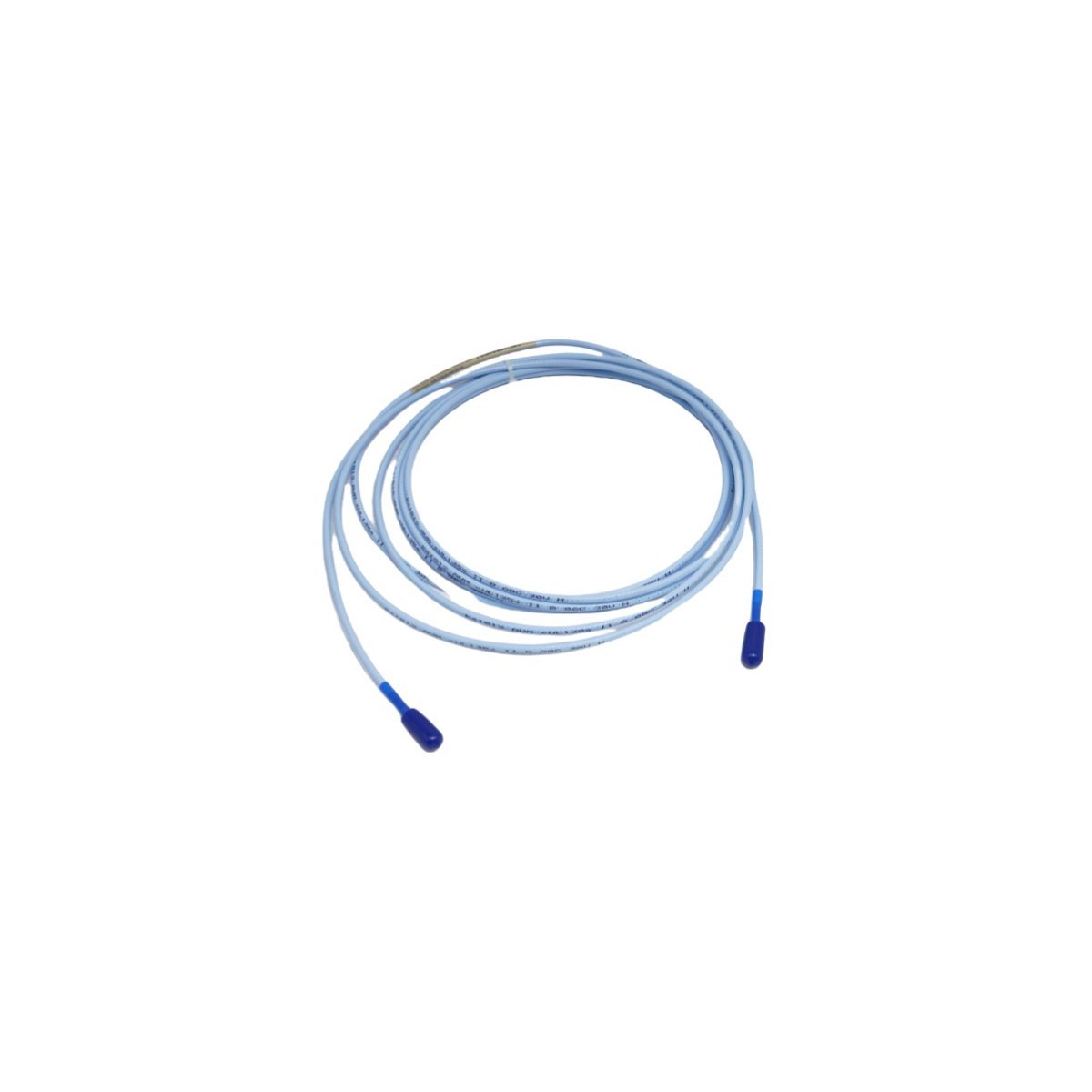

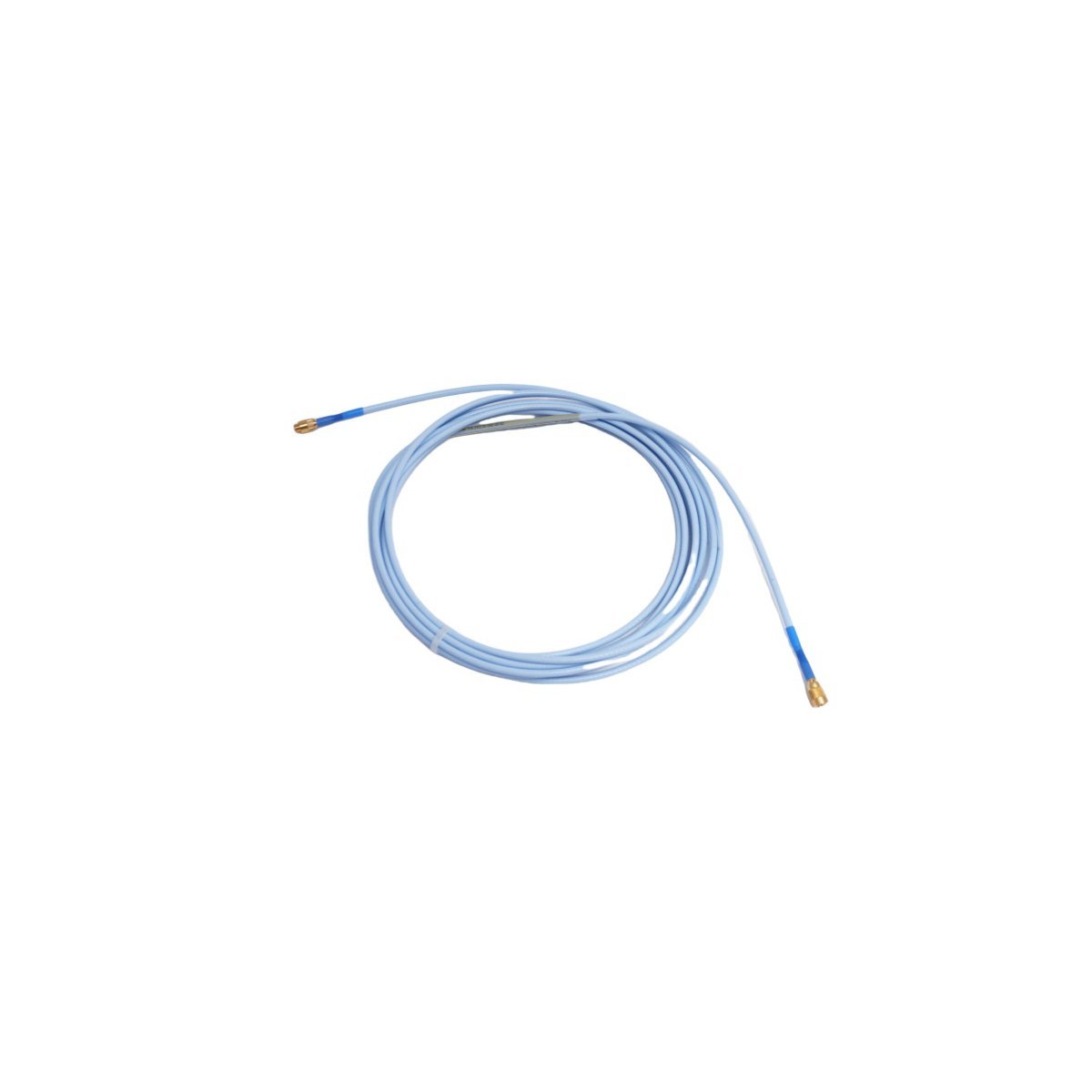

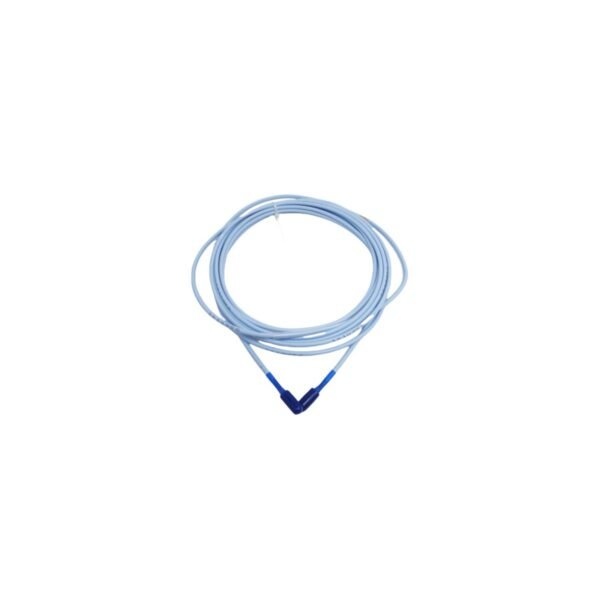

Bently Nevada 330130-040-00-00 | 3300 XL Standard Extension Cable

The Bently Nevada 330130-040-00-00 is a high-performance extension cable specifically engineered for the 3300 XL 8 mm Proximity Transducer System. This cable acts as the vital link between the proximity probe and the Proximitor sensor, facilitating the transmission of eddy current signals with minimal attenuation. By maintaining strict electrical impedance, the 330130-040-00-00 ensures that the monitoring system receives accurate data regarding shaft vibration and axial position. This precision is essential for the continuous protection of high-speed rotating assets such as steam turbines, centrifugal compressors, and large-scale industrial pumps.

Technical Performance and Environmental Resistance

Bently Nevada utilizes advanced fluoropolymer insulation to protect the signal core from the extreme conditions found in industrial plants. The cable design prioritizes thermal stability, allowing the transducer system to function reliably across a broad temperature spectrum. Furthermore, the 330130-040-00-00 features gold-plated ClickLoc connectors, which provide a vibration-resistant connection while preventing corrosion in high-humidity or chemically aggressive environments. This robust construction significantly reduces the risk of signal drift or electrical noise, which could otherwise lead to false machinery trips.

System Specifications

The 330130-040-00-00 cable is manufactured to satisfy the rigorous requirements of API 670 standards. Detailed technical parameters include:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 330130-040-00-00
• System Compatibility: 3300 XL 8 mm Proximity Transducer
• Cable Length: 4.0 meters (Option 040)
• Armor Option: No Armor (Option 00)
• Agency Approval: Standard / No specialized hazardous area approvals (Option 00)
• Operating Temperature: -51 °C to +177 °C (-60 °F to +350 °F)
• Weight: 0.20 kg
• Standard Compliance: API 670 compliant for machinery protection

Strategic Integration for Predictive Maintenance

Implementing the 330130-040-00-00 cable within a 3500 Machinery Protection System allows for comprehensive asset health management. Because this cable maintains the integrity of the linear range and scale factor of the 3300 XL system, it enables reliable trend analysis. Maintenance teams can use this data to identify developing mechanical faults such as bearing wear, rotor imbalance, or fluid-film instability before catastrophic failure occurs. This proactive approach optimizes maintenance schedules and extends the service life of critical rotating machinery.

Installation and Operational Safety

The non-armored design of the 330130-040-00-00 offers increased flexibility, making it easier to route through conduit systems during plant turnarounds. Proper installation of this extension cable is fundamental to the overall operational safety of the facility. When connected correctly, it ensures that the Bently Nevada monitoring rack can execute automatic emergency shutdowns if vibration levels exceed safety thresholds. By combining ease of installation with long-term electrical stability, this cable provides a cost-effective and reliable solution for industrial condition monitoring applications.
