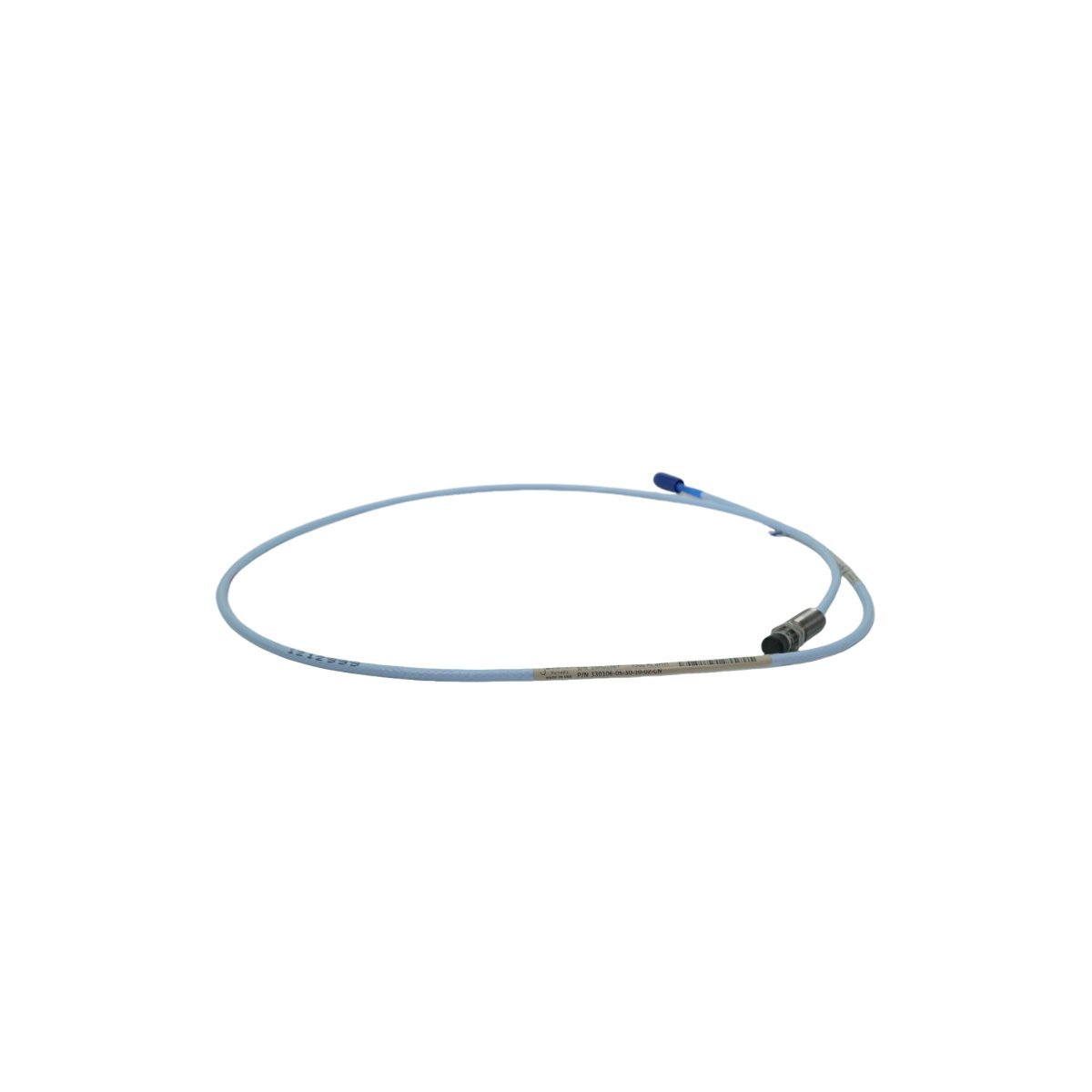

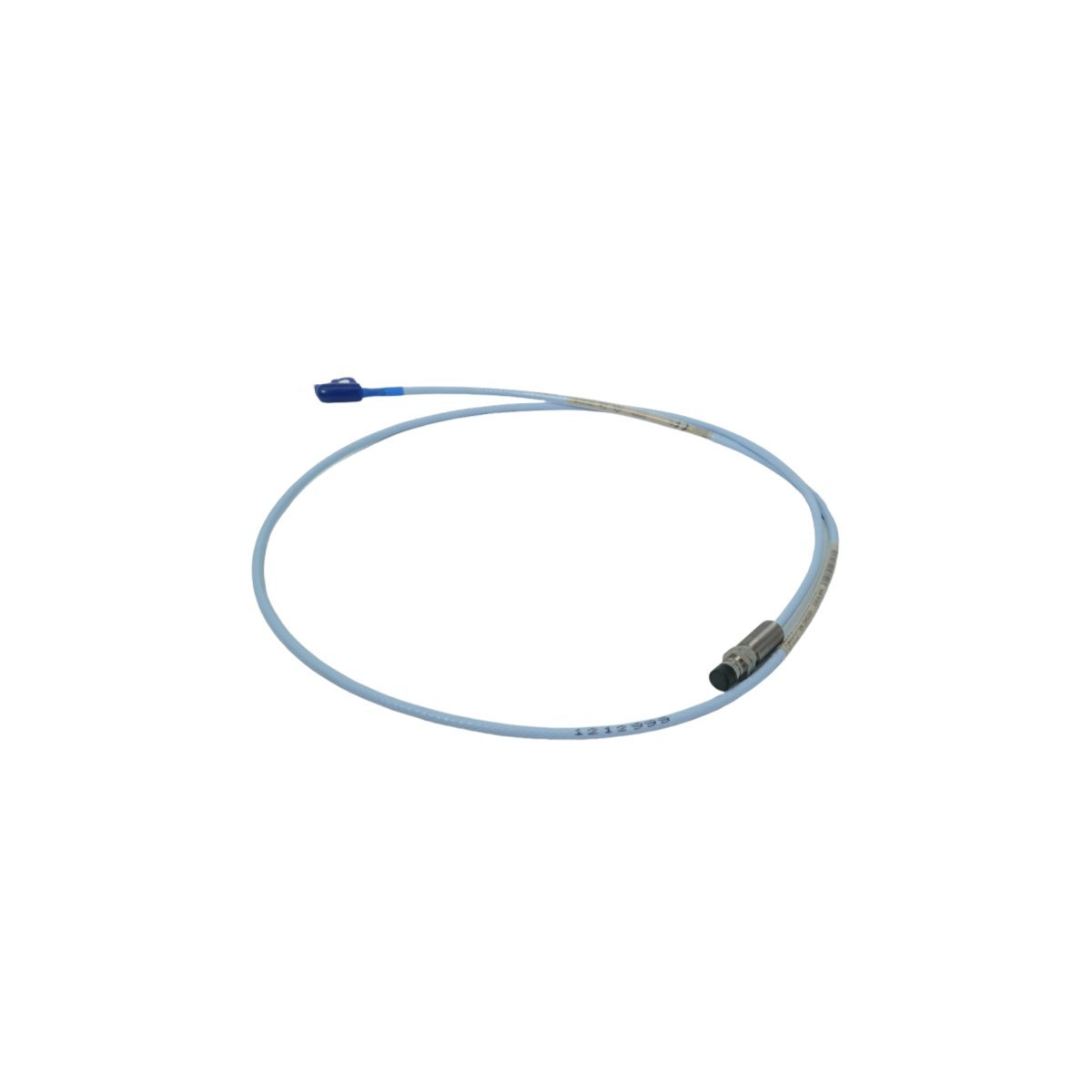

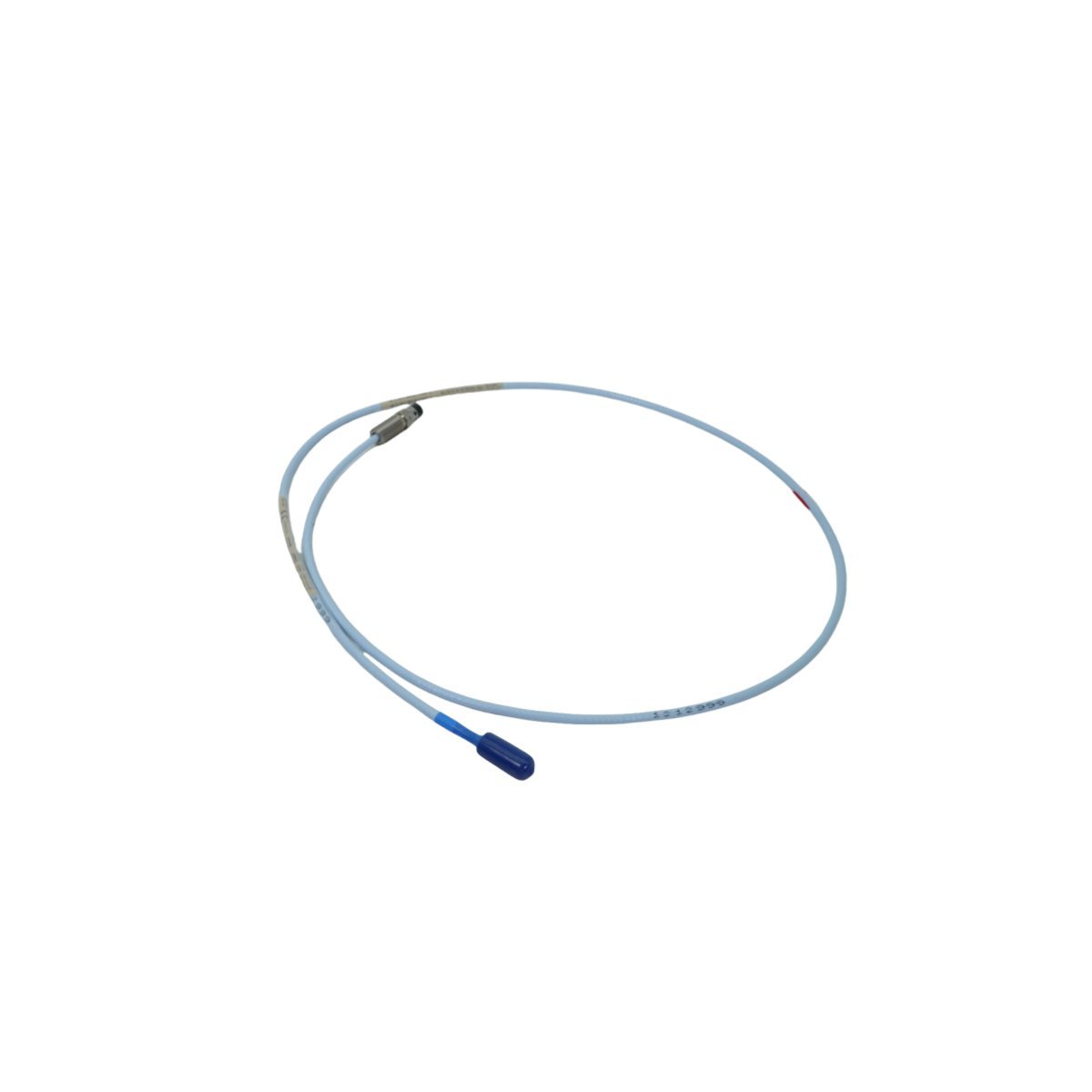

Bently Nevada 330106-05-30-20-02-CN | 3300 XL 8 mm Proximity Probe

The Bently Nevada 330106-05-30-20-02-CN is a precision-engineered non-contacting sensor designed for the 3300 XL 8 mm Proximity Transducer System. This probe measures shaft vibration and position with high accuracy by utilizing eddy current technology. It converts mechanical motion into an electrical signal, allowing the monitoring system to track radial displacement and axial thrust. This model is essential for protecting high-speed rotating assets such as turbines, compressors, and pumps in demanding industrial environments.

Technical Superiority and Environmental Resilience

This probe configuration excels in harsh conditions where moisture, oil, and extreme temperatures are common. The 330106-05-30-20-02-CN features a robust polyphenylene sulfide (PPS) tip and a stainless steel probe case to ensure long-term stability. Furthermore, the 3300 XL design provides a significant improvement in moisture resistance compared to previous generations. The probe maintains a consistent linear scale factor of 7.87 V/mm (200 mV/mil), ensuring that data remains accurate across the entire measurement range.

Technical Specifications

The 330106-05-30-20-02-CN reflects the following specialized configuration:

• Manufacturer: Bently Nevada (Baker Hughes)
• Product Type: 3300 XL 8 mm Proximity Probe (M10 x 1 thread)
• Unthreaded Length: 05 (50 mm)
• Overall Case Length: 30 (300 mm)
• Total Length: 20 (2.0 meters / 6.6 feet)
• Connector Option: 02 (Miniature coaxial ClickLoc connector)
• Agency Approval: CN (China Ex / CCC approvals for hazardous areas)
• Linear Range: 2.0 mm (80 mils)
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Weight: 0.1 kg

Asset Protection and Diagnostic Integration

Maintenance teams utilize the 330106-05-30-20-02-CN to support predictive maintenance and Turbine Supervisory Instrumentation (TSI). By delivering real-time shaft position and vibration data, the sensor helps identify early signs of bearing degradation, rotor unbalance, and misalignment. The system integrates directly with Bently Nevada 3500 series machinery protection racks. This connectivity allows for centralized data analysis and automated alarm triggering, which prevents catastrophic machine failures and minimizes unplanned downtime.

Reliable Connectivity and Compliance

The 330106-05-30-20-02-CN includes the ClickLoc connector system, featuring gold-plated contacts that resist corrosion and mechanical vibration. The “CN” designation ensures the probe meets regional safety standards for explosion-proof and intrinsically safe applications. Its design adheres to API 670 standards, making it a globally recognized solution for machinery health monitoring. Choosing this authentic probe guarantees seamless interchangeability within the 3300 XL ecosystem without requiring complex system recalibration.
