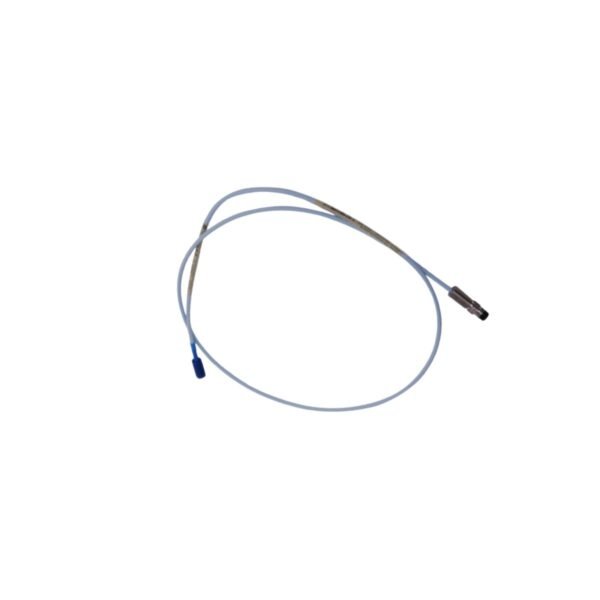

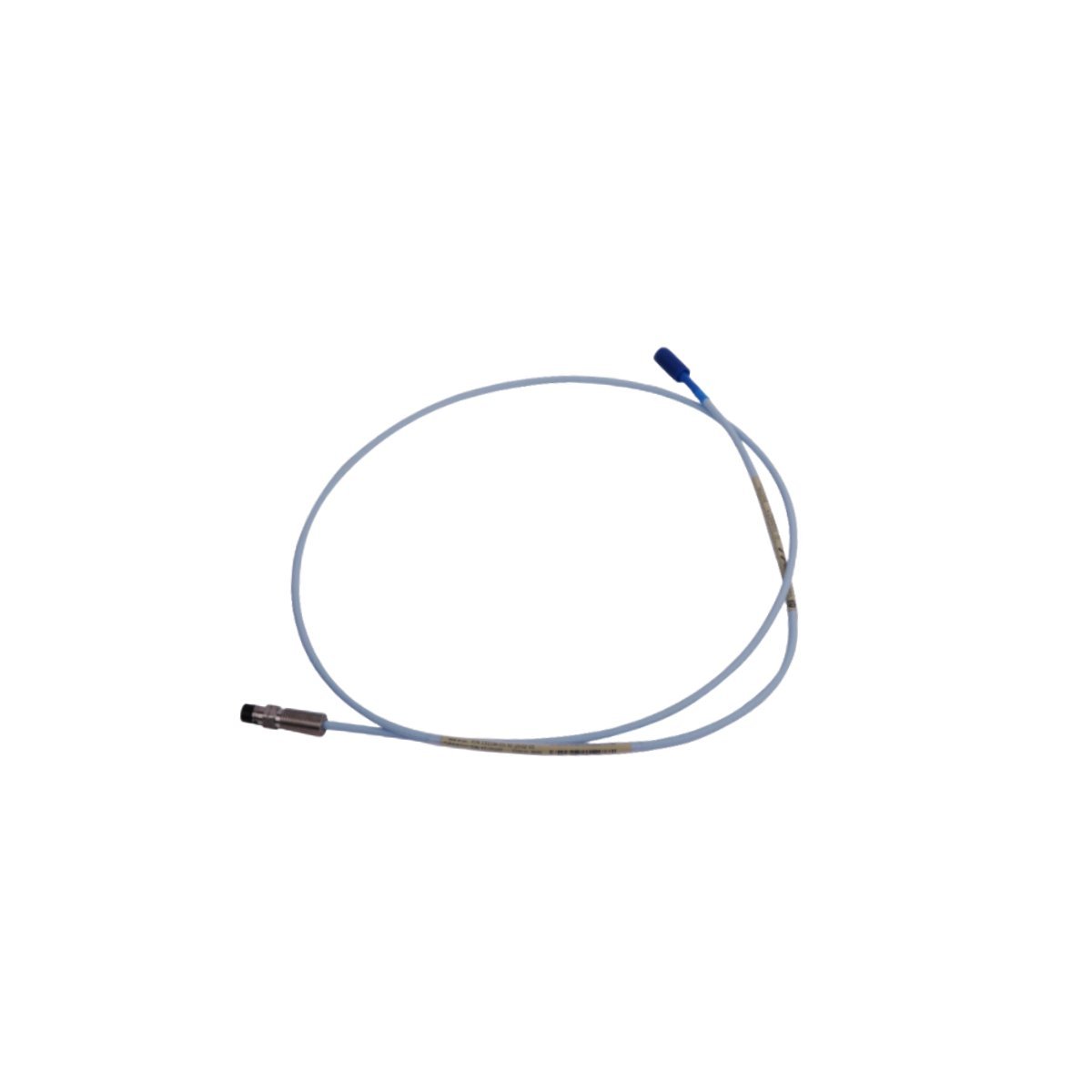

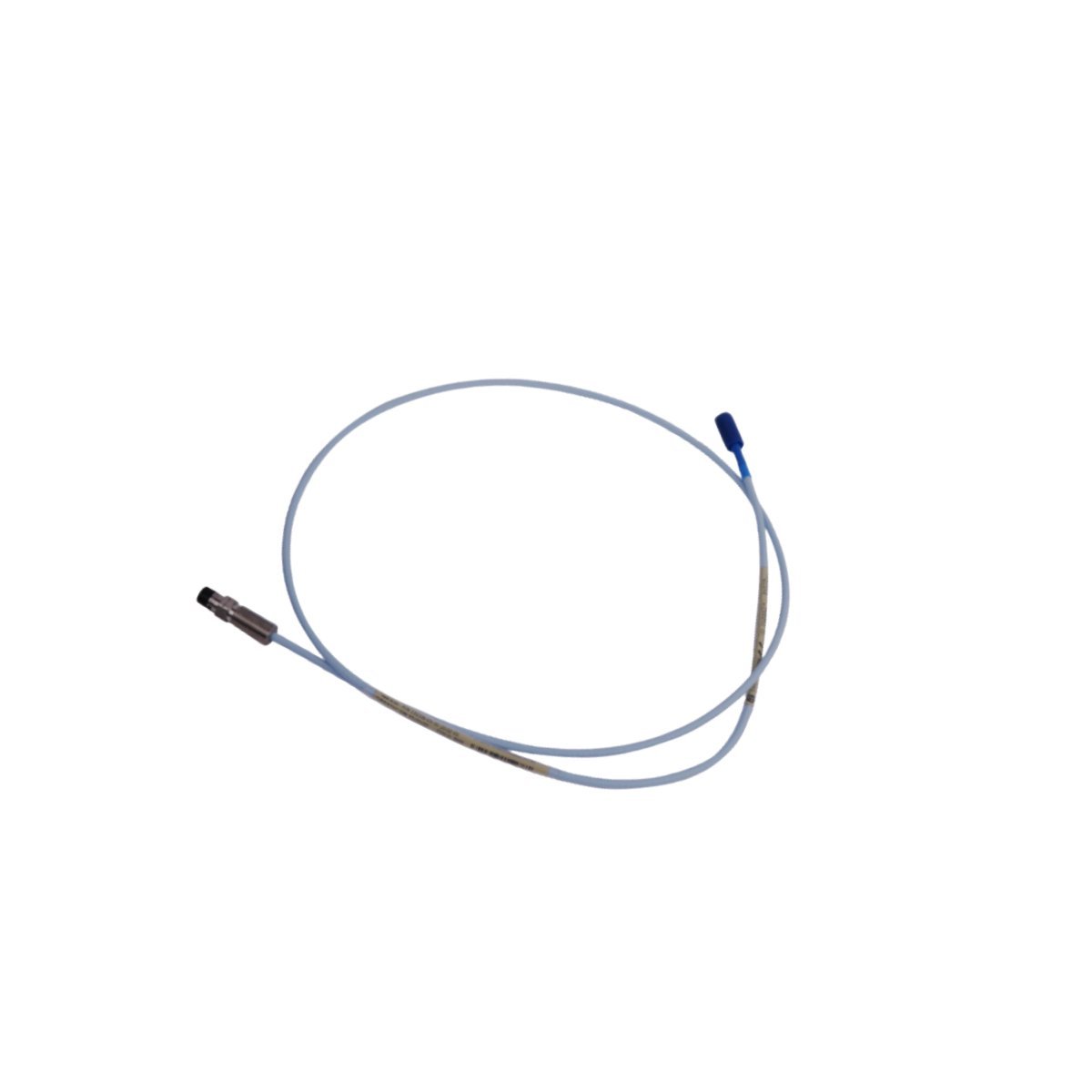

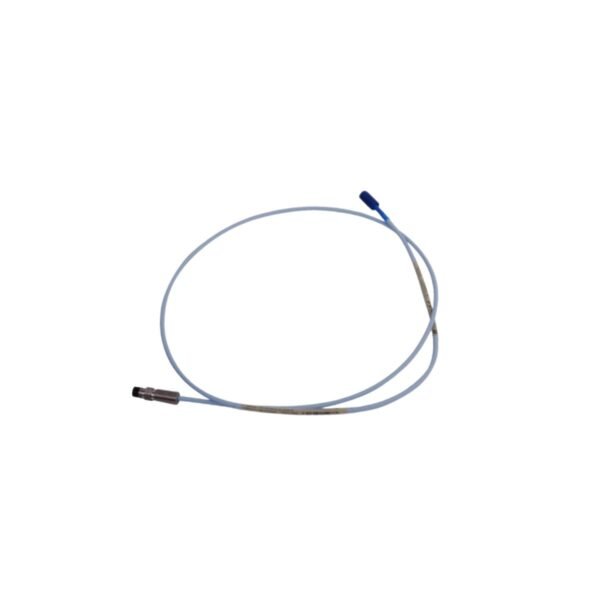

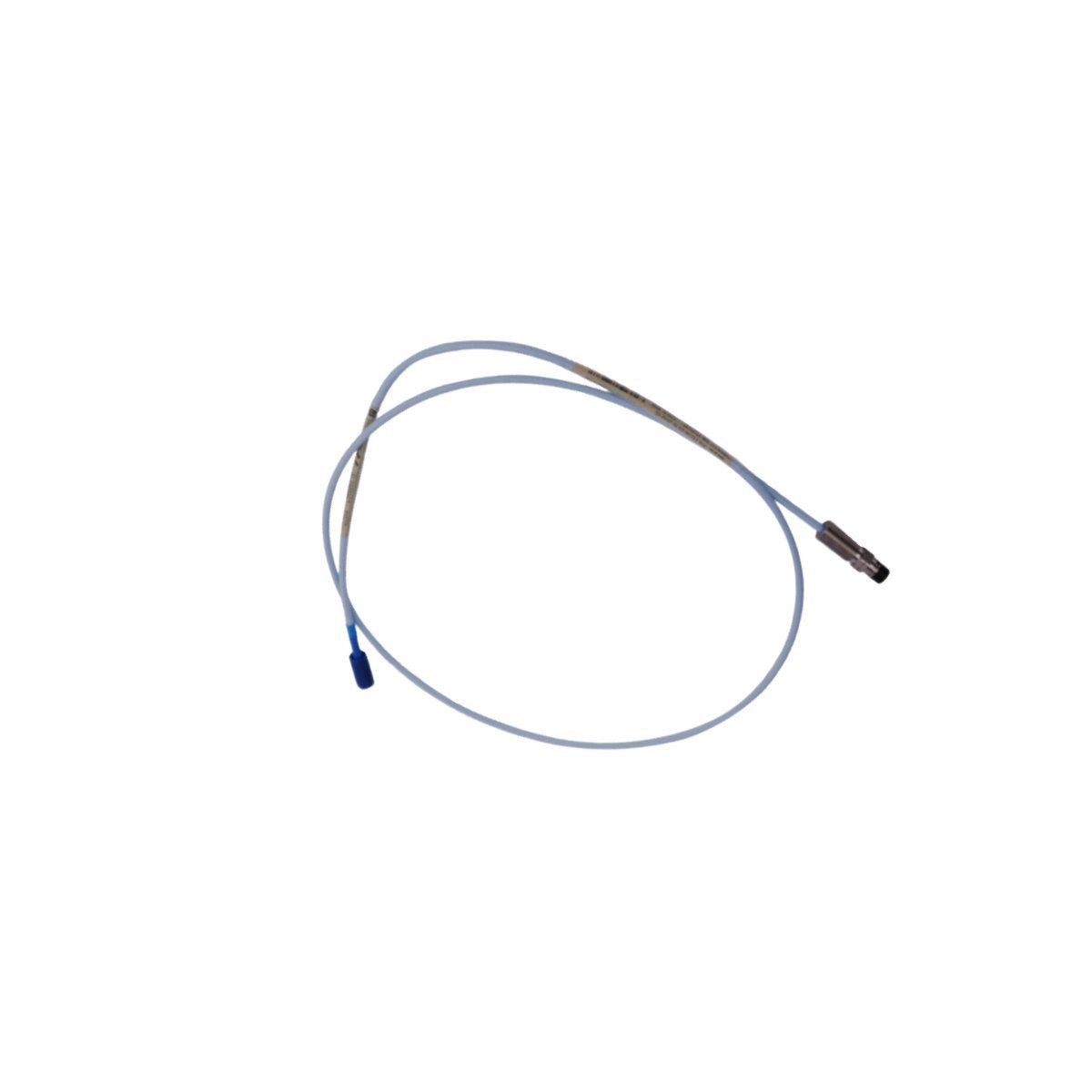

Bently Nevada 330106-05-30-05-02-CN | 3300 XL 8mm Proximity Transducer Extension Cable

The Bently Nevada 330106-05-30-05-02-CN functions as a high-precision signal conduit within the 3300 XL 8mm Proximity Transducer System. This specialized cable establishes the electrical connection between the transducer probe and the Proximitor sensor. By facilitating the movement of eddy current signals, it allows the system to monitor shaft vibration and axial position with high fidelity. Because the 3300 XL system relies on specific electrical properties, this cable maintains a tightly controlled impedance to ensure data accuracy. Consequently, industrial operators utilize this component to protect critical rotating assets by identifying early indicators of mechanical distress. Ultimately, the integration of this extension cable supports a proactive maintenance strategy that prevents catastrophic machine failure.

Robust Construction and Signal Integrity

To operate effectively in demanding industrial environments, Bently Nevada manufactures the 330106 series using advanced TFE fluoropolymer materials. This insulation provides a formidable barrier against moisture, chemical solvents, and synthetic lubricants found in heavy industry. Furthermore, the cable features high-density shielding to protect sensitive signals from electromagnetic interference (EMI). Because connectivity is a primary concern in high-vibration settings, this model includes the “02” option for a factory-installed connector protector. This addition shields the delicate coaxial interface from mechanical impact and environmental contaminants. As a result of these protective measures, the cable delivers consistent signal quality across an expansive temperature range.

Technical Specifications

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Designation: 330106-05-30-05-02-CN
• Component Category: Proximity Extension Cable
• System Series Compatibility: 3300 XL 8mm Proximity System
• Specified Cable Length: 3.0 meters (9.8 feet)
• Standard System Length: Configured for 5.0-meter systems
• Coupling Type: Miniature Coaxial ClickLoc Connectors
• Protective Features: Integrated Connector Protector (Option 02)
• Market Compliance: CN (Certified for the Chinese Market)
• Jacket Insulation: High-performance TFE/Fluoropolymer
• Thermal Range: -51 °C to +177 °C (-60 °F to +350 °F)
• Mass: 0.20 kg (0.44 lbs)

Strategic Applications and Implementation

Reliability specialists primarily deploy the 330106-05-30-05-02-CN in power generation, hydrocarbon processing, and complex manufacturing plants. In these sectors, the cable monitors the health of fluid-film bearings and shaft alignments in large turbines and compressors. Because the cable supports real-time diagnostic analysis, it enables plant managers to detect imbalance or bearing wear before unplanned outages occur. Moreover, the “CN” compliance ensures the hardware meets specific regional industrial regulations, allowing for seamless implementation in regulated facilities. When maintenance teams follow the strict total-system-length requirements, they ensure the transducer system operates at peak calibration. Consequently, this leads to improved operational efficiency and a longer life cycle for mission-critical machinery.

Frequently Asked Questions

Is it possible to pair this extension cable with a 5mm proximity probe?

It is not recommended to mix these components. Although the connectors may appear compatible, the 330106 series is calibrated exclusively for the electrical characteristics of the 8mm system. Pairing it with a 5mm probe will lead to significant voltage errors and unreliable vibration readings.

How does the ClickLoc connector system benefit the user?

The ClickLoc system utilizes a unique locking mechanism that prevents cables from loosening due to machinery vibration. Once fully seated, the connector provides a tactile click to confirm a secure, low-resistance connection. This reliability is crucial for maintaining a steady signal path in harsh environments.

Why is it vital to verify the total system length?

The Proximitor sensor is calibrated for a specific total electrical length, usually 5 or 9 meters. Because the extension cable contributes to this total, you must ensure it matches your sensor’s configuration. Failure to match the lengths will result in inaccurate distance measurements and compromised protection.

What specific requirements does the “CN” suffix satisfy?

The “CN” suffix indicates that the cable has undergone certification for use within the Chinese industrial market. While it maintains the same technical performance as the standard 3300 XL line, it satisfies local regulatory and safety standards required for specific regional installations.
