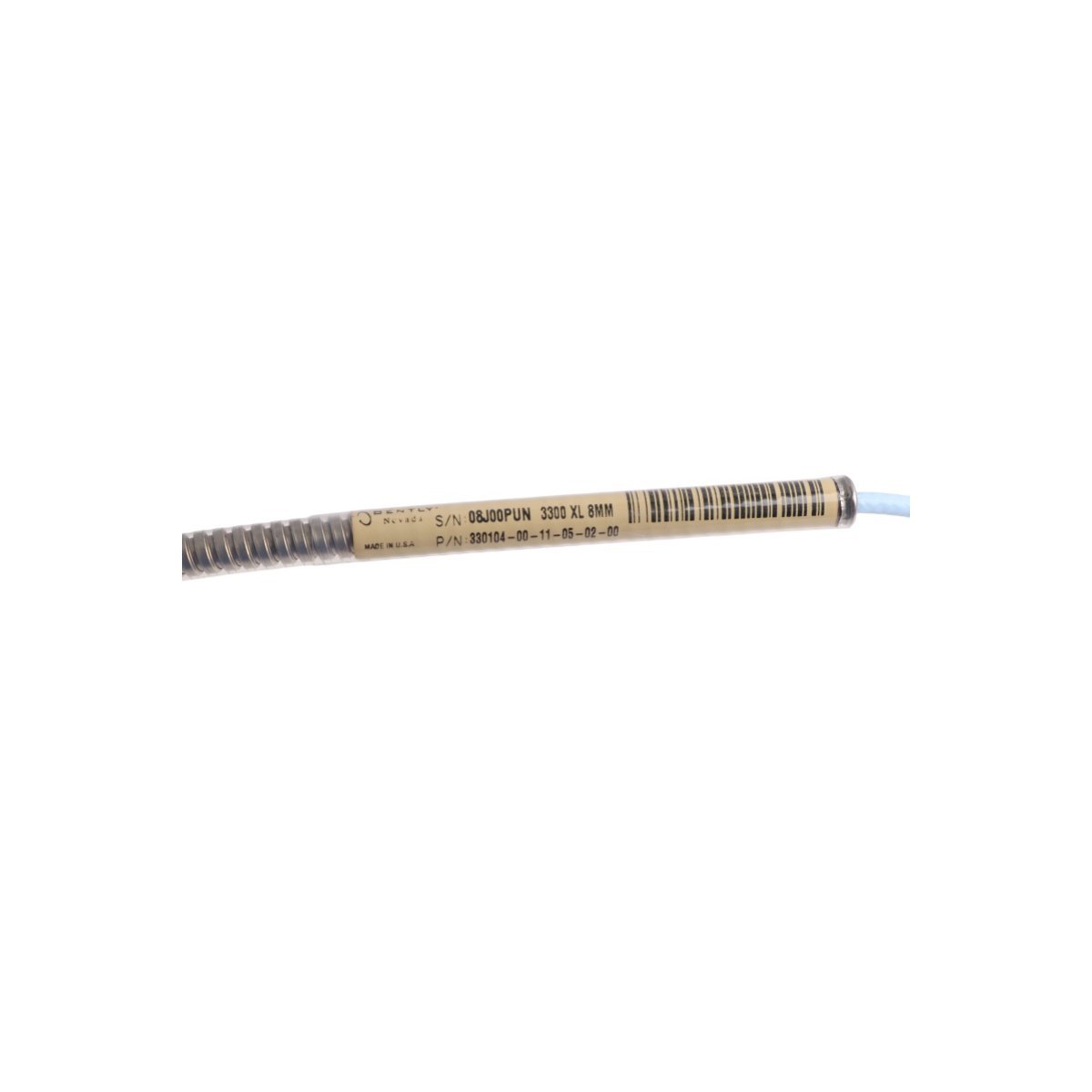

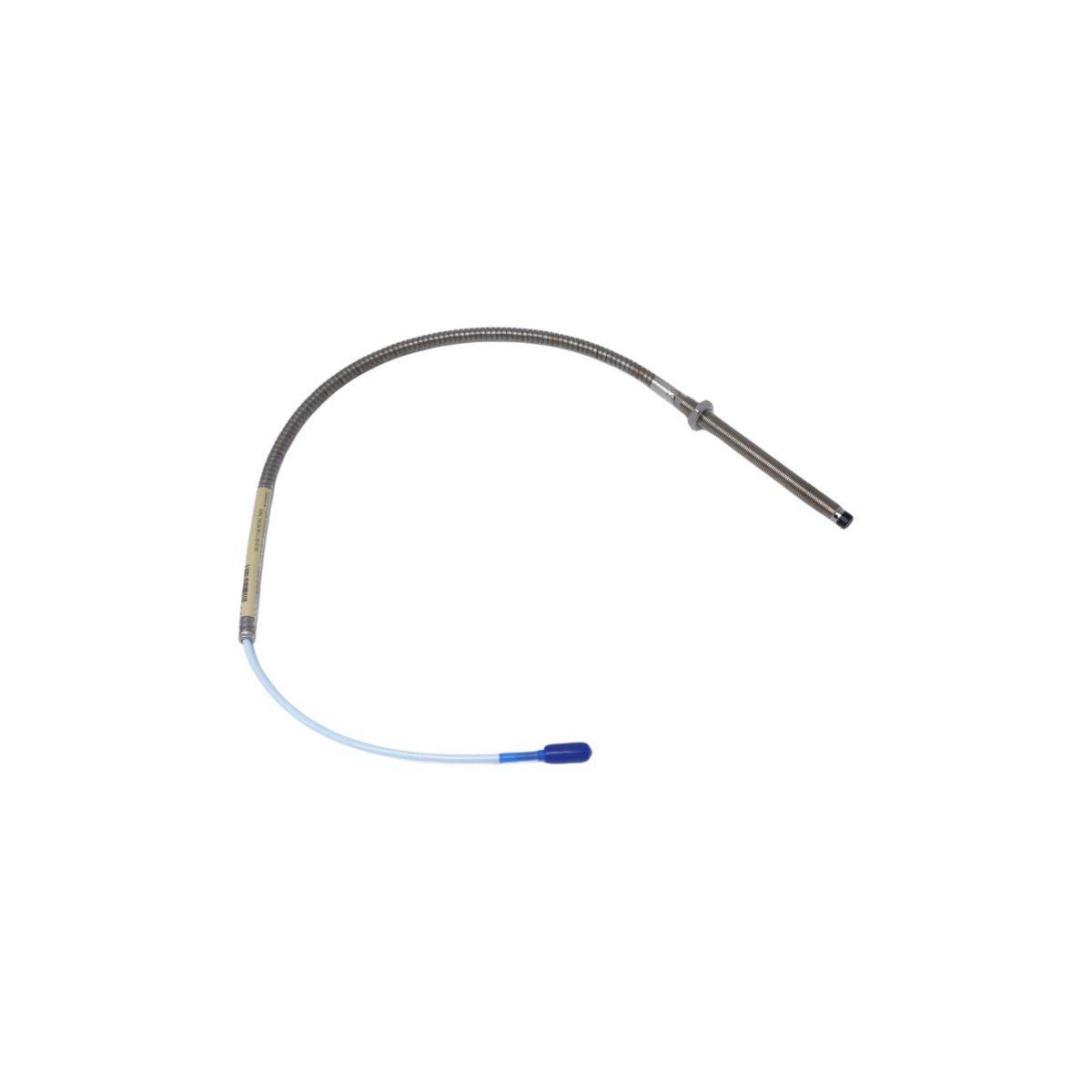

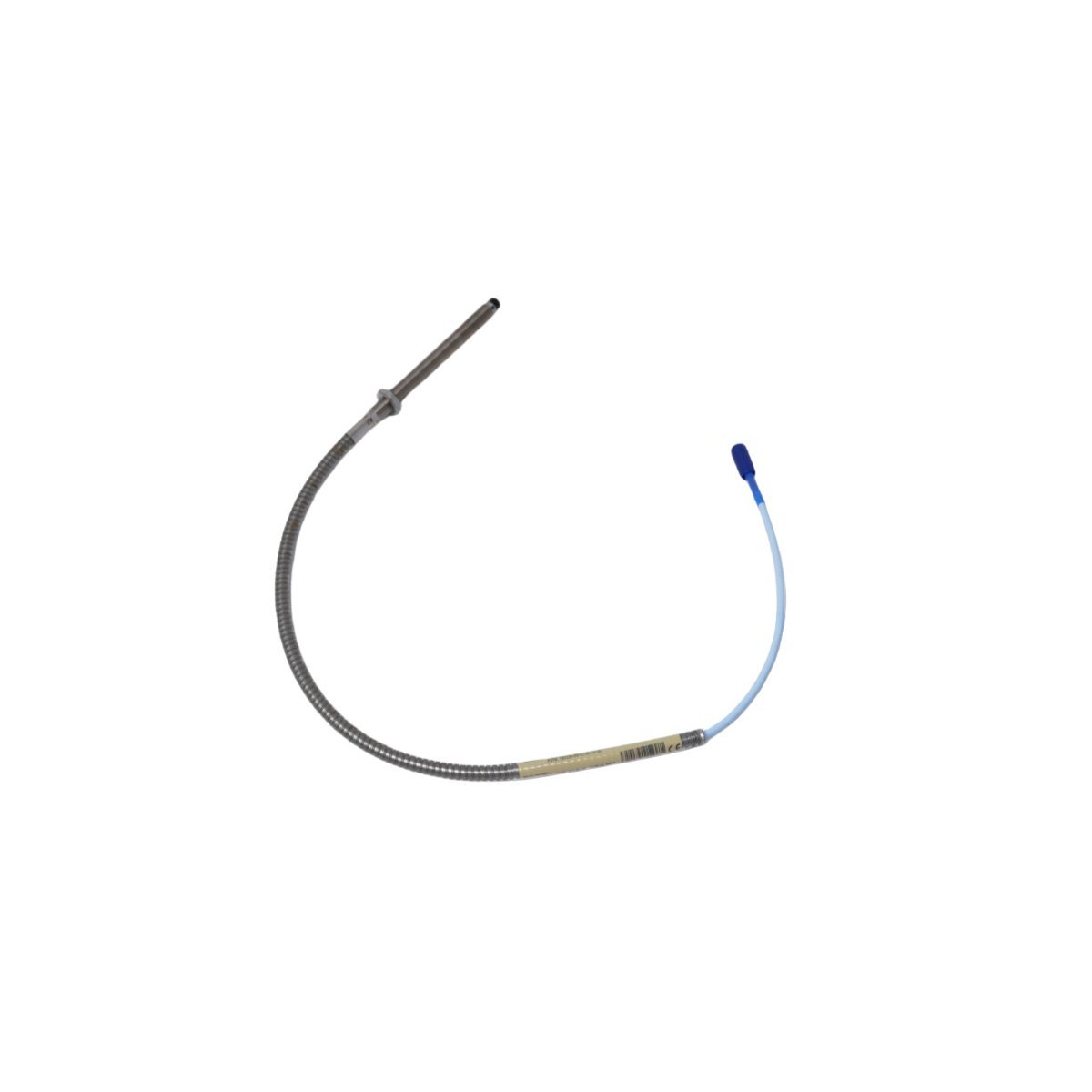

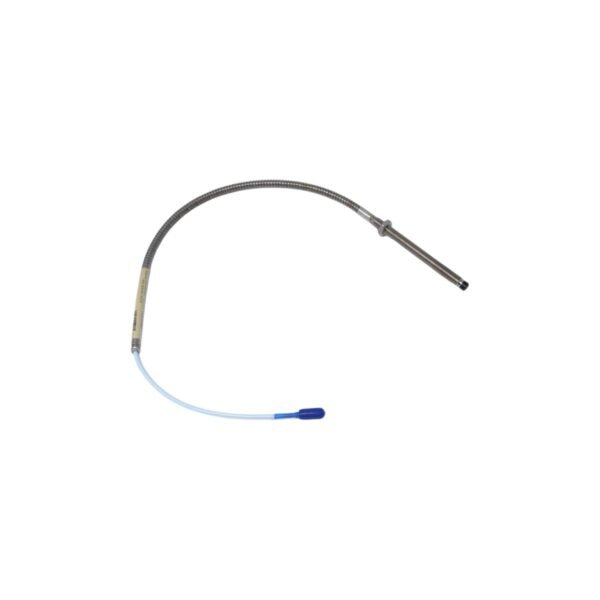

Bently Nevada 330104-00-11-05-02-00 3300 XL 8 mm Proximity Probe
The Bently Nevada 330104-00-11-05-02-00 is a 3300 XL 8mm proximity probe with a M10x1 metric thread and a 0.5m cable. This precision sensor provides non-contact vibration and position monitoring for critical high-speed industrial machinery.
Description
The Bently Nevada 330104-00-11-05-02-00 serves as a high-precision eddy current sensor for industrial assets. This 8mm probe measures static and dynamic distances between the sensor tip and target. It tracks critical parameters like radial vibration and axial position in real time. Consequently, the device helps operators identify early mechanical wear before catastrophic failure occurs. This non-contact technology ensures a long service life for the sensing hardware.
Specific Configuration Details
This 3300 XL model features a M10 x 1 metric thread for specialized mounting needs. The configuration includes an 11mm unthreaded length and a 50mm total case length. Additionally, the unit comes with a 0.5-meter (1.6 feet) integrated cable. A miniature coaxial ClickLoc connector provides a secure electrical interface to extension leads. The probe utilizes a polyphenylene sulfide (PPS) tip to withstand high-pressure environments.
Application Environments
Turbomachinery experts deploy this sensor in high-speed rotating equipment across many sectors. It performs reliably in steam turbines, centrifugal compressors, and power generators. Furthermore, the probe thrives in harsh oil and gas processing environments. The rugged design resists moisture ingress and chemical exposure during continuous operation. This makes it a standard choice for any facility prioritizing asset protection.
Systems Reliability
The 3300 XL proximity system represents a significant advancement in eddy current technology. Its design reduces signal drift caused by extreme temperature variations in the casing. Because the probe supports interchangeable components, maintenance teams can quickly replace parts. This modularity reduces total cost of ownership for vibration monitoring systems. Reliable data from this sensor supports informed predictive maintenance strategies globally.
Technical Specifications
| Parameter | Value |
| Model Number | 330104-00-11-05-02-00 |
| Thread Type | M10 x 1 (Metric) |
| Unthreaded Length | 11 mm |
| Case Length | 50 mm |
| Total Cable Length | 0.5 Meters (1.6 Feet) |
| Connector Type | ClickLoc Miniature Coaxial |
| Linear Range | 2.0 mm (80 mils) |
| Operating Temperature | -51°C to +177°C |
Key Performance Benefits
- Non-contact measurement eliminates mechanical wear on the probe face.
- Gold-plated connectors prevent signal degradation in humid plant conditions.
- Stable linear output remains consistent across the entire 80-mil range.
- Precise sensitivity of 7.87 V/mm ensures accurate vibration data acquisition.
- Seamless integration with 3500 series racks simplifies system installation.
Additional information
| Weight | 0.1 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 1.8 x 1.5 x 58cm |
