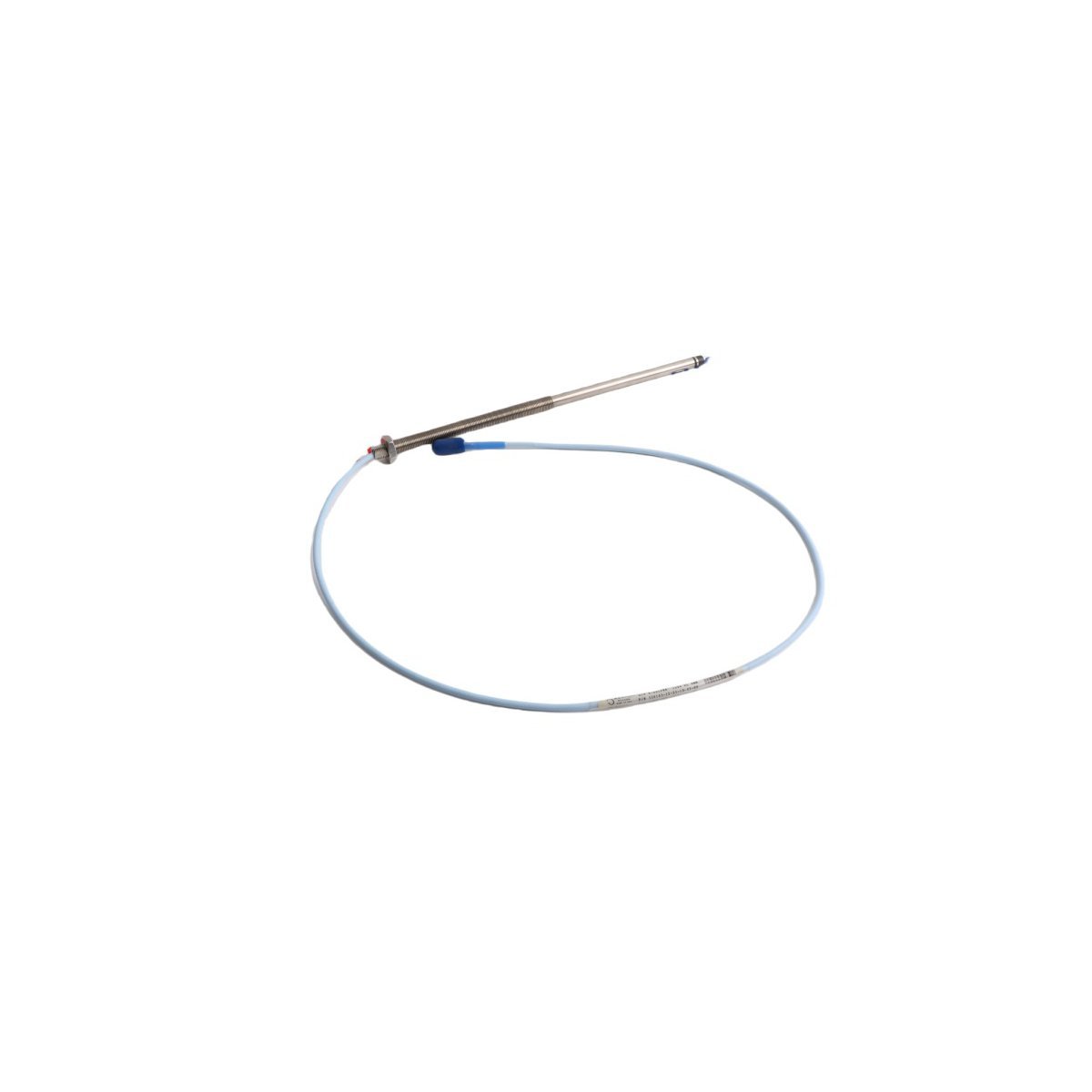

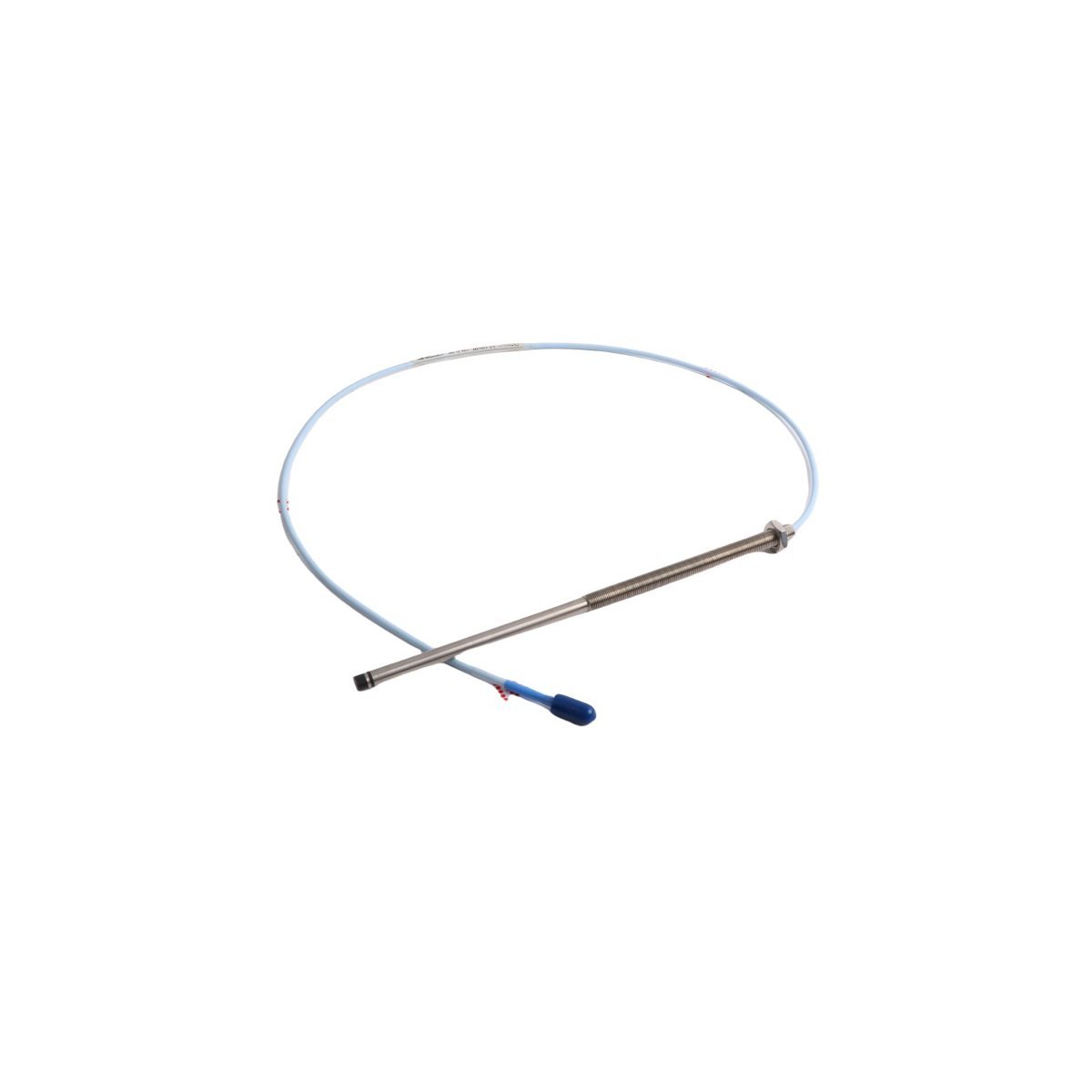

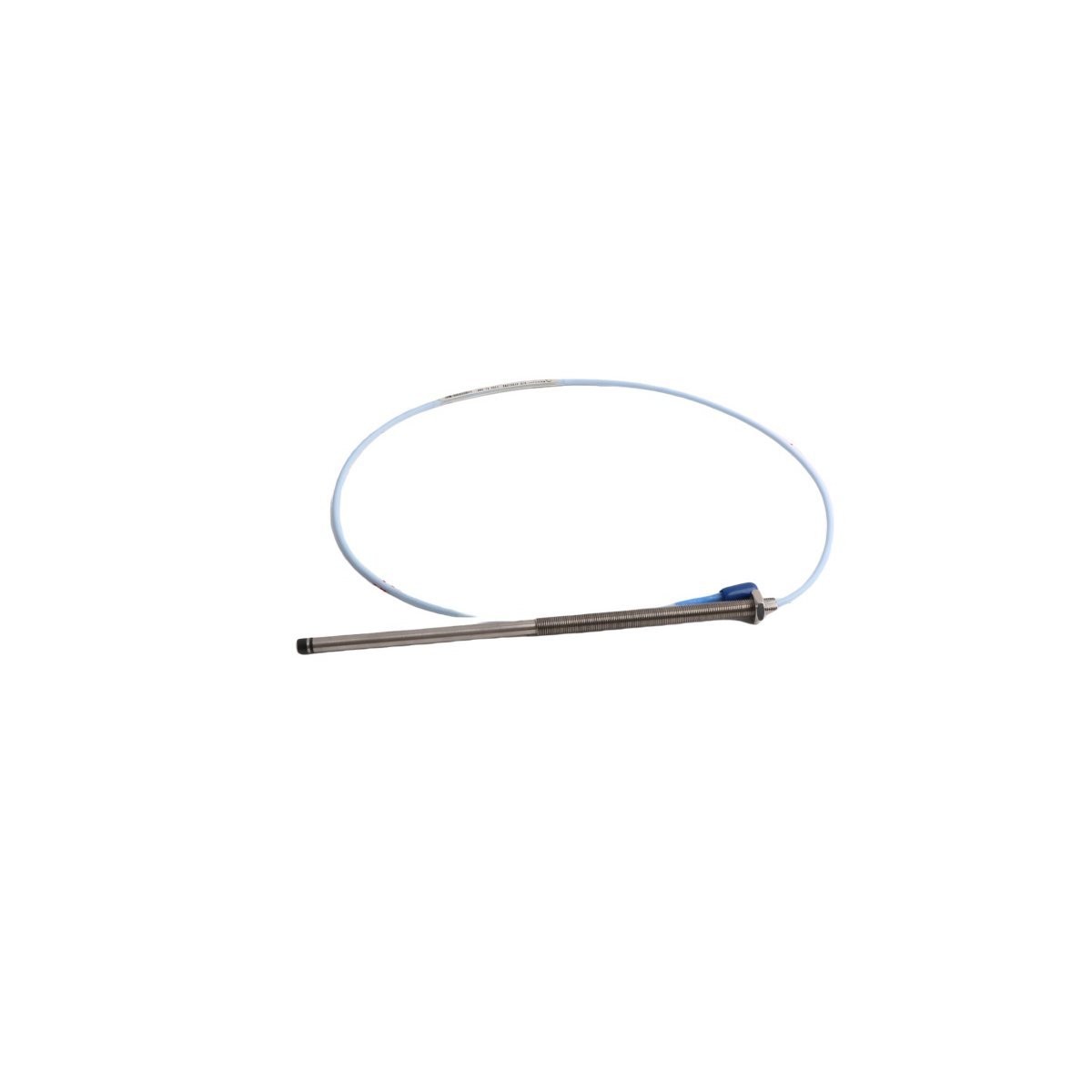

Bently Nevada 330103-12-25-10-02-00 3300 XL 8mm Proximity Transducer

The Bently Nevada 330103-12-25-10-02-00 is a high-performance non-contacting displacement sensor part of the industry-standard 3300 XL 8mm series. This eddy current probe is specifically engineered to measure the gap between the probe tip and a conductive metal target, typically a machine shaft. It provides critical data for both static position monitoring and dynamic vibration analysis. By converting physical displacement into a proportional voltage signal, this transducer allows the 3500 Machinery Protection System to detect early mechanical wear, shaft misalignment, and imbalance in high-speed rotating assets.

Advanced Engineering and Signal Accuracy

This proximity probe utilizes a specialized 3/8-24 threaded body design for precise mechanical installation and gap adjustment. Furthermore, the tip is constructed from high-strength polyphenylene sulfide (PPS) to withstand the high-pressure and high-temperature environments common in steam turbines and industrial compressors. In addition, the integrated cable is terminated with a gold-plated ClickLoc coaxial connector, ensuring a moisture-resistant and vibration-proof link to the extension cable. Consequently, the sensor maintains a consistent 7.87 V/mm (200 mV/mil) scale factor, providing the high-resolution feedback necessary for safety-critical automated shutdown protocols.

Technical Specification Matrix

Industrial Application and Operational Safety

The 330103-12-25-10-02-00 is widely deployed in Turbine Supervisory Instrumentation (TSI) for power generation, oil and gas, and chemical processing sectors. Specifically, its robust design allows for reliable operation in the presence of lubricating oils and non-corrosive fluids. Moreover, the inclusion of a factory-installed connector protector significantly reduces the risk of signal degradation due to environmental contamination. Therefore, this probe is an essential component for engineers looking to maximize machinery uptime and extend the life of critical bearings. Ultimately, the precision of this transducer ensures that protective alarms only trigger during genuine mechanical faults, preventing costly false trips.

FAQ

What is the function of the ClickLoc connector protector?

The “02” option in the model code indicates the presence of a connector protector. Specifically, this is a clear sleeve that slides over the coaxial connection to prevent moisture, oil, and dust from entering the signal path. Consequently, it ensures electrical continuity and prevents impedance changes that could lead to measurement drift.

Can this probe measure different metal types?

Standard Bently Nevada probes are factory-calibrated for AISI 4140 steel. Nevertheless, they can be used with other conductive metals if the Proximitor sensor is recalibrated for the specific target material. Accordingly, you should consult technical documentation if your application involves aluminum, stainless steel, or specialized alloys to ensure accuracy.

Is it possible to replace just the probe without replacing the extension cable?

Yes, provided the total system length remains consistent. In addition, the 330103 probe is designed to be fully interchangeable with other components in the 3300 XL 8mm family. Therefore, you can swap a damaged probe while retaining your existing 3300 XL extension cables and Proximitors, provided they share the same system length (e.g., 5-meter or 9-meter).

How does unthreaded vs. threaded length affect installation?

The “12” and “25” parameters define the unthreaded and total case length. Specifically, the unthreaded section allows the probe to pass through thick machine housings, while the threaded section provides the necessary grip for locknuts and gap calibration. As a result, selecting the correct length is critical to ensuring the probe tip reaches the optimal measurement distance from the shaft.
