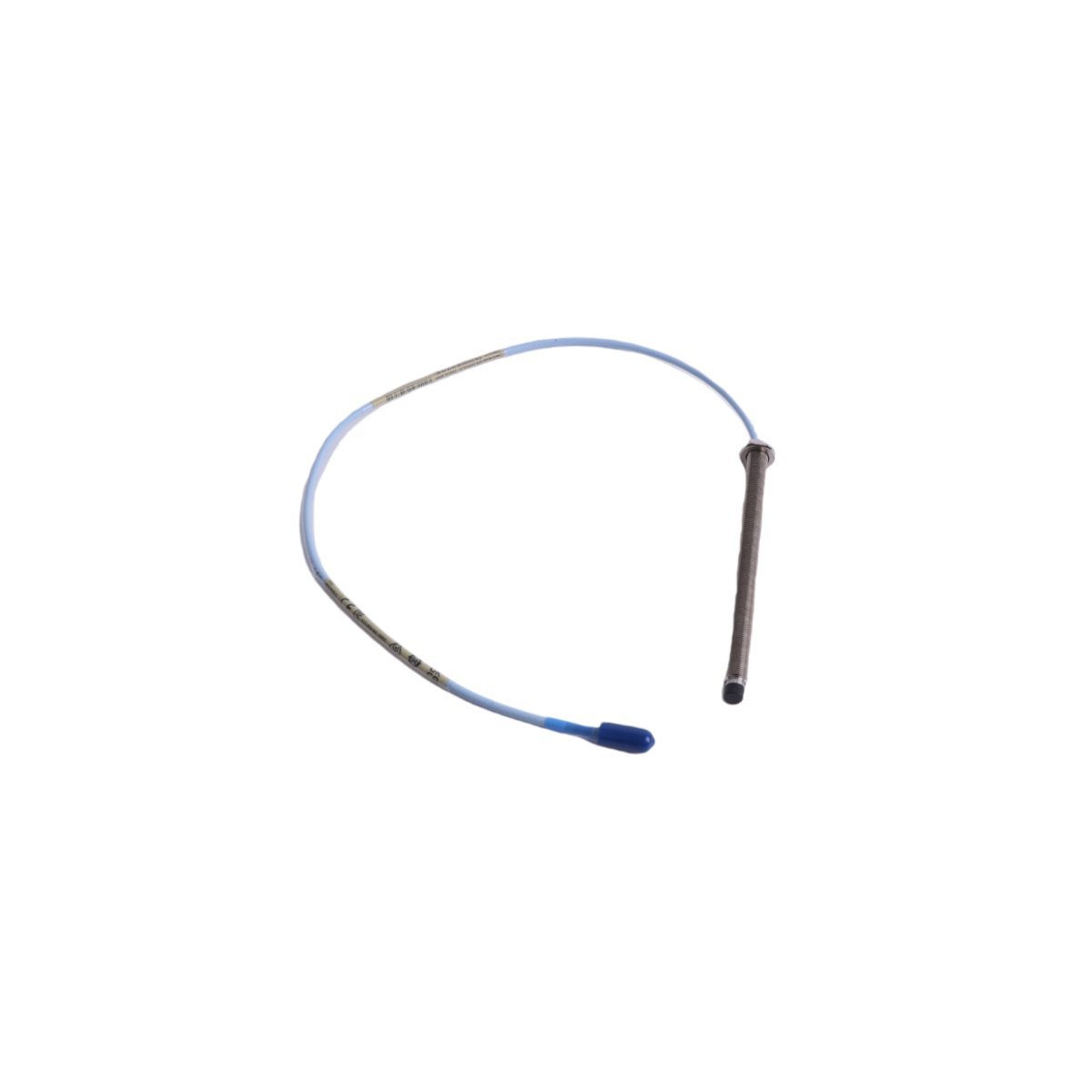

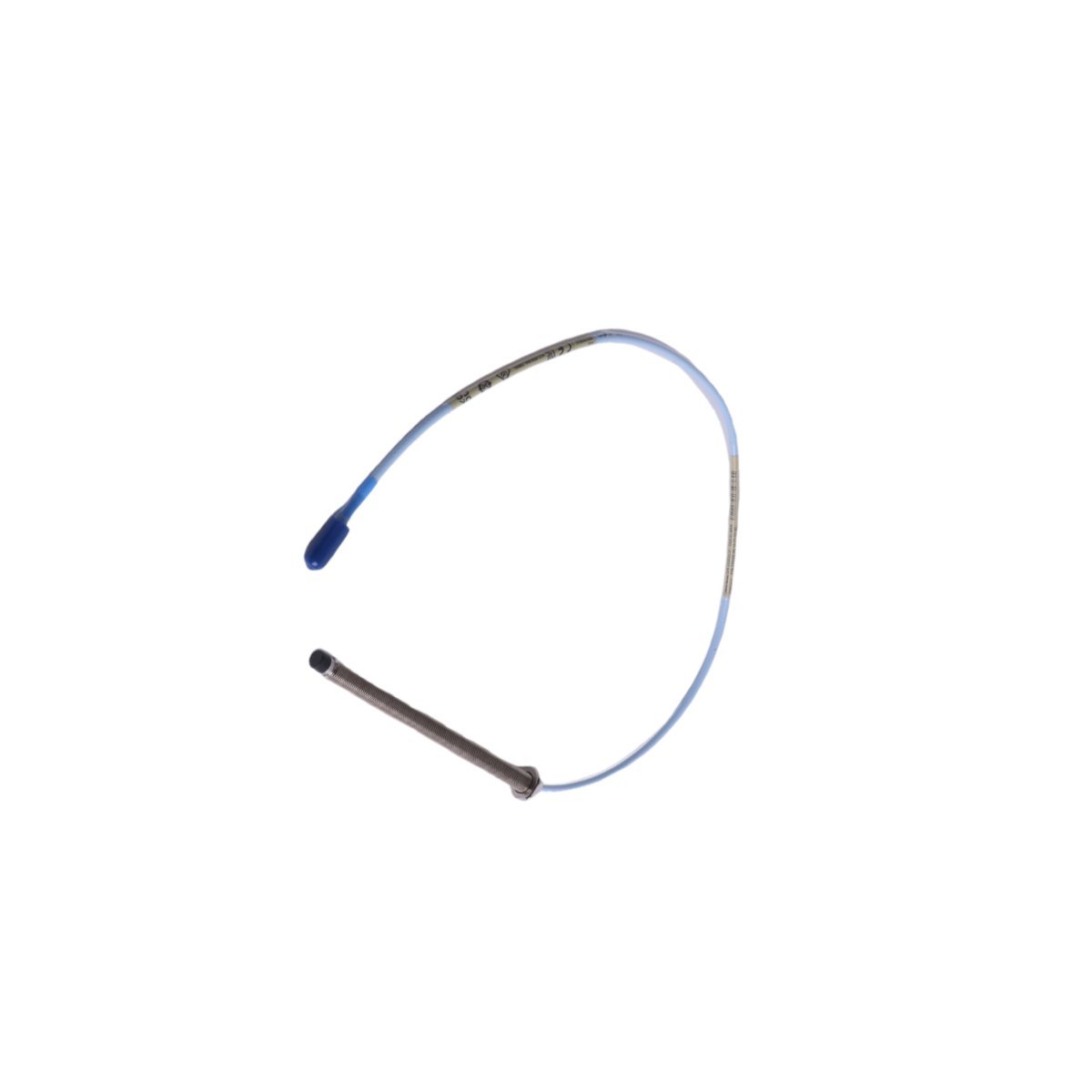

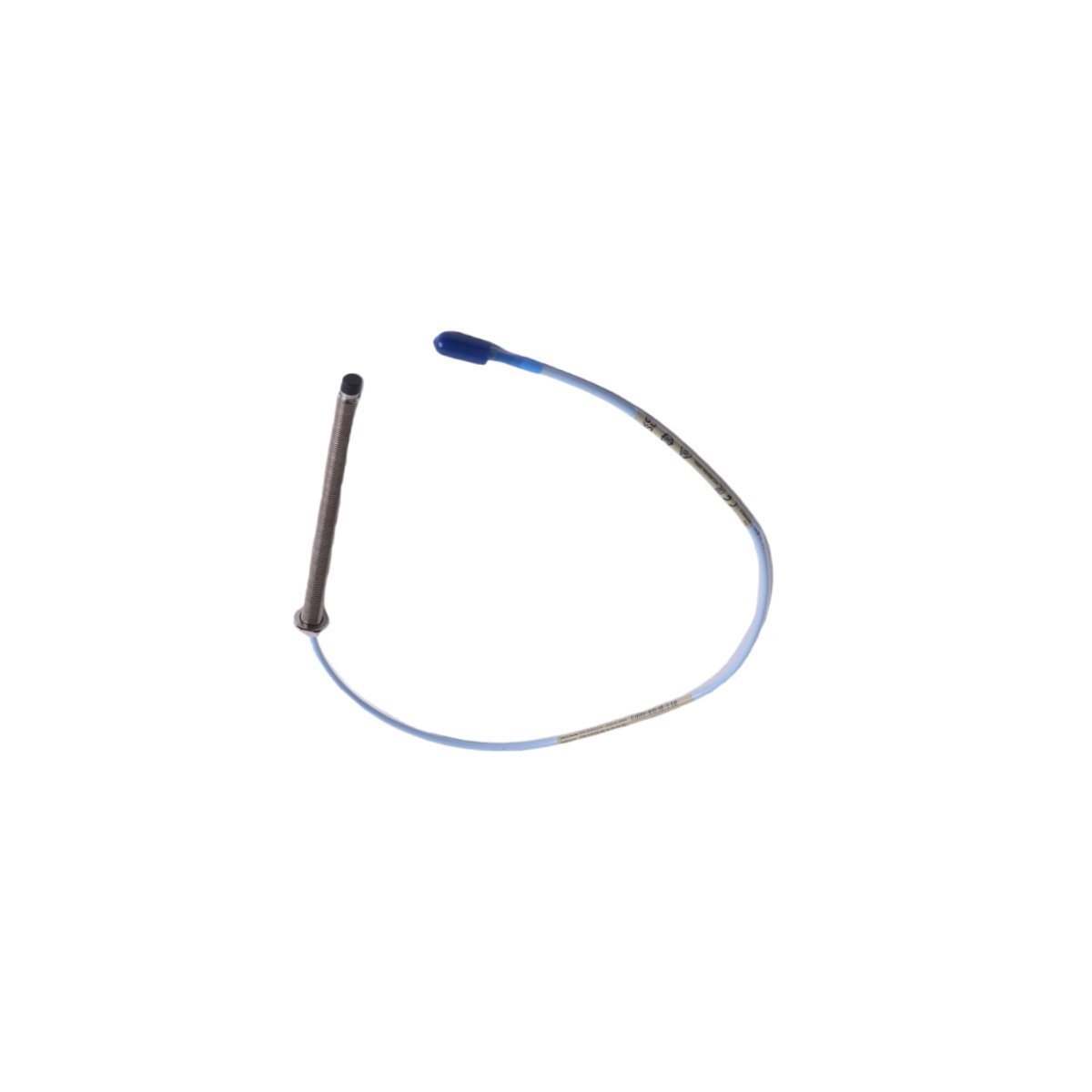

Bently Nevada 330103-00-14-05-02-00 | 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-14-05-02-00 is a high-performance eddy current sensor designed for the 3300 XL 8 mm Proximity Transducer System. This probe measures both static position and dynamic vibration on rotating machinery shafts. It functions by generating a high-frequency magnetic field that interacts with the target material, allowing for sub-millimeter displacement tracking without physical contact. Industrial facilities rely on this sensor to protect high-value assets such as centrifugal compressors, steam turbines, and large-scale electric motors.

Performance in Extreme Environments

Engineering for the 3300 XL series prioritizes signal stability and mechanical endurance. The 330103-00-14-05-02-00 features a polyphenylene sulfide (PPS) tip that resists moisture ingress and chemical degradation. Furthermore, the 3/8-24 threaded body provides a secure mechanical interface for standard machine housings. Because the system utilizes gold-plated ClickLoc connectors, it maintains low electrical resistance and high signal-to-noise ratios even in high-vibration zones. These characteristics ensure that the Proximitor sensor receives clean, accurate data for real-time machinery diagnostics.

Technical Specifications

The 330103-00-14-05-02-00 configuration includes the following specific parameters:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 330103-00-14-05-02-00
• Product Type: 3300 XL 8 mm Proximity Probe (3/8-24 UNF thread)
• Unthreaded Length: 00 (0 inches)
• Overall Case Length: 14 (1.4 inches)
• Total Length: 05 (0.5 meters / 1.6 feet)
• Connector Option: 02 (Miniature coaxial ClickLoc connector with protector)
• Agency Approval: 00 (No specific hazardous area approvals)
• Linear Range: 2.0 mm (80 mils)
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)

Strategic Maintenance and Integration

This proximity probe integrates directly with Bently Nevada 3500 and 2300 series monitoring racks. By delivering continuous data on radial vibration and axial thrust, the 330103-00-14-05-02-00 allows operators to transition from reactive to predictive maintenance. It helps identify early indicators of bearing wear, shaft misalignment, or rotor unbalance. Consequently, plants can schedule repairs during planned outages rather than suffering from catastrophic failures and the associated production losses.

Standards and Global Reliability

Bently Nevada designed the 3300 XL system to meet API 670 standards for machinery protection. The 330103-00-14-05-02-00 sensor undergoes rigorous testing to guarantee scale factor consistency across a wide temperature range. This accuracy is essential for “Trip-Multiply” safety logic and automated machinery shutdowns. Whether deployed in power generation, oil and gas, or heavy manufacturing, this probe provides the reliable data foundation necessary for securing the long-term health of critical industrial infrastructure.
