Description

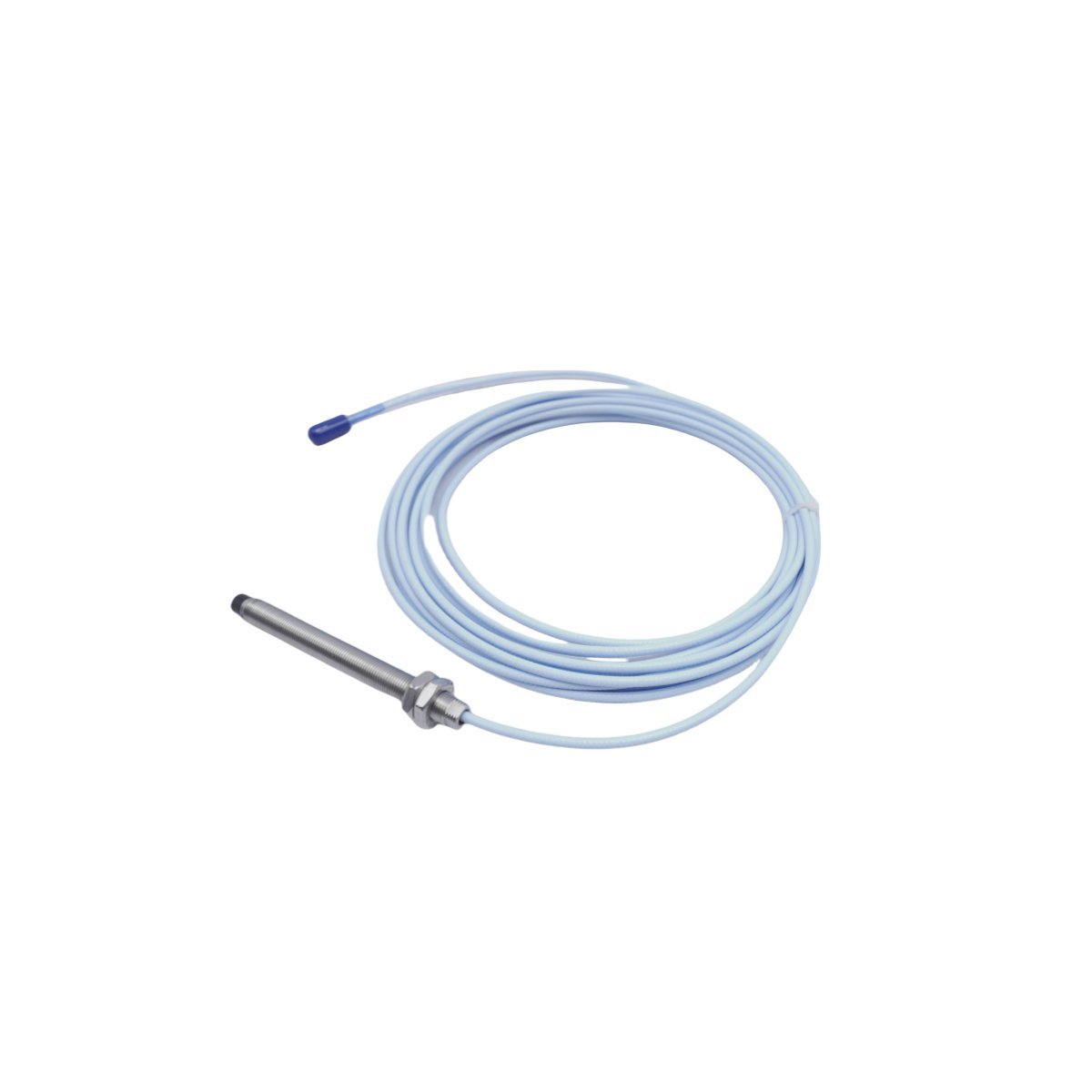

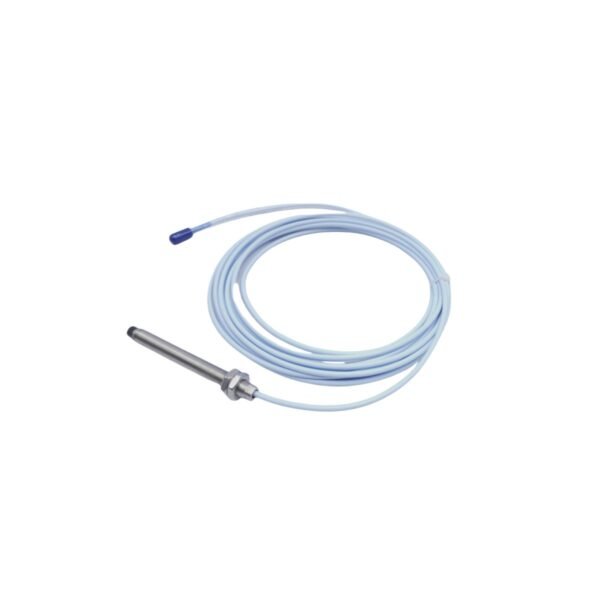

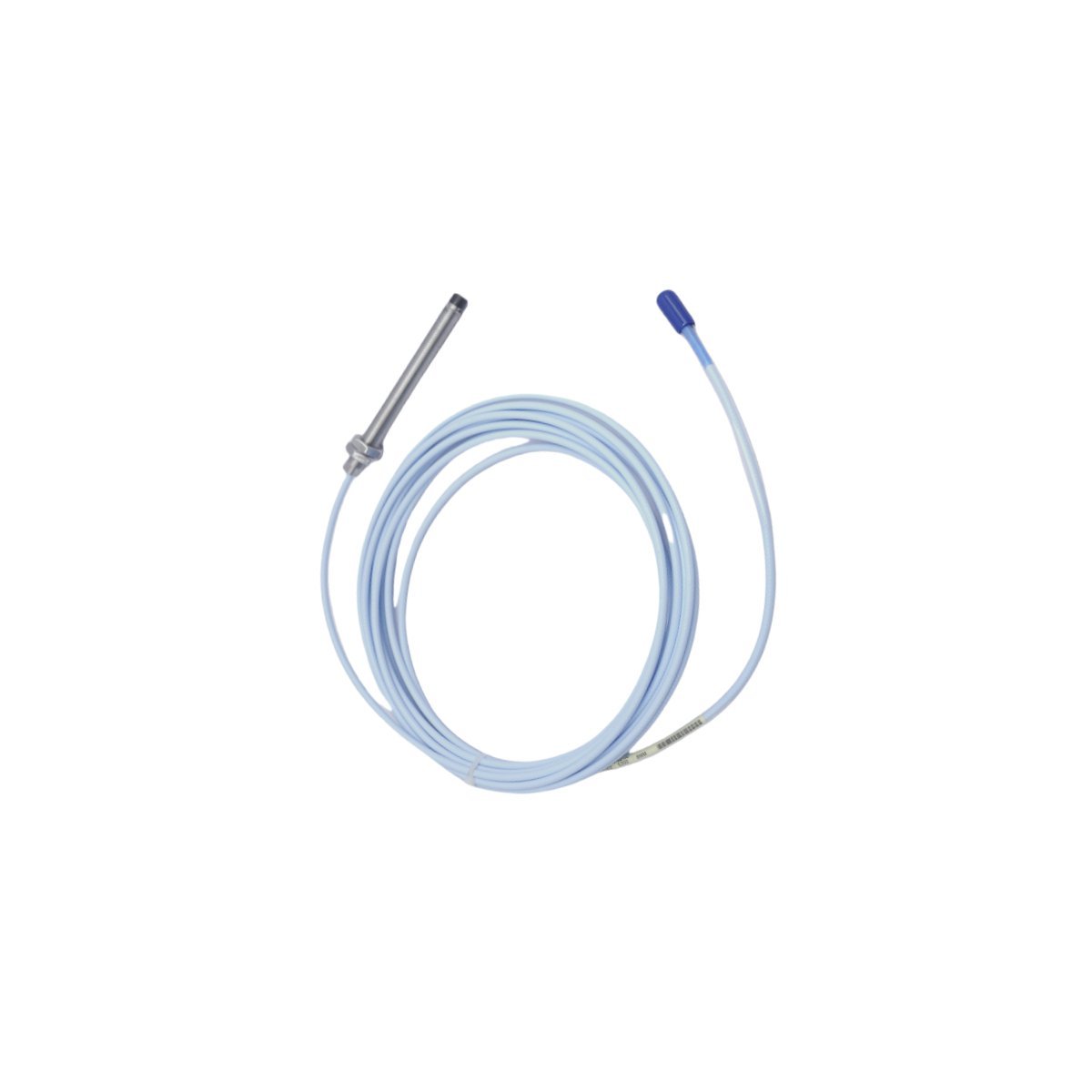

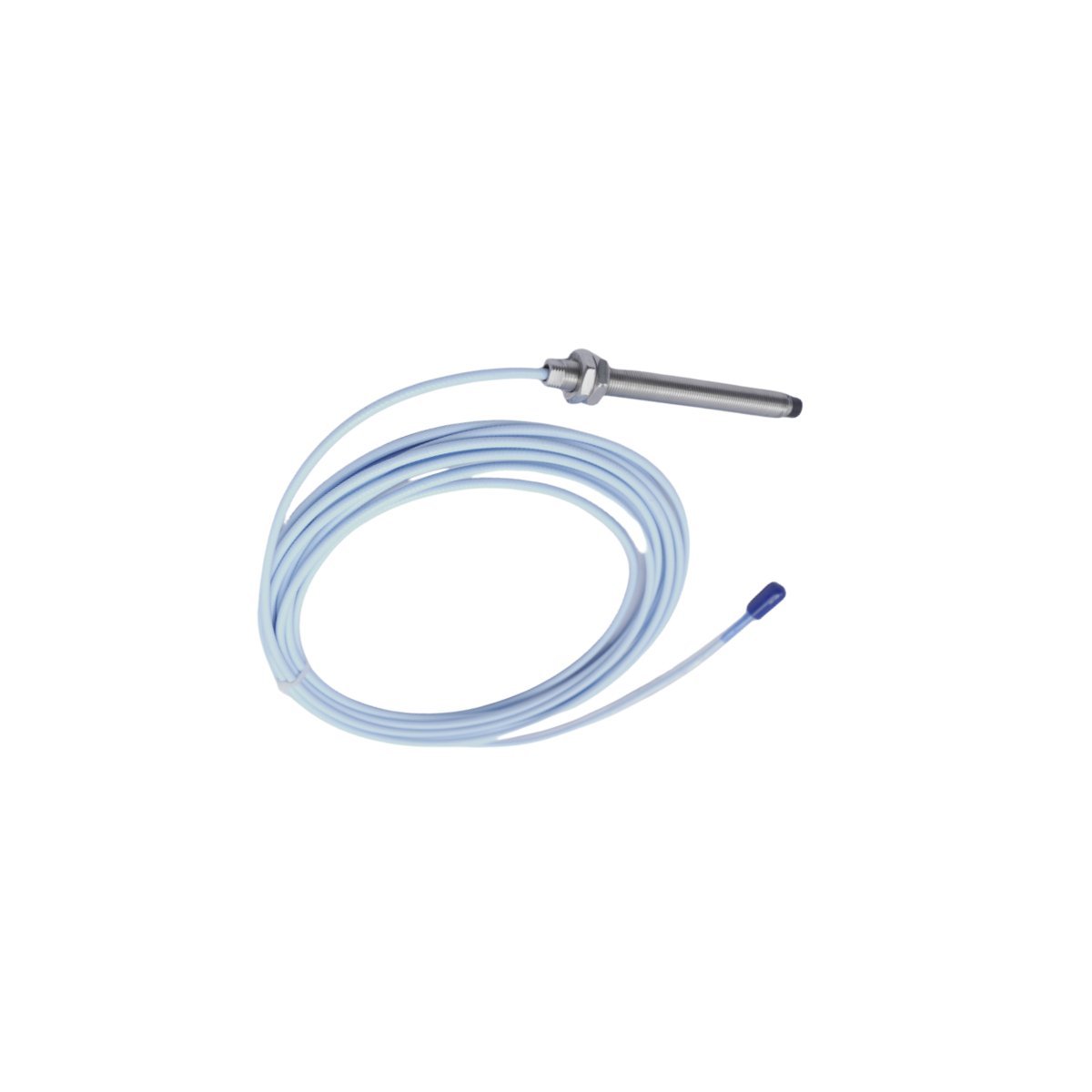

The Bently Nevada 330103-00-10-50-02-00 serves as a high-performance displacement sensor for industrial assets. This 11mm proximity probe utilizes eddy current technology to track shaft motion. It specifically monitors radial vibration and axial position without contacting the machine surface. Consequently, the sensor provides essential data for identifying mechanical imbalances or bearing wear. This constant observation allows operators to implement predictive maintenance strategies effectively.

Hardware Design and Construction

This transducer features a robust 3/8-24 UNF threaded housing for standard industrial installation. The specific configuration includes a zero-inch unthreaded length and a 1.0-inch total case length. Furthermore, the unit incorporates a 5.0-meter integrated cable with a miniature coaxial ClickLoc connector. The probe tip consists of high-strength polyphenylene sulfide (PPS) to resist harsh chemicals. These premium materials ensure stable signal transmission in high-temperature environments.

Primary Machinery Applications

Maintenance engineers deploy this 11mm probe on large-scale rotating equipment across various sectors. It excels at monitoring high-pressure steam turbines, centrifugal compressors, and industrial gearboxes. Moreover, the sensor integrates perfectly with Bently Nevada 3500 series machinery protection racks. The larger 11mm tip provides a wider linear range compared to standard 8mm models. This makes it ideal for assets with significant thermal expansion or shaft movement.

System Compatibility and Reliability

The 3300 XL 11mm system offers superior resolution for critical machinery health diagnostics. Its design allows for straightforward calibration using standard Proximitor sensors and mounting hardware. Because the probe follows strict global manufacturing standards, it ensures repeatable performance worldwide. Reliable monitoring with this transducer significantly decreases the risk of catastrophic machinery failure. This stability helps plant managers maintain high production levels and operational safety.

Core Technical Specifications

Key Performance Benefits

• Non-contact measurement prevents mechanical friction and extends the sensor’s operational life.
• Gold-plated coaxial connectors maintain signal integrity by preventing atmospheric corrosion.
• 5.0-meter cable length offers flexible routing options for complex machine internal layouts.
• Advanced thermal compensation maintains measurement accuracy during rapid temperature cycles.
• Shielded cable insulation effectively blocks electromagnetic interference from nearby industrial motors.
