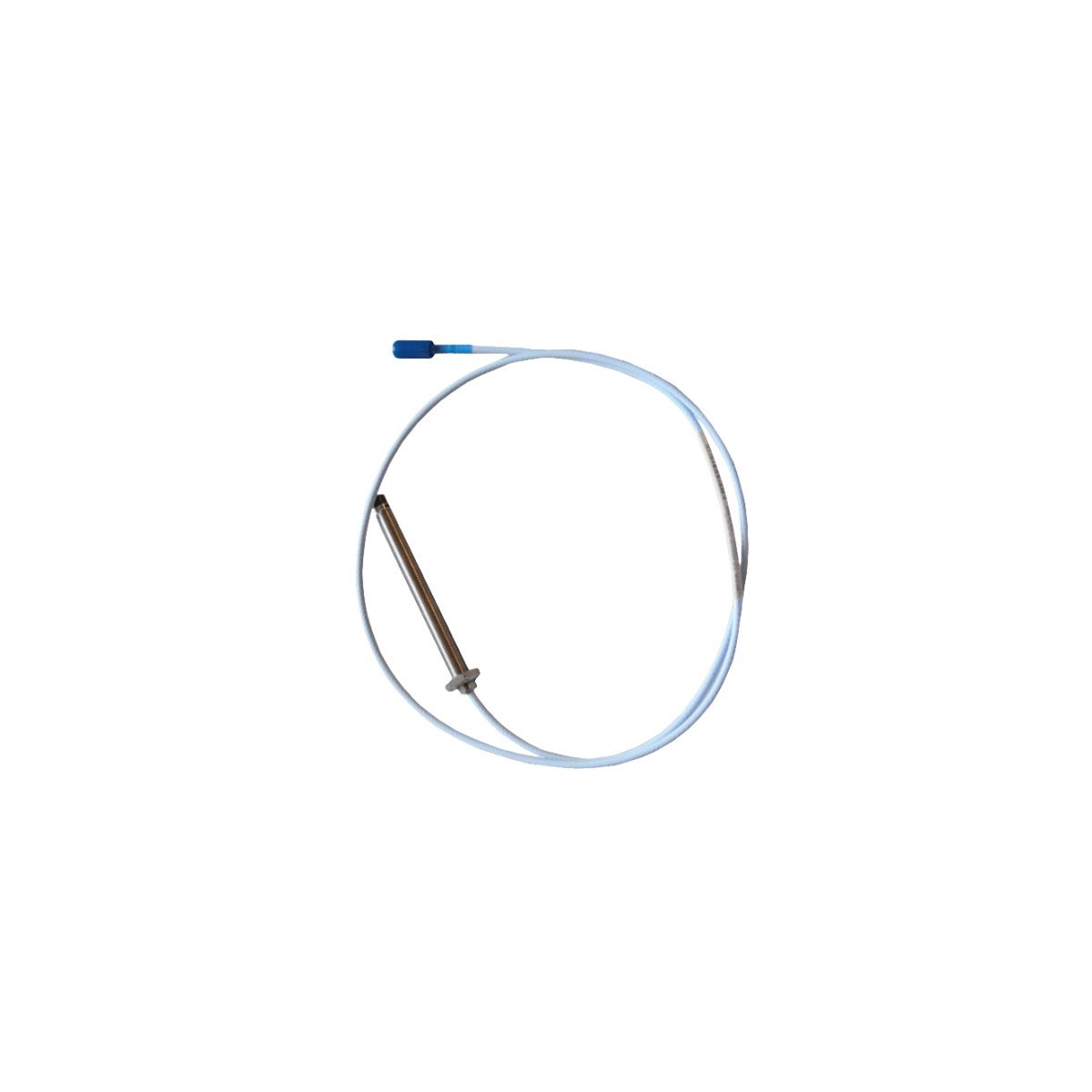

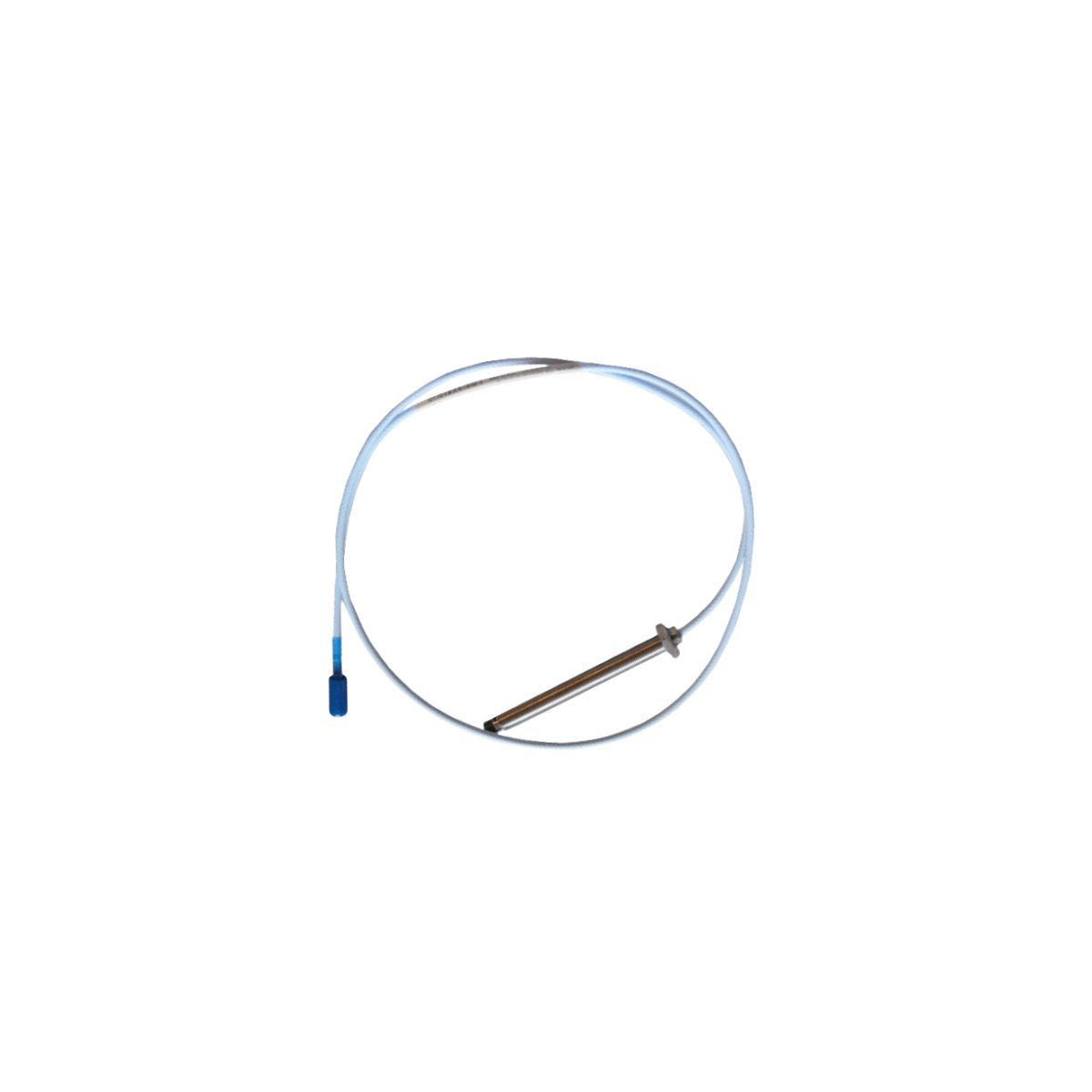

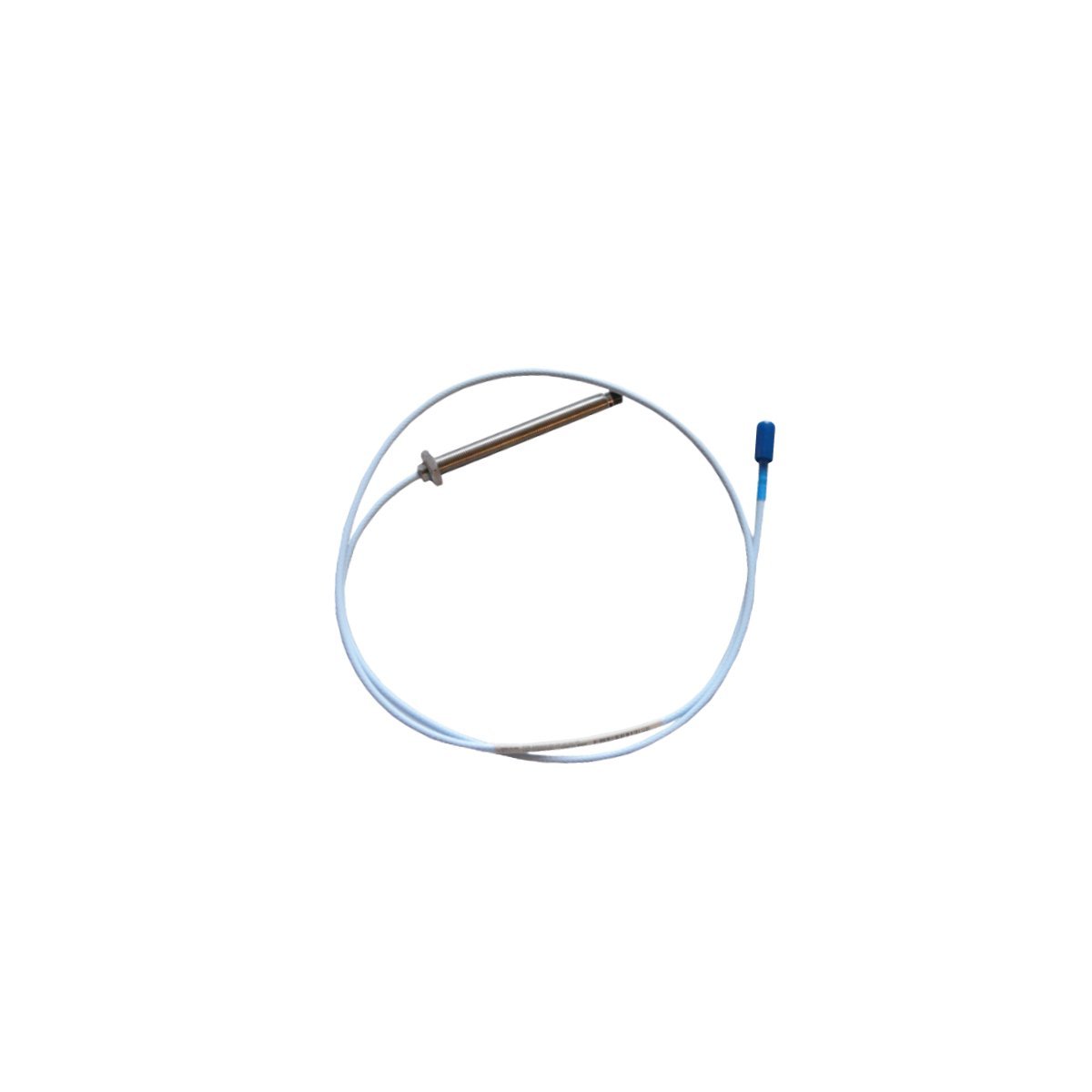

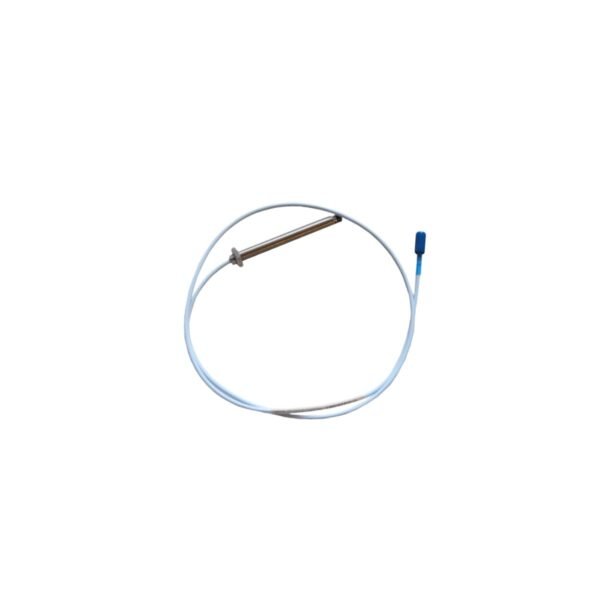

Bently Nevada 330103-00-04-10-02-00 | 3300 XL 8 mm Proximity Transducer Probe

The Bently Nevada 330103-00-04-10-02-00 is a high-performance eddy current sensor developed for the 3300 XL 8 mm Proximity Transducer System. This probe serves as a non-contact displacement sensor, primarily measuring shaft vibration and axial position in critical rotating machinery. By detecting the gap between the probe tip and the target surface, it provides the fundamental data required for machinery protection and condition monitoring. Its design ensures exceptional linearity and temperature stability, making it a standard choice for monitoring turbines, compressors, and large industrial pumps.

Engineering Excellence for Industrial Monitoring

Built to operate in the most demanding conditions, the 330103-00-04-10-02-00 probe features a polyphenylene sulfide (PPS) tip and a rugged stainless steel case. This construction provides high resistance to chemical corrosion, moisture, and extreme temperatures. The 3300 XL series specifically offers a more robust cabling system and enhanced connector seals compared to previous generations. These features significantly reduce the risk of signal degradation in oil-rich environments. Furthermore, the probe maintains a consistent scale factor, which simplifies the calibration process and ensures precise data across the entire linear range.

Technical Specifications

The 330103-00-04-10-02-00 configuration utilizes a specific mechanical profile for precise installation:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 330103-00-04-10-02-00
• Product Type: 8 mm Proximity Transducer Probe
• Thread Type: 3/8-24 UNF thread
• Unthreaded Length (00): 0.0 inches
• Overall Case Length (04): 0.4 inches
• Total Cable Length (10): 1.0 meter (3.3 feet)
• Connector Option (02): Miniature coaxial ClickLoc connector with connector protector
• Agency Approval (00): No specific hazardous area approvals required
• Linear Range: 2.0 mm (80 mils)
• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

Integration with Asset Protection Systems

Deployment of this proximity probe within a 3500 Series Machinery Protection System allows for real-time diagnostic capabilities. The 330103-00-04-10-02-00 captures high-fidelity vibration waveforms, enabling engineers to identify mechanical faults such as rotor unbalance, shaft cracks, and bearing degradation. This early detection mechanism is vital for preventing catastrophic failures and optimizing maintenance schedules. Additionally, the ClickLoc connector system provides a secure, vibration-resistant electrical link, ensuring that the critical data path remains intact during high-intensity machine operations.

Installation and Operational Reliability

Successful implementation requires precise gapping between the probe tip and the target material, typically 4140 steel. The 330103-00-04-10-02-00 probe is designed for use with a 3300 XL Proximitor sensor and the appropriate extension cable. Together, these components form a complete transducer system that outputs a voltage proportional to the gap distance. Because the system is fully compatible with global industrial standards, it facilitates seamless upgrades from older 3300 or 7200 series installations. This ensures that facility managers can maintain modern safety protocols while leveraging their existing infrastructure.
