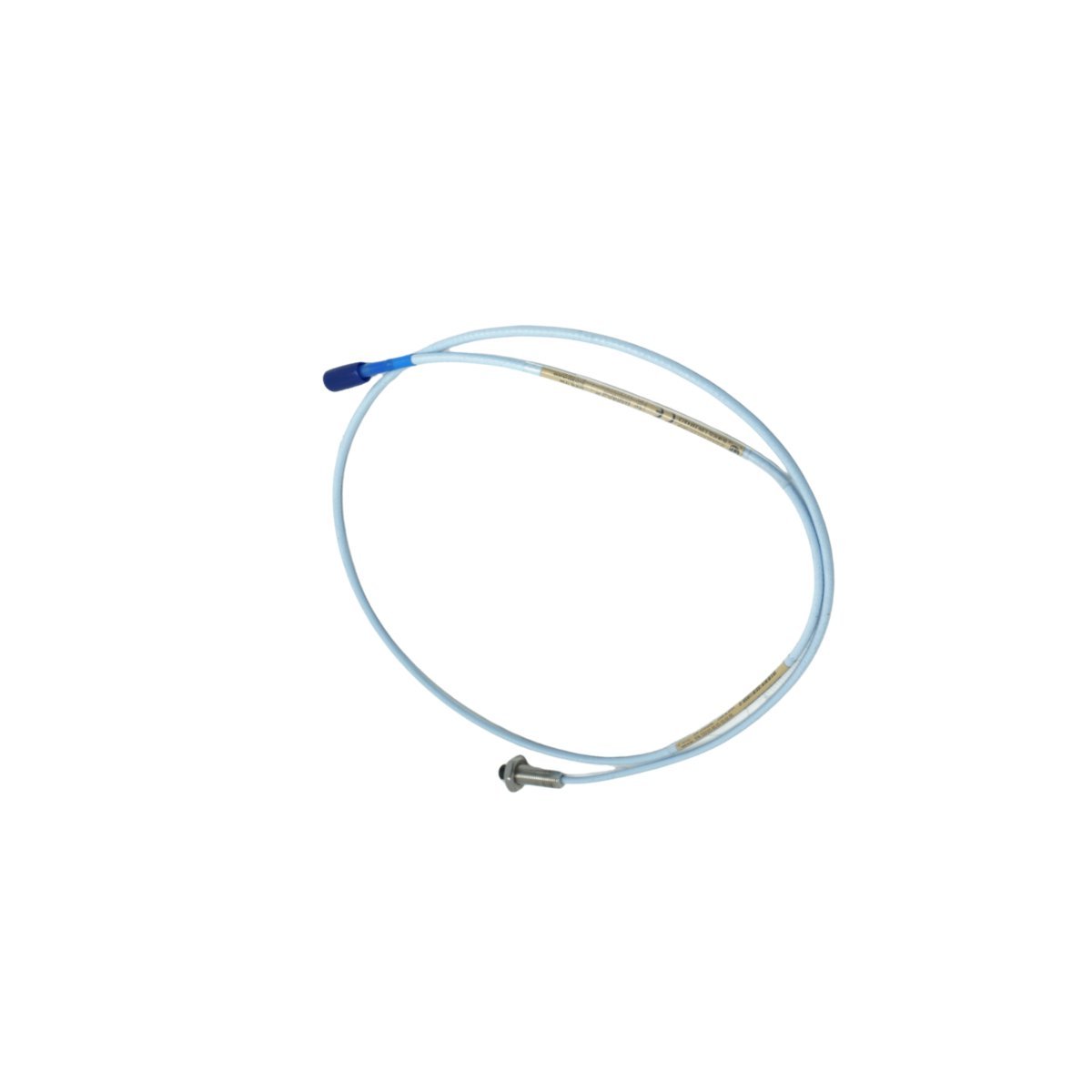

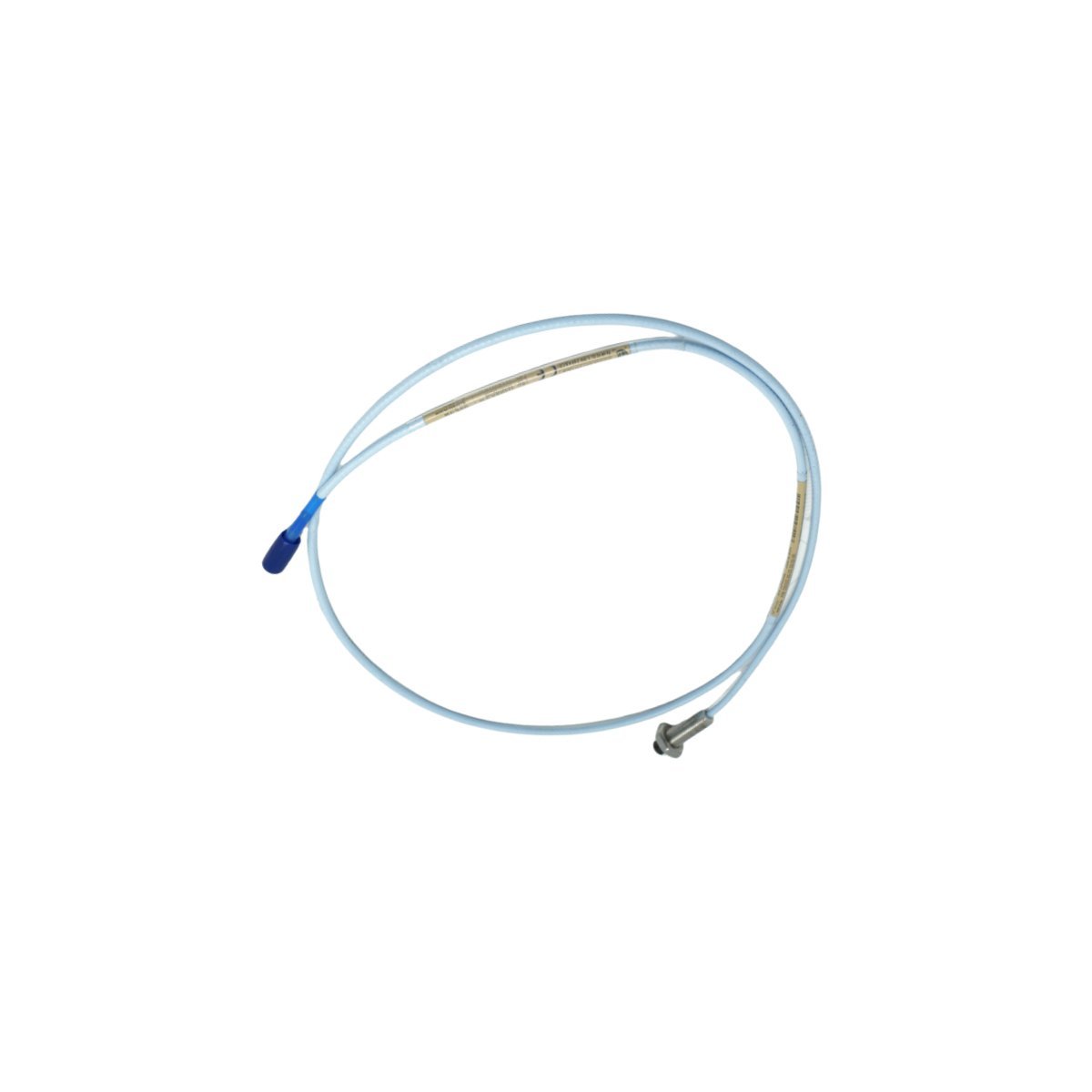

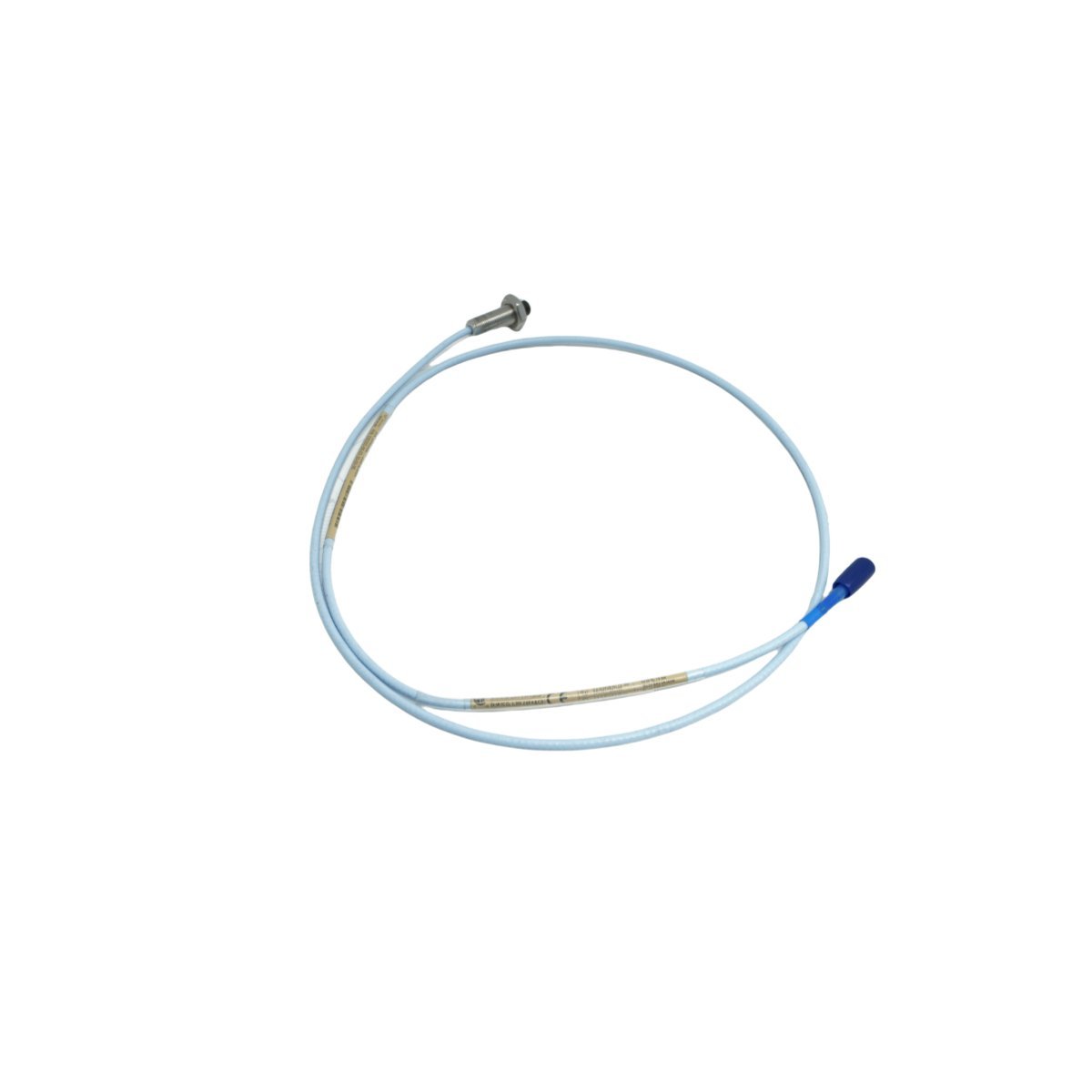

Bently Nevada 330103-00-03-10-02-05 3300 XL 8mm Proximity Transducer

The Bently Nevada 330103-00-03-10-02-05 is a high-accuracy eddy current proximity probe engineered for the 3300 XL 8mm Transducer System. This sensor is designed to provide non-contacting measurements of shaft vibration and position, translating physical displacement into a proportional voltage signal when paired with a Proximitor Sensor. It serves as a primary sensing element for monitoring radial vibration, axial thrust, and eccentricity in critical rotating machinery. By providing continuous data to protection systems, it allows for the early identification of mechanical degradation, helping industrial facilities avoid catastrophic failures and optimize maintenance schedules.

Engineering Design and Environmental Resilience

The 330103 series probe is constructed to maintain performance stability in the high-stress environments found inside turbine housings and gearboxes. Specifically, the probe tip is molded from high-strength polyphenylene sulfide (PPS), a thermoplastic that resists moisture and chemical erosion. Furthermore, the 3/8-24 UNF threaded body allows for precise gap adjustment during installation. In addition, the integrated coaxial cable is designed with a specific electrical impedance to match the Proximitor’s requirements, ensuring that the signal remains linear across the entire measuring range. Consequently, the sensor delivers repeatable data even when exposed to high temperatures and pervasive lubricating oils.

Technical Specification Matrix

Industrial Utility and Asset Protection

The 330103-00-03-10-02-05 probe is a standard-setting component for Turbine Supervisory Instrumentation (TSI). As a result, it is widely deployed in power plants, refineries, and chemical processing facilities to protect steam turbines, gas turbines, and large centrifugal compressors. Moreover, the probe’s design supports the API 670 standard, ensuring it meets global benchmarks for machinery protection systems. Therefore, by integrating this probe into a 3500 series monitoring rack, operators gain a robust solution for predictive maintenance that extends asset life and improves overall plant safety.

FAQ

What does the “-05” suffix signify in this part number?

The “-05” suffix indicates that this probe is equipped with the standard miniature coaxial ClickLoc connector. Furthermore, this connector is designed with a locking mechanism that prevents the cable from disconnecting due to machinery vibration. In addition, the gold-plated contacts ensure a low-resistance electrical path for cleaner signal transmission.

How does unthreaded vs. threaded length affect installation?

This specific model has a 0.0-inch unthreaded length, meaning the entire case is threaded. Consequently, it is ideal for installations where the probe must be screwed deep into a bearing housing or bracket. Accordingly, you should verify your mounting clearance to ensure the 0.3-inch total case length is sufficient for your specific machine geometry.

Can this 1.0-meter probe be used without an extension cable?

While the probe has a 1.0-meter lead, the 3300 XL system is typically calibrated for a total electrical length of 5 or 9 meters. Therefore, you must pair this probe with the correct length extension cable (e.g., an 8.0-meter cable for a 9-meter system) to maintain the calibrated scale factor. As a result, skipping the extension cable or using the wrong length will lead to significant measurement errors.

Is this probe compatible with older 3300 (non-XL) systems?

The 3300 XL probes are designed to be backward compatible with standard 3300 Proximitor Sensors. However, for the highest accuracy and signal-to-noise ratio, it is recommended to use the complete 3300 XL system chain. Nevertheless, this probe remains a versatile choice for upgrading legacy vibration monitoring loops.
