Description

Brief Product Description

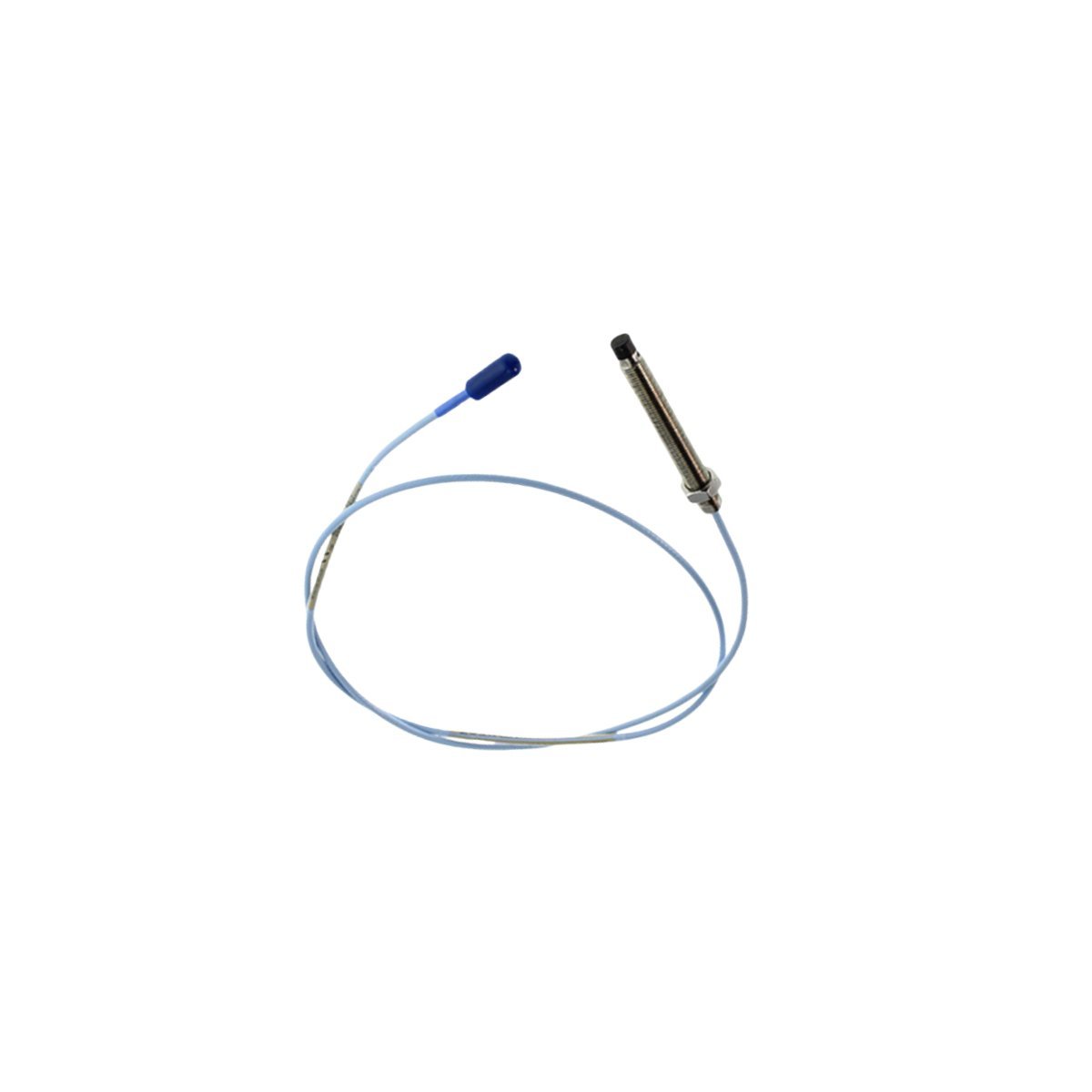

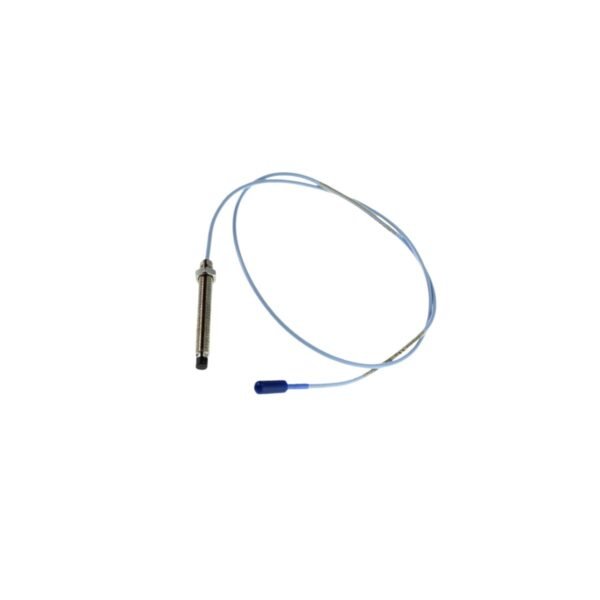

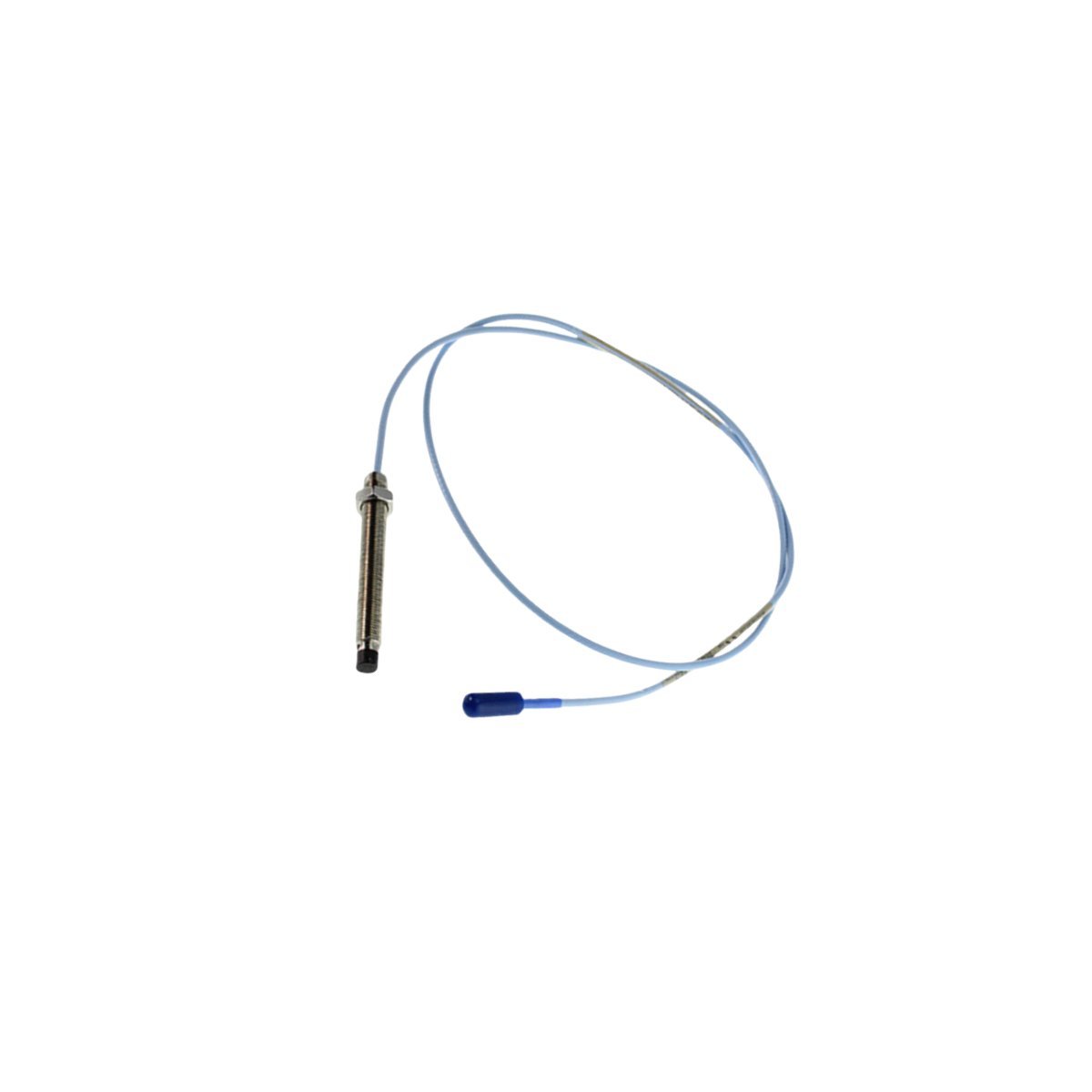

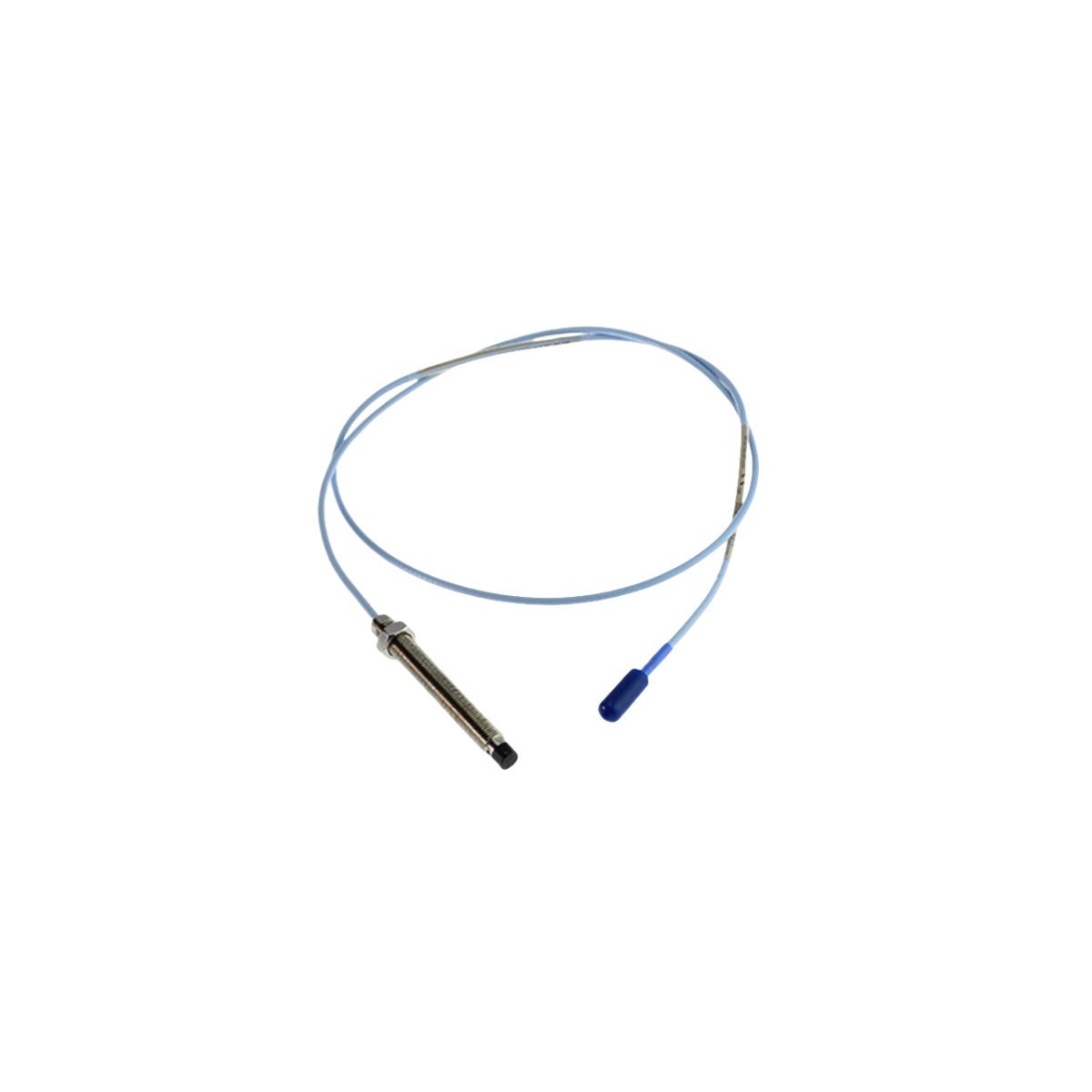

The Bently Nevada 330103-00-21-10-11-CN is a specialized 3300 XL 8mm extension cable designed to provide high-fidelity signal transmission between proximity probes and Proximitor sensors. This critical link facilitates precise vibration monitoring and displacement measurement for high-speed industrial rotating machinery.

Specialized Signal Path for Machinery Protection

The 330103-00-21-10-11-CN extension cable functions as an integral component of the 3300 XL Proximity Transducer System. It bridges the distance between the sensing probe and the processing electronics, ensuring that high-frequency eddy current signals remain stable and accurate. By providing a low-loss electrical path, this cable enables the system to detect minute variations in shaft position and radial vibration. Consequently, operators can identify early mechanical warnings such as bearing wear, unbalance, or shaft misalignment, allowing for scheduled maintenance before catastrophic failures occur.

Rugged Engineering for Demanding Industrial Environments

Bently Nevada constructs the 330103-00-21-10-11-CN with materials specifically chosen to survive the rigors of heavy industrial service. The cable features a high-grade Fluorinated Ethylene Propylene (FEP) jacket, which offers exceptional resistance to moisture, corrosive chemicals, and high-temperature bearing oil. Additionally, the cable’s design minimizes signal attenuation and rejects electromagnetic interference (EMI), which is vital for maintaining data integrity in power plants and refineries. This robust construction ensures that the 3300 XL system delivers repeatable results even in unconditioned environments near the machine train.

Enhanced Reliability and System Integration

The 330103-00-21-10-11-CN integrates seamlessly with both standard 3300 XL probes and 3500 series monitoring racks. It features gold-plated connectors that provide low-resistance contact and long-term protection against terminal oxidation. Furthermore, the cable’s design supports rapid field replacement, significantly reducing the labor hours required during planned outages or system upgrades. By maintaining a reliable telemetry link, this extension cable helps facilities optimize their predictive maintenance programs, resulting in extended equipment lifespan and improved operational safety for critical rotating assets.

Key Technical Characteristics

• 75-Ohm Coaxial Design: Maintains precise impedance matching to eliminate signal reflections and data errors.
• Chemical-Resistant FEP Jacket: Withstands prolonged exposure to industrial fluids, lubricants, and harsh solvents.
• Advanced EMI Shielding: Protects sensitive vibration signals from the electrical noise generated by high-voltage equipment.
• Gold-Plated Terminals: Ensures a secure, high-conductivity connection for the entire service life of the cable.
• Click-Loc Interconnects: Features a secure locking mechanism that prevents unintended disconnection due to machinery vibration.
• Wide Operating Range: Engineered to perform consistently across a broad temperature spectrum found in bearing housings.

Technical Specifications
