Description

Brief Product Description

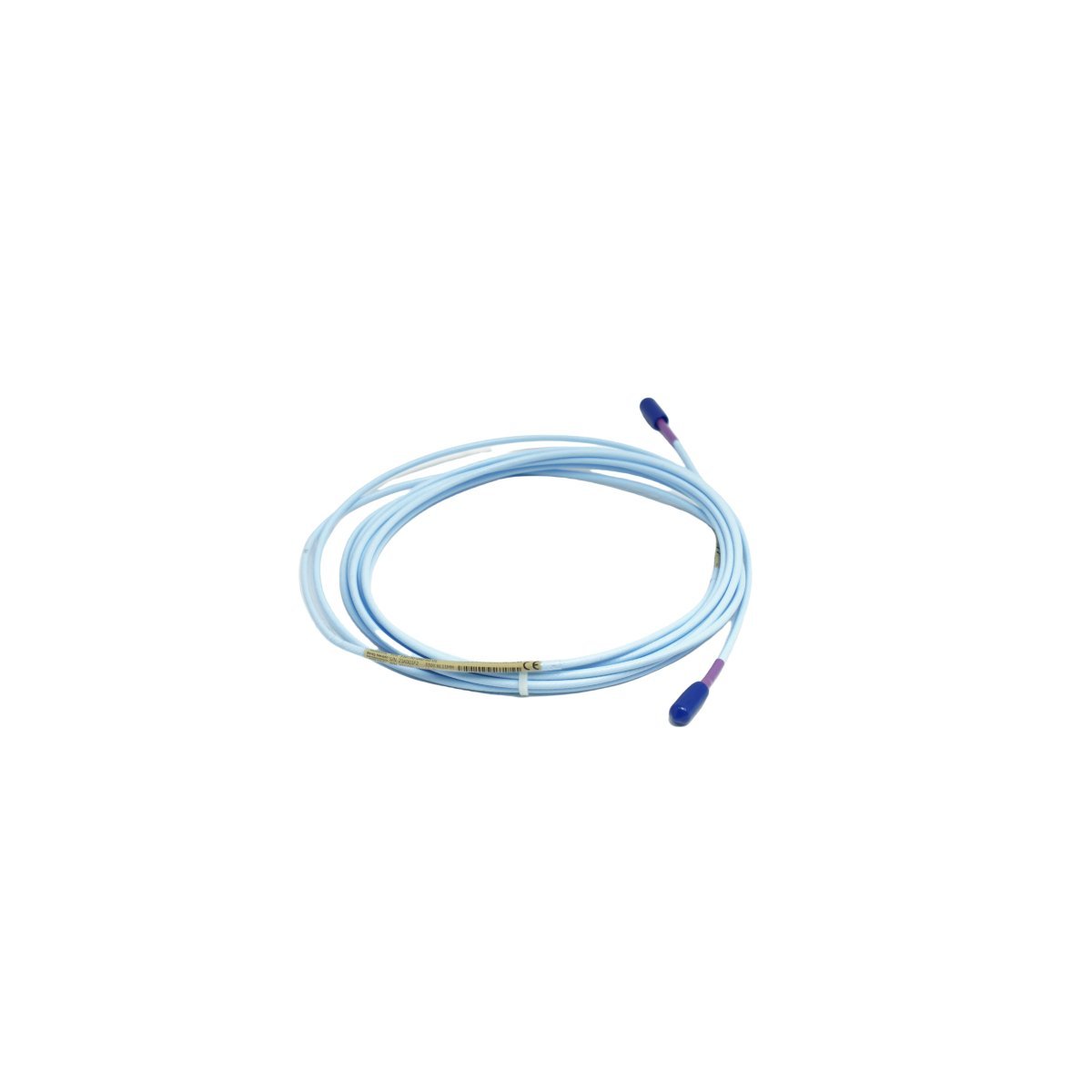

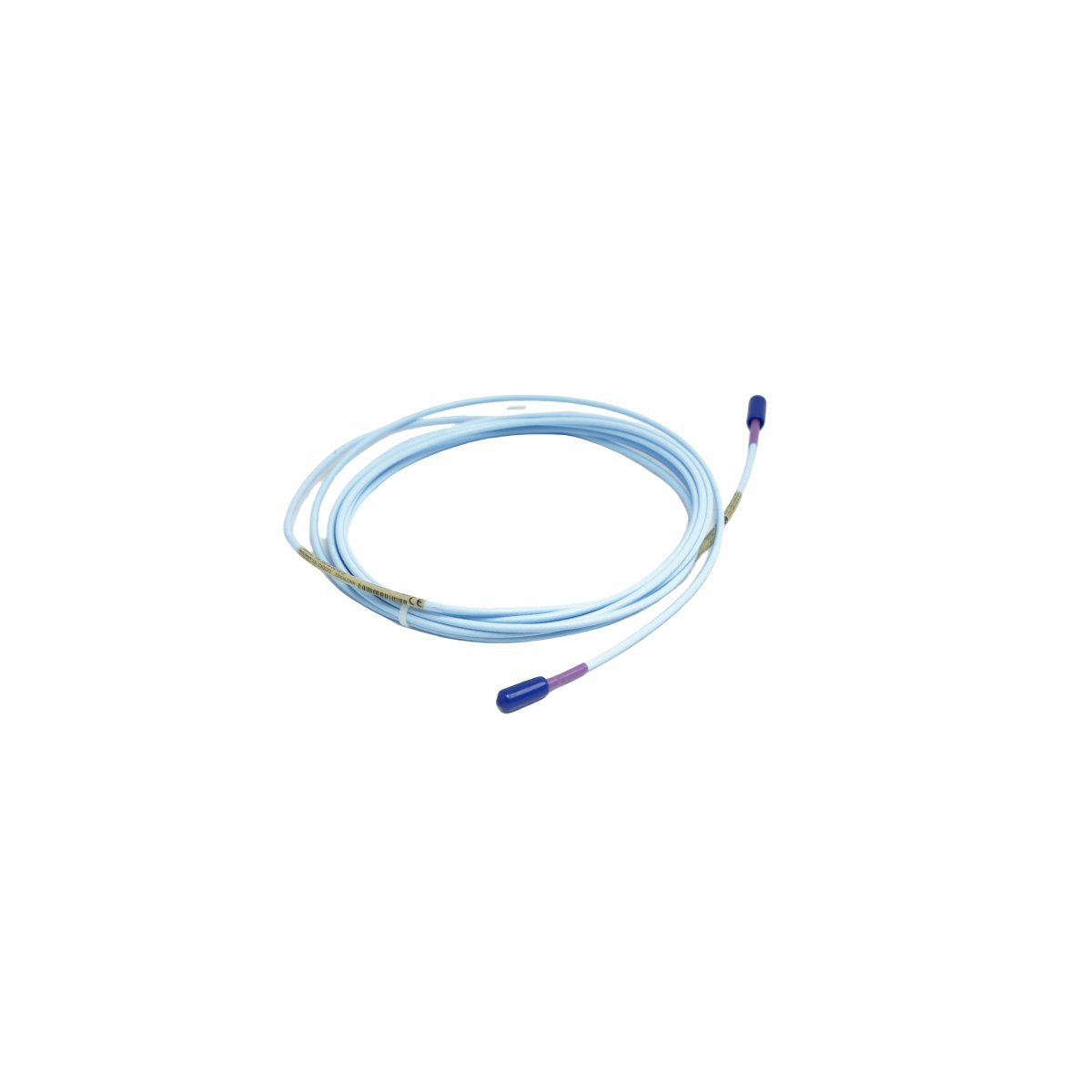

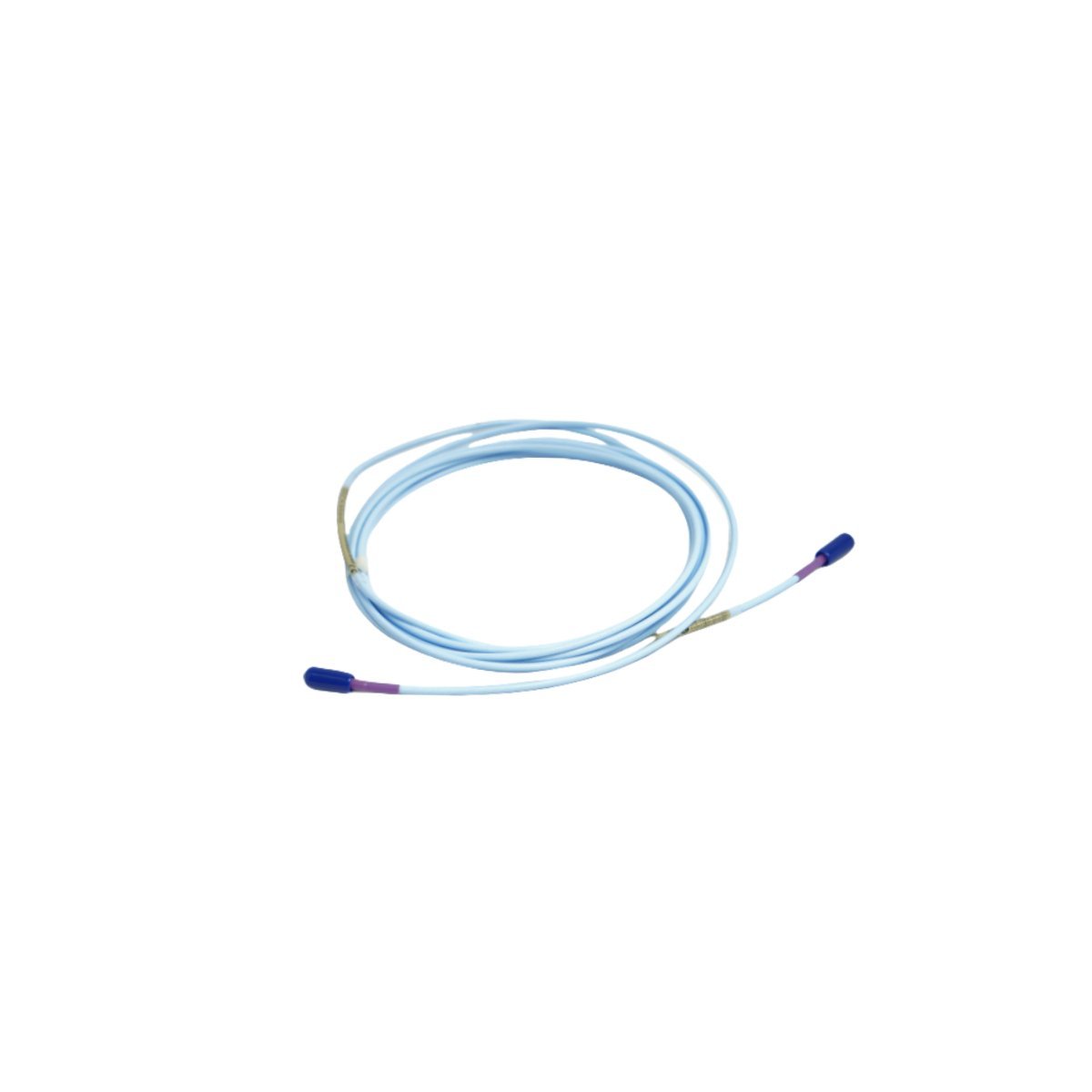

The Bently Nevada 330730-040-00-05 is a specialized 3300 XL 11mm extension cable designed to bridge proximity probes and Proximitor sensors in heavy-duty machinery monitoring. It ensures the integrity of eddy current signals for accurate displacement and vibration measurements on large industrial shafts.

High-Fidelity Signal Transmission for Large-Scale Machinery

The 330730-040-00-05 acts as a high-performance interconnect within the 3300 XL 11mm Proximity Transducer System. This cable specifically supports the larger 11mm probe series, which operators typically utilize when a greater linear range or larger standoff distance is required. By maintaining a precise 75-ohm impedance, the cable prevents signal degradation as data travels from the sensing tip to the Proximitor. Consequently, this allows the monitoring system to provide a clear, accurate representation of shaft vibration and axial position. These real-time diagnostics are essential for maintaining the safety of critical assets such as large steam turbines and heavy-duty compressors.

Ruggedized Construction for Industrial Longevity

Bently Nevada engineered the 330730-040-00-05 to perform reliably despite exposure to the harsh conditions of a machine hall. The cable utilizes a high-durability Fluorinated Ethylene Propylene (FEP) jacket, which provides excellent resistance against moisture, industrial solvents, and corrosive lubricants. Furthermore, the cable features advanced shielding technology to mitigate the effects of electromagnetic interference (EMI) from nearby high-voltage equipment. This focus on environmental resilience ensures that the transducer system delivers stable, repeatable measurements across a wide temperature spectrum, effectively supporting continuous machinery protection programs.

Enhanced Connectivity and System Reliability

The 330730-040-00-05 incorporates gold-plated Click-Loc connectors to guarantee a secure, low-resistance electrical connection. This specialized locking mechanism prevents accidental disconnections caused by the high-frequency vibration inherent in industrial environments. Moreover, the standardized design allows for seamless integration with Bently Nevada 3500 series monitoring racks and Turbine Supervisory Instrumentation (TSI). By utilizing this authentic extension cable, facilities can significantly reduce the risk of false alarms or signal loss, ultimately leading to optimized maintenance schedules and reduced operational costs for mission-critical infrastructure.

Key Technical Characteristics

• 11mm System Optimization: Specifically designed to match the electrical characteristics of 3300 XL 11mm proximity probes.
• FEP Protective Jacket: Resists chemical breakdown and maintains flexibility in high-heat environments.
• Click-Loc Locking Connectors: Ensures a vibration-proof interface that remains secure during long-term service.
• Gold-Plated Terminal Surface: Prevents oxidation and maintains a high-quality signal path between components.
• Superior Noise Immunity: Advanced coaxial shielding protects the 4-20 mA or voltage signals from plant EMI.
• Seamless TSI Integration: Fully compatible with Bently Nevada machinery protection systems and diagnostic software.
