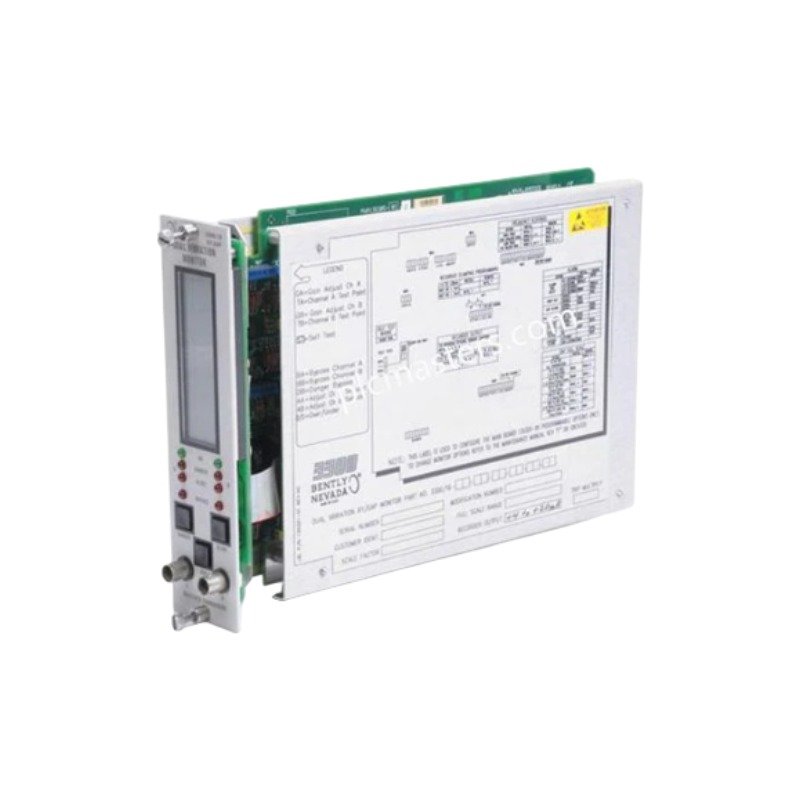

Bently Nevada 3300/16-12-01-02-01-02-00 3300 Series XY/Gap Dual Vibration Monitor
Purchase authentic Bently Nevada 3300/16-12-01-02-01-02-00 XY/Gap Dual Vibration Monitors. Brand New in original factory packaging with Original Stock and Global Shipping.
Description
The Bently Nevada 3300/16-12-01-02-01-02-00, also cataloged as the 3300/16 Dual Vibration Monitors, operates as a dedicated hardware component for processing continuous radial vibration signals and tracking average shaft radial position gap within 3300 Series monitoring racks.
Suffix Breakdown & Model Matrix
| Option | Specification |
|---|---|
| 3300/16 | Base model: XY/Gap Dual Vibration Monitor |
| -12 | Full-Scale Range Option: 0-150 um pp |
| -01 | Transducer Input Option: 3300 8 mm, 3300 XL 8 mm, or 7200 5 mm and 8 mm Proximitor Sensor (200 mV/mil) |
| -02 | Alarm Relay Option: Hermetically-sealed relays |
| -01 | Agency Approval Option: CSA / NRTL / C |
| -02 | Safety Barrier Option: Internal safety barriers |
| -00 | Trip Multiply Option: None |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3300/16-12-01-02-01-02-00 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 8.0 kg (Shipping weight) |
| Dimensions | Standard 3300 Rack Module Slot (Full-Height) |
| Operating Temp | 0 deg C to +65 deg C |
| Power Consumption | 1.0 W typical (Backplane bus draw) |
| Product Type | Dual Vibration Monitors |
| Channel Capacity | 2 independent radial vibration and position channels |
| Scale Range | 0-150 um peak-to-peak (Option -12) |
| Sensor Input Rating | 200 mV/mil (7.87 V/mm) |
| Relay Contacts | Hermetically-sealed relays (Option -02) |
| Barrier Configuration | Internal safety barriers included (Option -02) |
Eddy-Current Probe Scaling and Rotor Dynamics Processing
The Bently Nevada 3300/16-12-01-02-01-02-00 conditions high-frequency raw AC and DC signals from dual eddy-current proximity transducers. By maintaining tight input impedance matching, the module preserves calibrated eddy-current probe scaling at 200 mV/mil across the full 0-150 um peak-to-peak range. Furthermore, the internal processing circuitry splits the incoming waveform to track dynamic vibration components alongside average DC gap voltage changes. Consequently, this precise signal separation enables accurate real-time tracking of rotor dynamics, radial shaft positioning, and structural alignment inside machine bearing housings.
Frequently Asked Questions
Q: How does the internal safety barrier option (Option -02) impact field transducer loop connections?
A: Internal barriers limit energy output to the field, which allows direct connection to Proximitor sensors installed in hazardous areas without requiring external galvano-isolated barriers.
Q: How do technicians perform gap voltage validation on this monitoring module?
A: Technicians connect a calibrated digital multimeter to the front panel coaxial test jacks to read the raw DC bias voltage directly, confirming that target -10 VDC gap settings align with the shaft position midpoint.
Field Installation Guidelines
- First, insert the 3300/16-12-01-02-01-02-00 module into its designated slot in the 3300 system rack and tighten the rear panel retaining screws securely.
- Next, wire the field cable conductors from the Proximitor sensor directly to the corresponding rear terminal block points.
- Additionally, route the cable shields through the designated ground bus to maintain single-point shield isolation and eliminate cross-talk noise.
- Finally, apply backplane power, execute channel self-tests, and verify that the front panel LED meters show stable readings under normal operating conditions.
Additional information
| Weight | 8.00 kg |
|---|---|
| Dimensions | 65 × 71 × 38 mm |
