Description

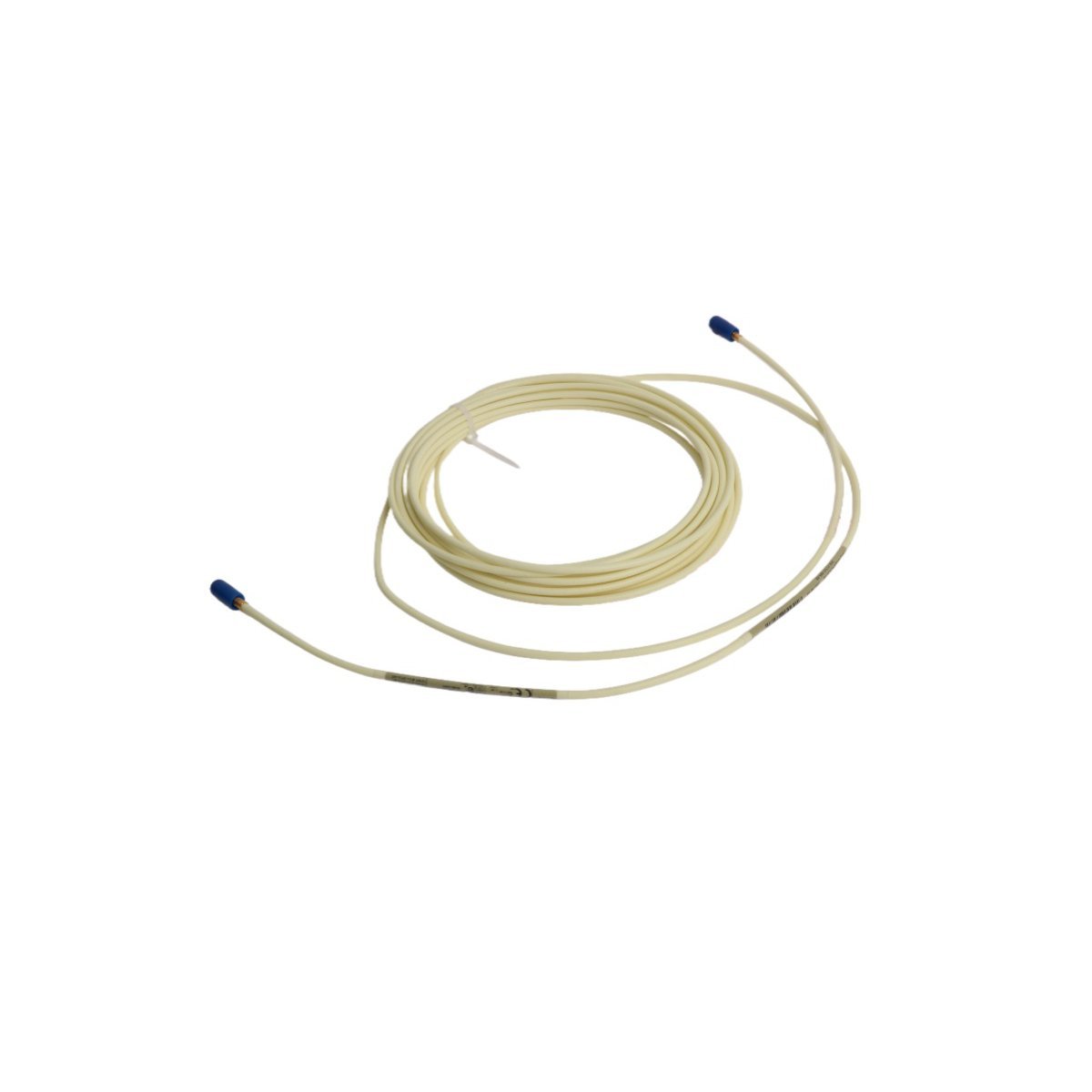

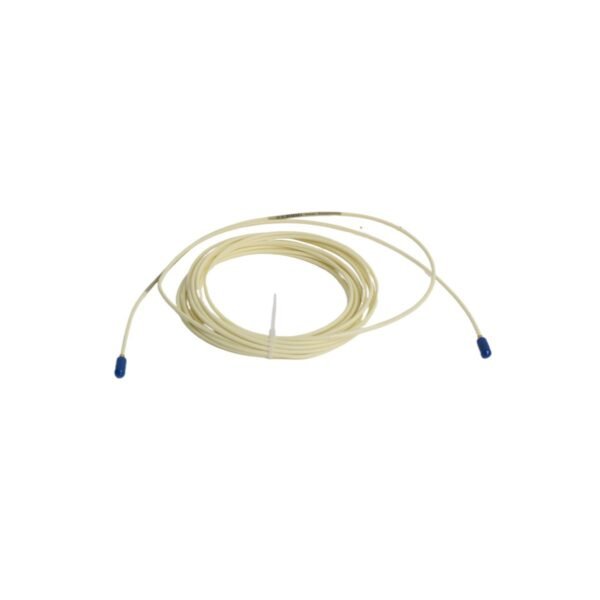

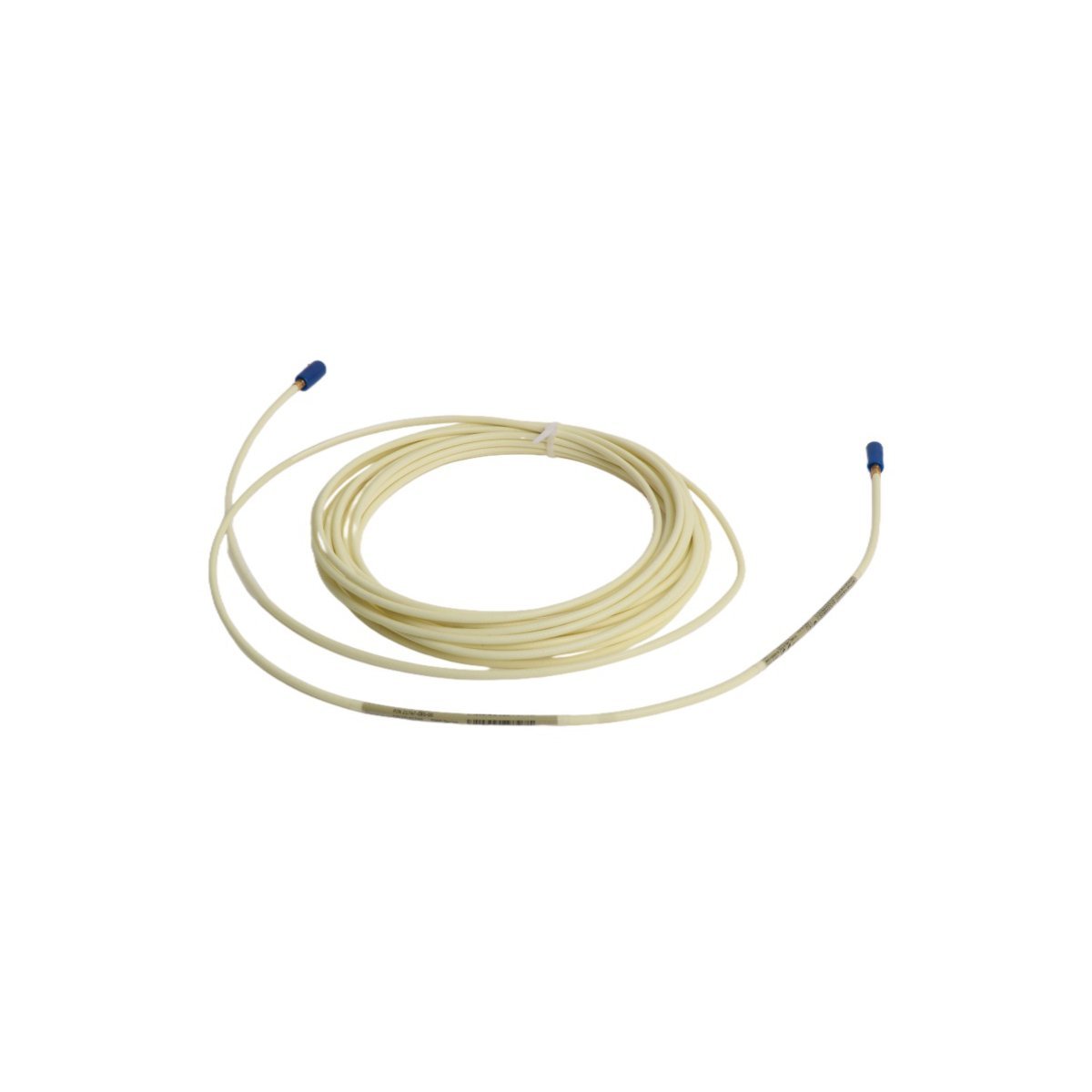

The Bently Nevada 21747-085-01 serves as a high-precision bridge in vibration monitoring systems. It facilitates the critical connection between proximity probes and Proximitor sensors. This component ensures the accurate transfer of eddy current signals. Furthermore, it supports real-time machinery protection for heavy industrial assets. Reliable data transmission helps operators detect early equipment fatigue. Consequently, this cable prevents catastrophic failures and optimizes maintenance schedules.

Technical Construction and Resilience

Engineers designed this cable to endure extreme thermal and mechanical stress. The 85-foot (25.9-meter) length allows for versatile routing across large machinery trains. It features a robust 95% copper braid shield to block electromagnetic interference. Additionally, the cable operates effectively within a broad temperature range of -40°C to +150°C. The high-quality jacket protects internal conductors from chemical exposure and lubricants. Proper installation requires maintaining a minimum bend radius of 75 mm.

Key Technical Specifications

System Compatibility and Integration

This model belongs to the versatile 3300 XL transducer series. It maintains full physical and electrical interchangeability with older 3300 5 mm and 8 mm components. This backward compatibility simplifies the process of upgrading legacy monitoring hardware. Moreover, the cable housing aligns with standard 4-hole mounting patterns. It provides a seamless fit for existing Turbomachinery Instrumentation (TSI) setups. Reliability remains consistent even when replacing discontinued non-XL cable variants.

Typical Industrial Applications

• Monitoring radial vibration in high-speed steam turbines.
• Measuring axial thrust position in centrifugal gas compressors.
• Supporting condition monitoring for large-scale power generators.
• Tracking shaft movement in heavy-duty industrial pumps.
• Facilitating phase reference measurements using Keyphasor sensors.
