Description

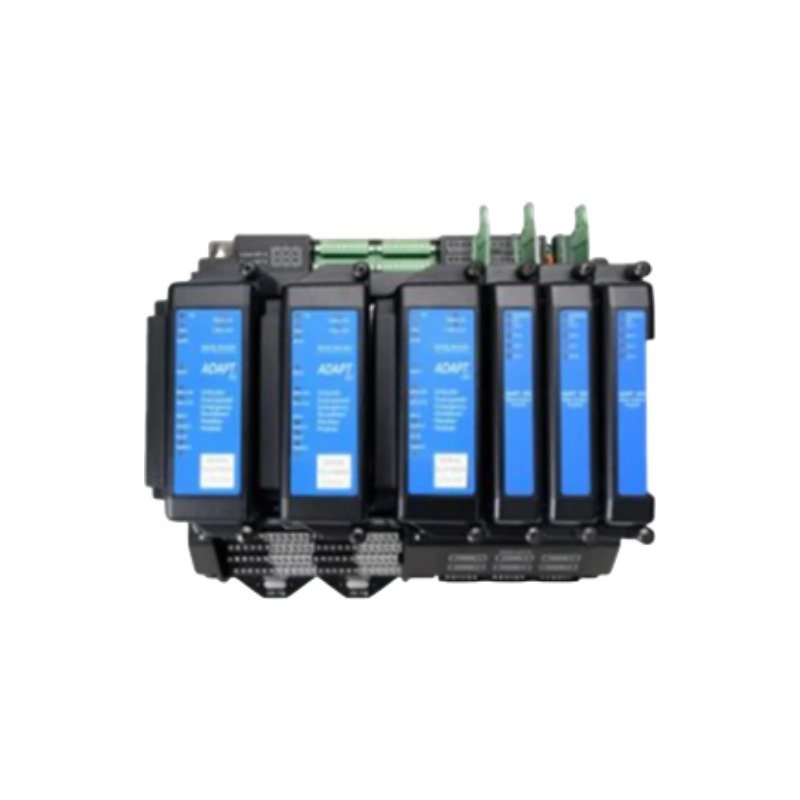

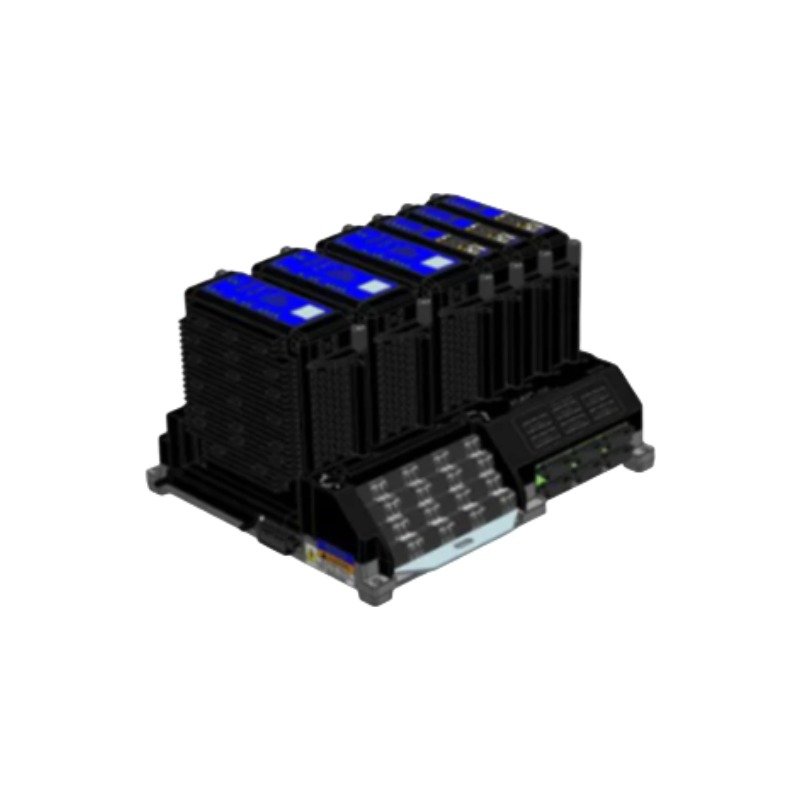

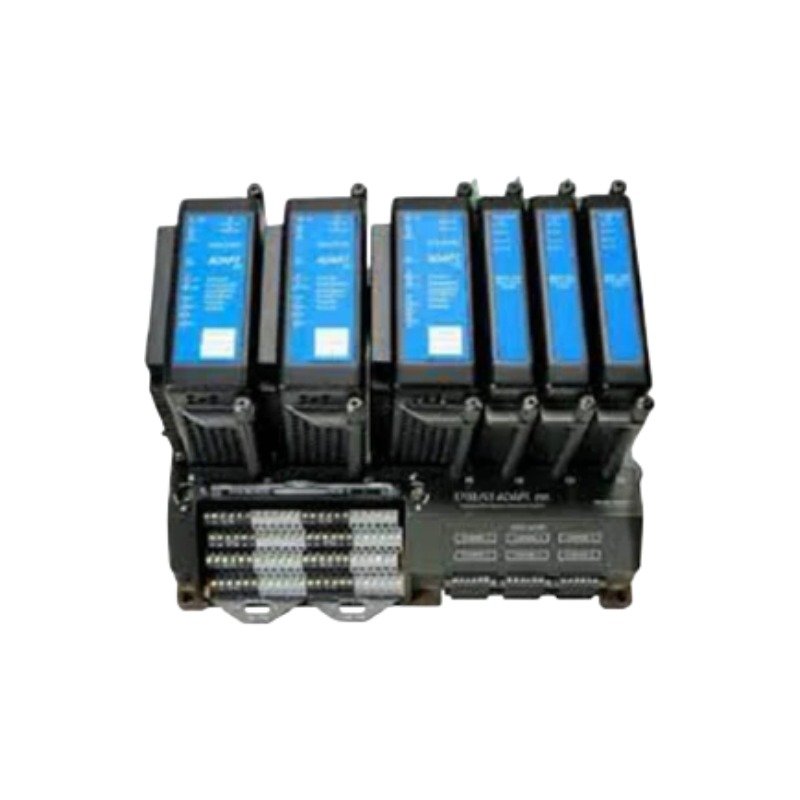

Configured for multichannel vibration signal acquisition and transducer conditioning in ADAPT 3701/44 Machinery Dynamics Monitor systems, the Bently Nevada 177989-01 (177989-01 PAV Modules) provides direct physical/electrical execution.

Hardware Specifications

Gap Voltage Validation and Rotor Dynamics

The Bently Nevada 177989-01 accepts multi-parameter transducer inputs to evaluate transient shaft motion and machine casing response. Continuous gap voltage validation monitors the DC bias offset across proximity probe loops (-10 VDC targets) to verify physical probe clearance and signal path integrity before dynamic processing. Internal hardware integration converts raw acceleration input to velocity metrics, enabling accurate real-time analysis of rotor dynamics, bearing degradation, and phase angles across high-speed rotating machinery.

Frequently Asked Questions

Q: How does the 177989-01 PAV Module supply power to connected constant-current sensors?

A: The module incorporates internal excitation circuitry providing 24 VDC / constant-current power over two wires to support Velomitors and IEPE accelerometers directly.

Q: What speed and phase tracking capabilities are integrated into the 177989-01 card?

A: The module includes one dedicated Keyphasor/speed input channel to perform synchronous sampling, order tracking, and precise phase measurement relative to shaft rotation.

Field Installation Guidelines

• First, inspect the target slot inside the ADAPT 3701/44 base frame to ensure backplane pins are free of contamination or physical misalignment.
• Next, slide the 177989-01 module evenly into the guide rails until the rear connection bus fully engages with the backplane.
• Additionally, secure all front-panel retaining fasteners to establish solid mechanical earth bonding to the enclosure frame.
• Finally, terminate field transducer wiring onto the associated terminal block, ensuring individual cable shields land directly on the system chassis ground bus.
