Description

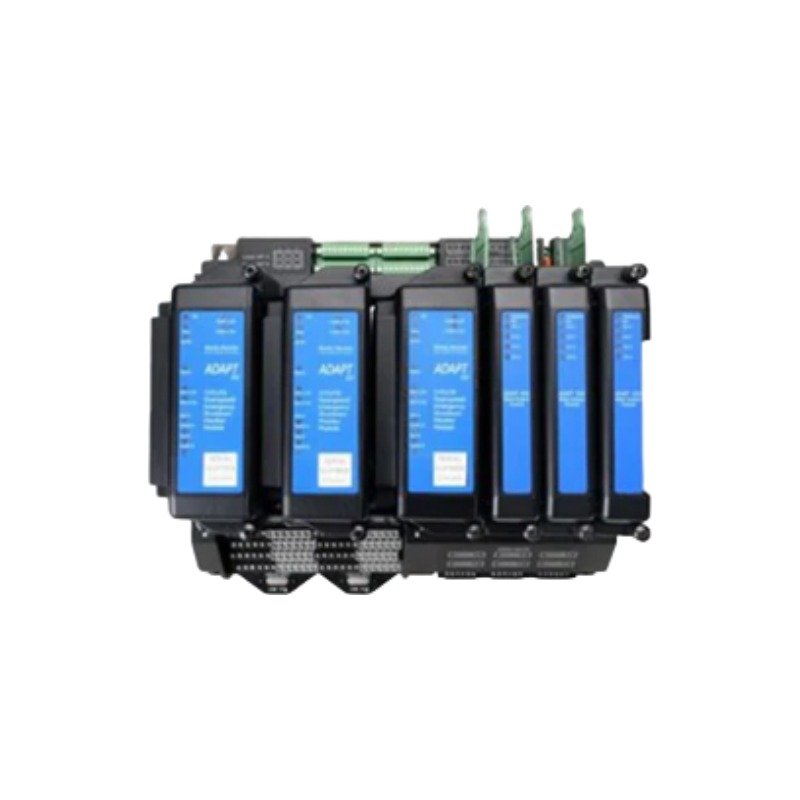

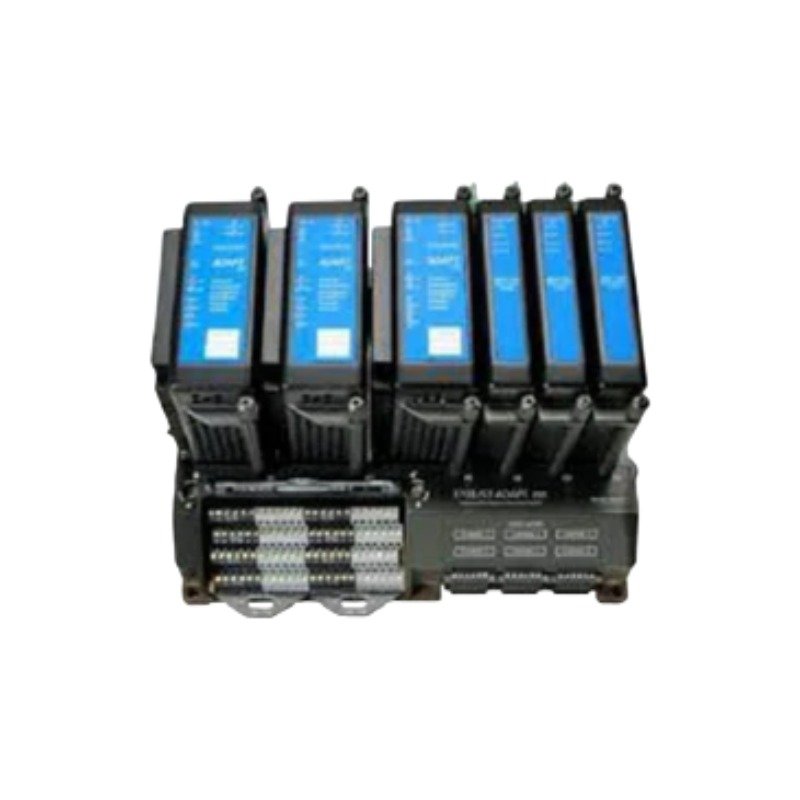

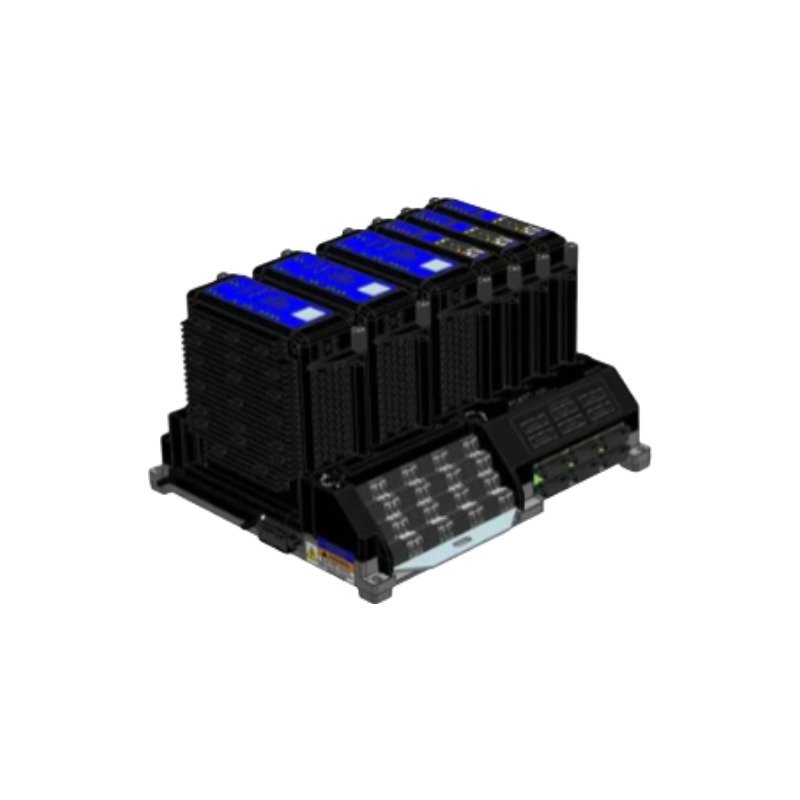

The Bently Nevada 177896-05, also cataloged as the 177896-05 Processor Modules, operates as a dedicated hardware component for central processing and dynamic signal calculation within ADAPT 3701/40 Machinery Dynamics Monitor platforms.

Hardware Specifications

Gap Voltage Validation and Rotor Dynamics

The Bently Nevada 177896-05 executes real-time digital signal processing across all connected dynamic vibration channels and Keyphasor timing inputs. Integrated gap voltage validation routines continuously inspect transducer DC offset levels to confirm sensor calibration and probe-to-target mechanical clearances. By executing continuous FFT calculations, synchronous sampling, and order tracking algorithms, the processor accurately quantifies rotor dynamics, phase angles, and shaft centerline motion for continuous asset protection and diagnostic evaluation.

Frequently Asked Questions

Q: How does the 177896-05 CPU handle power supply redundancy in ADAPT 3701/40 configurations?

A: The module supports dual redundant 24 VDC external power inputs, allowing seamless switchover without interruption to processing or monitoring functions if a primary supply fails.

Q: What sensor types are compatible with the input channels managed by the 177896-05 processor?

A: The unit processes signals from eddy-current proximity probes, IEPE accelerometers, velocity transducers, dynamic pressure sensors, and magnetic speed pickups.

Field Installation Guidelines

• First, securely mount the ADAPT 3701/40 housing onto the skid frame using appropriate hardware and verify structural grounding.
• Next, insert the 177896-05 processor module into its dedicated CPU slot until backplane connectors seat completely.
• Additionally, connect dual redundant 24 VDC power cables and Category 5e/6 Ethernet network lines to the designated front-panel ports.
• Finally, establish shield grounding for all incoming field transducer cables at the main earth bus prior to applying system power.
