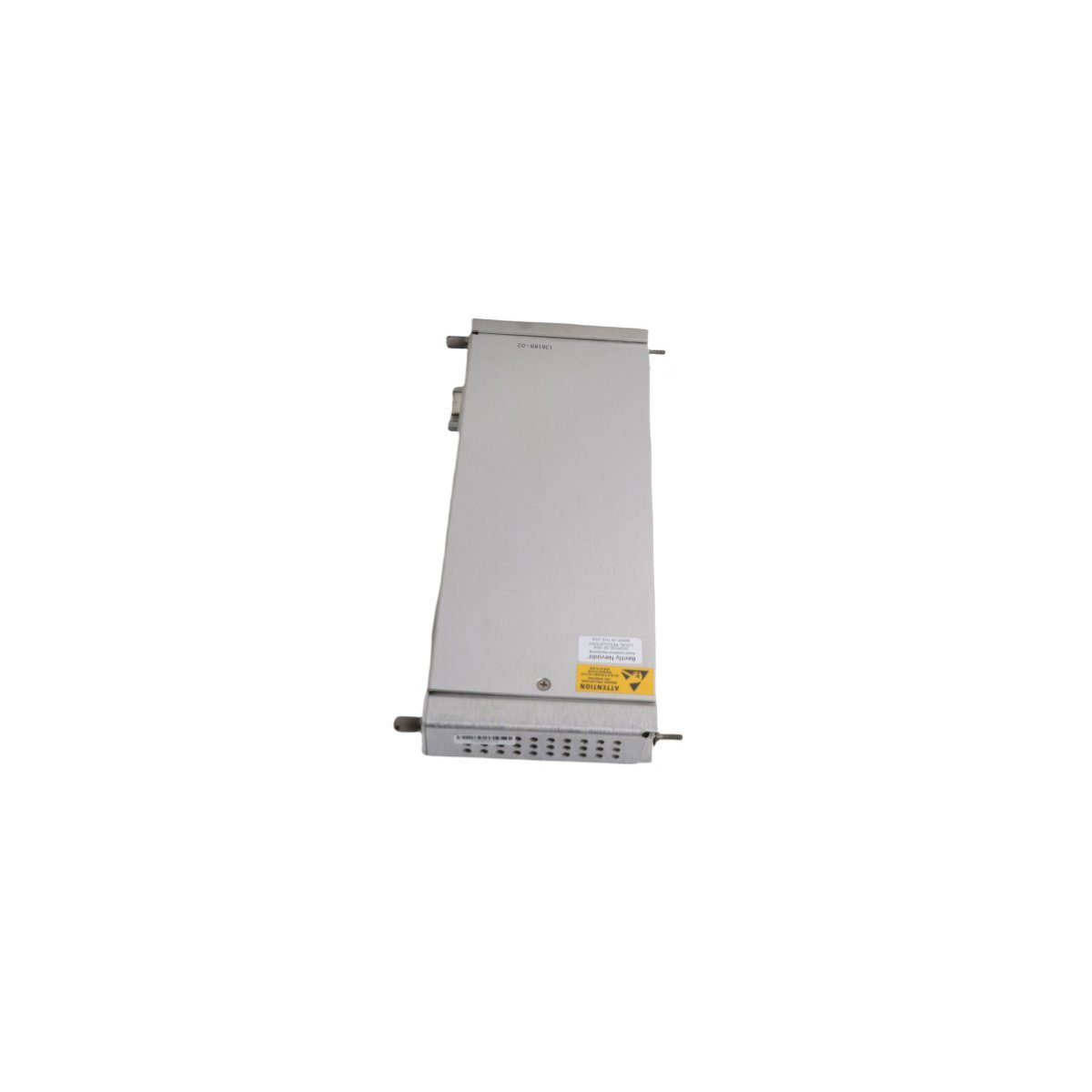

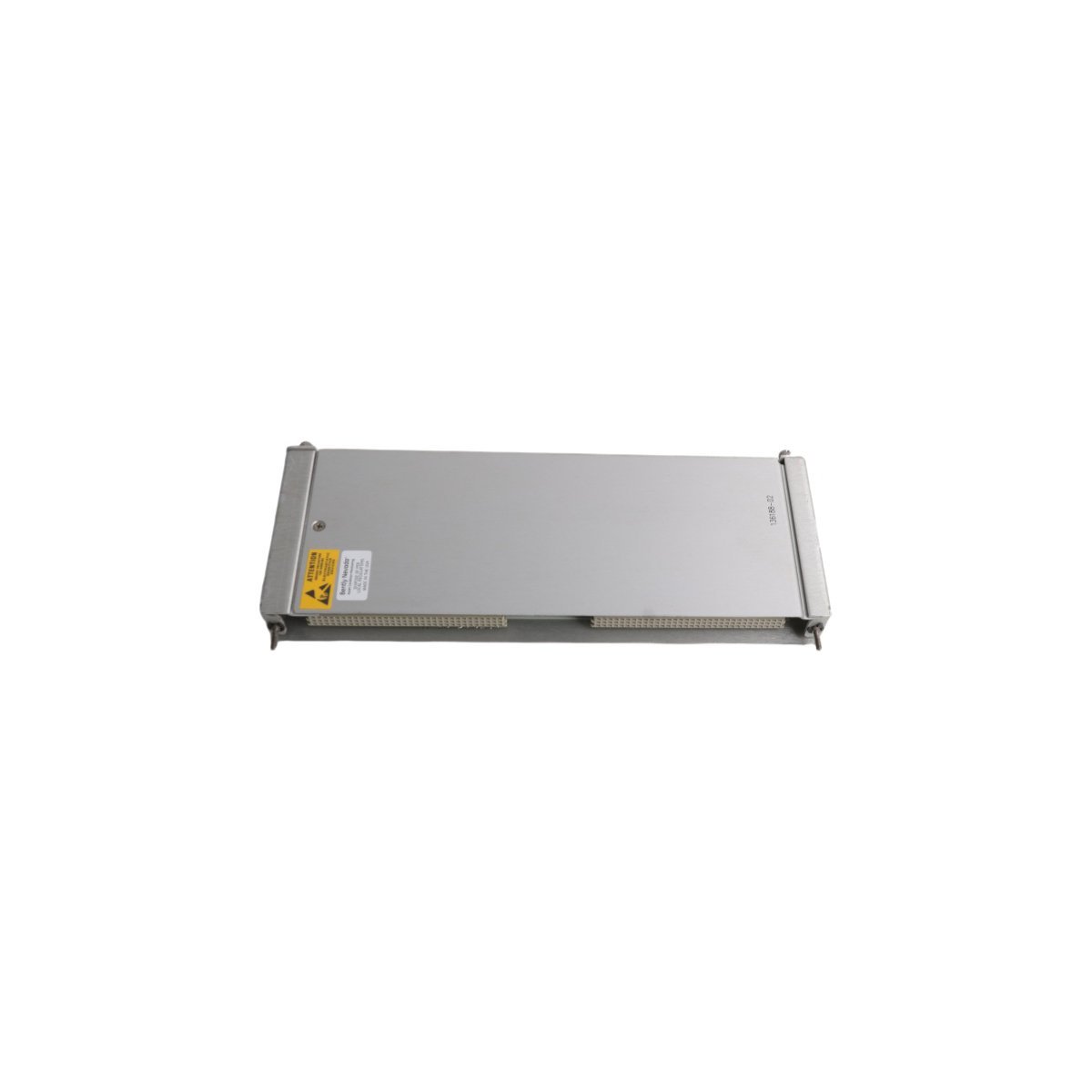

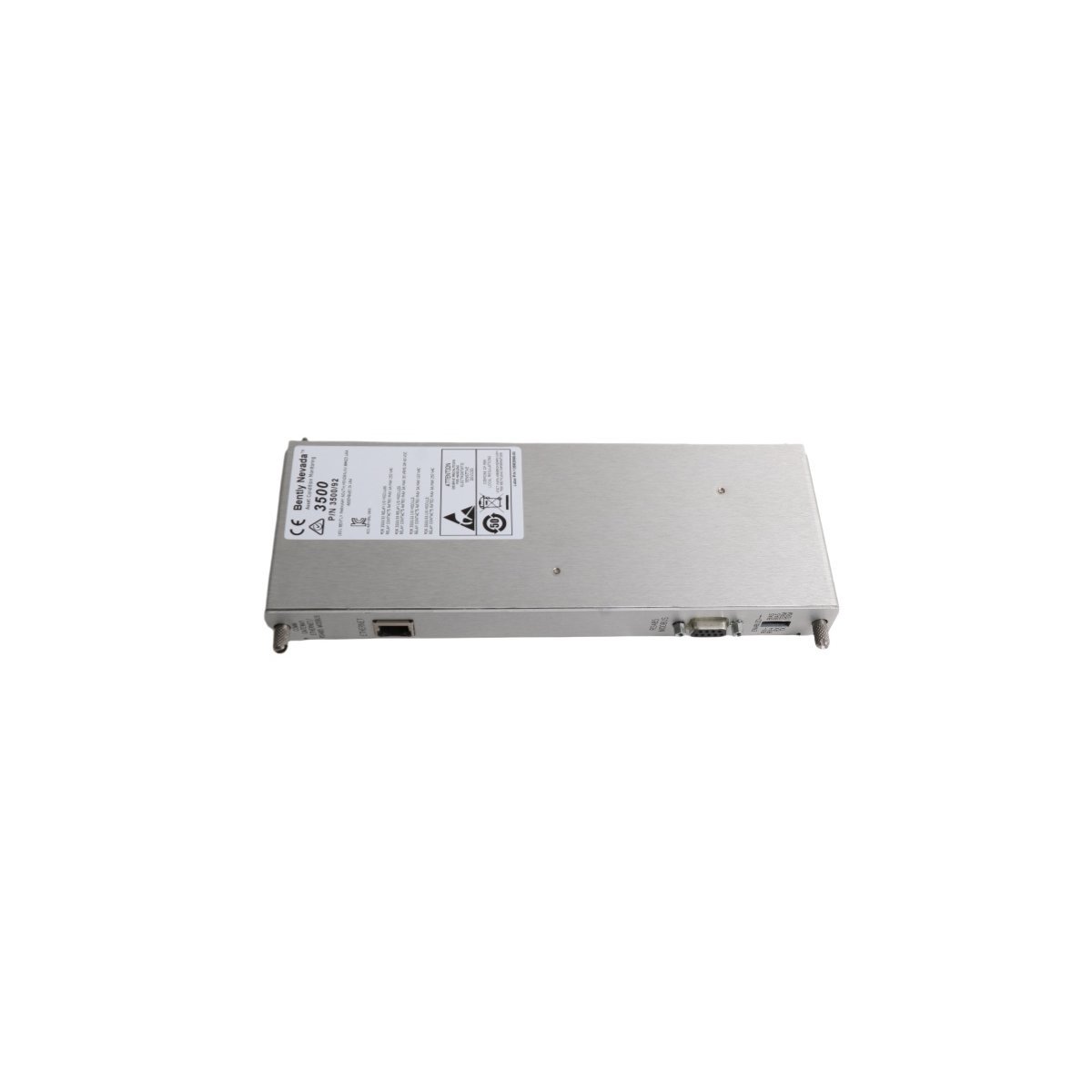

Bently Nevada 136188-02 | 3500/92 Communication Gateway Ethernet/RS232 I/O Module

The Bently Nevada 136188-02 is a high-performance Communication Gateway I/O module designed for the 3500 Series Machinery Protection System. This specific interface hardware enables the 3500/92 Communication Gateway to transmit vital machinery health data to external systems. By supporting both Ethernet and RS232 serial connections, the module bridges the gap between local vibration monitors and plant-wide control architectures. It facilitates the seamless transfer of rack status, event logs, and real-time proportional values to Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC).

Advanced Data Integration via Modbus Protocol

This module serves as the physical interface for Modbus RTU and Modbus TCP/IP communications. It allows industrial operators to access 3500 rack data remotely without interfering with the primary machinery protection functions. The 136188-02 processes high-speed information and supports a wide frequency response to ensure that status updates remain accurate and synchronized with the actual machinery state. This integration is essential for modern facility management, where centralized data visualization and historical logging are required for predictive maintenance strategies.

Technical Specifications

The 136188-02 is built to sustain continuous operation within high-demand industrial environments. Key technical parameters include:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 136188-02
• System Compatibility: 3500 Series Machinery Protection System
• Associated Main Module: 3500/92 Communication Gateway
• Communication Interfaces: 10BASE-T/100BASE-TX Ethernet and RS232 Serial
• Supported Protocols: Modbus RTU, Modbus TCP/IP, and Proprietary Bently Nevada Protocols
• Output Frequency Capacity: Supports signal processing up to 50 kHz
• Module Dimensions: 2.5 cm x 11.2 cm x 24.2 cm
• Unit Weight: 0.38 kg
• Standard Compliance: Designed for TSI (Turbine Supervisory Instrumentation) environments

Reliability in Demanding Industrial Applications

Engineered for resilience, the 136188-02 provides stable data throughput even in electrically noisy environments like power plants and refineries. The module’s hardware architecture prioritizes signal integrity, ensuring that critical alerts reach the control room without delay. Transitioning to an Ethernet-based communication strategy via this I/O module simplifies cabling requirements and allows for broader network scalability. Consequently, the 136188-02 helps reduce operational downtime by providing the diagnostic transparency needed to identify mechanical issues before they escalate into equipment failure.

Seamless Rack Installation

The 136188-02 is a half-height I/O module that installs into the rear of the 3500 rack, directly behind the 3500/92 Communication Gateway main module. This design optimizes space within the protection system rack while providing easy access to communication ports for field wiring. Because it is a hot-swappable component, maintenance teams can replace or upgrade the I/O interface with minimal disruption to the overall system monitoring capabilities.
