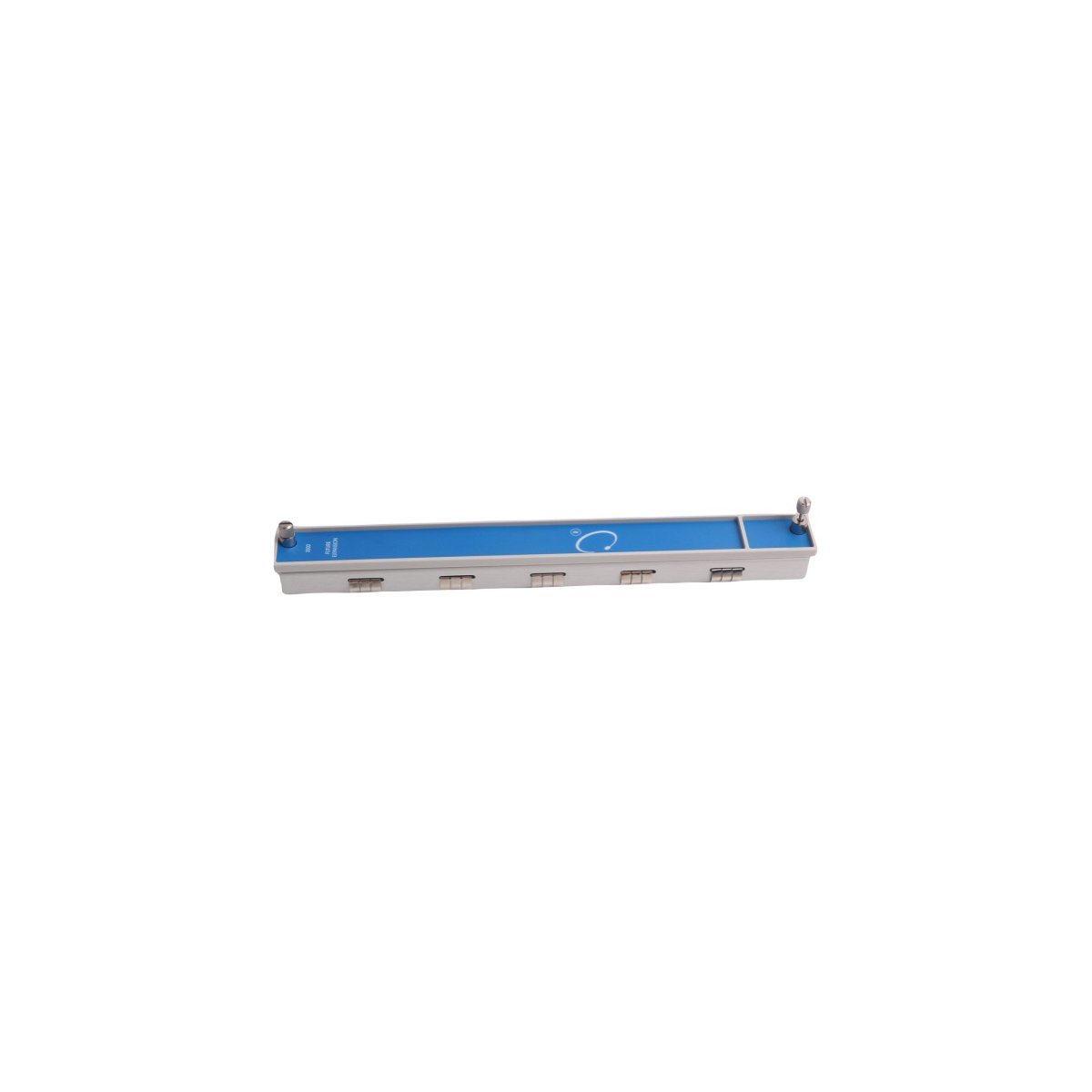

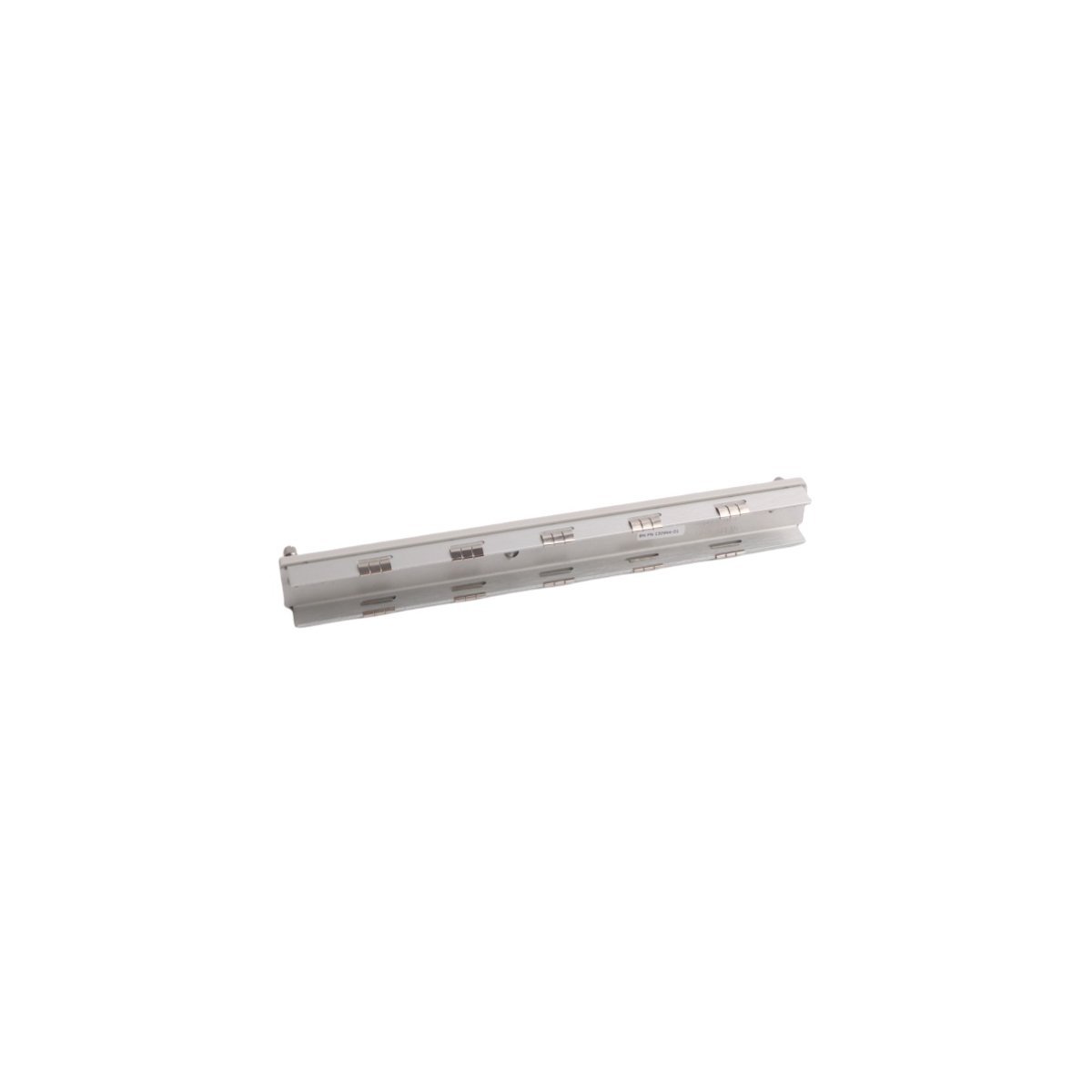

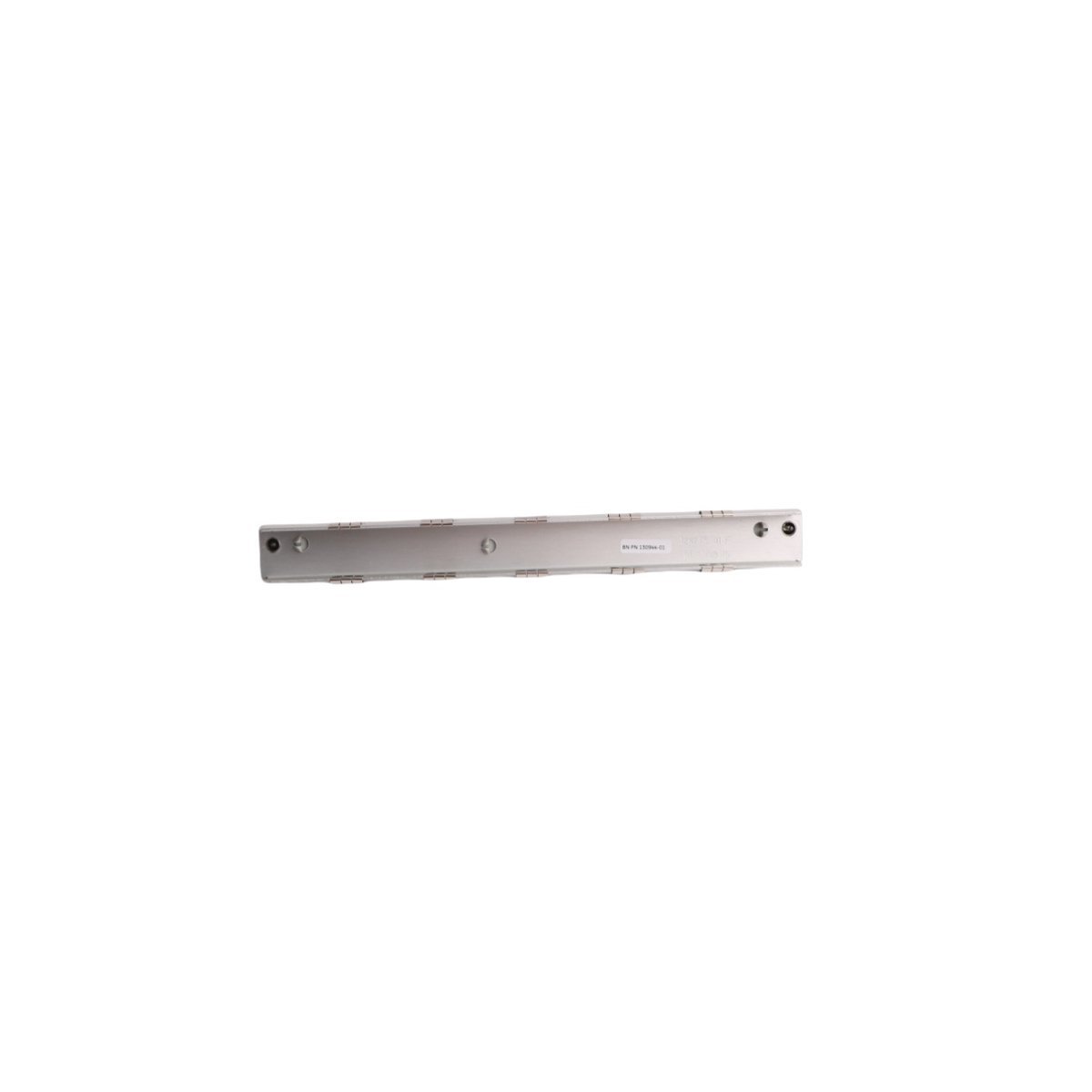

Bently Nevada 130944-01 | 128275-01 3500 Series Blank Plate Module

The Bently Nevada 130944-01 (incorporating part number 128275-01) is a specialized hardware component designed for the 3500 Machinery Protection System rack. This blank plate serves as a protective cover for unpopulated slots within the monitor rack. While the primary function involves maintaining structural integrity, the plate also ensures proper cooling by managing internal airflow. By sealing empty slots, it prevents contaminants from entering the rack and protects the backplane from accidental contact or electrostatic discharge.

Engineering for Rack Integrity and Protection

Constructed from a high-durability aluminum alloy, this blanking module withstands the vibrations and thermal cycles common in heavy industrial environments. The 130944-01 plate provides an essential barrier that helps maintain the system’s electromagnetic compatibility (EMC) shielding. Furthermore, it ensures that the rack meets safety standards by preventing operators from accessing high-voltage internal components. Because it utilizes a lightweight yet rigid design, it installs quickly using standard rack screws without adding significant mechanical load to the enclosure frame.

Technical Specifications

The following details outline the physical and environmental characteristics of the 130944-01 / 128275-01 module:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 130944-01
• Part Number: 128275-01
• Product Type: Blank Plate / Slot Cover
• System Compatibility: Bently Nevada 3500 Monitoring System
• Material: Anodized Aluminum Alloy
• Operating Temperature: -30°C to +65°C
• Dimensions: 2.5 cm x 3.0 cm x 24.2 cm
• Net Weight: 0.06 kg
• Environmental Rating: Protects internal rack components from dust and debris

Strategic Importance in Thermal Management

Reliable machinery protection requires consistent internal temperatures for active modules like Proximitor monitors and relay cards. The 130944-01 Blank Plate plays a vital role in this process by forcing cooling air through the active modules rather than allowing it to escape through empty gaps. Consequently, installing these plates is a requirement for maintaining the warranty and operational lifespan of the entire 3500 system. They also provide a professional, finished appearance to the rack, indicating that the system is ready for future expansion as plant monitoring needs grow.

Installation and Maintenance Reliability

Installing the 128275-01 expansion faceplate is straightforward and requires no specialized tools beyond a standard screwdriver. The module aligns perfectly with the rack’s guide rails, ensuring a flush fit with adjacent active modules. Because the plate has no electronic components, it requires zero power and zero configuration, acting as a passive but necessary part of the infrastructure. Maintenance teams should ensure all unused slots are covered to prevent the accumulation of conductive dust, which can lead to short circuits on the sensitive 3500 backplane.
