Description

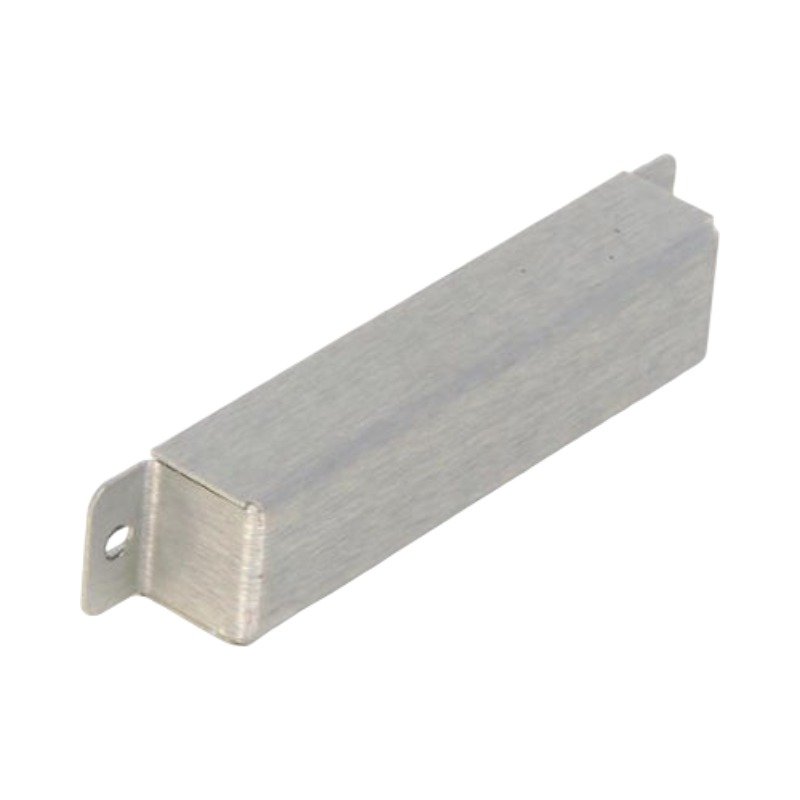

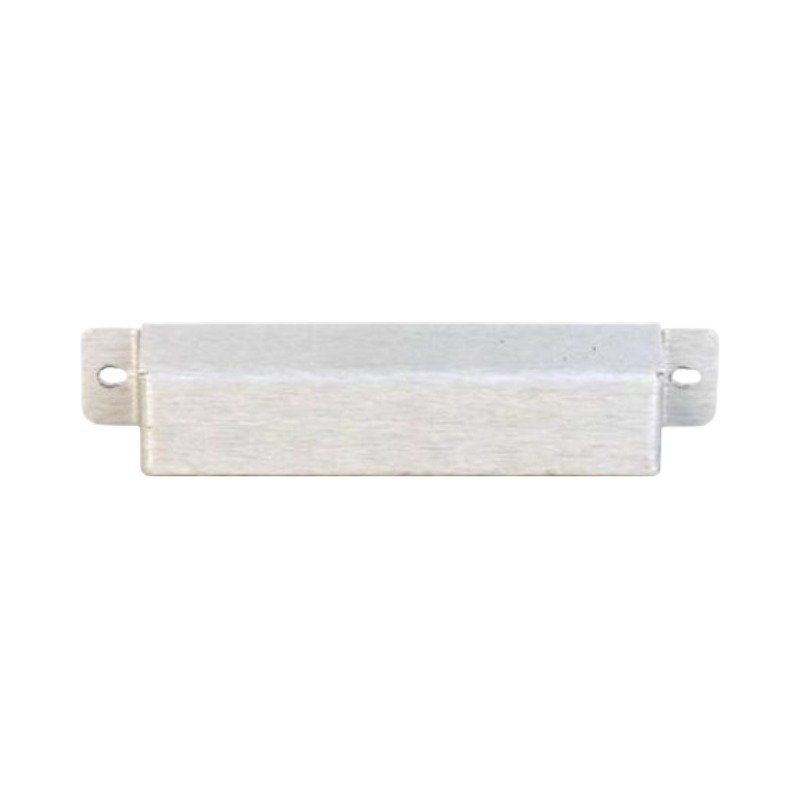

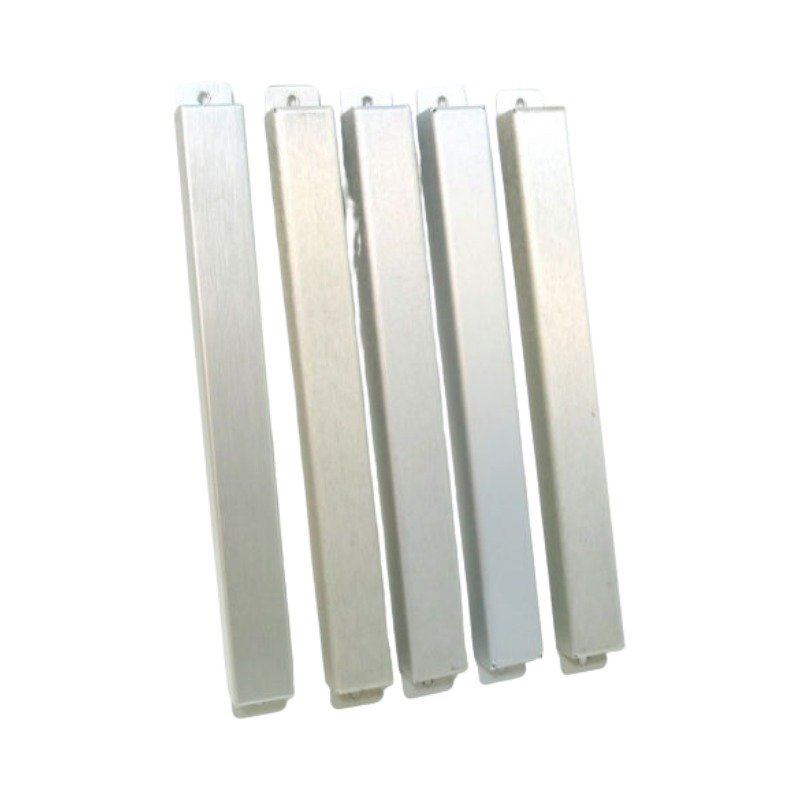

Configured for structural containment and environmental mitigation in Bently Nevada 3500/05 System Rack platforms, the Bently Nevada 128031-01 (128031-01 Rear Connector Cover) provides direct physical/electrical execution. Specifically, this non-electrical protective shield covers unpopulated rear input/output (I/O) slot boundaries on the rack backplane, thereby blocking particle ingress and optimizing internal forced-air cooling profiles across adjacent online machinery protection monitors.

Hardware Specifications

Rotor Dynamics and Transducer Conditioning

To support uncompromised rotor dynamics computation, this passive backplane component seals empty slots to establish predictable pressure boundaries within the rack housing. Airflow conservation relies heavily on this physical barrier, which redirects forced convective currents through active tachometer and proximity monitor cards. Consequently, this localized temperature regulation prevents thermal hot spots from introducing measurement drift into delicate eddy-current probe scaling circuits. Maintaining stable structural internal climates directly preserves the accuracy of strict gap voltage validation networks down to standard -10 VDC baseline targets. Furthermore, the specialized conductive composition offers passive cross-talk suppression by serving as a localized Faraday plate. This grounding envelope intercepts stray high-frequency electromagnetic interference (EMI) before it induces high-frequency phase-amplitude distortions onto surrounding terminal links.

Frequently Asked Questions

Q: Does this rear cover panel possess active pins that interface with the internal 3500 backplane power bus?

A: No. The component utilizes a entirely passive mechanical design, meaning it features no electronic circuitry, consumes zero watts, and acts solely as an environmental and safety barricade.

Q: Can an installer mount this rear cover on the front faceplate area of a 3500 chassis?

A: No. The physical dimensions and mounting layout match the backend I/O slot tracks exclusively. Front-side vacant slots require distinct front panel blank cards to seal the chassis.

Q: What structural liabilities emerge if an engineer leaves an unpopulated rear I/O slot completely uncovered?

A: Leaving a slot open disrupts internal pressure zones, which degrades fan cooling efficiency across active cards. Additionally, it exposes live backplane traces to airborne metallic contaminants and raises the risk of accidental electrostatic discharge (ESD) shocks from nearby personnel.

Field Installation Guidelines

• Chassis Alignment and Insertion: Slide the panel edges smoothly into the empty rear card guides corresponding to the target unpopulated I/O slot position. Push the unit fully forward until the front seating gasket rests flush against the frame casing.
• Fastener Torque Limits: Secure the panel firmly using the top and bottom integrated captive retention screws. Tighten the hardware snugly to ensure a solid structural ground bridge against the main rack chassis, but do not over-torque to prevent thread stripping.
• Cabling Separation and Routing: Ensure that nearby active field transducer wires do not brush against or bind behind the passive cover faceplate. Route adjacent signal loops inside independent, grounded metallic conduits away from open space access zones to prevent accidental mechanical snags during maintenance.
