Description

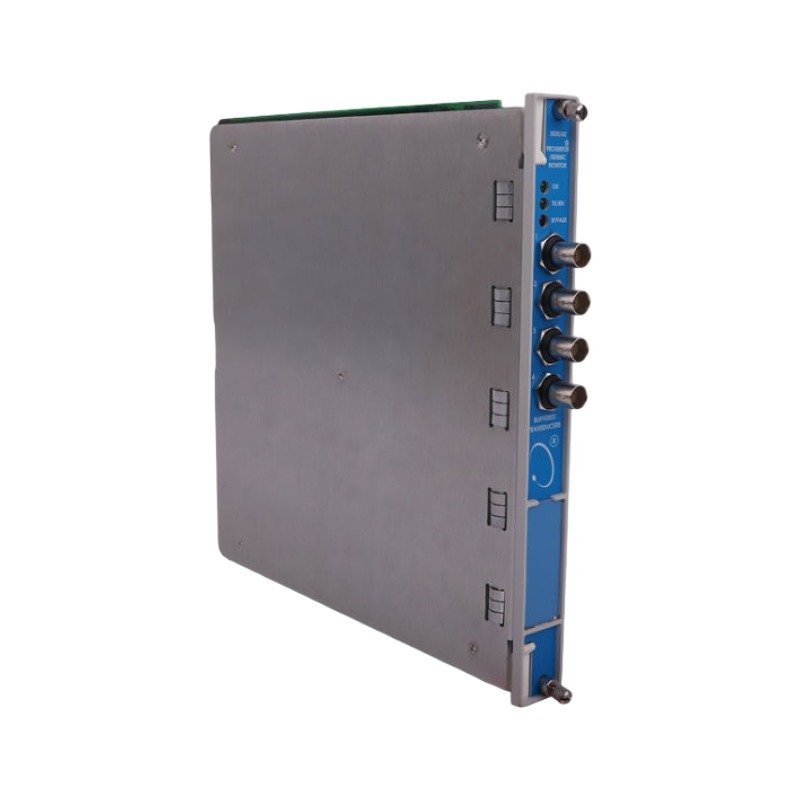

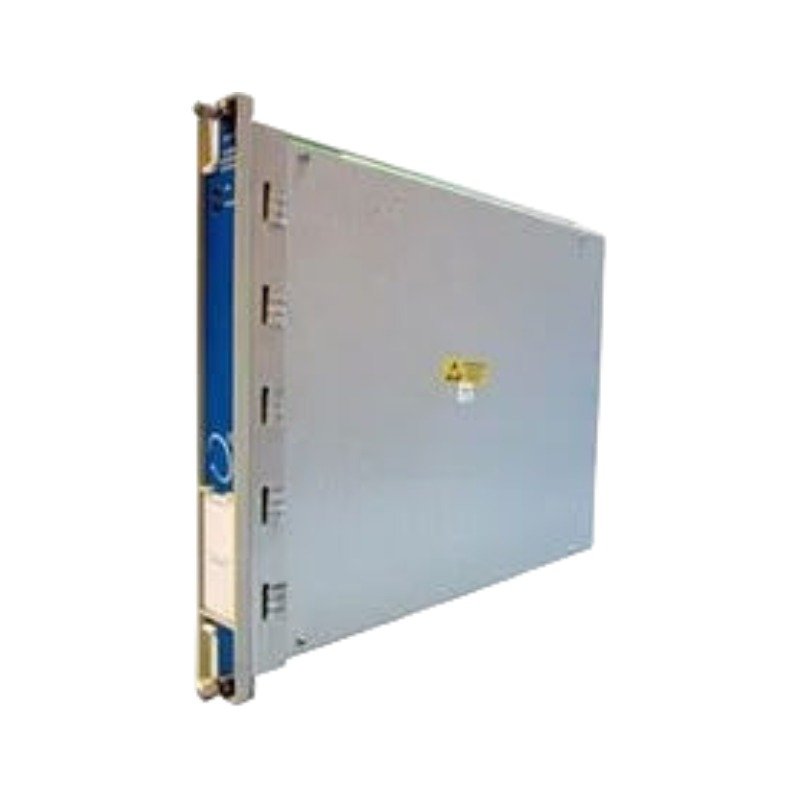

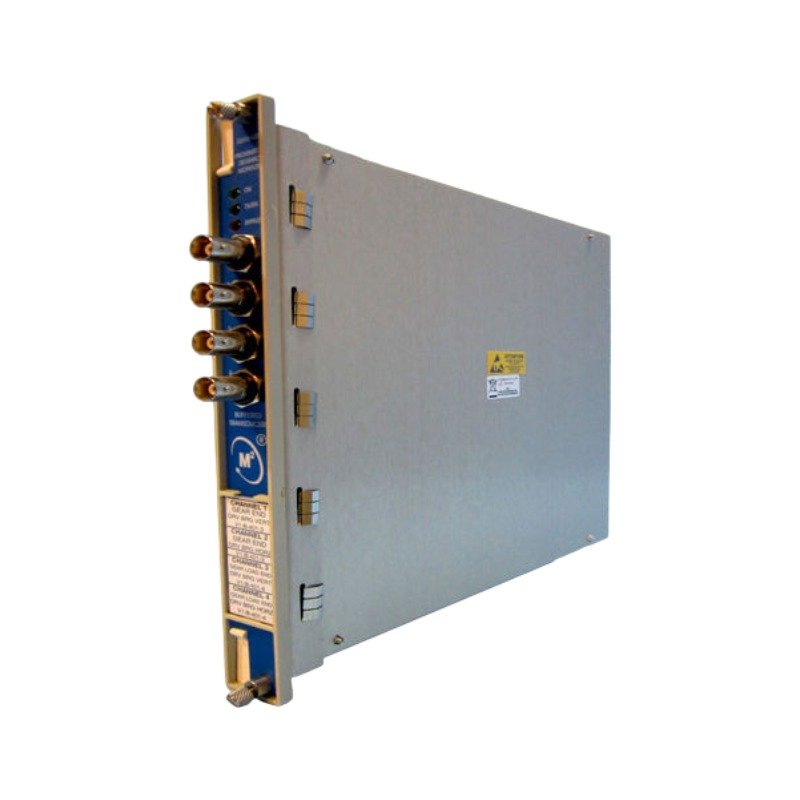

The Bently Nevada 119M659-04, also cataloged as the Bently Nevada 119M659 I/O Module, operates as a dedicated hardware component for physical vibration sensor signal routing and internal terminal block distribution within 3500 Series Machinery Protection System networks. The module provides passive pass-through electrical trace connectivity, routing delicate field transducer inputs directly to the matching main monitor processor card via the system backplane without introducing signal phase shift or transmission delays.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The physical trace layout stabilizes input impedance, facilitating precise eddy-current probe scaling across high-velocity machinery setups. Consequently, these passive internal pathways preserve uninterrupted DC continuity, which enables direct gap voltage validation (-10 VDC targets) during static sensor alignment and runtime execution. Furthermore, the specialized geometric separation of the circuit layers provides robust cross-talk suppression between proximal signal cables, preventing inductive interference and maintaining data accuracy for independent rotor dynamics analysis.

Frequently Asked Questions

Q: Does this internal termination component support live hot-swap replacement procedures?

A: Yes, the module permits physical extraction or insertion while the 3500 rack remains powered. However, disconnecting the rear card instantly breaks the transducer connection to the front monitor, creating an open-circuit fault; therefore, operators must bypass the associated channel protection relays first to avoid unexpected plant trips.

Q: What are the specific power draw parameters for the 119M659-04 module?

A: This component functions strictly as a passive termination matrix for incoming physical field instrumentation. Because it contains no active microprocessors or switching power supplies, it exhibits a 0.0 W power profile and draws zero current from the internal rack backplane power rails.

Field Installation Guidelines

1. Slide the module smoothly into the rear chassis slot, confirming exact pin-to-socket alignment with the backplane connectors before applying final seating pressure.
2. Tighten the integrated rear panel retention screws to a specification of 0.6 N-m to ensure structural grounding continuity with the metal rack frame.
3. Terminate all incoming sensor coaxial shields at the dedicated internal terminal block ground strip, reinforcing a strict single-point grounding framework to eradicate common-mode noise loops.
4. Route all external sensor cables separate from high-voltage alternating current lines by a minimum clearance distance of 300 mm to suppress electromagnetic interference coupling.
