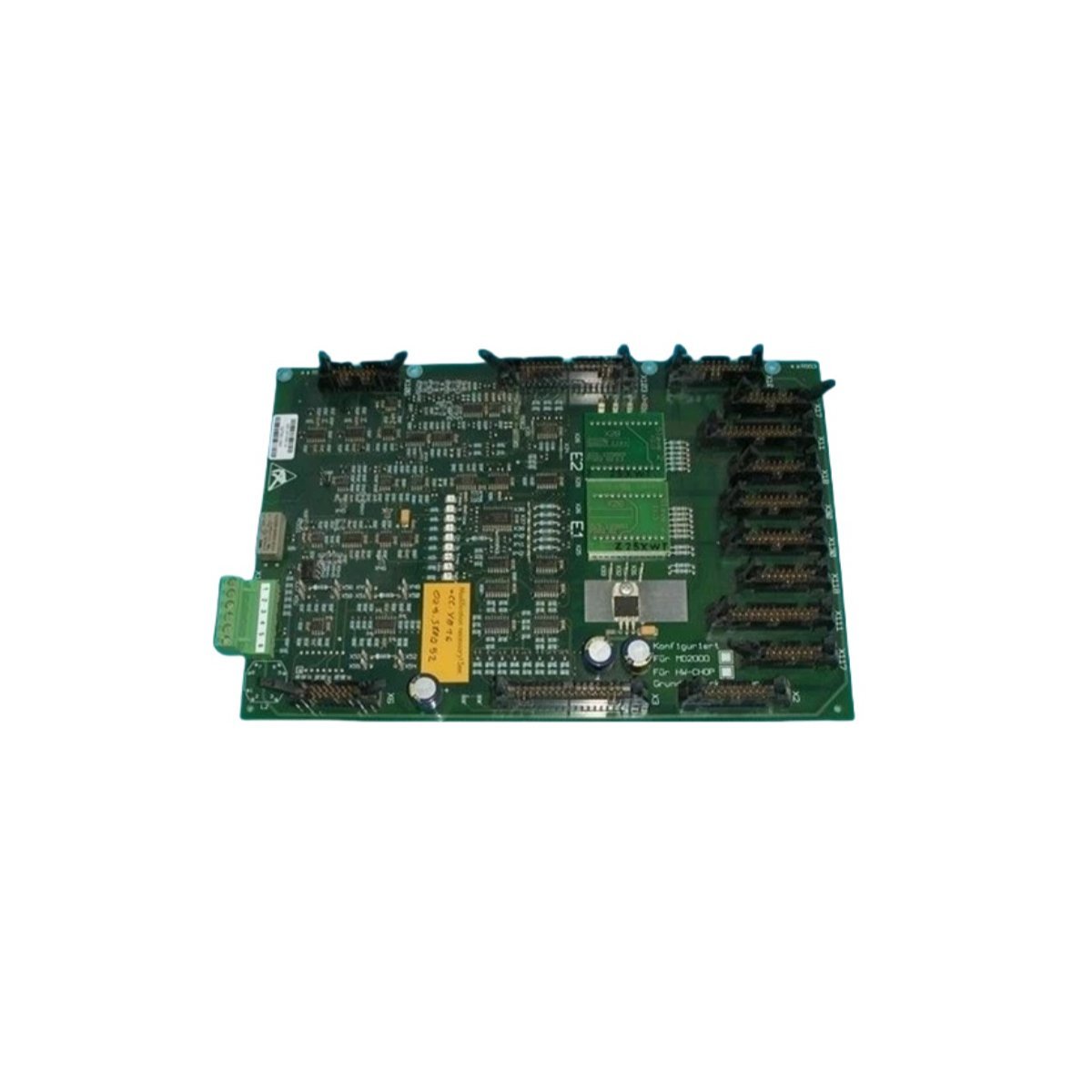

Alstom CPRT1 ICC Industrial Protection Relay and Power Card

The CPRT1 is a high-density industrial control module designed for the Alstom ICC series, providing advanced fault detection, circuit protection, and multi-channel I/O monitoring for power distribution grids.

Technical Operational Overview

The CPRT1 functions as a high-reliability protection and control interface within the Alstom ICC (Industrial Control) architecture. This module integrates sophisticated fault-detection algorithms with a high-density I/O framework, allowing it to monitor electrical parameters across complex distribution networks. By processing over 16 analog input channels and 32 digital I/O points, the unit maintains real-time oversight of substation health, ensuring that circuit protection protocols trigger instantly upon detecting an anomaly.

To facilitate seamless data exchange within modern smart grids, the CPRT1 features an advanced networking suite including four or more Ethernet ports. These ports support both standard RJ45 copper and Fiber Optic (FO) connections, enabling high-speed communication with SCADA systems and remote energy management platforms. The hardware supports a modular expansion strategy, accommodating between 8 and 16 additional sub-modules to customize the unit for specific utility or industrial facility requirements. Consequently, the module serves as a scalable foundation for both localized machine control and wide-area grid protection.

Key Technical Characteristics

• High-Density I/O Interface: Features more than 32 digital I/O channels and 16 analog inputs for exhaustive system telemetry.
• Versatile Connectivity: Includes 4+ Ethernet ports with support for both RJ45 and Fiber Optic media to ensure interference-free communication.
• Modular Scalability: Utilizes internal slots to support 8 to 16 expansion modules, allowing for field-upgradable system capacity.
• Industrial Certifications: Complies with IEC 60255, IEEE 1613, and UL 508 standards for safety, vibration, and electromagnetic compatibility.
• Environmental Hardening: Operates efficiently in extreme climates ranging from -25°C to +70°C with non-condensing humidity protection.
• Compact Integration: Optimized dimensions of 12.2 x 10.7 x 3 cm allow for high-density mounting in space-restricted control cabinets.

Product Specifications

Industrial Applications

The CPRT1 is primarily deployed in infrastructure-critical sectors, including:

• Substation Automation: Providing the core protection logic for medium and high-voltage switchgear.
• Grid Monitoring: Executing real-time measurement of current and voltage vectors for load balancing.
• Heavy Industrial Plants: Safeguarding large-scale motor centers and manufacturing power buses from electrical faults.
