Description

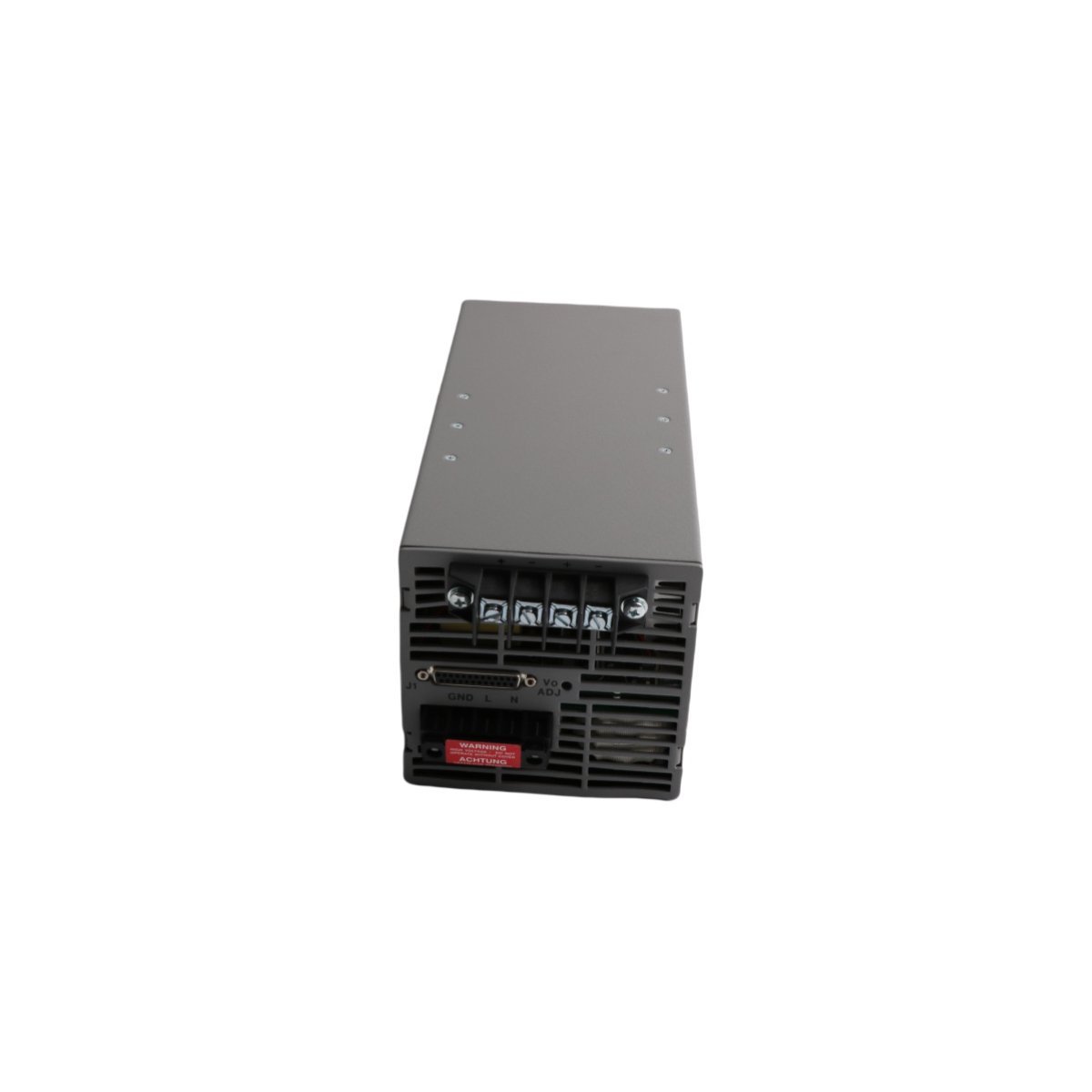

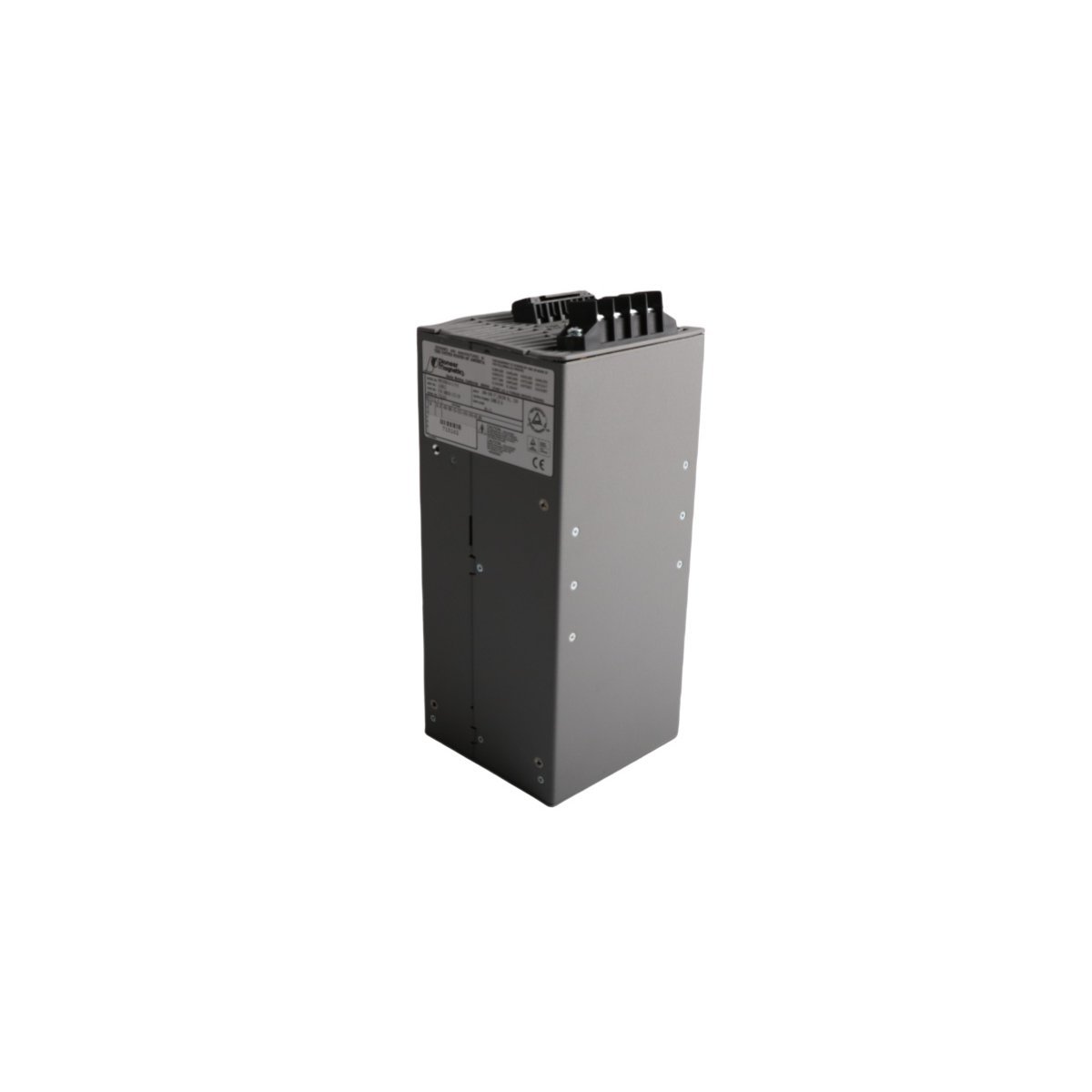

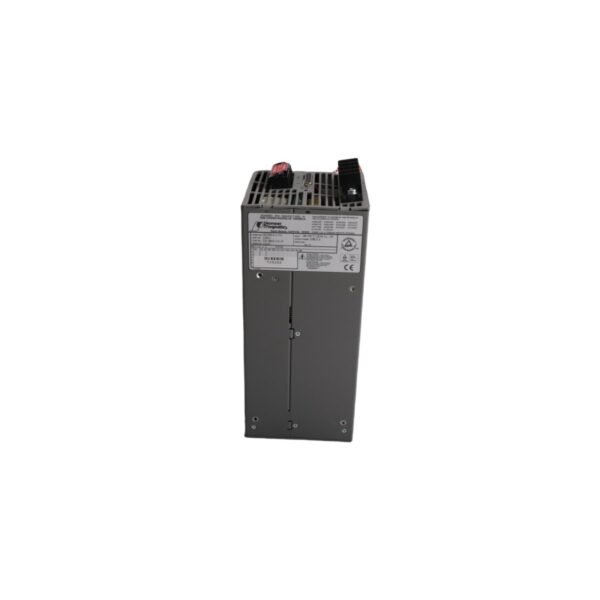

The Allen-Bradley PM3398B-6-1-3-E provides robust DC power for sophisticated industrial automation systems. This high-performance module converts standard AC input into a stable 56V DC output. It specifically delivers up to 1500.8 watts of total power. Consequently, this unit supports heavy-duty motor drives and complex control panels easily. The power supply maintains tight voltage regulation under varying load conditions. This stability protects sensitive electronic components from damaging fluctuations.

Global Electrical Compatibility

Engineered for international deployment, the PM3398B-6-1-3-E accommodates a wide range of input voltages. It accepts between 100V and 240V AC at 50/60 Hz frequencies. Furthermore, the unit manages an input current of 23 amps to maintain high efficiency. This versatility allows facilities to standardize their hardware across different global regions. The module also functions as a direct replacement for part number 80026-172-24. Therefore, maintenance teams can quickly restore system operations with this standardized spare.

Operational Reliability and Protection

The PM3398B-6-1-3-E prioritizes system uptime through its durable internal architecture. It provides clean and uninterrupted energy to critical automated manufacturing lines. Moreover, the unit features advanced thermal management to ensure long-term service life. This hardware effectively shields control logic from common power interruptions and transients. Its heavy-duty construction weighs approximately 4.5kg, reflecting its industrial-grade build quality. This ensures the power supply withstands the vibrations and heat of factory environments.

Technical Specifications

System Integration and Maintenance

Installation into existing PLC systems remains straightforward due to the modular design. The unit interfaces perfectly with diverse Rockwell Automation hardware families. Furthermore, the front-facing terminals allow for secure and accessible wiring connections. This design simplifies routine inspections and voltage testing procedures. By utilizing this high-output module, engineers ensure their systems have sufficient overhead for future expansions. It serves as a dependable cornerstone for modern industrial power distribution.
