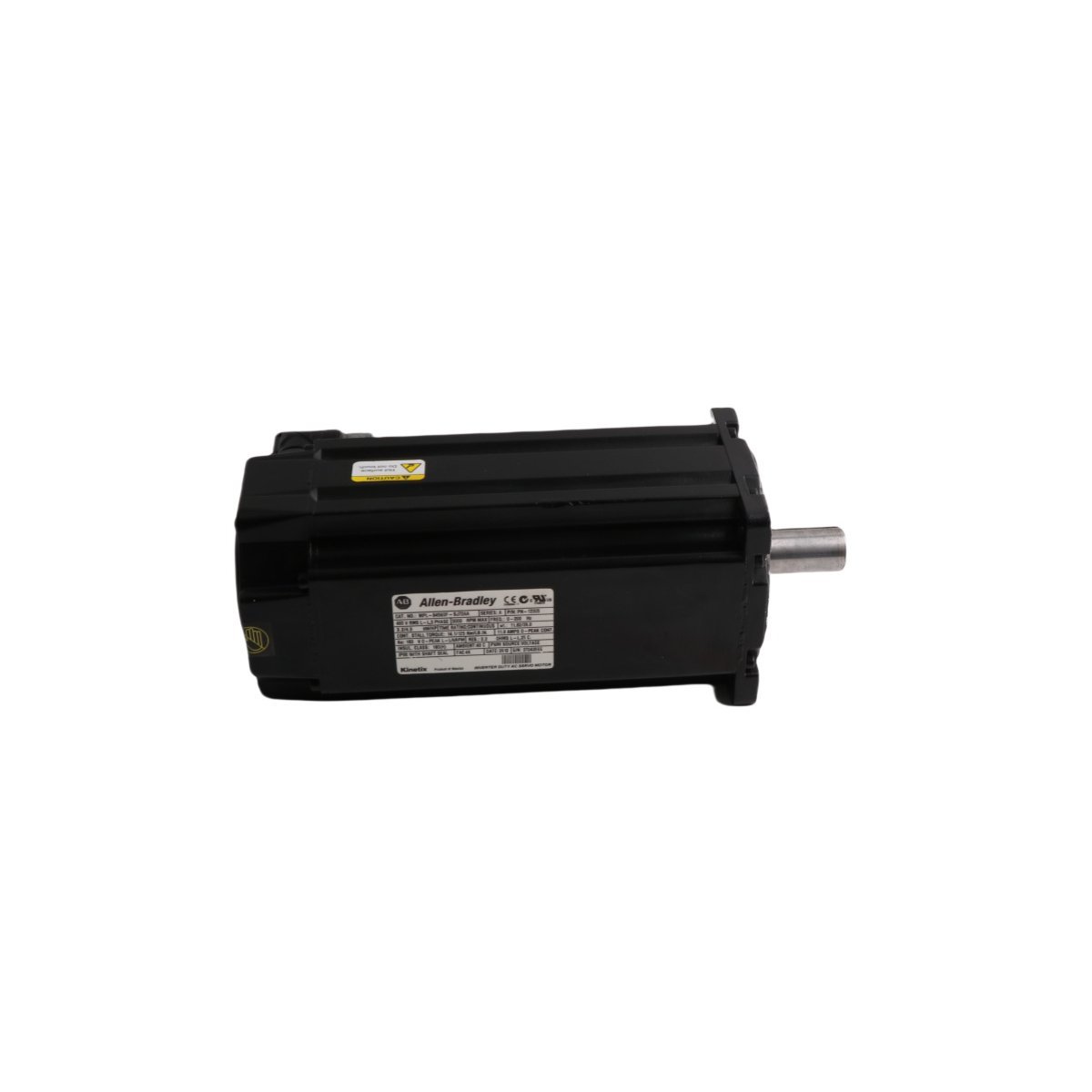

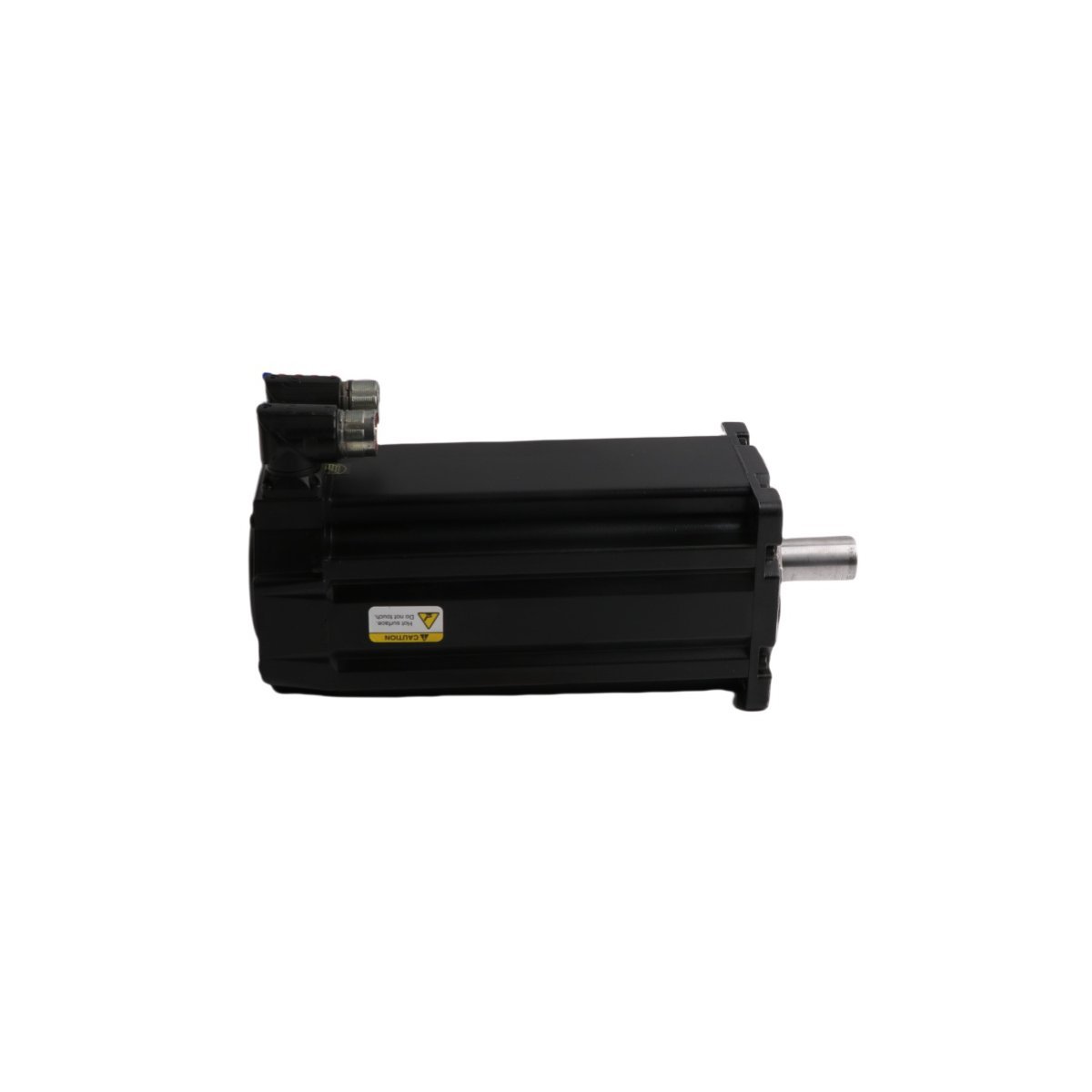

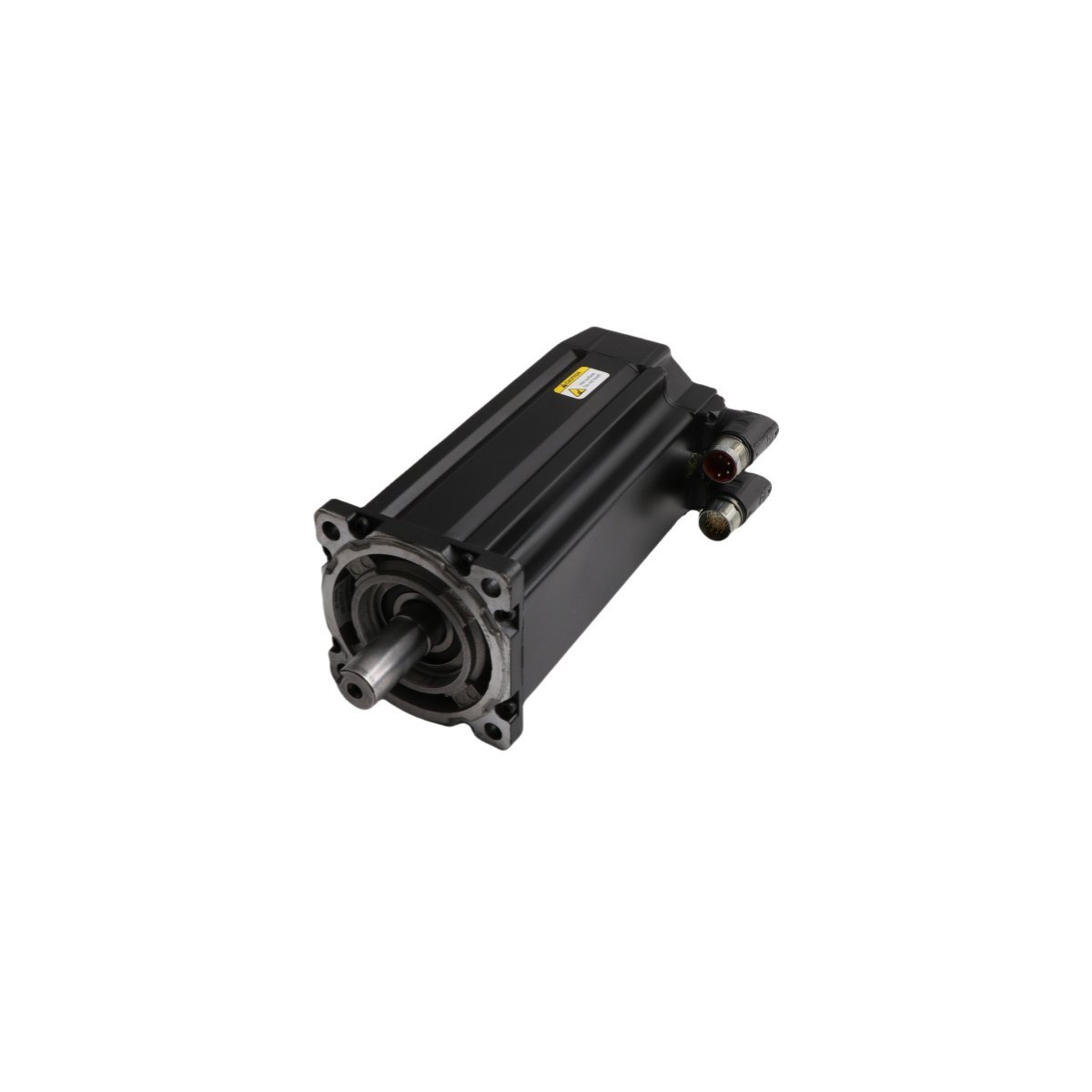

The Allen Bradley MPL-B4560F-SJ72AA is a premium Kinetix MP-Series low-inertia rotary servo motor designed for high-speed industrial applications.² Operating at 460V AC, this brushless motor provides exceptional torque density and precise positioning through its integrated high-resolution optical encoder.³

​Product Description

High-Dynamic Motion Control

The Allen Bradley MPL-B4560F-SJ72AA serves as a core component in high-performance motion systems, specifically within the Rockwell Automation Kinetix family. Engineers utilize this low-inertia motor for applications that demand rapid starts, stops, and accelerations. Because the motor features a 130 mm frame size and a 152.4 mm (6-inch) magnet stack, it generates a powerful rotating magnetic field that enables a rated speed of 3,000 RPM.⁴ Consequently, this unit is ideal for robotics, precision CNC machining, and high-speed material handling where cycle times are critical.

Precision Feedback and Mechanical Integration

Precision remains at the forefront of the MPL-B4560F-SJ72AA design. It incorporates a single-turn, high-resolution optical encoder with 1,024 SIN/COS cycles, ensuring the drive receives accurate position data for tight loop control.⁵ To simplify the mechanical setup, the motor includes a keyed shaft for secure torque transfer and an IEC metric mounting flange for global compatibility.⁶ Furthermore, the SpeedTec DIN connectors rotate 180 degrees, which allows for flexible cable routing and streamlined installation in tight enclosures.⁷ This specific model operates without a mechanical brake, prioritizing reduced weight and faster response times.⁸

Operational Reliability and Maintenance

The rugged brushless design of the 5.6 kg MPL-B4560F-SJ72AA ensures a long service life with minimal maintenance. Although the standard enclosure provides high IP-rated protection, users should verify shaft seal requirements based on the environmental exposure to fluids. To maintain system stability, technicians must ensure proper mechanical alignment of the couplings and pulleys during installation. Additionally, following strict electromagnetic compatibility (EMC) guidelines—such as proper grounding of power cable shields—is essential to prevent signal interference and high-voltage hazards. By maintaining correct torsion and alignment, operators can significantly reduce vibration and extend the life of the internal ball bearings.
