Description

Brief Product Description

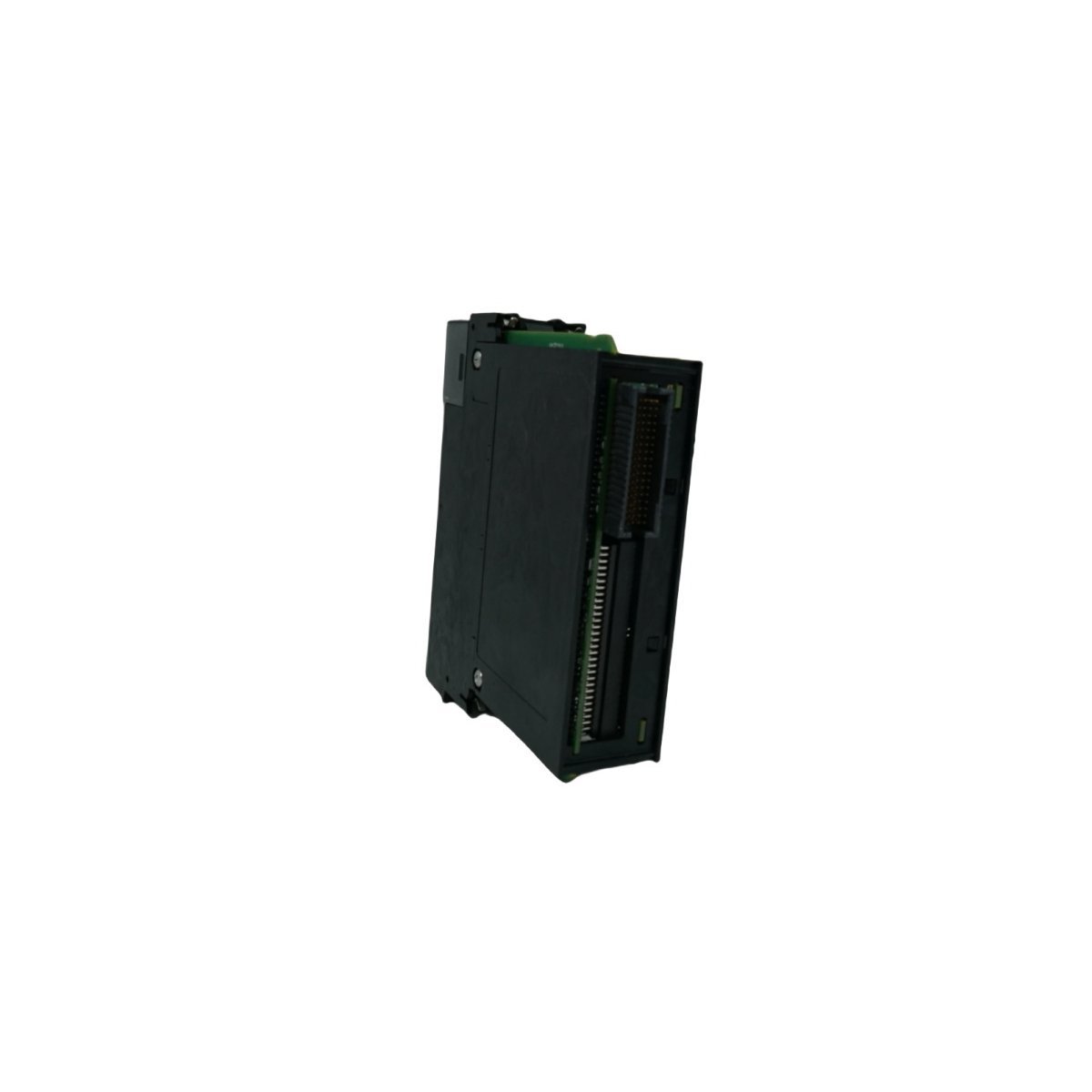

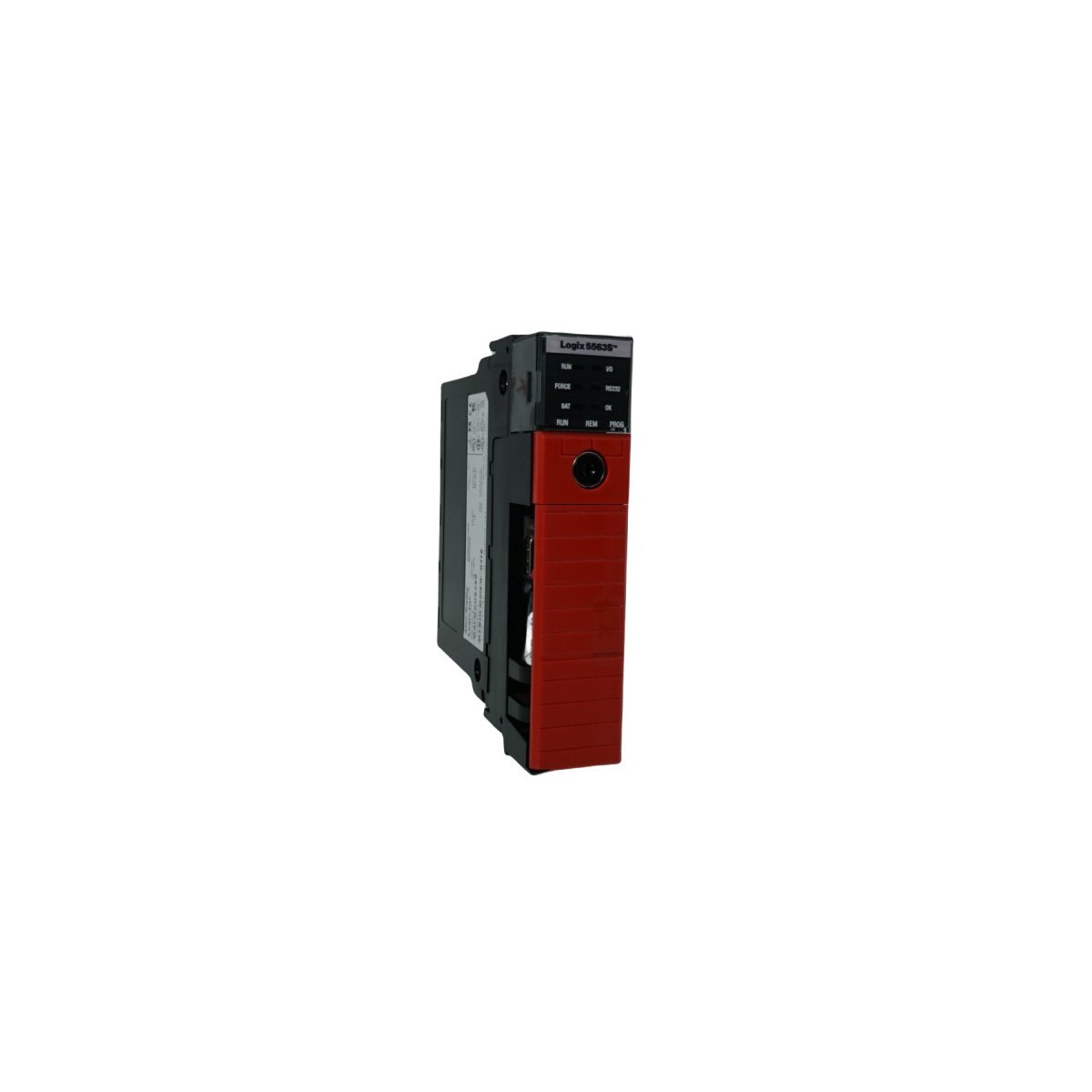

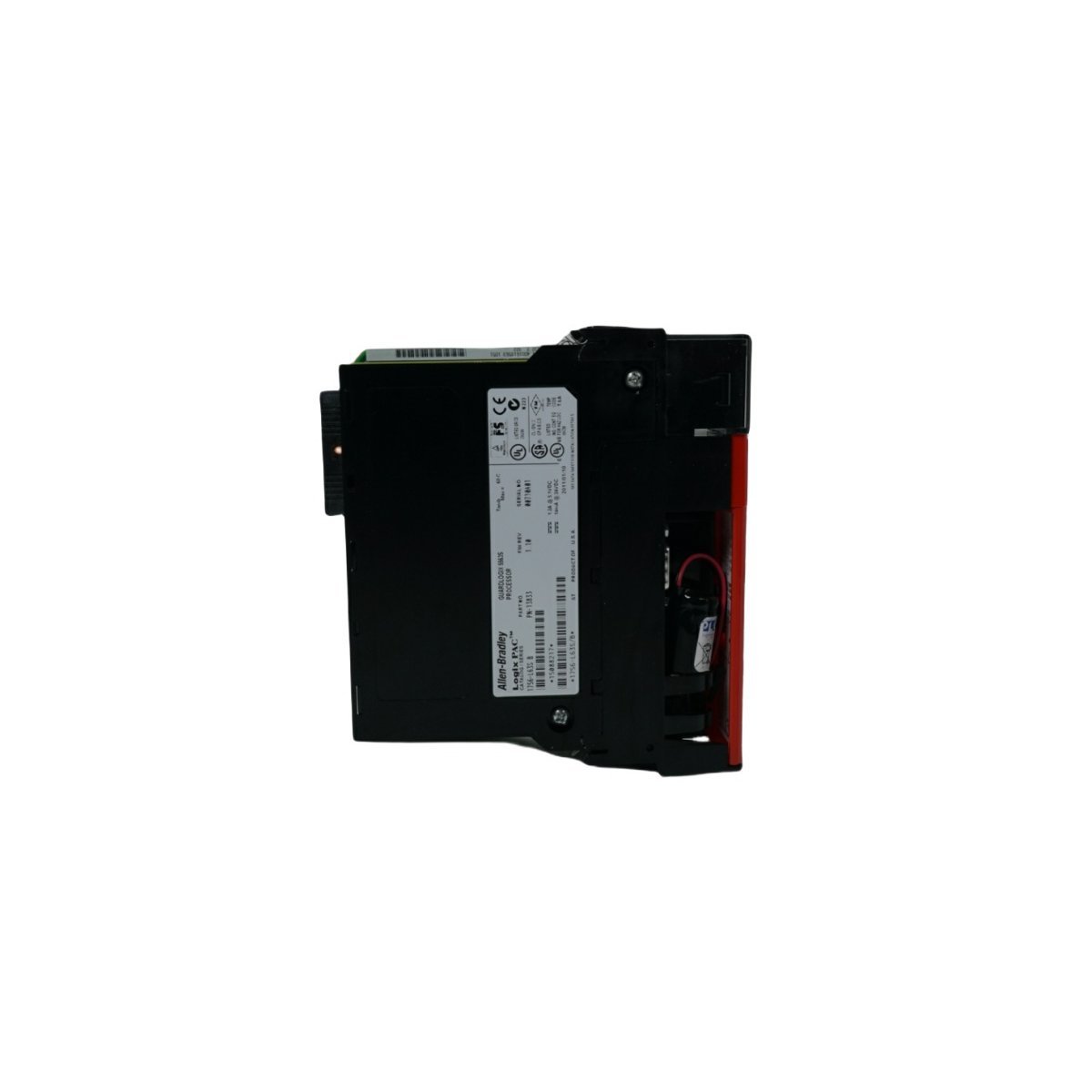

The Allen-Bradley 1756-L63S is a high-performance GuardLogix safety controller designed to manage integrated safety and standard control within a single ControlLogix chassis.¹ It provides 8 MB of user memory and meets rigorous SIL 3 requirements by utilizing a specialized safety partner coprocessor.²

Product Description

Integrated Safety and Standard Control

The Allen-Bradley 1756-L63S functions as a dual-processor solution that simplifies complex industrial safety architectures.³ By combining standard control logic with dedicated safety functions in one unit, it eliminates the need for separate safety relays or independent systems.⁴ This GuardLogix controller achieves high-integrity safety levels, such as SIL 3 and PLe, by utilizing an isolated second channel managed by its required safety partner module. This “1oo2” (one-out-of-two) voting architecture ensures that the system detects internal faults and maintains a safe state during critical hardware failures.

Advanced Memory and Processing Performance

Engineered for data-intensive applications, the 1756-L63S offers 8 MB of user memory alongside 478 KB of dedicated I/O memory.⁵ This ample capacity supports sophisticated arithmetic calculations, extensive data file manipulation, and comprehensive report generation. Furthermore, the controller utilizes non-volatile memory options for secure program storage and rapid data retrieval, ensuring that the system can recover quickly after power cycles. An onboard lithium battery sustains the volatile memory and internal clock, while various operational modes—including RUN, PROGRAM, and REMOTE—provide engineers with full flexibility during commissioning and routine maintenance.⁶

Simplified Infrastructure and Maintenance

The 1756-L63S ControlLogix module integrates directly into the standard 1756 chassis, utilizing the high-speed backplane for communication with I/O modules and network interfaces. This design choice removes the necessity for specialized wiring or proprietary communication ports, as the primary controller handles all configuration tasks. Additionally, the front panel features a physical key switch and clear LED status indicators, which allow technicians to verify the health of the safety task and the controller status at a glance. These features collectively enhance operational uptime while reducing the total cost of ownership for safety-instrumented systems.

Technical Specifications
