Product Description

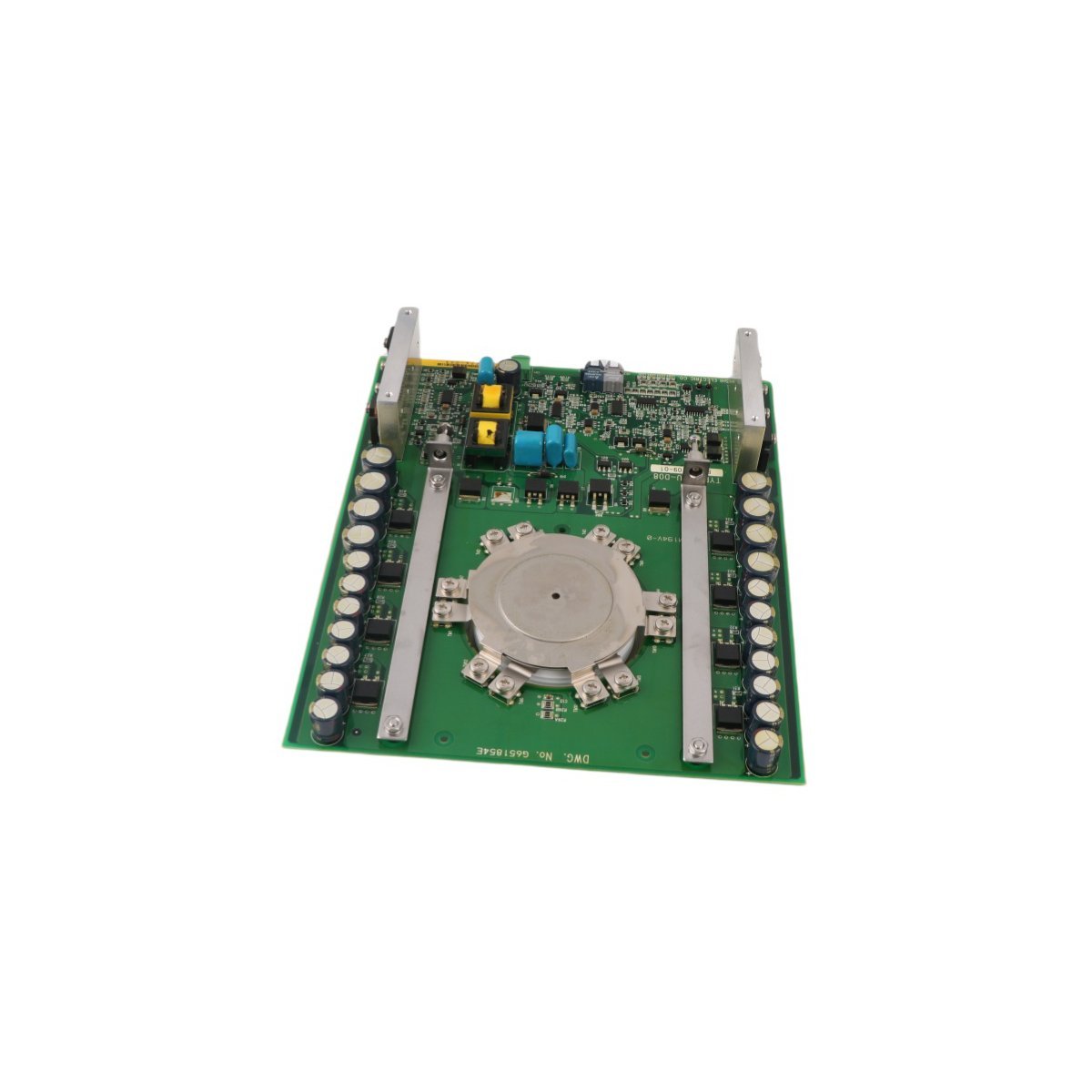

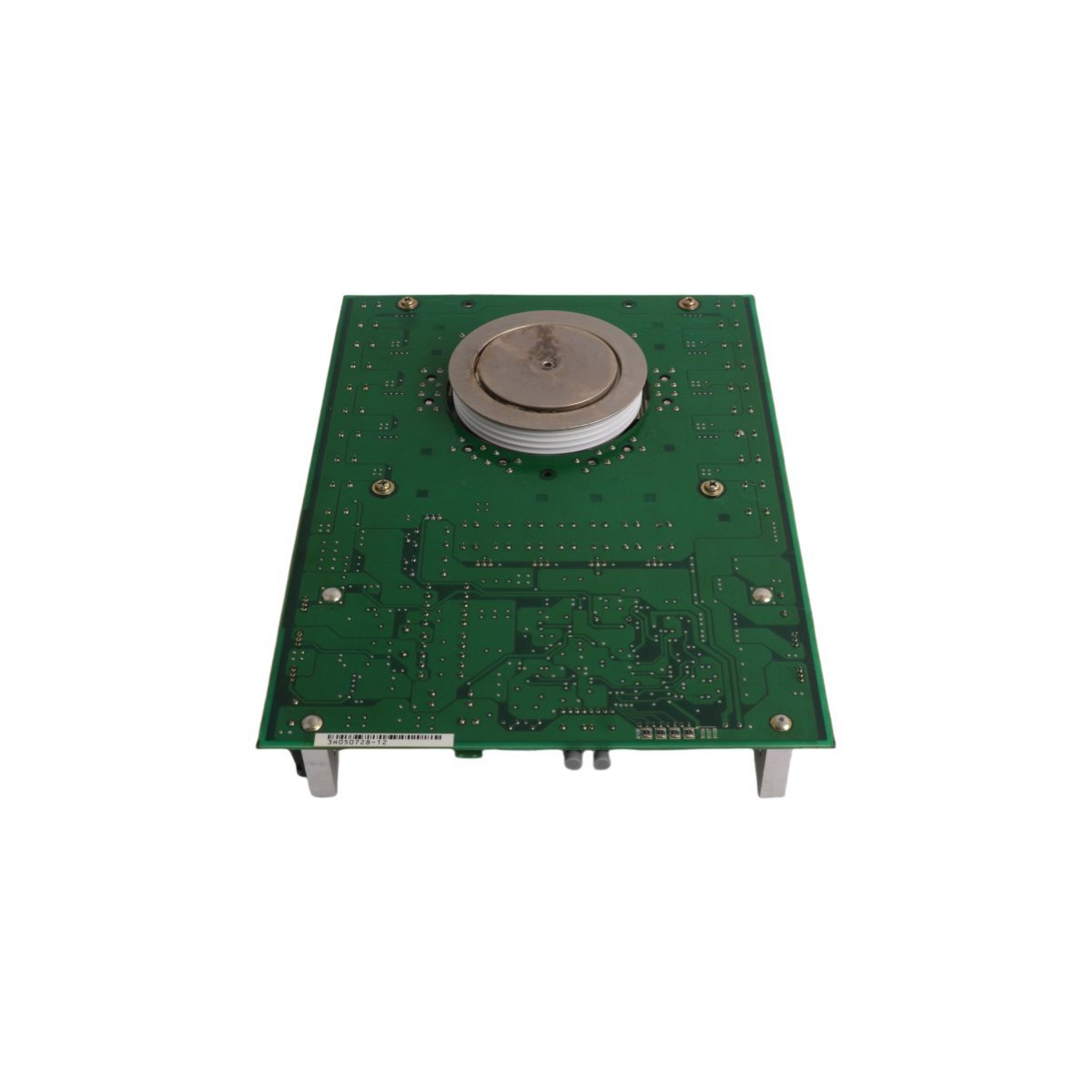

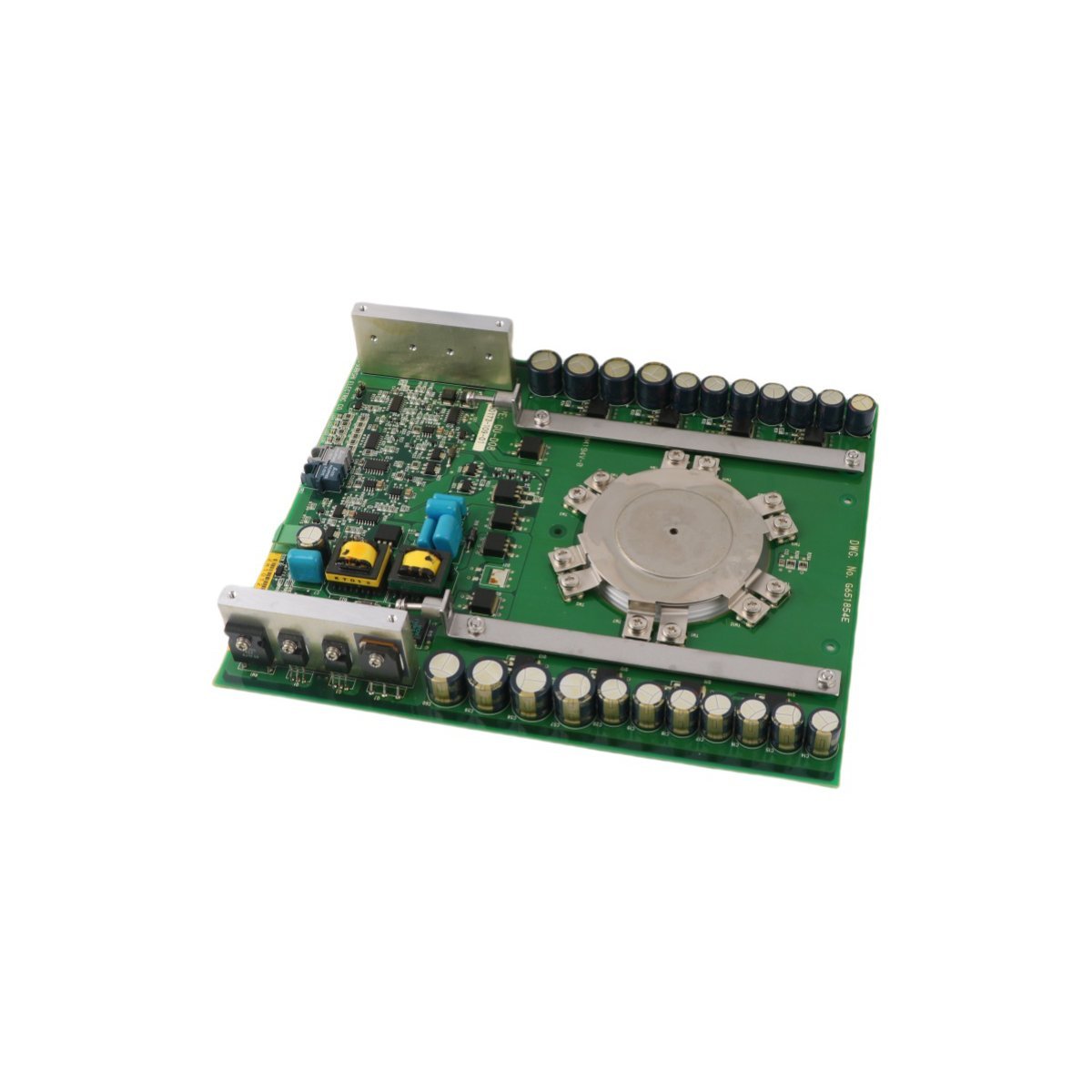

The Allen Bradley GCU08BB-130, identified by part number 80173-109-01-2, functions as a heavy-duty thyristor control assembly engineered specifically for high-demand industrial motor soft-start systems. By employing a sophisticated array of silicon-controlled rectifiers (SCRs), this unit manages the initial current inrush during motor startup, which effectively prevents mechanical shock and extends the operational life of the drivetrain. It operates seamlessly within 480V AC architectures, providing the power regulation necessary for massive centrifugal loads and high-inertia machinery.

Furthermore, this thyristor unit integrates directly with the Allen Bradley SMC™ series to provide a comprehensive motor management solution. The internal circuitry constantly monitors thermal conditions and load variables, allowing the system to adjust power output in real-time. This active regulation ensures that the motor achieves optimal torque without exceeding safe electrical limits. Because the unit features a compact, modular footprint, panel builders can maximize cabinet density while maintaining sufficient airflow for cooling the power stages.

In addition to its primary power handling roles, the GCU08BB-130 incorporates a suite of diagnostic tools to assist maintenance personnel. Integrated LED status indicators allow for immediate visual confirmation of network health and SCR firing status, which significantly streamlines troubleshooting procedures. The ruggedized chassis protects sensitive electronic components from the vibrations and temperature fluctuations common in heavy manufacturing, making it a reliable choice for critical applications in material handling, fluid pumping, and industrial ventilation.

Technical Characteristics

• Product Function: SCR Thyristor Power Control Unit
• Current Rating: 130 Amperes Continuous
• Voltage Compatibility: 480V AC Systems
• Component Configuration: 8-Stage Silicon-Controlled Rectifier (SCR) Array
• Control Integration: Optimized for Allen Bradley SMC Soft Starter Series
• Thermal Management: Integrated heat sink monitoring and over-temperature protection
• Diagnostic Interface: Real-time LED status indicators for power and faults
• Environmental Protection: Industrial-grade ruggedized enclosure
• Installation Type: Panel mount with high-density spacing capability
• Dimensions: 25 x 20.7 x 5.5 cm
• Unit Weight: 1.14 kg
