Description

Brief Product Description

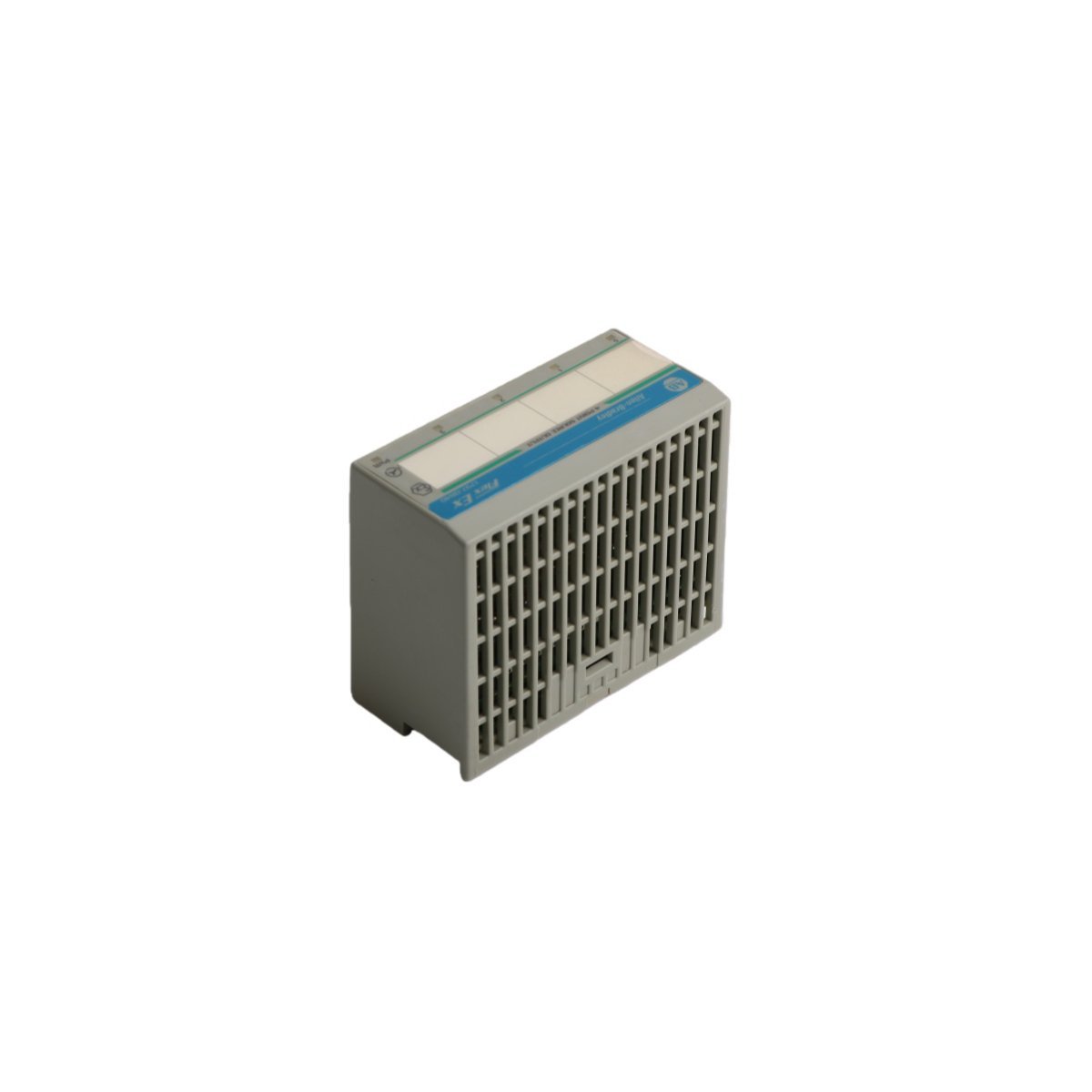

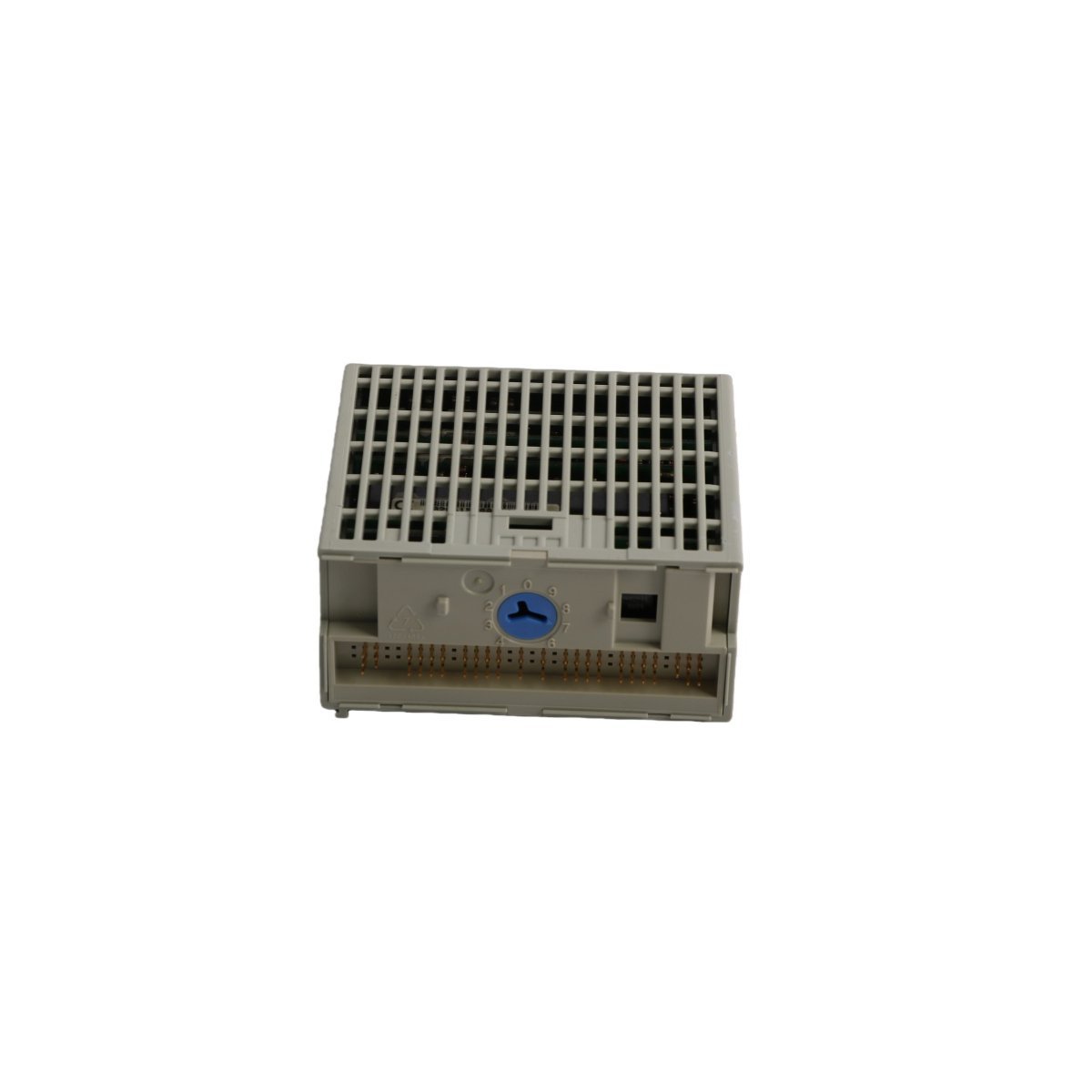

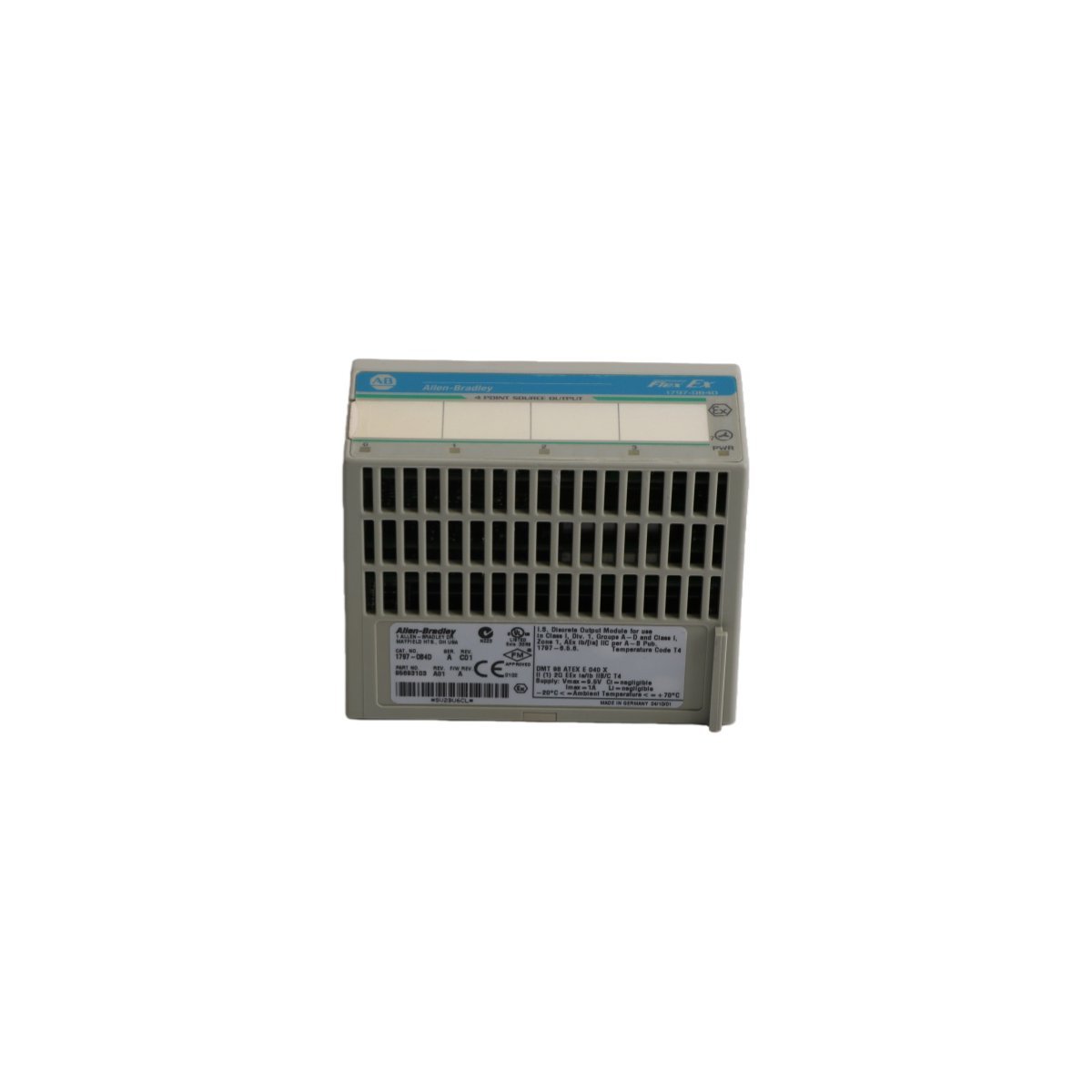

The Allen-Bradley 1797-OB4D is a specialized 4-channel digital sourcing output module designed for intrinsically safe FLEX Ex I/O systems. It provides robust control for hazardous area actuators and solenoids while offering per-channel electronic protection and fault detection.

Advanced Diagnostic Capabilities and Fault Resilience

The 1797-OB4D significantly improves system uptime by incorporating per-point electronic protection and advanced circuit monitoring. This module actively identifies critical field-side issues, such as short circuits and open-wire conditions, on a channel-by-channel basis. When the hardware detects a fault, a red blinking LED provides immediate notification to on-site technicians, which accelerates the troubleshooting process. Furthermore, because these diagnostics occur in real-time, the module prevents damage to sensitive internal circuitry and connected field devices during electrical failures. This proactive protection makes the 1797-OB4D an essential component for high-availability industrial processes.

High-Speed Performance in Hazardous Environments

Reliability in hazardous zone automation requires both safety and speed. The 1797-OB4D delivers a rapid 2ms backplane update rate, ensuring that control commands from the PLC reach the field actuators with negligible latency. The sourcing output configuration simplifies the electrical architecture by utilizing a single common supply for all four points. To provide operators with local status visibility, each channel features a dedicated yellow status indicator. Consequently, the module allows for precise timing in automated sequences while maintaining the strict safety standards required for Intrinsically Safe (IS) applications.

Rugged Architecture and Integrated Safety

Rockwell Automation engineered the 1797-OB4D for seamless integration into the FLEX Ex I/O platform, facilitating high-density installations in space-constrained control cabinets. The module’s non-isolated sourcing design reduces wiring complexity, yet it maintains high electrical integrity through its specialized industrial-grade construction. It operates effectively across a wide temperature spectrum and withstands the mechanical stresses typical of heavy industry. By combining sophisticated electronic monitoring with a durable physical footprint, this module ensures that critical automation tasks remain consistent even in the most demanding atmospheric conditions.

Key Technical Characteristics

• 4-Point Sourcing Logic: Provides four high-reliability digital outputs referencing a common power supply.
• Intrinsically Safe Design: Built specifically for the FLEX Ex I/O family to serve hazardous area applications.
• Per-Channel Electronic Protection: Automatically detects and defends against short circuits and lead breakages.
• Rapid Backplane Refresh: Updates output states every 2ms to support high-speed actuation requirements.
• Comprehensive Visual Feedback: Employs dedicated LEDs for both channel status (yellow) and fault alerts (red).
• Optimized Power Distribution: Non-isolated sourcing architecture reduces field wiring and installation time.

Technical Specifications
