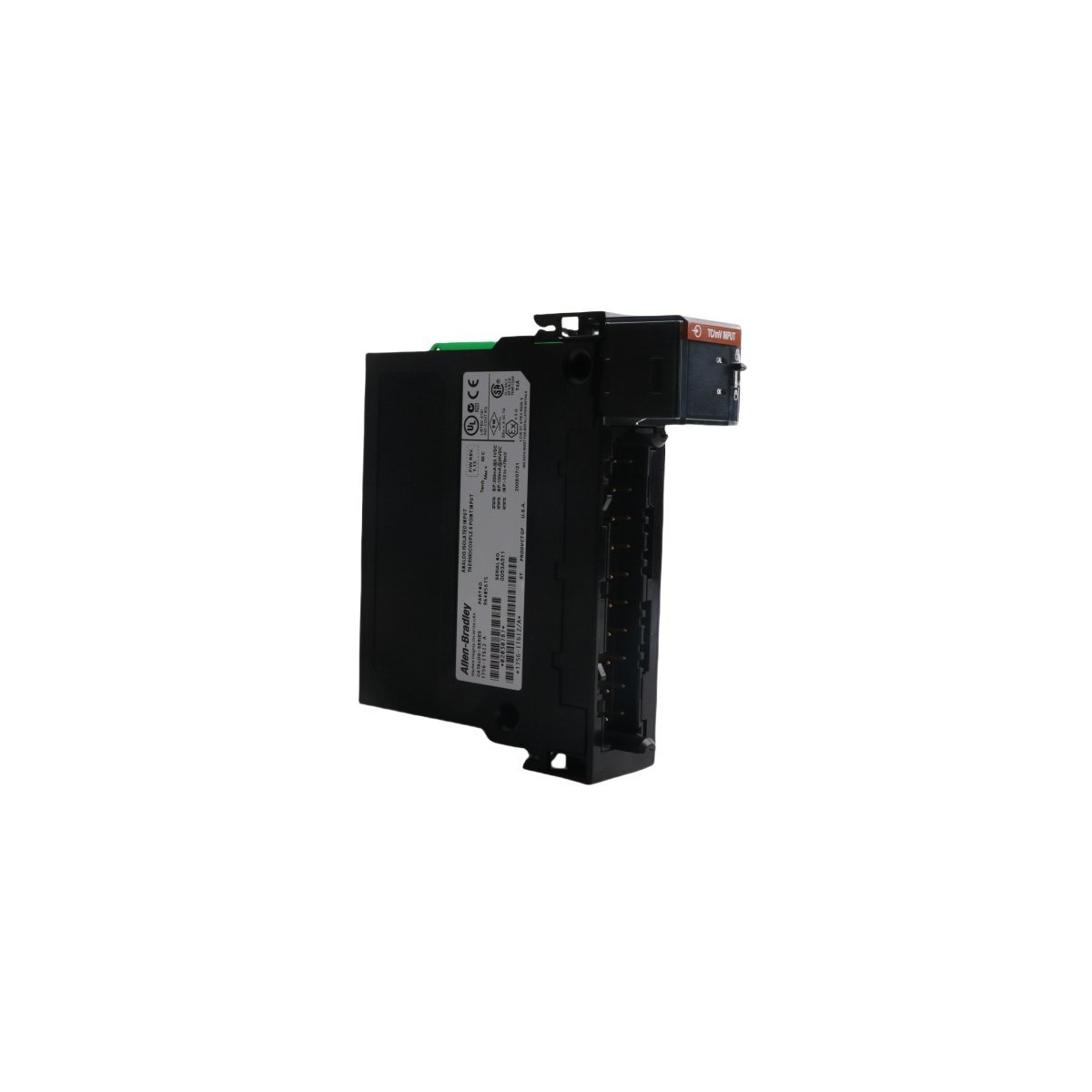

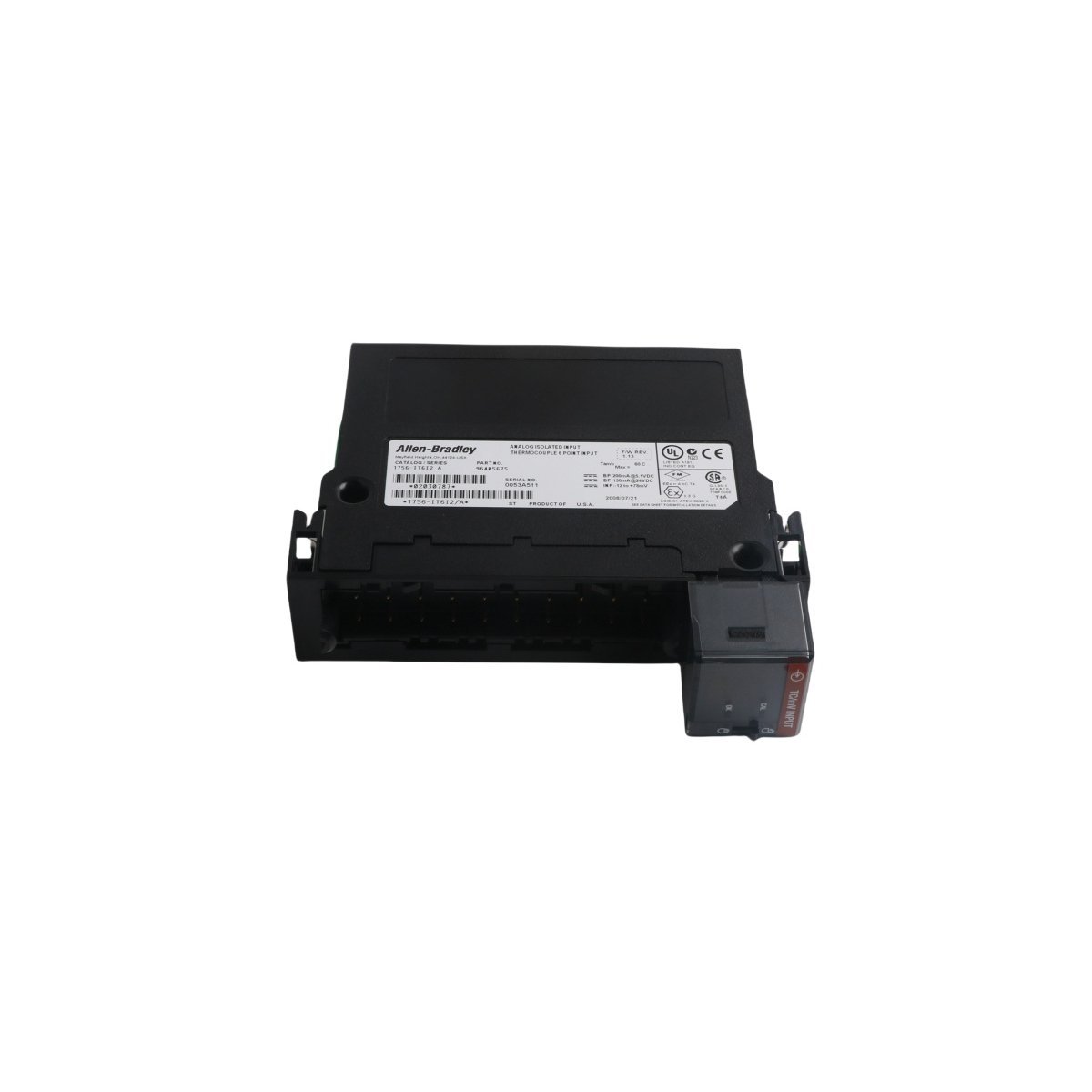

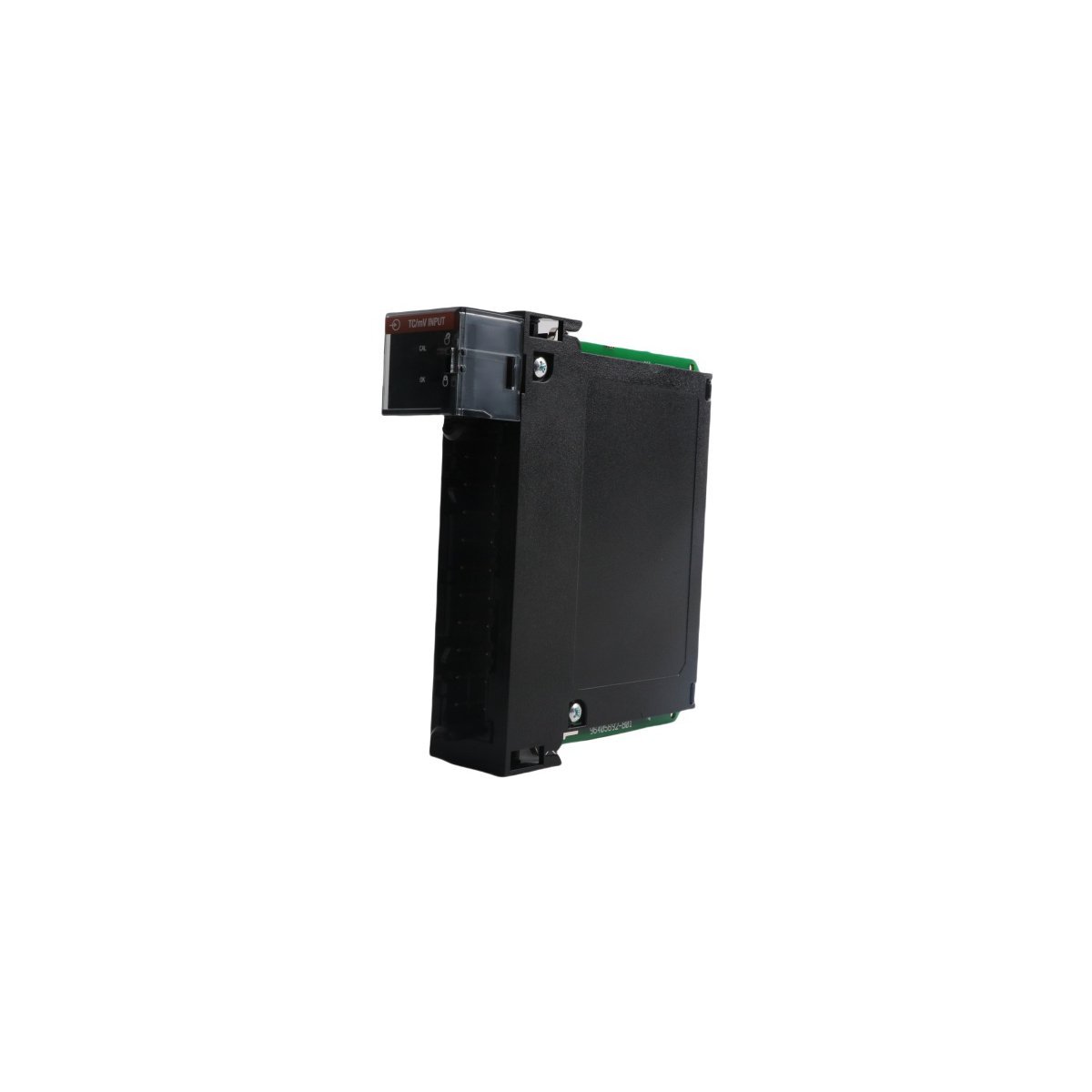

The Allen-Bradley 1756-IT6I2 is a high-resolution, individually isolated analog input module specifically engineered for precision thermocouple temperature sensing. It integrates seamlessly into the ControlLogix platform to provide stable, low-level signal measurement for demanding industrial thermal processes.

Product Description

High-Precision Thermal Acquisition

The Allen-Bradley 1756-IT6I2 provides a specialized interface for capturing low-voltage signals from various thermocouple types. This module features six channels of individual galvanic isolation, which effectively prevents ground loops and ensures that a fault on one sensor does not propagate to other inputs or the backplane. By supporting a vast array of thermocouple calibrations—including types B, C, D, E, J, K, L, N, R, S, and T—the module offers versatility across diverse heating and cooling applications. Furthermore, the hardware utilizes ITS-90 linearization algorithms to convert raw millivolt data into highly accurate temperature values.

Robust Signal Processing and Diagnostics

Equipped with a 16-bit analog-to-digital converter, the 1756-IT6I2 delivers exceptional resolution, detecting signal changes as small as 0.7 microvolts. The module maintains signal integrity through superior noise rejection, boasting 160 dB of common-mode rejection to eliminate interference in electrically “noisy” factory environments. To protect the control system from wiring errors, the inputs withstand overvoltage conditions up to 120V AC/DC. Additionally, the module actively monitors the health of each circuit, providing real-time alerts for open-circuit detection, rate-of-change alarms, and under-range or over-range conditions.

Advanced ControlLogix Integration

Installation of the 1756-IT6I2 module into a standard ControlLogix chassis enables immediate data table mapping for both integer and floating-point formats. The module includes two dedicated cold-junction compensation (CJC) inputs to correct for ambient temperature variations at the terminal block, ensuring measurement stability. Engineers can configure real-time sampling intervals and digital filtering via Studio 5000 software to match specific process dynamics. This integration supports both local chassis placement and distributed I/O architectures over EtherNet/IP, making it a flexible solution for large-scale temperature monitoring systems.
