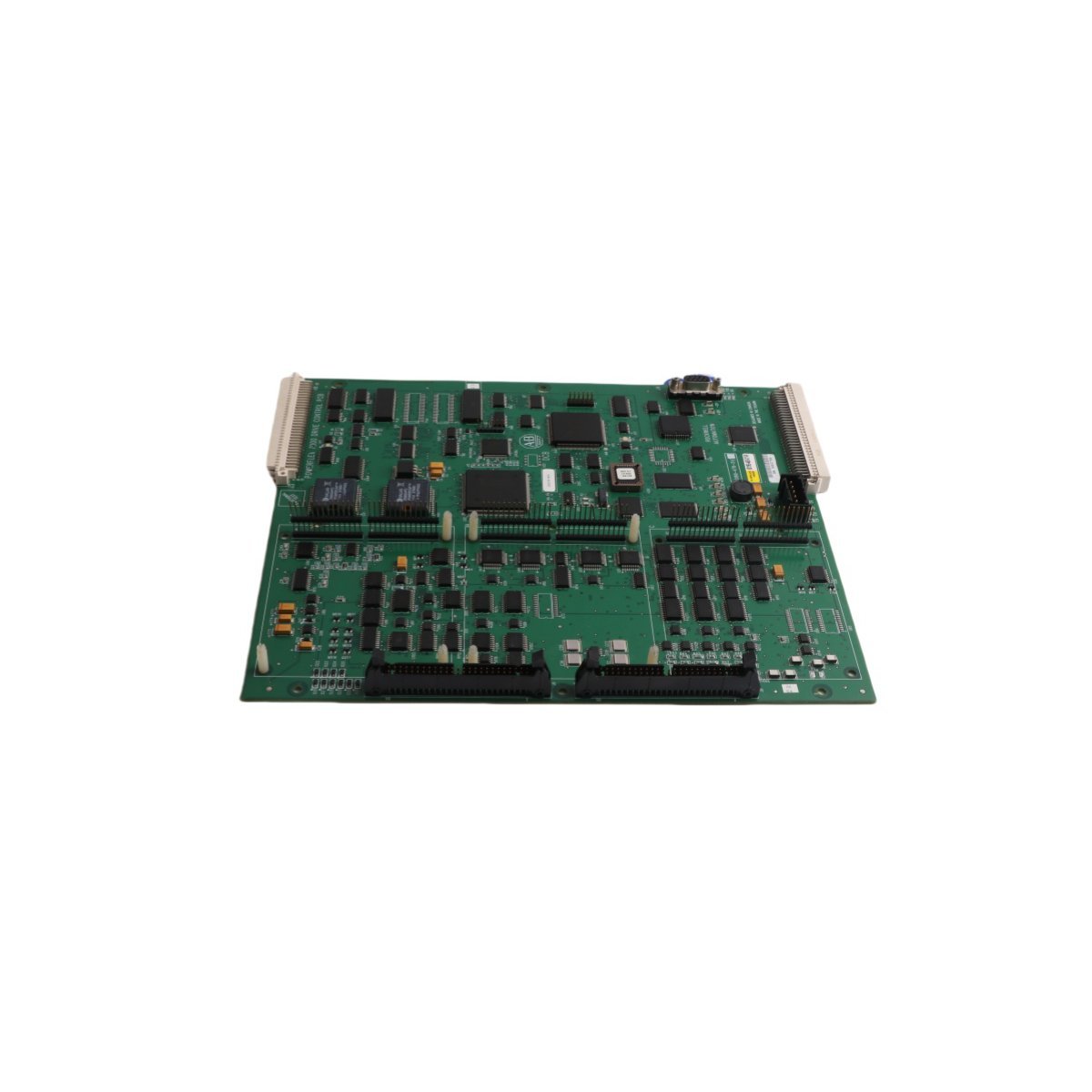

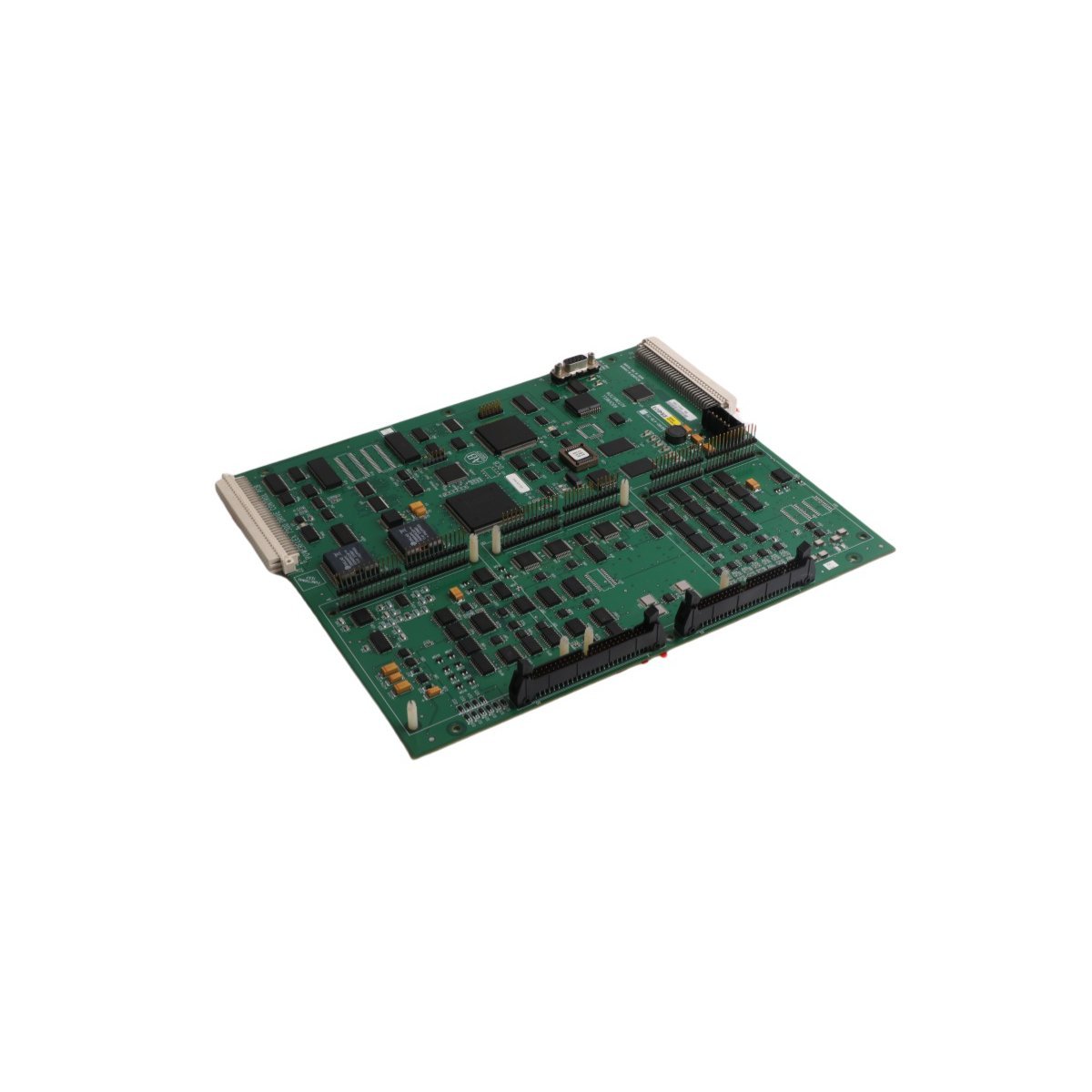

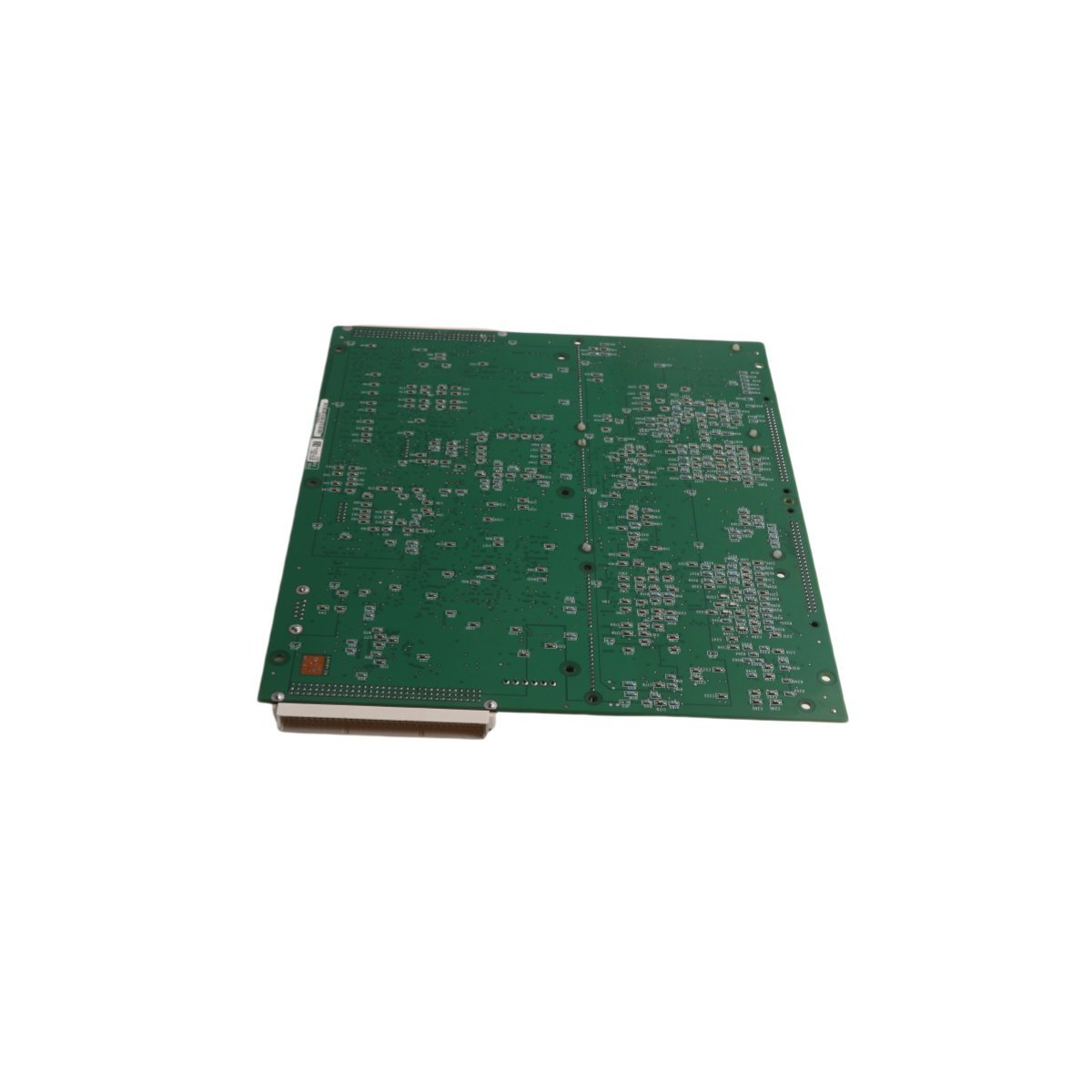

Allen-Bradley 80190-480-01-R PowerFlex Extended I/O Control Board

The 80190-480-01-R is a high-density drive control module designed for the PowerFlex series, supporting simultaneous four-motor regulation with a 7.2kW power capacity.¹

Technical Operational Overview

The 80190-480-01-R (Spare Part No: 8019048001R) serves as a sophisticated command interface for industrial PowerFlex drive systems. This board manages the logic and signal processing required to coordinate up to four motors from a single control point.² By utilizing a 480V AC input rating and a 15A current capacity, the module provides the necessary overhead for medium-scale industrial processes.³ It effectively bridges the gap between high-level PLC instructions and physical motor execution, ensuring precise torque and speed regulation across all connected axes.⁴

Beyond basic motor control, this board significantly expands system connectivity through its onboard I/O suite. It features a balanced array of 16 digital inputs and 16 digital outputs, which allows engineers to integrate a wide variety of field sensors and actuators directly into the drive’s control loop.⁵ The board’s architecture prioritizes thermal stability and signal clarity, maintaining consistent performance even when operating at its peak 7.2kW power threshold. Its slim profile facilitates easy integration into existing drive enclosures without necessitating major cabinet overhauls.

Key Technical Characteristics

• Multi-Axis Coordination: Enables streamlined control for up to four motors, reducing the need for multiple independent drive controllers.
• High Density I/O: Provides 32 total digital points (16 In / 16 Out) to enhance local automation and interlocking capabilities.
• Efficient Power Profile: Manages up to 7.2kW of power output with a sustained 15A current rating at 480V AC.⁶
• Precision Engineering: Manufactured in the USA to meet strict global standards for industrial automation reliability.⁷
• Climate Resilience: Maintains operational integrity in ambient temperatures up to 40°C, with a robust storage range for harsh environments.
• Streamlined Form Factor: Weighs only 0.46kg with a slim 2.8cm depth, optimizing airflow and space within the drive housing.

Product Specifications

Industrial Applications

The 80190-480-01-R control board is ideal for complex machinery requiring synchronized movements. Primary applications include:

• Conveyor Systems: Coordinating multiple belt drives in logistics and distribution centers.
• Packaging Machinery: Managing multi-axis motion for filling, capping, and labeling equipment.
• HVAC Control: Regulating large fan and pump arrays in industrial climate control systems.
