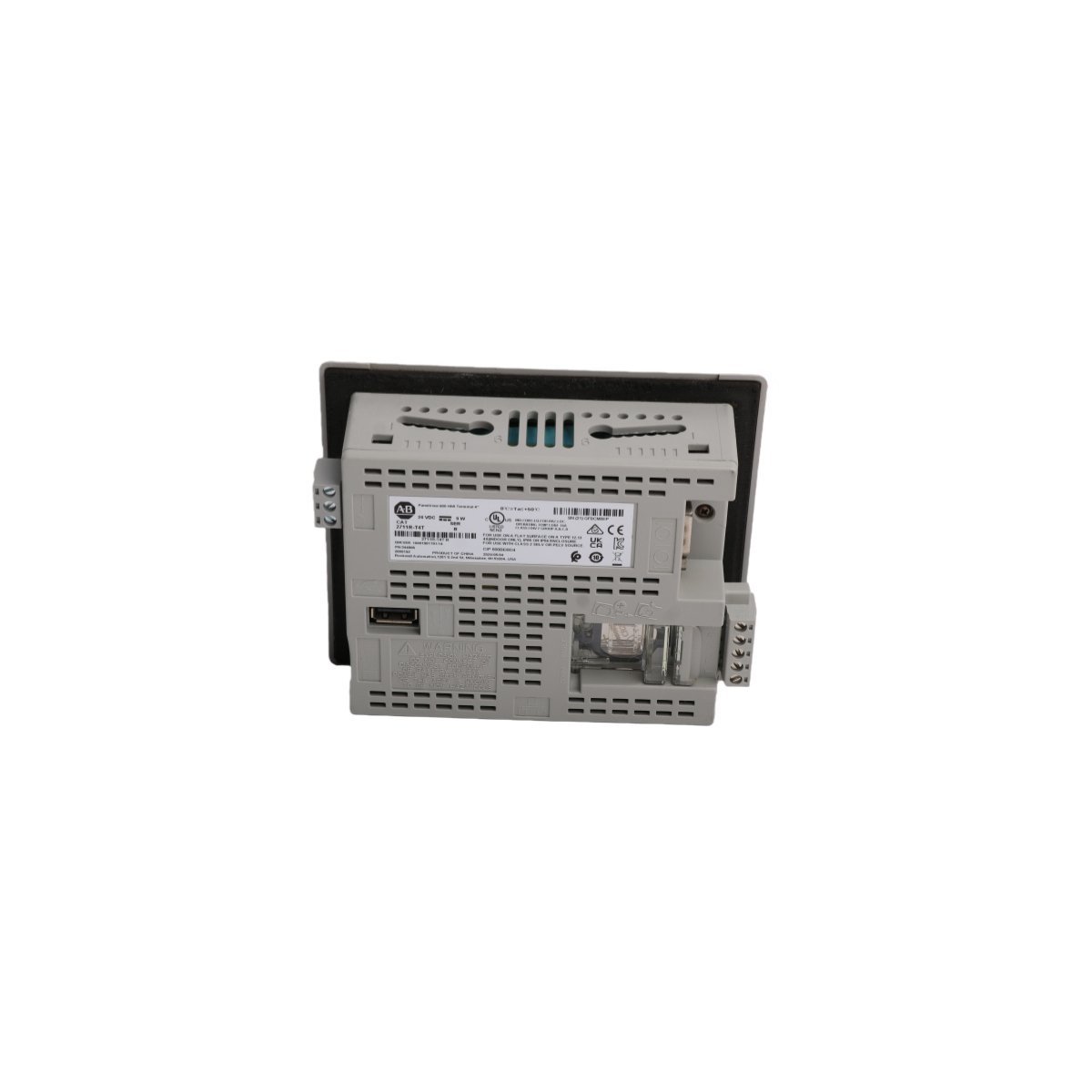

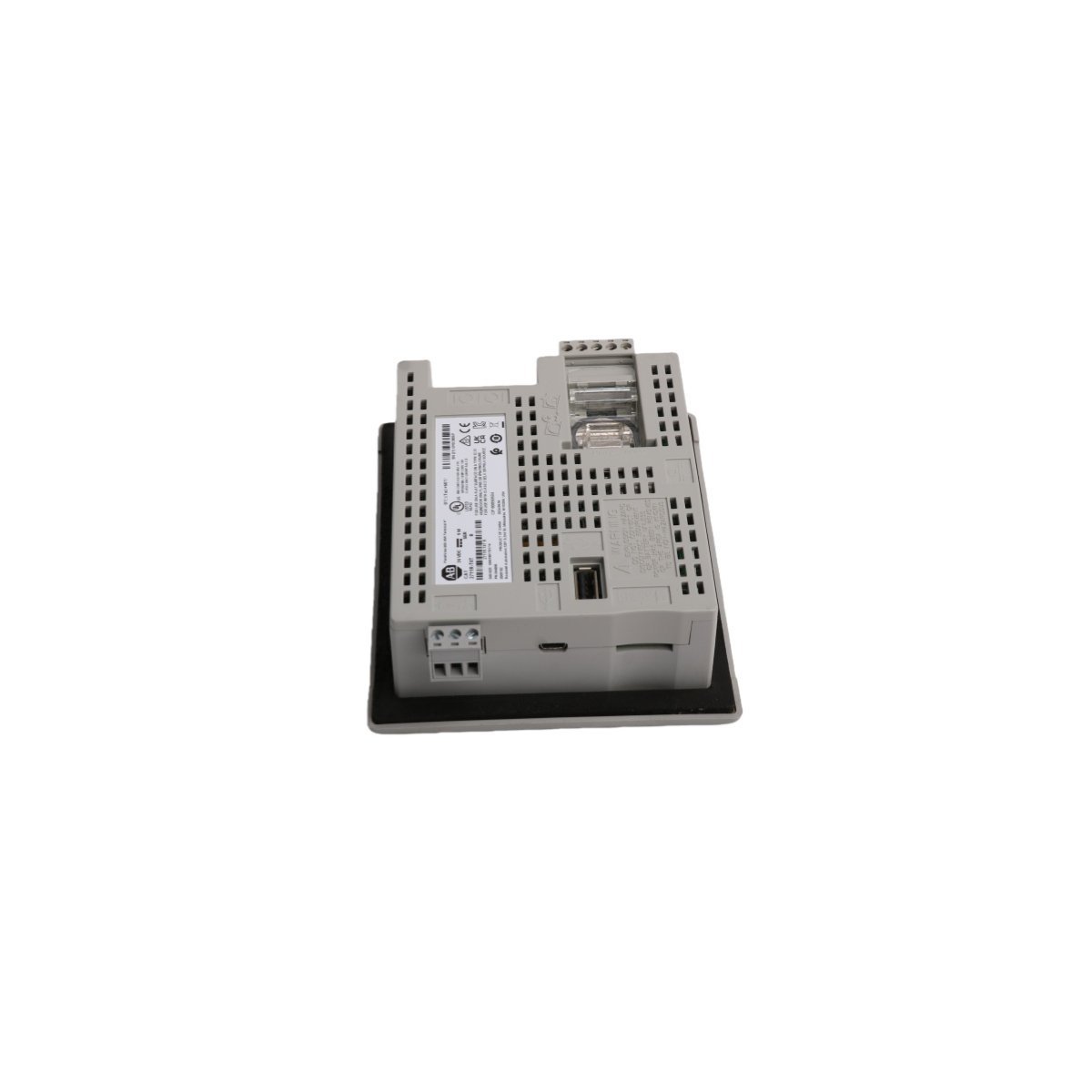

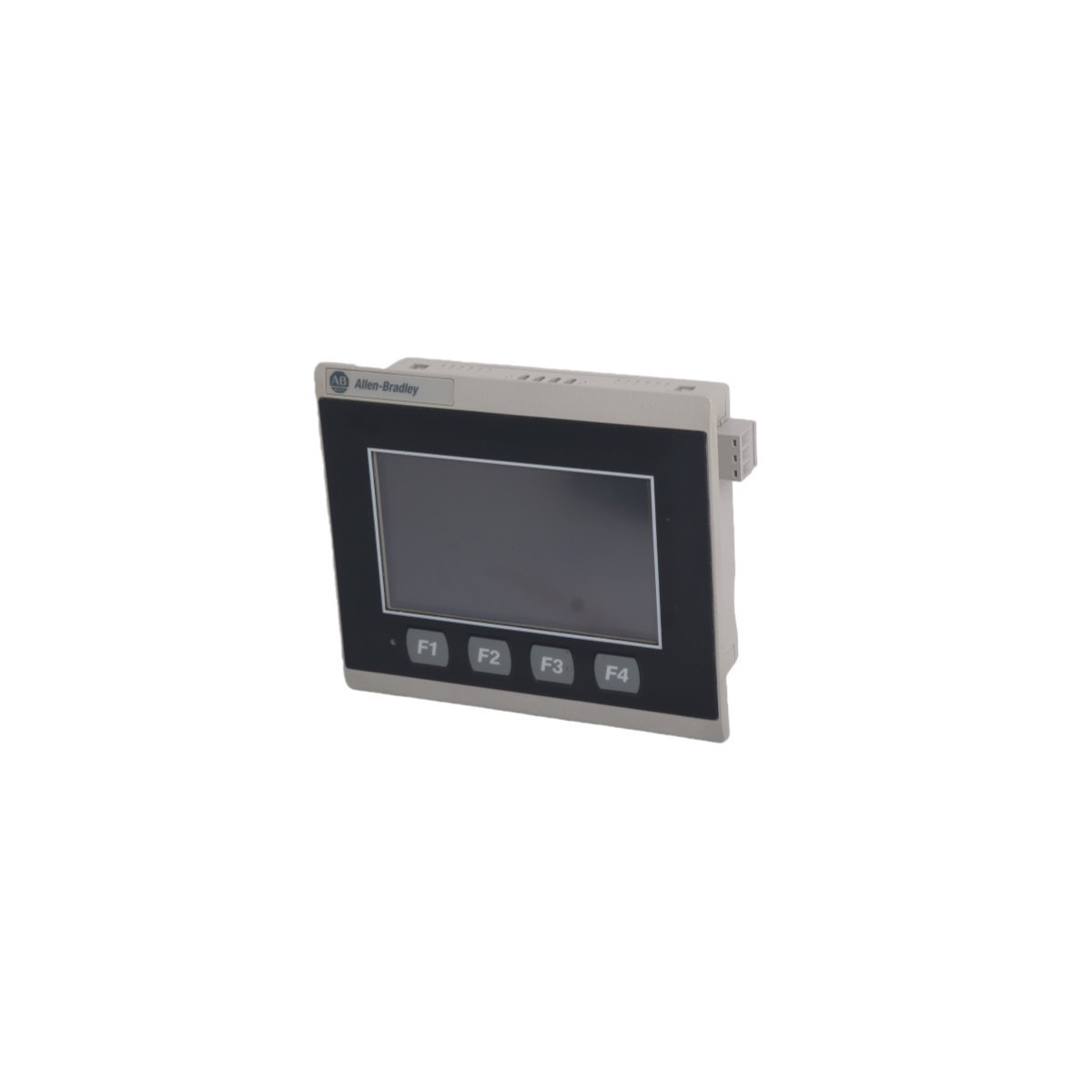

Allen-Bradley 2711R-T4T PanelView
The Allen-Bradley 2711R-T4T is a 4.3-inch PanelView 800 graphic terminal with a high-resolution touchscreen and 800 MHz processor. It features Ethernet and serial communication ports for seamless connection to Micro800 and MicroLogix controllers. This 24V DC HMI provides reliable visualization for compact industrial applications.
Description
The Allen-Bradley 2711R-T4T serves as an efficient Human-Machine Interface for small-scale industrial applications. This 4.3-inch widescreen display features a sharp 480 x 272 WQVGA resolution. It utilizes a resistive analog touchscreen for precise operator input in various conditions. Furthermore, the integrated LED backlight provides 40,000 hours of service life for long-term reliability. An 800 MHz processor ensures fast screen transitions and responsive data updates. The module includes 256 MB of dedicated RAM and Flash memory for project storage. Consequently, it delivers high performance within a space-saving form factor.
Versatile Connectivity and Integration
This PanelView 800 terminal offers flexible communication options for modern and legacy control systems. It features an onboard Ethernet port for high-speed networking with Micro800 controllers. Additionally, the unit includes RS-232 and RS-422/485 serial ports for broader device compatibility. These ports allow the terminal to communicate effectively with MicroLogix and SLC 500 systems. The hardware supports both landscape and portrait mounting to fit diverse panel layouts. Moreover, a built-in USB port facilitates quick firmware updates and data logging. These features ensure seamless integration across a wide range of factory automation architectures.
Advanced Data and Recipe Management
The 2711R-T4T empowers operators with sophisticated tools for managing production parameters. It includes a comprehensive recipe function to store and download complex data sets quickly. This capability minimizes downtime during product changeovers in packaging or material handling. Furthermore, the terminal supports alarm handling and real-time trending for proactive process monitoring. Users can configure the interface easily using Connected Components Workbench software. The module also features a micro-SD card slot for expanded external data storage. These advanced utilities provide operators with total control over their local automation environment.
Technical Specifications
| Feature | Specification |
| Model Number | 2711R-T4T |
| Display Type | 4.3-inch Color TFT Widescreen |
| Resolution | 480 x 272 WQVGA |
| Input Voltage | 18V to 32V DC (24V DC Nominal) |
| Processor Speed | 800 MHz |
| Memory | 256 MB RAM / 256 MB Flash |
| Communications | Ethernet, RS-232, RS-422/485 |
| Software | Connected Components Workbench |
Additional information
| Weight | 0.9 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 3.5 x 13 x 14.5 cm |
