Description

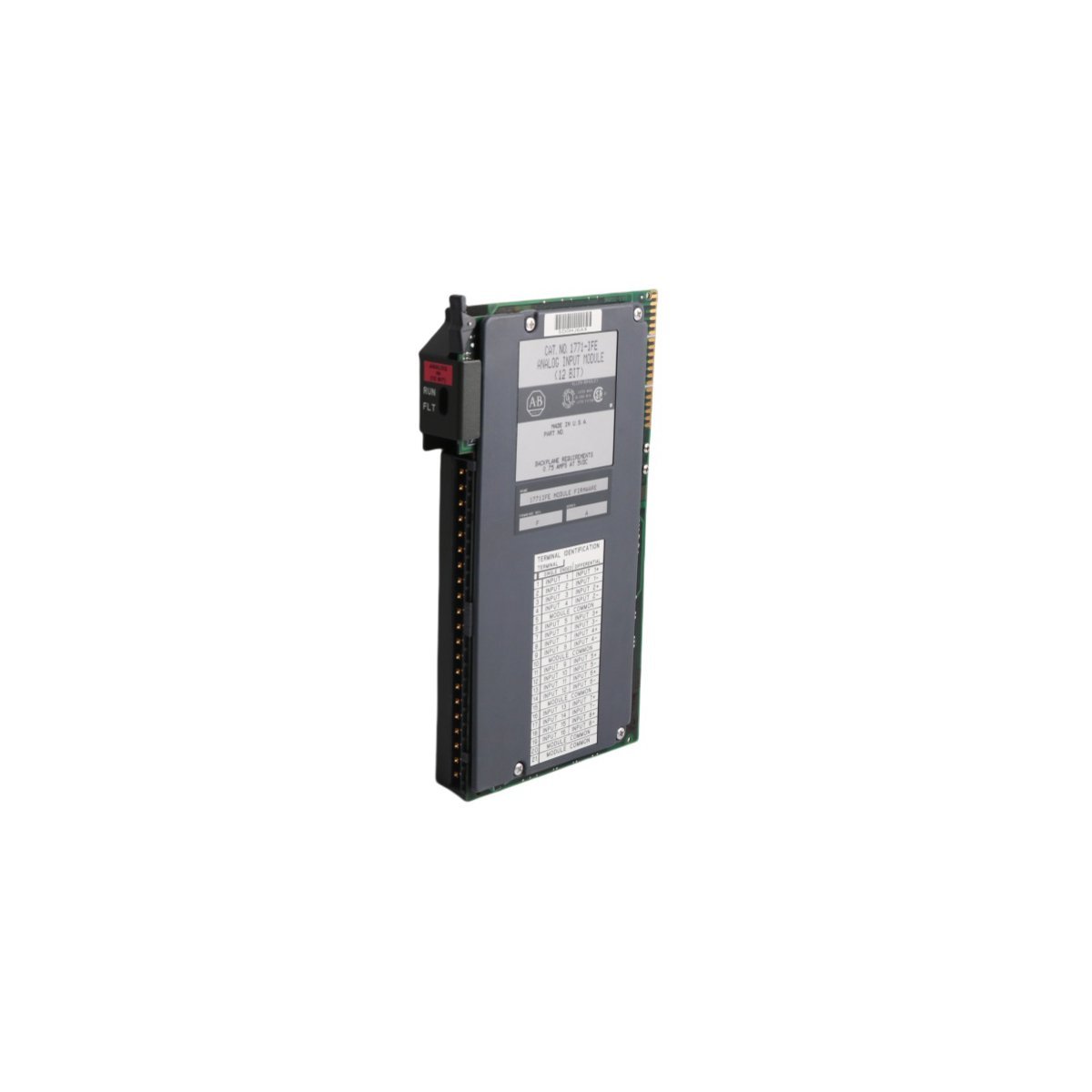

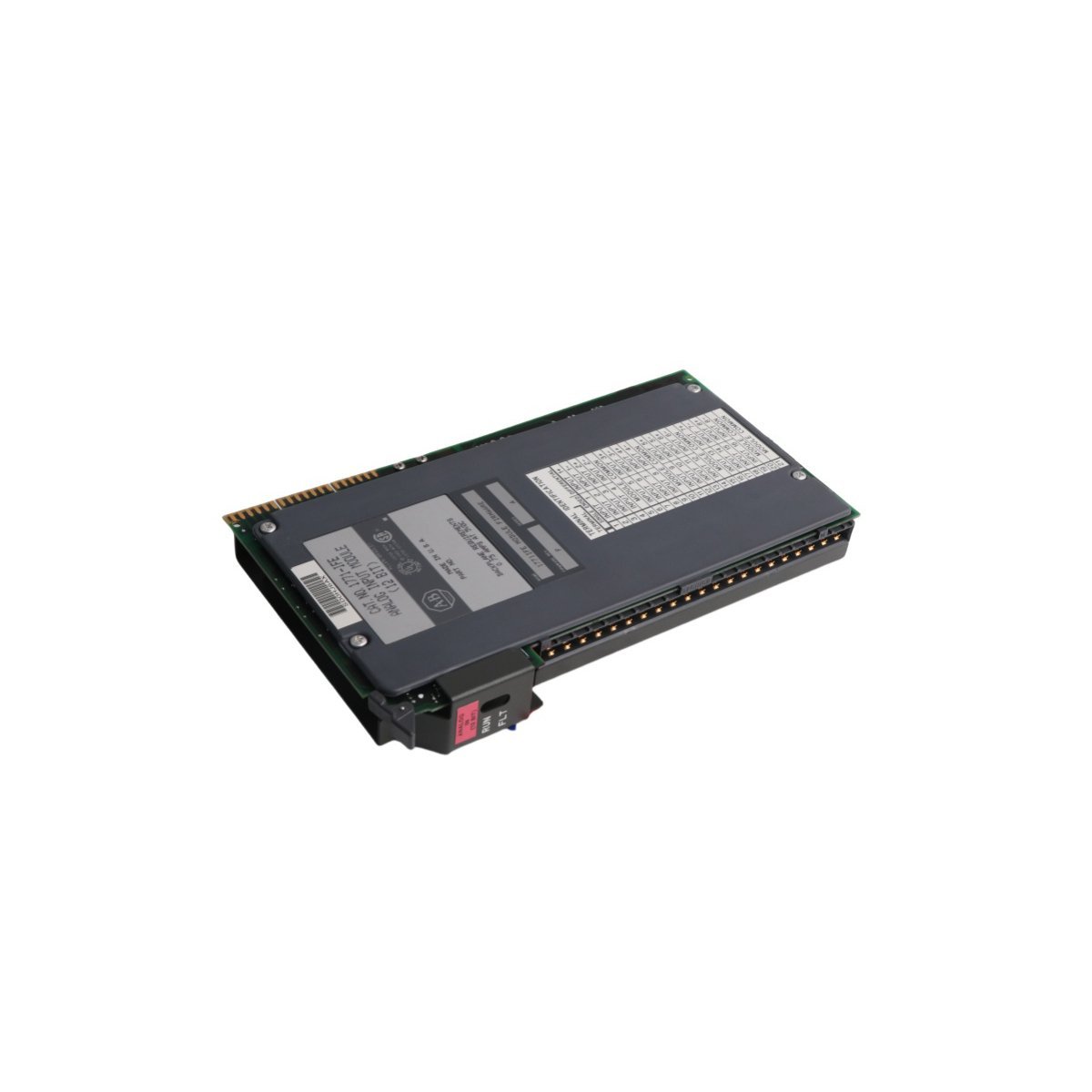

The Allen-Bradley 1771-IFE serves as a core analog interface for the PLC-5 hardware platform. This module converts various field signals into digital data for the processor. It supports 16 single-ended or 8 differential input channels. Consequently, engineers can monitor critical process variables like temperature and pressure. The unit delivers 12-bit plus sign resolution for high-accuracy measurements. Furthermore, optical isolation protects the backplane from industrial electrical noise. This ensures consistent data integrity across complex automated manufacturing lines.

Versatile Input Configuration

Connectivity options make the 1771-IFE highly adaptable to different sensor types. The module accepts standard voltage ranges including ±10V DC and 1-5V DC. Additionally, it processes current signals such as 4-20mA and ±20mA. Users can choose between Natural Binary or BCD scaling formats. Digital filtering further refines the incoming signals to eliminate transient interference. Moreover, the hardware allows for selectable sampling rates to match specific application speeds. This flexibility supports diverse sensors including flow meters and displacement transducers.

System Integration and Diagnostics

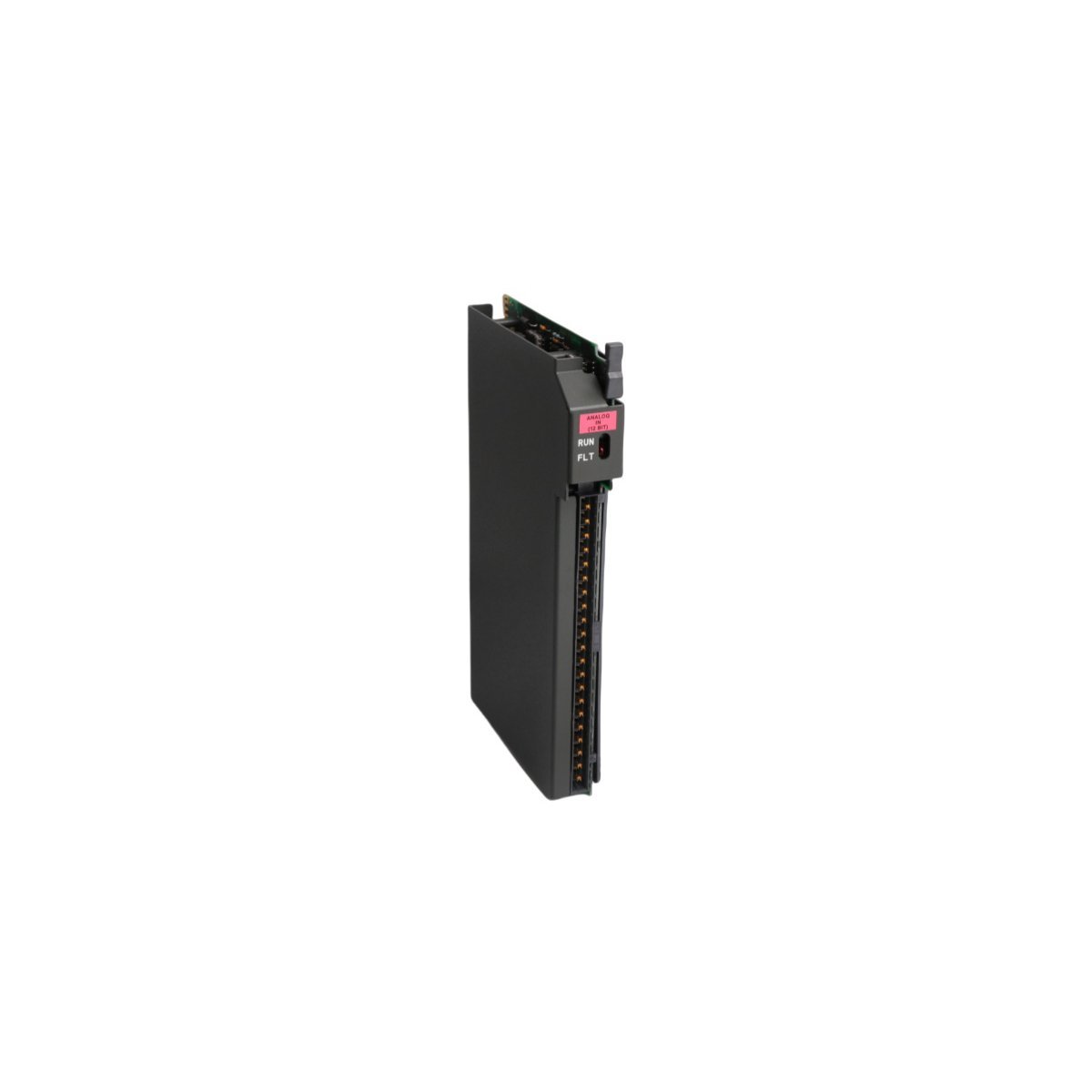

This module occupies a single slot within any 1771 universal I/O chassis. The front panel features RUN and FAULT LEDs for immediate status monitoring. These indicators help technicians identify communication issues or hardware failures quickly. Furthermore, the 1771-WG wiring arm allows for module replacement without disturbing field cables. This design significantly reduces downtime during routine maintenance or system upgrades. The module utilizes bidirectional block transfers for efficient data exchange with the CPU. Physical keying pins also prevent incorrect installation into the chassis.

Technical Specifications

Reliable Industrial Performance

The 1771-IFE remains a dependable choice for legacy PLC-5 system support. Its robust construction handles the thermal demands of heavy industrial environments. Additionally, the programmable fault responses enhance overall system safety. The module provides a stable bridge between analog field devices and digital logic. This ensures precise control for chemical processing and water treatment facilities. Its long-standing reputation for durability makes it an essential spare part. Standardizing on this module simplifies inventory management for large-scale operations.
