Description

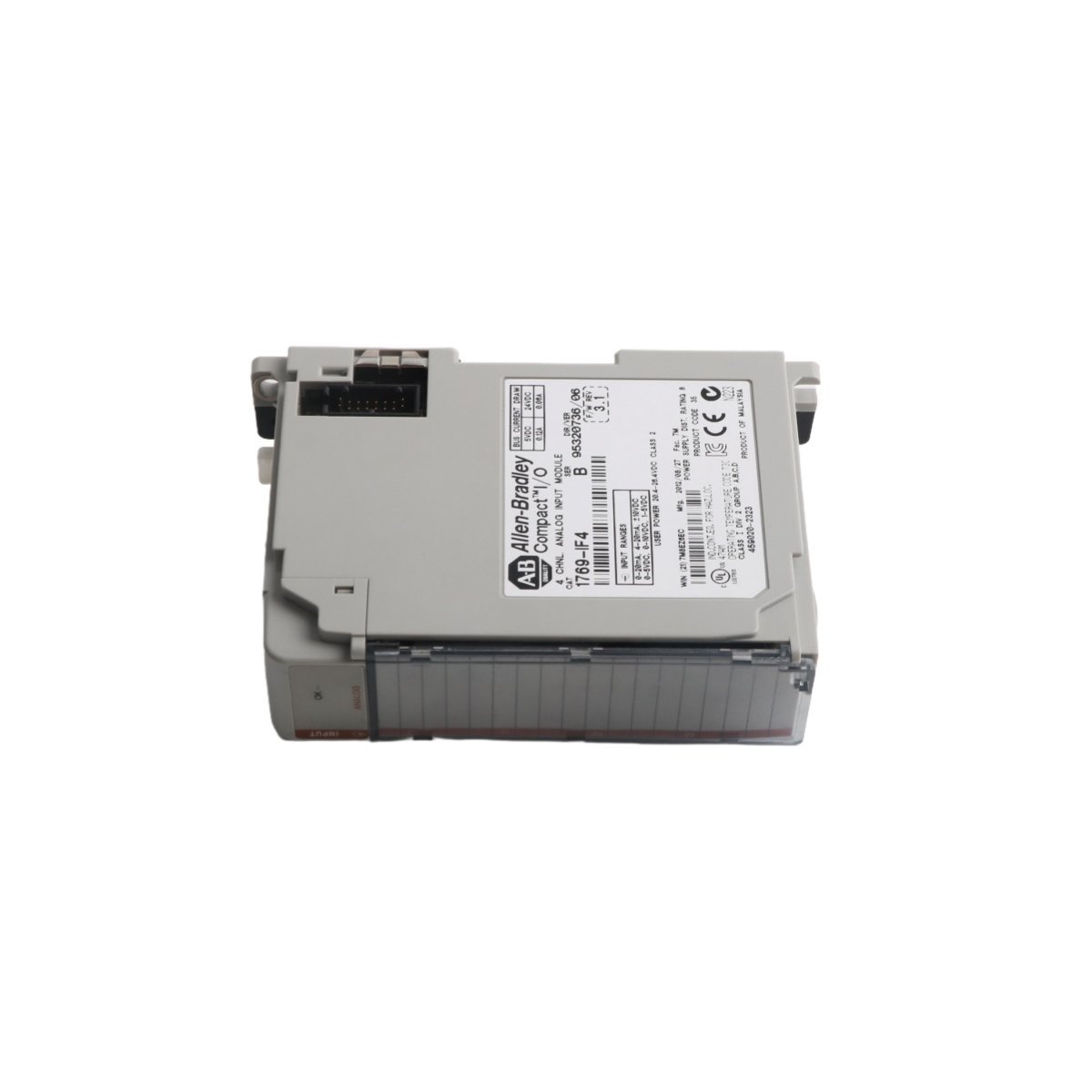

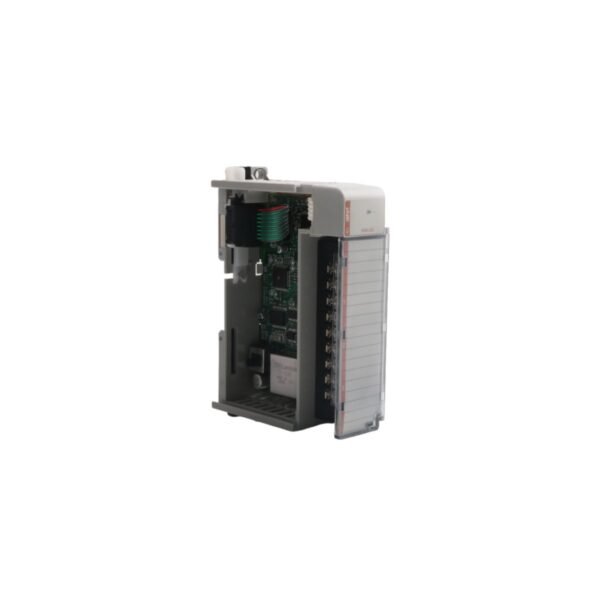

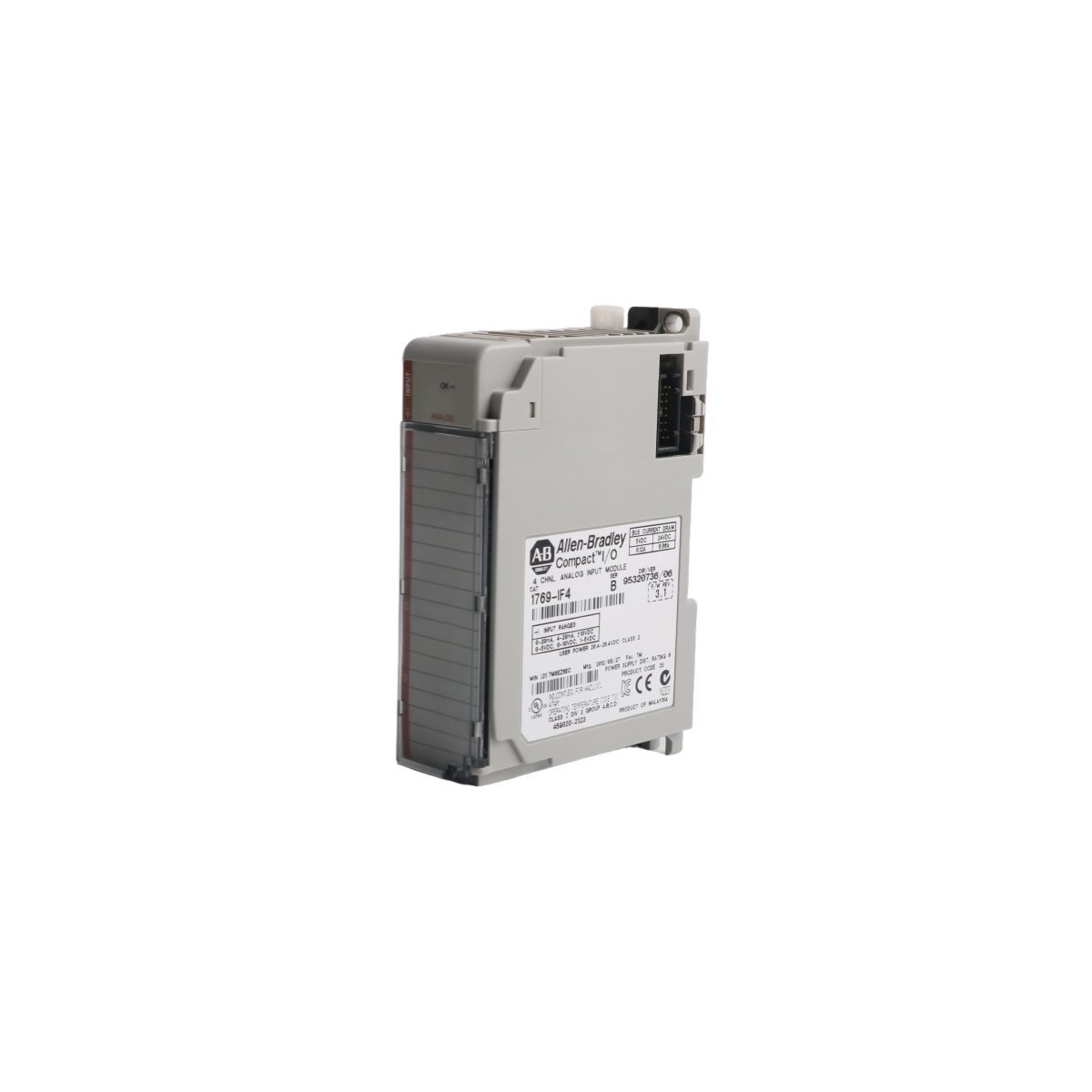

The Allen-Bradley 1769-IF4 functions as a versatile analog input interface for industrial automation. This module specifically supports the CompactLogix and MicroLogix 1500 controller platforms. It provides four high-resolution channels capable of processing both voltage and current signals. Furthermore, each channel allows for independent configuration to meet specific field device requirements. The unit converts analog data into 14-bit digital values for precise PLC processing. Consequently, it excels in applications requiring accurate temperature, pressure, or flow monitoring.

Robust Interference Filtering

Signal integrity remains a priority for the 1769-IF4 in electrically noisy environments. The module features excellent common-mode and normal-mode rejection characteristics. This ensures that 50/60 Hz power line interference does not degrade the input data. Moreover, the hardware supports both differential and single-ended wiring configurations. Differential mode provides additional protection against ground loops and electromagnetic interference. This flexibility allows engineers to optimize the wiring strategy for every unique installation site.

Comprehensive Diagnostic Monitoring

The 1769-IF4 includes built-in diagnostic tools to enhance system reliability and maintenance. It identifies open-circuit conditions and notifies the controller of potential wiring failures. Additionally, the module supports various data formats including engineering units and percent of full scale. These scaled values simplify PID loop tuning and complex mathematical calculations within the user program. LED status indicators provide immediate visual feedback regarding the operational health of the module. These features significantly reduce the time required for system commissioning and troubleshooting.

Technical Specifications

Mechanical Durability and Wiring

Industrial environments demand hardware that withstands physical stress and temperature variations. The 1769-IF4 maintains stable operation between 0°C and 60°C. Furthermore, the compact design saves valuable space inside the control enclosure. The removable terminal block accommodates a variety of wire gauges for secure electrical connections. This design facilitates quick module replacement without disturbing the field wiring. These physical attributes make the 1769-IF4 a dependable choice for modern manufacturing facilities.
