Description

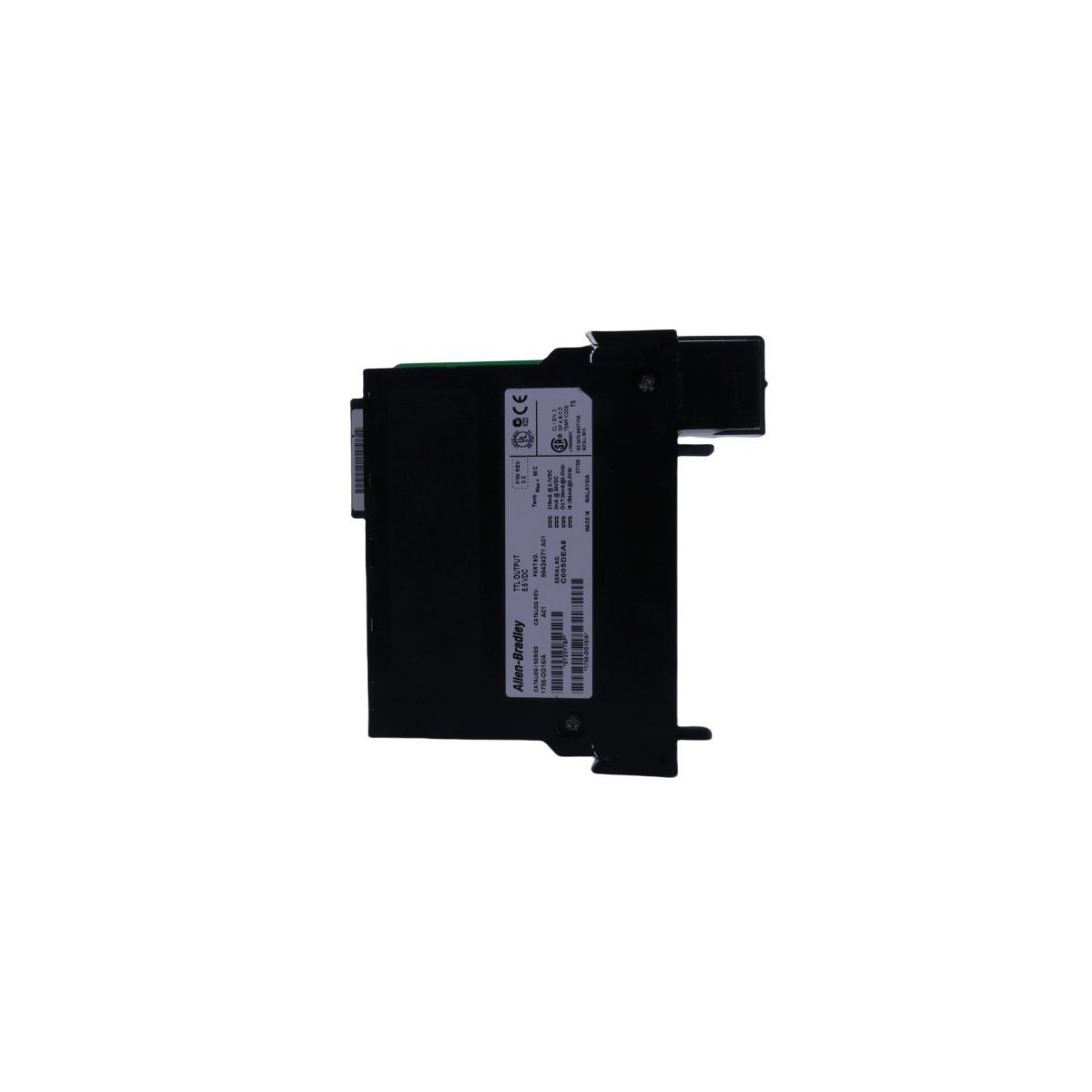

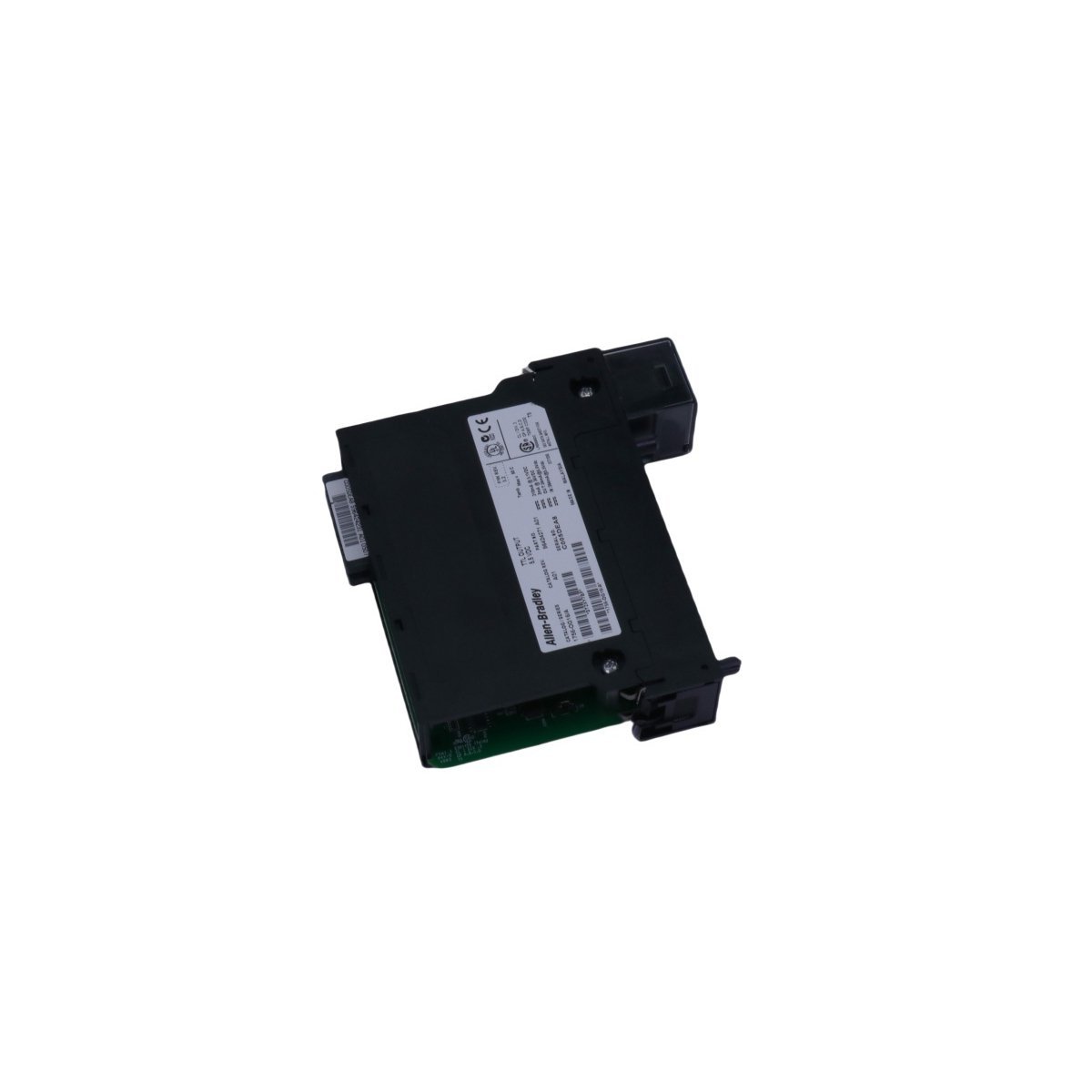

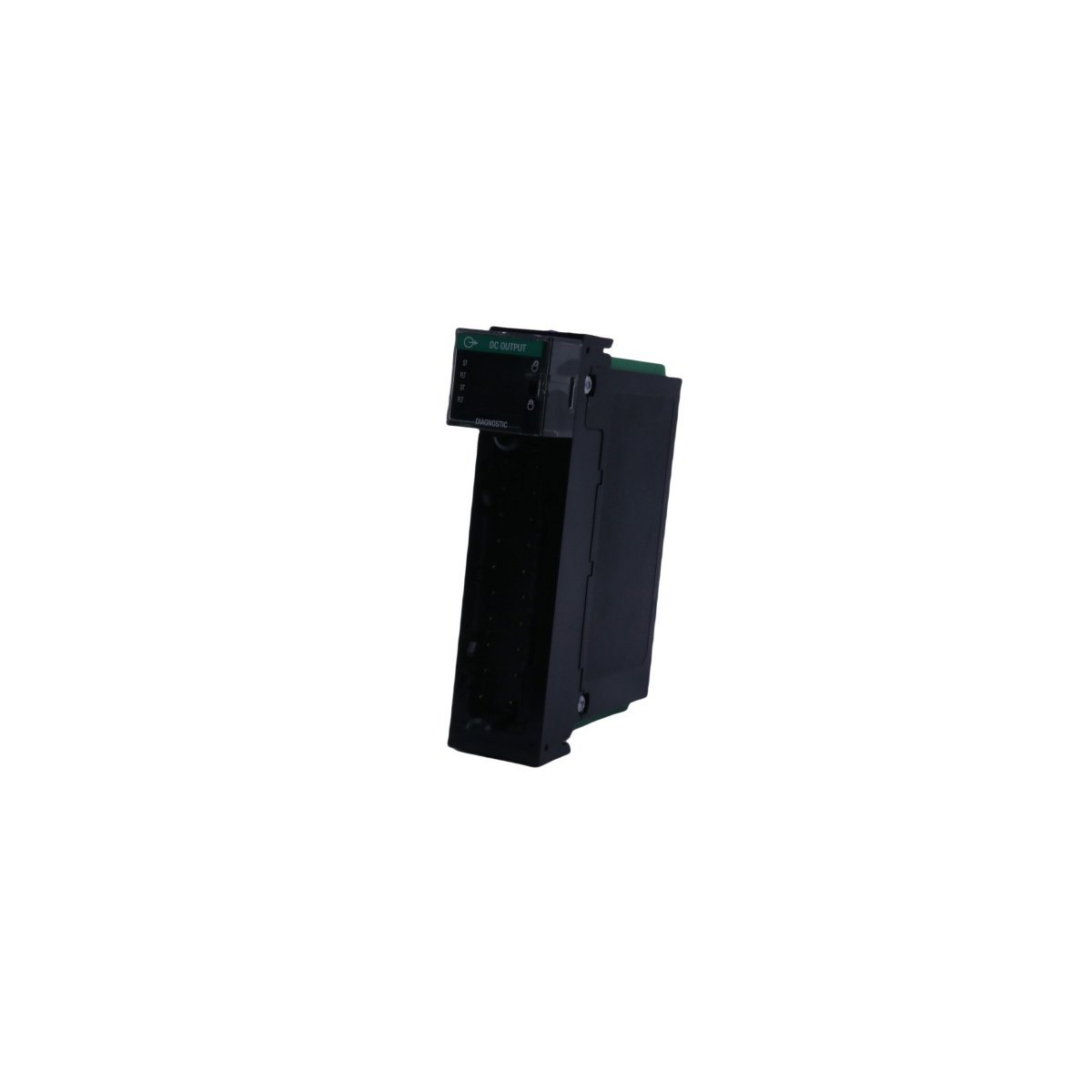

The Allen-Bradley 1756-OG16 serves as a high-performance digital output solution within the ControlLogix platform. This module specializes in Transistor-Transistor Logic (TTL) signaling for industrial automation environments. It facilitates seamless communication between the PLC backplane and low-voltage peripheral devices. Engineers typically deploy this module to interface with integrated circuits and specialized electronic sensors. The unit installs directly into any available slot in a standard 1756 ControlLogix chassis.

Technical Specifications

Functional Performance

The 1756-OG16 ensures rapid signal processing for time-sensitive applications. Internal circuitry manages a 450μs delay during OFF-to-ON transitions. The module requires 700μs to complete an ON-to-OFF transition cycle. These speeds maintain high throughput for high-speed logic circuits. Furthermore, the hardware includes diagnostic indicators to monitor module health and output status. Users can configure specific output states for controller transitions to Program or Fault modes.

Industrial Durability

Rockwell Automation designed this module to thrive in rigorous manufacturing settings. The hardware withstands 30G of operational shock during standard machine cycles. It resists vibration at levels up to 2.0G across a 10-500Hz frequency range. The module functions reliably in temperatures between 0°C and 60°C. Robust thermal management allows it to dissipate 5.2 BTU per hour. It complies with CE, UL, and CSA standards for global industrial compliance.
