Description

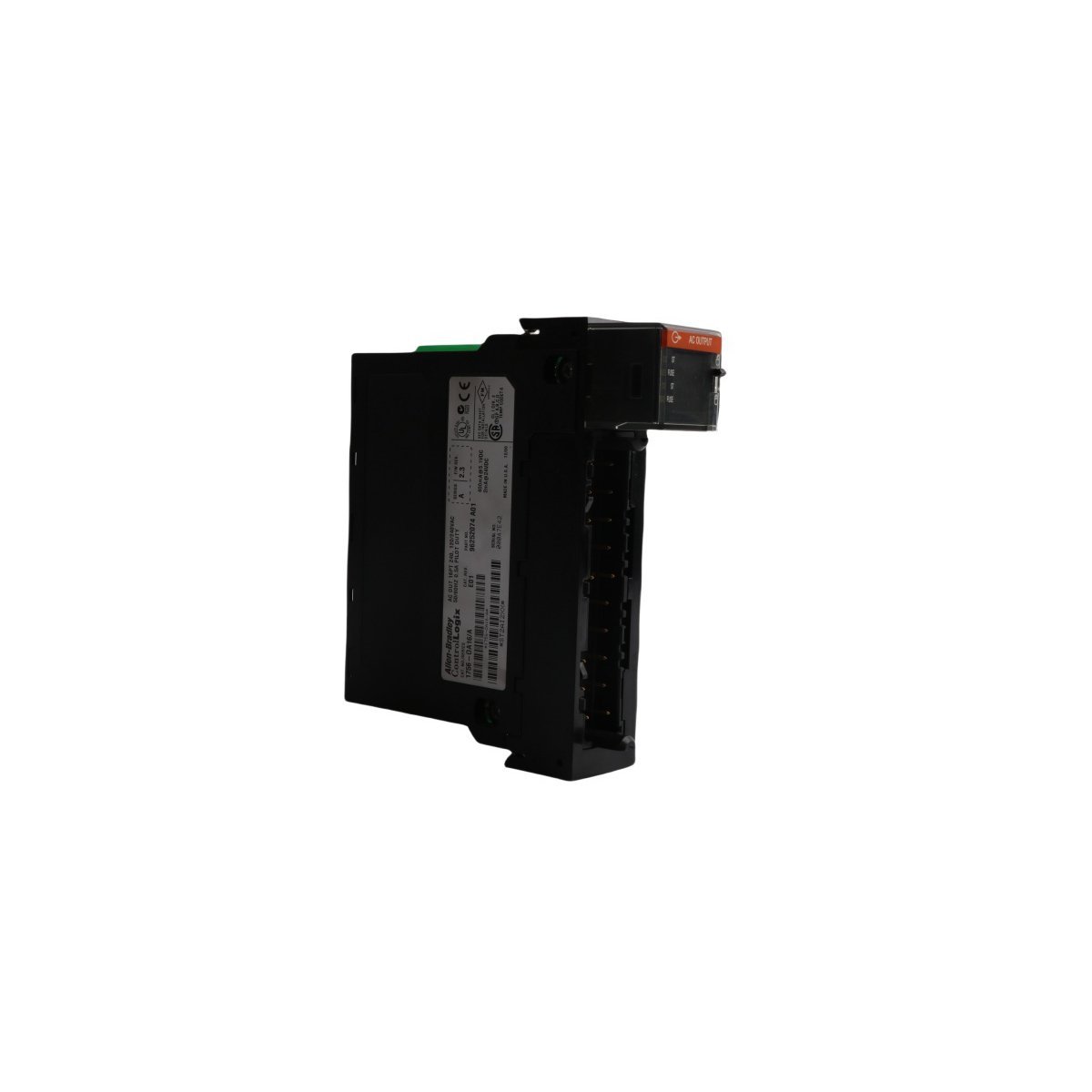

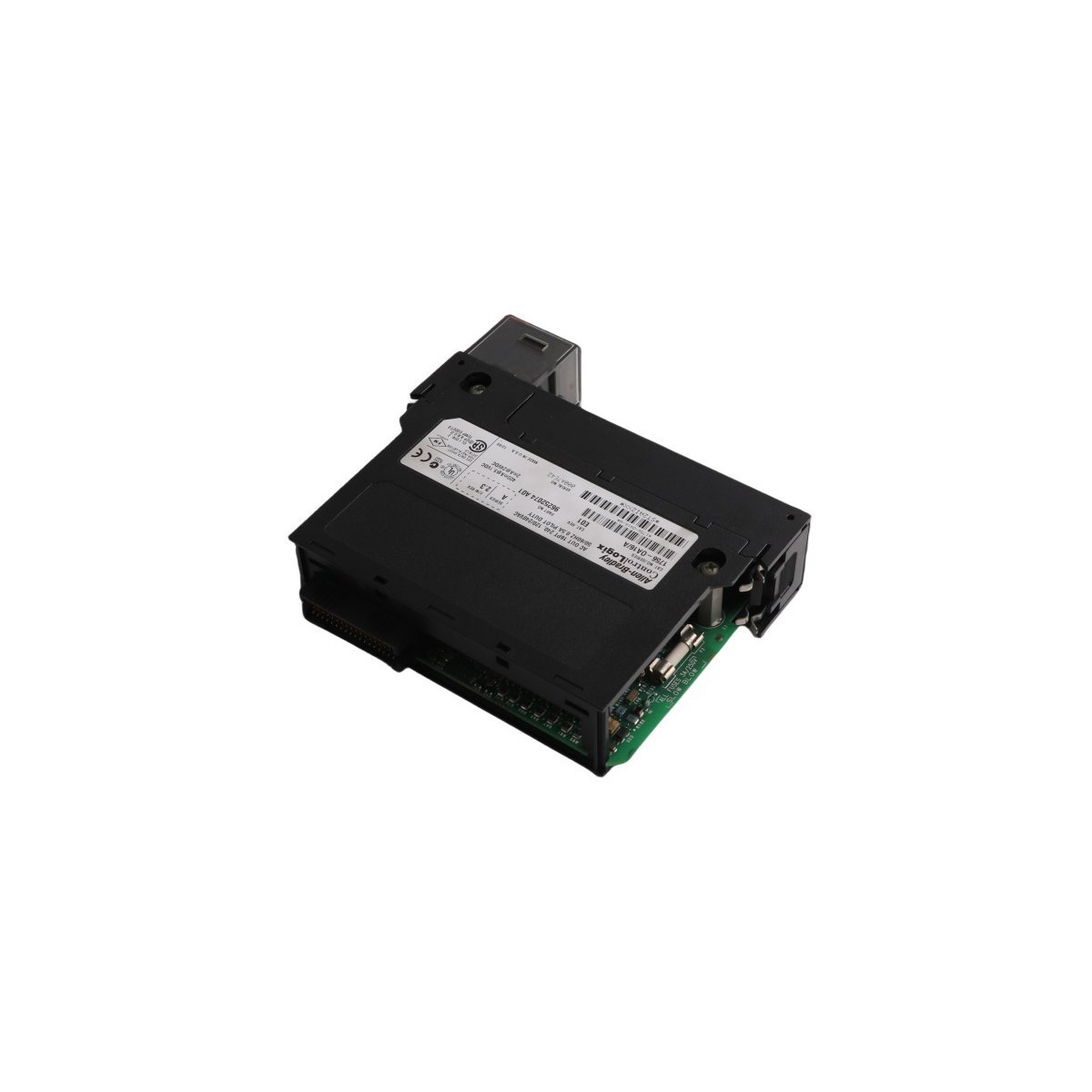

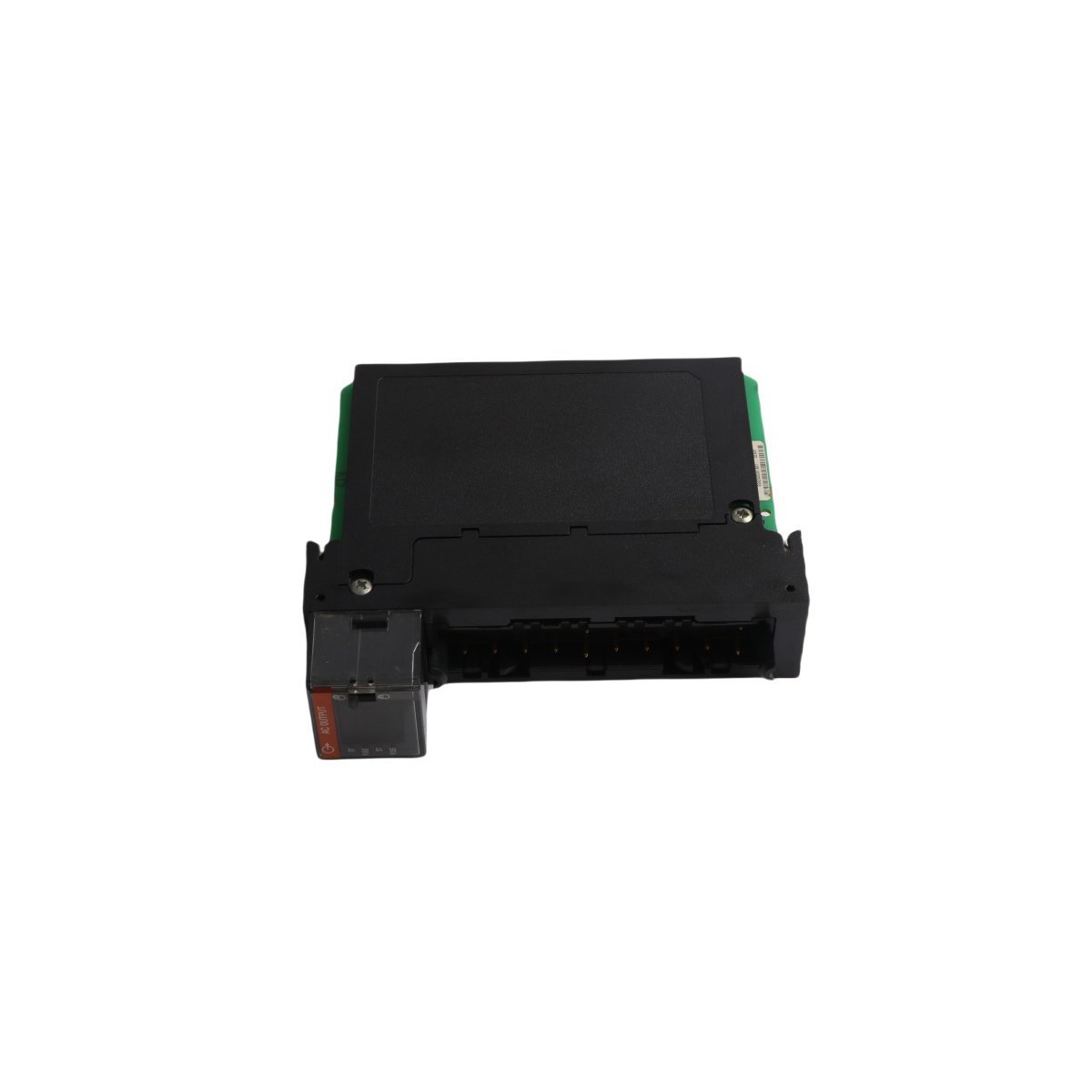

The Allen-Bradley 1756-OA16 serves as a high-density discrete output module for the ControlLogix platform. This module features 16 individual points to manage AC-powered field devices. It operates within a wide voltage range of 74V to 265V AC. Therefore, it easily accommodates various industrial power standards. The hardware design focuses on driving inductive loads such as motor starters and solenoids. Engineers frequently use this module in both local and distributed I/O configurations. It integrates seamlessly with ControlLogix and GuardLogix processing systems.

Operational Performance and Power Characteristics

This 1756-OA16 module delivers a continuous current of 0.5A per output point. For grouped operations, it supports 2A per group and 4A per module. Furthermore, it maintains a low 1.5V maximum on-state voltage drop. The unit consumes 400mA from the 5.1V DC backplane during standard operation. Thermal dissipation stays below 22.17 BTU per hour at maximum load. Consequently, the module minimizes heat buildup within the chassis environment. Built-in protection helps the unit withstand typical industrial vibration and electrical noise.

Diagnostics and Wiring Integration

The front panel includes comprehensive LED indicators for real-time status monitoring. These lights provide immediate feedback for channel activity and fault conditions. Specifically, the module alerts users to blown fuses or field power losses. This feature drastically reduces troubleshooting time during maintenance cycles. To facilitate wiring, the unit requires a Removable Terminal Block (RTB). Compatible models include the 1756-TBNH and 1756-TBSH connectors. These blocks allow technicians to replace modules without disconnecting field wiring.

Technical Specifications
