Description

Brief Product Description

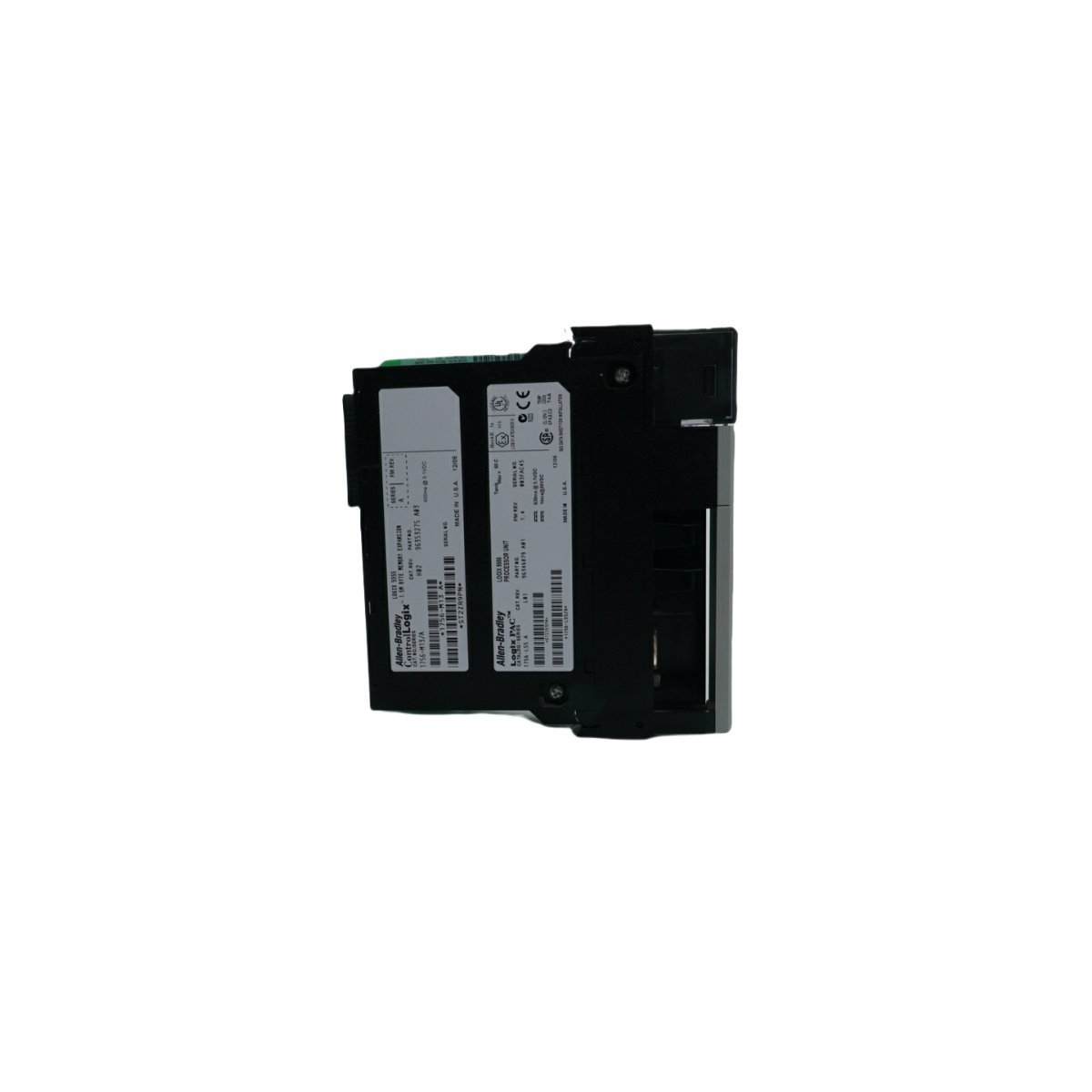

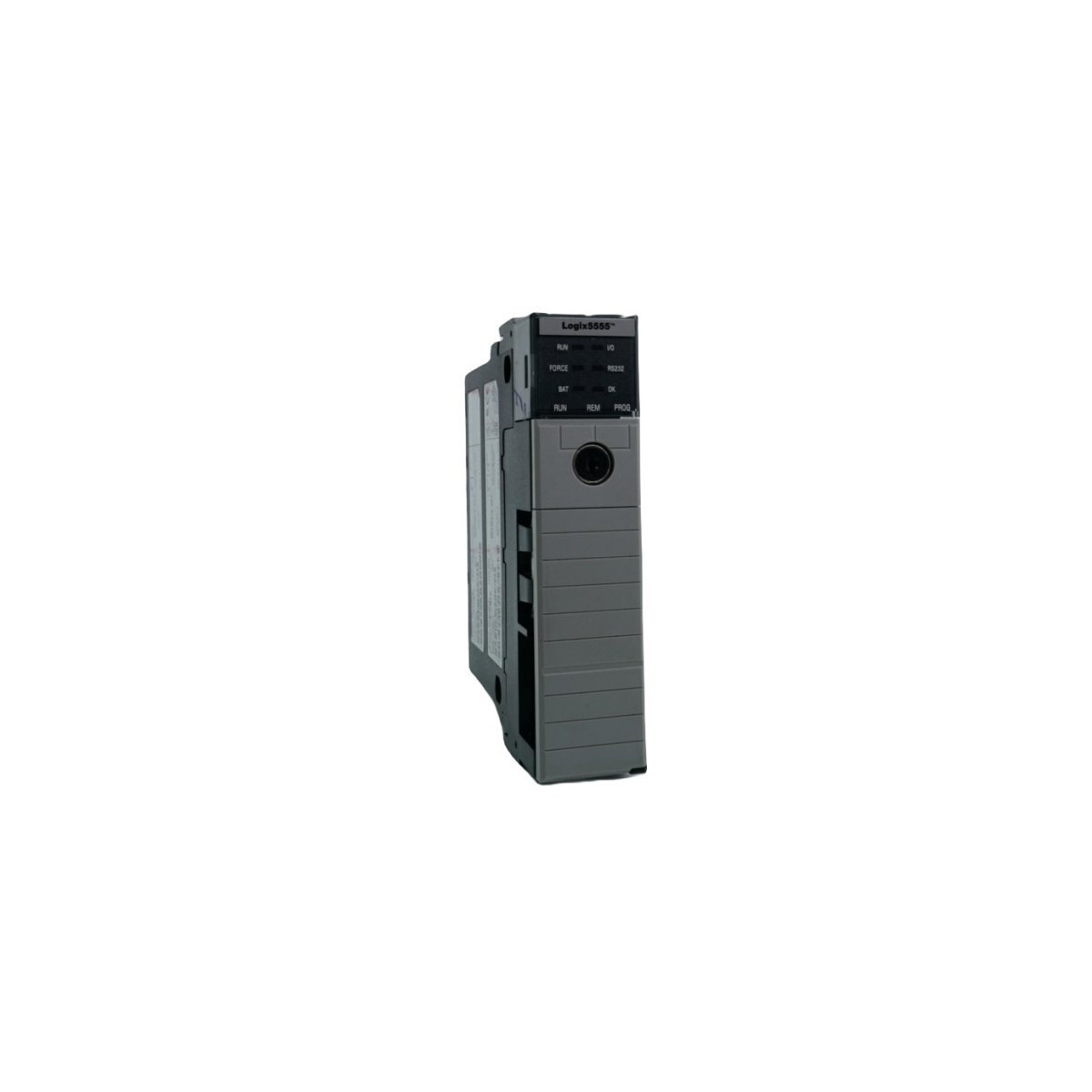

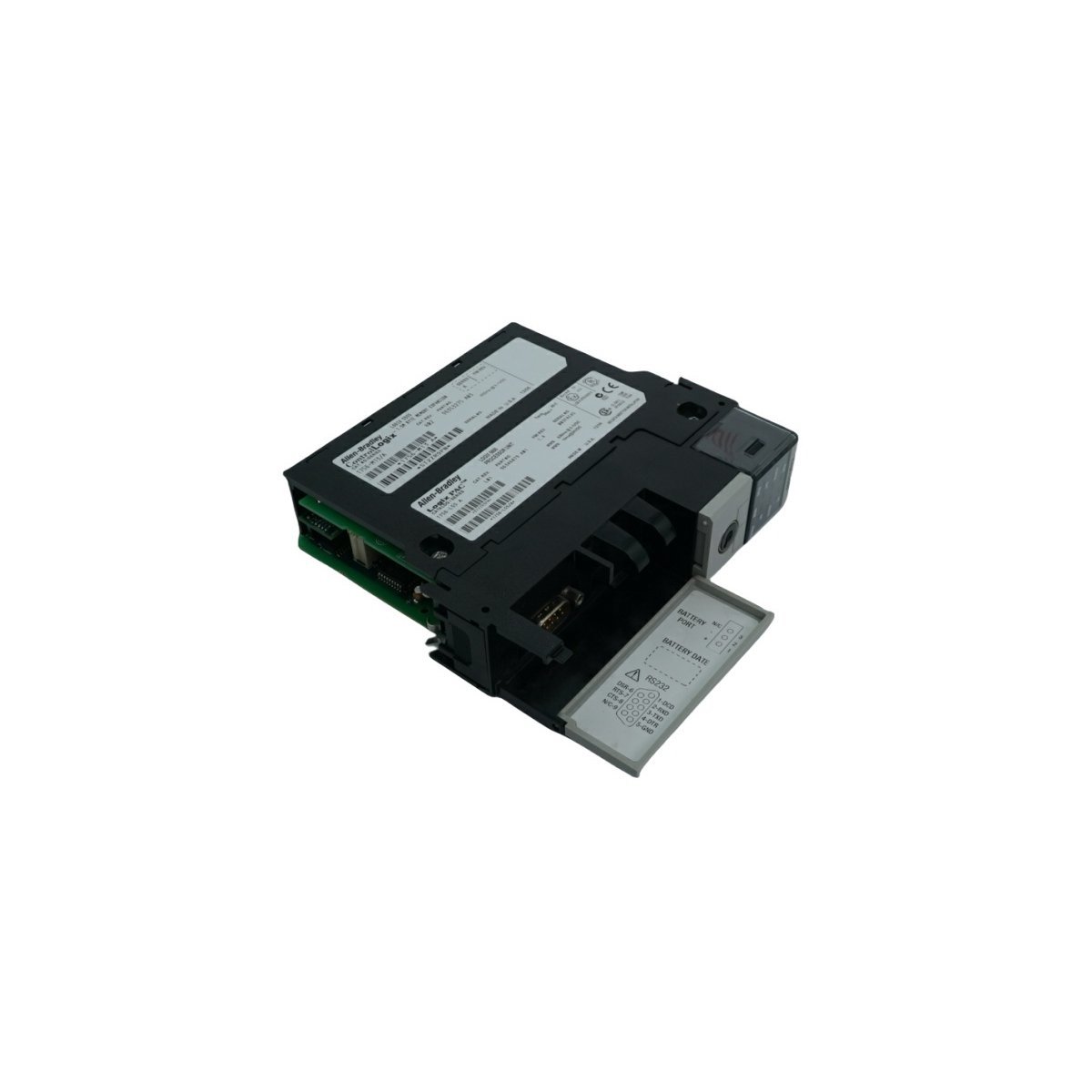

The Allen-Bradley 1756-L55M22 is a specialized ControlLogix 5555 processor featuring a dual-CPU architecture for simultaneous logic execution and backplane communication.³ This controller provides 750 KB of user memory, making it an ideal choice for mid-sized industrial automation and high-speed discrete control applications.⁴

​Product Description

High-Efficiency Dual-CPU Architecture

The Allen-Bradley 1756-L55M22 optimizes industrial processing through its advanced dual-processor design.⁵ One dedicated Logix CPU focuses entirely on executing application code and user logic, while a separate backplane CPU manages high-speed data exchange with I/O modules and peripheral devices. This parallel processing capability prevents communication overhead from slowing down logic execution, which ensures consistent scan times even in data-intensive environments. With 750 KB of logic memory and 208 KB of dedicated I/O memory, this ControlLogix 5555 unit balances storage capacity with rapid computational throughput.⁶

Versatile Network and Data Integration

This processor facilitates seamless connectivity across the entire enterprise. It features an integrated RS-232 serial port for local programming via a 1756-CP3 cable and supports broader network integration through optional communication bridge modules. The 1756-L55M22 effectively manages system-shared tags across EtherNet/IP, ControlNet, and DeviceNet protocols. Furthermore, the controller utilizes a “produce/consume” data model, which allows multiple controllers to share real-time information without the need for complex messaging code. This streamlined approach significantly reduces the engineering time required for large-scale, networked automation systems.

Robust Maintenance and Diagnostics

Engineers rely on the 1756-L55M22 for its comprehensive fault-handling and diagnostic features.⁷ The module includes a dedicated I/O status LED that provides immediate visual feedback during hardware anomalies, while the internal firmware offers detailed fault logs for rapid troubleshooting.⁸ To prevent data loss during power cycles, the unit utilizes either a 1756-BA1 or 1756-BATM battery assembly for volatile memory backup.⁹ Additionally, the controller supports sophisticated multitasking, allowing users to prioritize critical application tasks and allocate processing resources where they are needed most. This combination of durability and intelligent resource management makes the 1756-L55M22 a cornerstone of reliable PLC systems.

Technical Specification Table
