Description

Brief Product Description

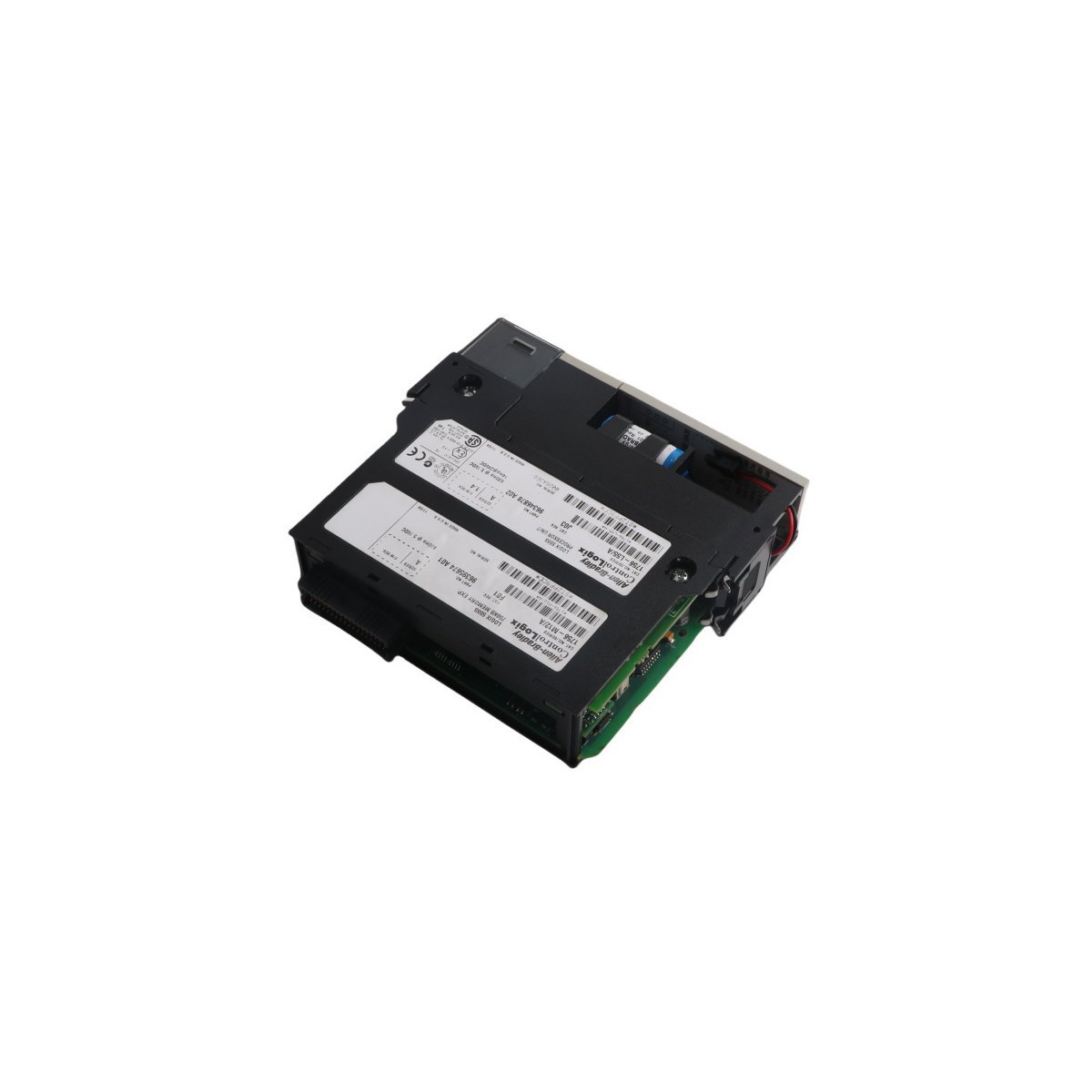

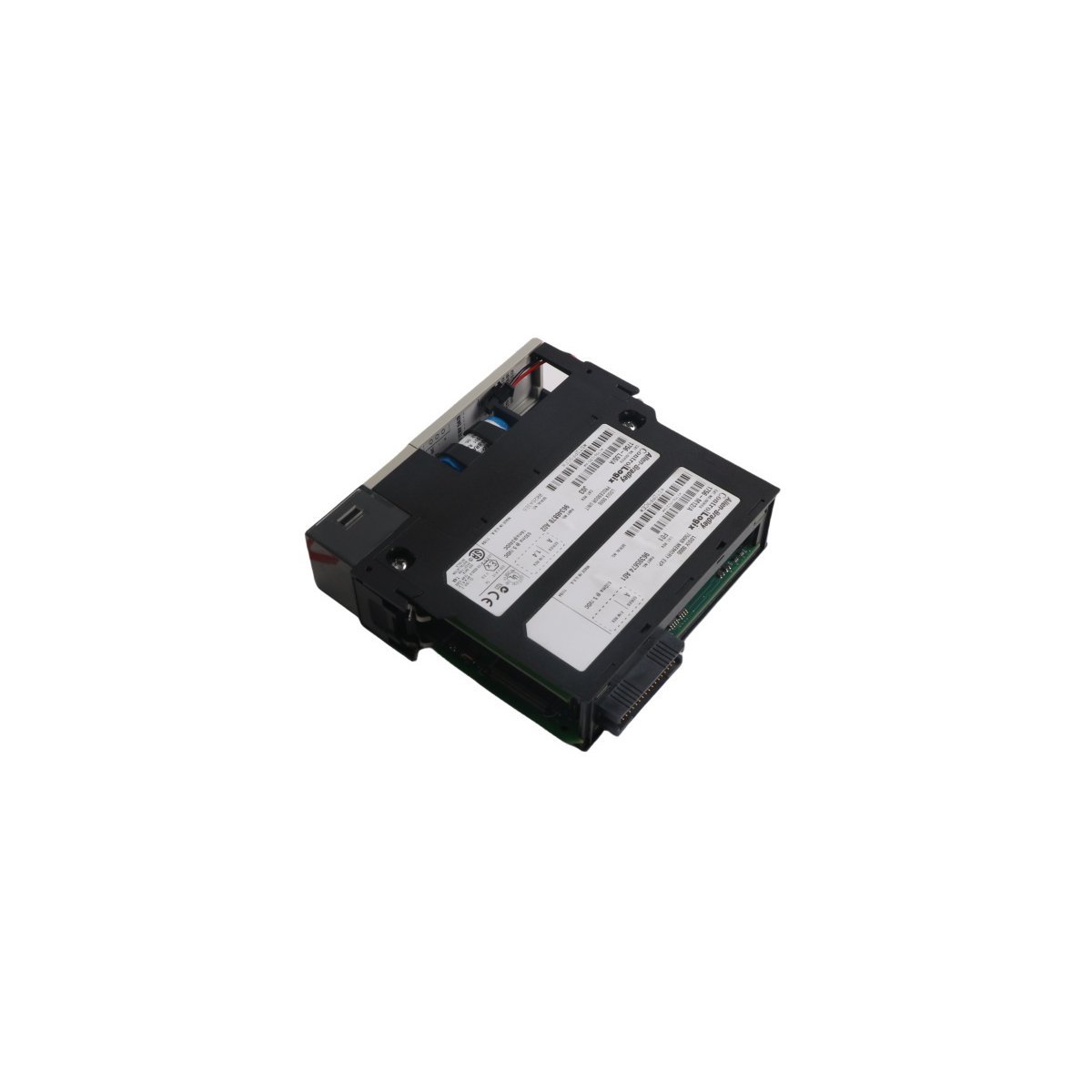

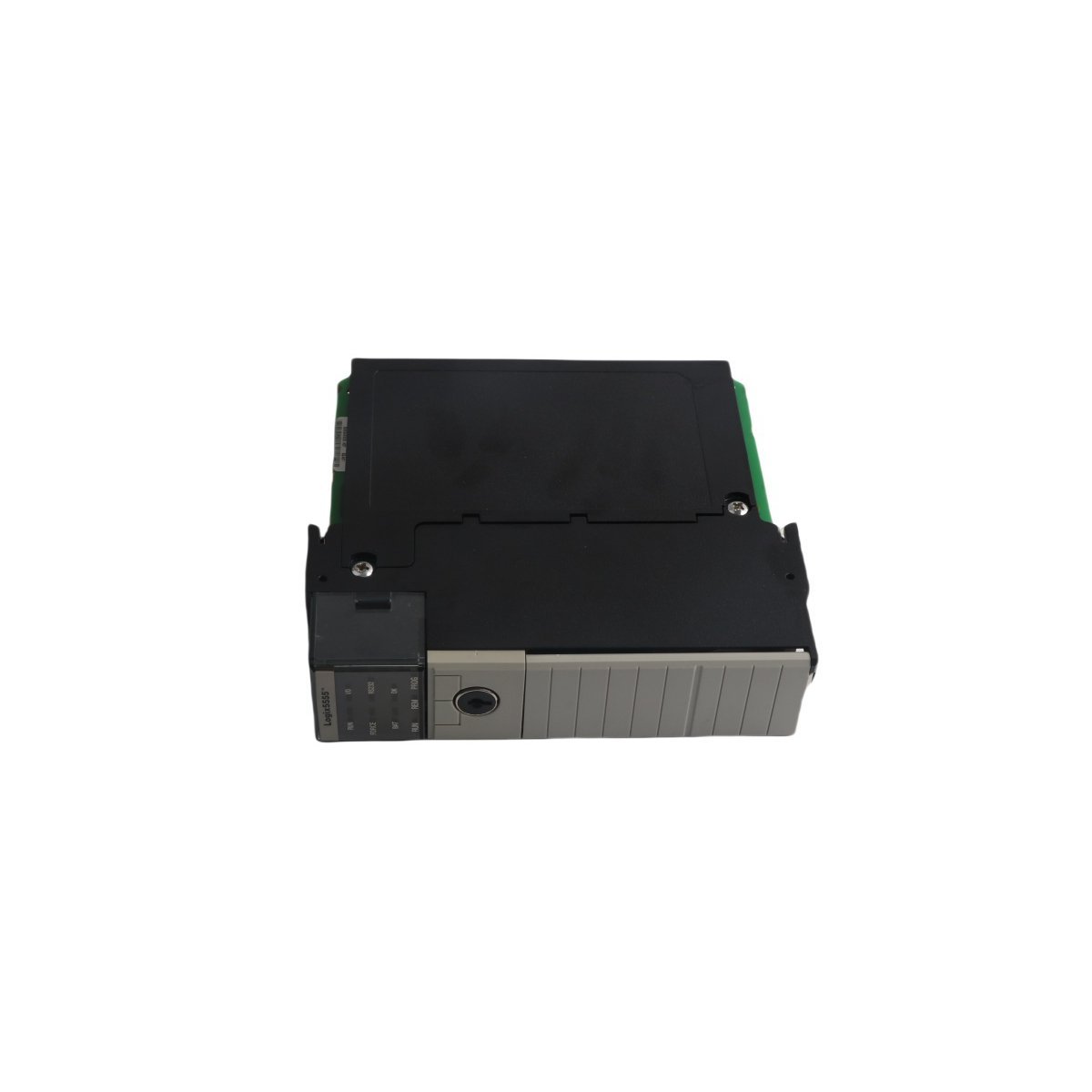

The Allen-Bradley 1756-L55M16 is a high-capacity ControlLogix 5555 processor featuring 7.5 MB of user memory for complex logic and data intensive applications.² This dual-processor module optimizes system performance by dedicating hardware resources to both application execution and high-speed backplane communication.

Product Description

Parallel Processing Architecture

The Allen-Bradley 1756-L55M16 utilizes a sophisticated dual-CPU design to maximize industrial throughput. While the primary Logix CPU focuses exclusively on executing user-defined application code and complex message instructions, a secondary backplane CPU manages high-speed data exchange with I/O modules and network interfaces. This separation of tasks prevents communication overhead from impacting logic execution speeds. With 7.5 MB of dedicated data and logic memory plus an additional 208 KB of I/O memory, the controller provides the significant headroom required for large-scale discrete and process control applications.

Multi-Network Connectivity and Integration

System interoperability remains a core strength of the 1756-L55M16 processor. It supports seamless integration across the Rockwell Automation Integrated Architecture by interfacing with EtherNet/IP, ControlNet, and DeviceNet networks. This flexibility allows the controller to broadcast and consume system-shared tags, facilitating real-time data synchronization across multiple controllers and HMI workstations.³ For localized configuration and maintenance, the module includes a built-in serial port compatible with the 1756-CP3 cable, ensuring that engineers can perform direct programming and diagnostic uploads in the field.⁴

Advanced Multitasking and Reliability

To improve machine efficiency, the AB 1756-L55M16 supports robust multitasking capabilities that allow users to prioritize time-critical operations over background tasks. The module leverages the Logix5000 programming environment, enabling developers to use ladder logic, structured text, and function blocks in both online and offline modes. Reliability is reinforced through hardware-based diagnostic tools, including a dedicated I/O status LED that provides immediate visual feedback on communication integrity. Furthermore, the use of a 1756-BA1 or 1756-BATM battery assembly ensures that critical project data remains secure within the volatile memory during power cycles.

Technical Specifications
