Description

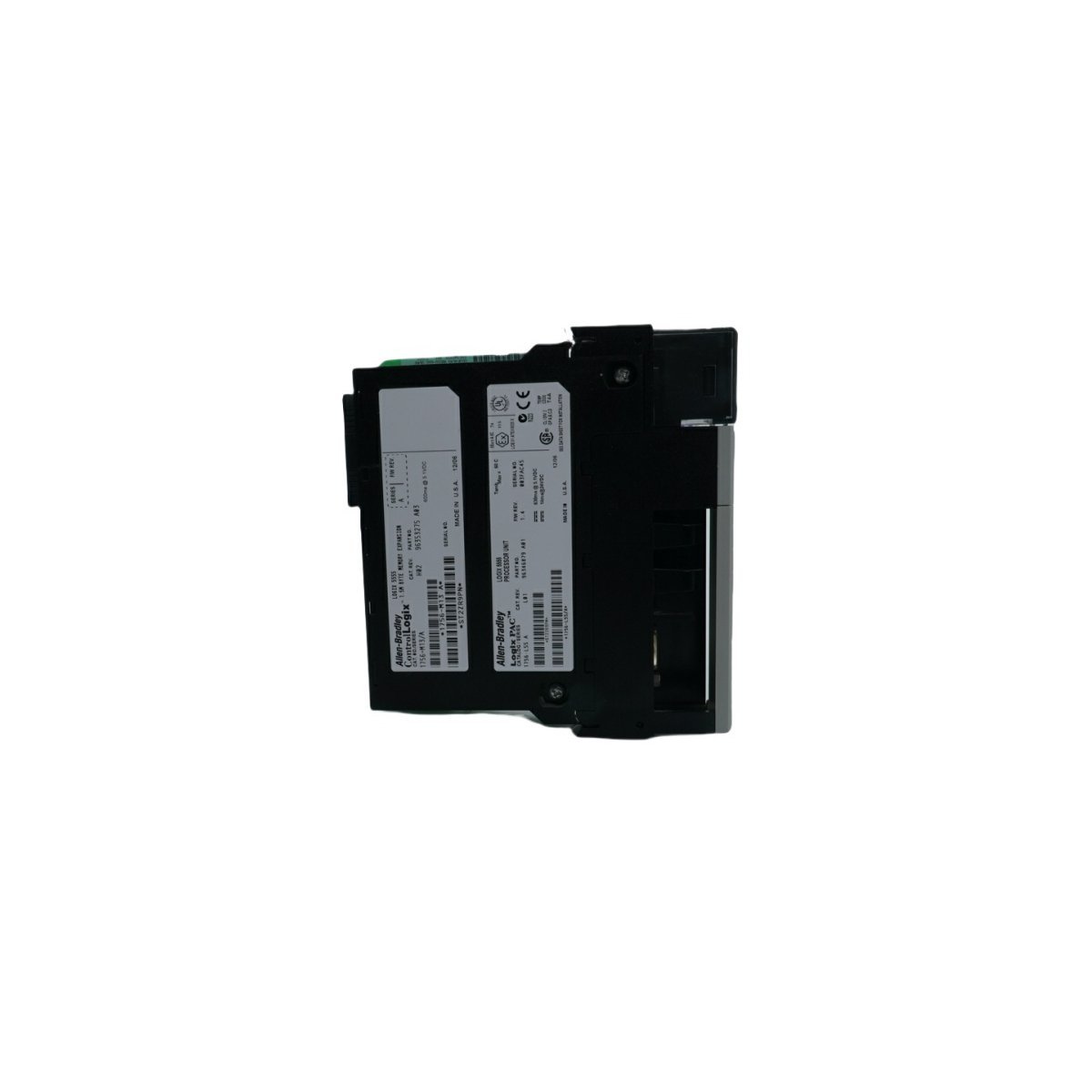

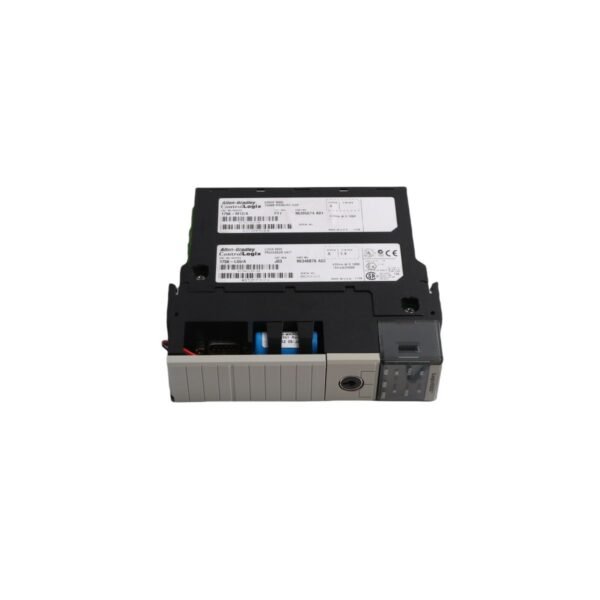

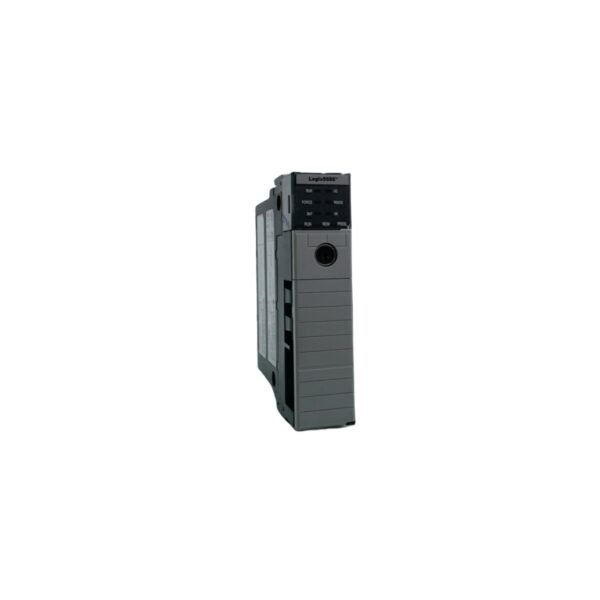

The Allen-Bradley 1756-L55M13 is a high-performance ControlLogix 5555 controller designed for intensive automation tasks. This processor manages complex control engine requirements across various industrial sectors. It provides a scalable solution for multi-discipline control within a single chassis environment.

Memory Allocation and Performance Data

Communication and Network Versatility

This processor supports an extensive array of industrial communication protocols. It integrates seamlessly with EtherNet/IP, ControlNet, and DeviceNet networks. Furthermore, the unit facilitates data exchange via Data Highway Plus and Remote I/O.

The controller also handles Modbus communication through specialized ladder routines. This broad connectivity ensures compatibility with diverse field devices and supervisory systems. Users can also implement SynchLink for high-speed controller-to-controller data synchronization.

Rugged Reliability and Environmental Limits

The 1756-L55M13 withstands demanding factory conditions with a robust hardware design. It operates effectively in temperatures ranging from 0 to 60°C. Additionally, the unit survives operational shocks up to 30g without performance degradation.

A 1756-BA1 lithium battery provides critical power for volatile memory retention. The open-style construction allows for efficient heat management during heavy processing cycles. For safety, the device maintains 30V continuous isolation voltage for external serial ports.

Implementation and Maintenance

Engineers can program this module using 1756-CP3 or 1747-CP3 serial cables. This controller supports full redundancy when configured on a ControlNet network. Such a setup ensures high system availability for mission-critical processes. Periodic battery inspections maintain the integrity of stored logic during power outages.
