Description

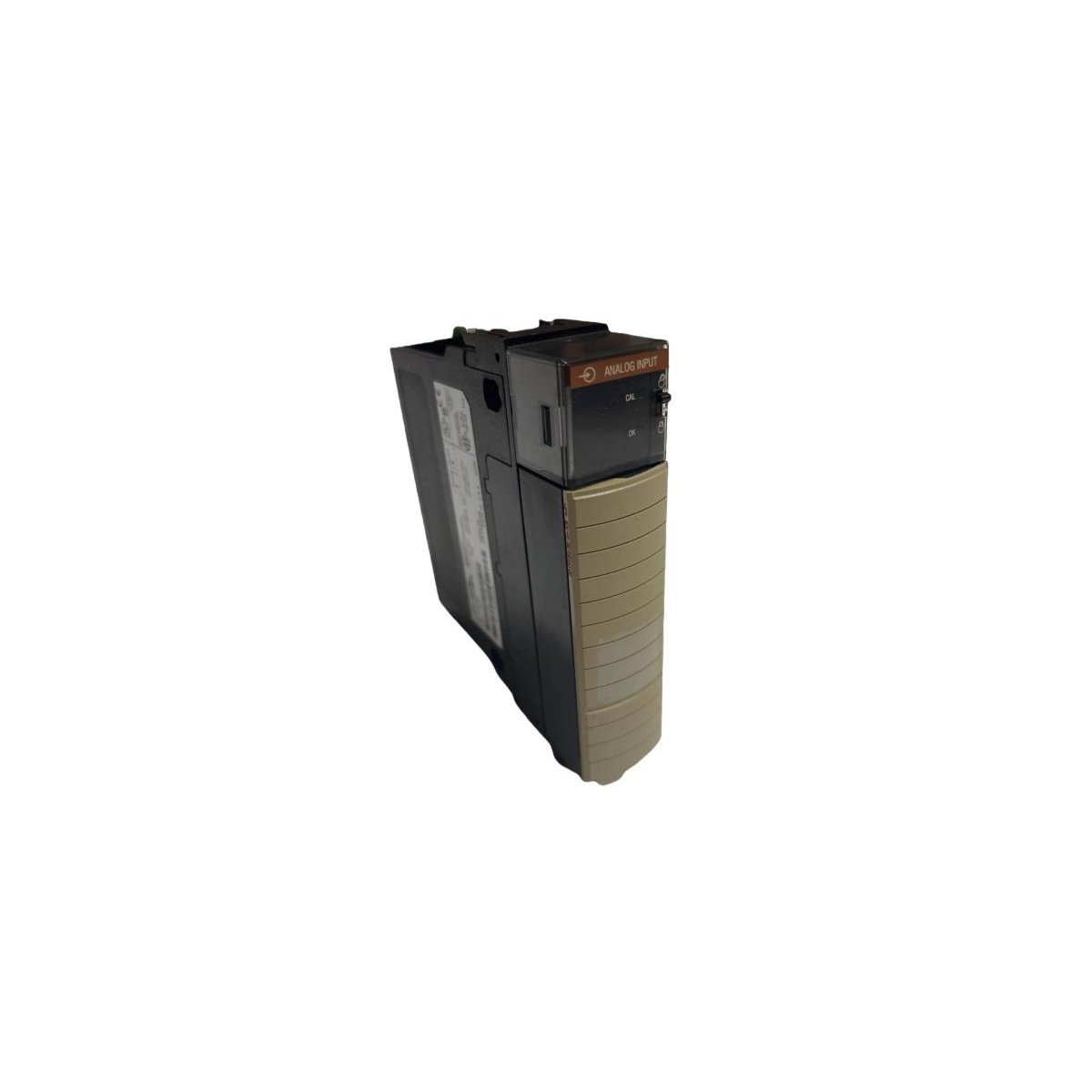

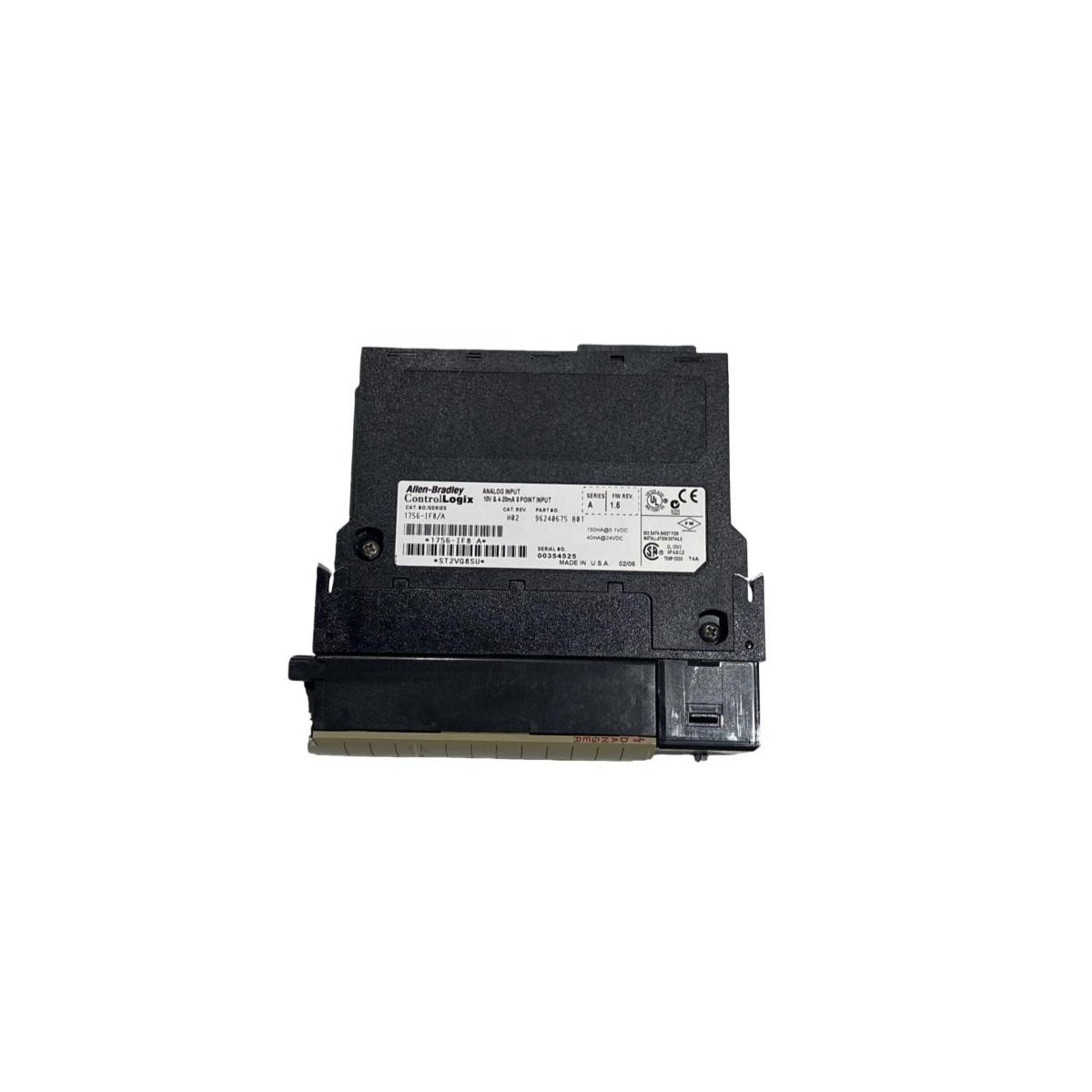

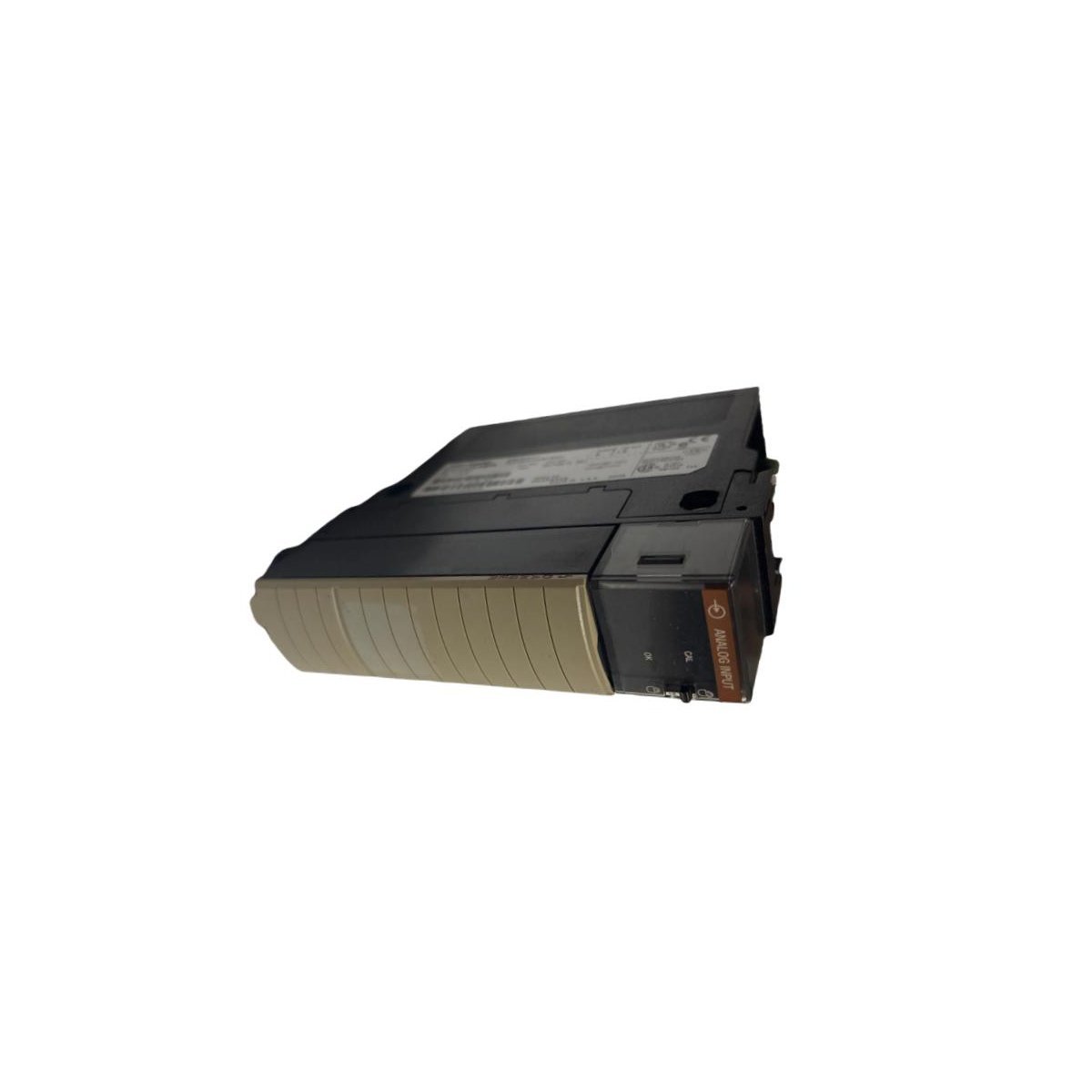

The Allen-Bradley 1756-IF8 functions as a high-resolution analog interface for the ControlLogix automation platform. This module converts continuous field signals into precise digital data for the controller. It features eight separate points to monitor critical process variables simultaneously. Furthermore, the unit supports diverse signal types including voltage and current ranges. It specifically handles standard industrial inputs like $\pm10V$, $0-10V$, $0-5V$, and $4-20mA$. Consequently, this versatility allows for seamless integration with various sensors and transmitters.

Advanced Data Sharing and Architecture

This module utilizes proprietary Producer/Consumer technology to optimize system-wide communication. This architecture allows multiple controllers to access input data across the backplane at once. Therefore, it eliminates the need for redundant wiring or complex data mapping. The 1756-IF8 also offers onboard scaling to engineering units directly within the hardware. This feature reduces the processing load on the main CPU during execution. Additionally, the module provides real-time digital filtering to ensure signal integrity in noisy environments.

Industrial Durability and Maintenance

The 1756-IF8 fits into any standard ControlLogix chassis for flexible system layout. It uses a removable terminal block to simplify field wiring and maintenance tasks. Compatible terminal blocks include the 1756-TBNH and 1756-TBSH screw or spring-style connectors. Furthermore, the module supports “Removal and Insertion Under Power” (RIUP) capabilities. This allows technicians to replace hardware without shutting down the entire system. Such functionality is vital for continuous process industries where uptime is critical.

Technical Specifications
